Used Taiwan Youjia U-600P Five-axis Machining Center

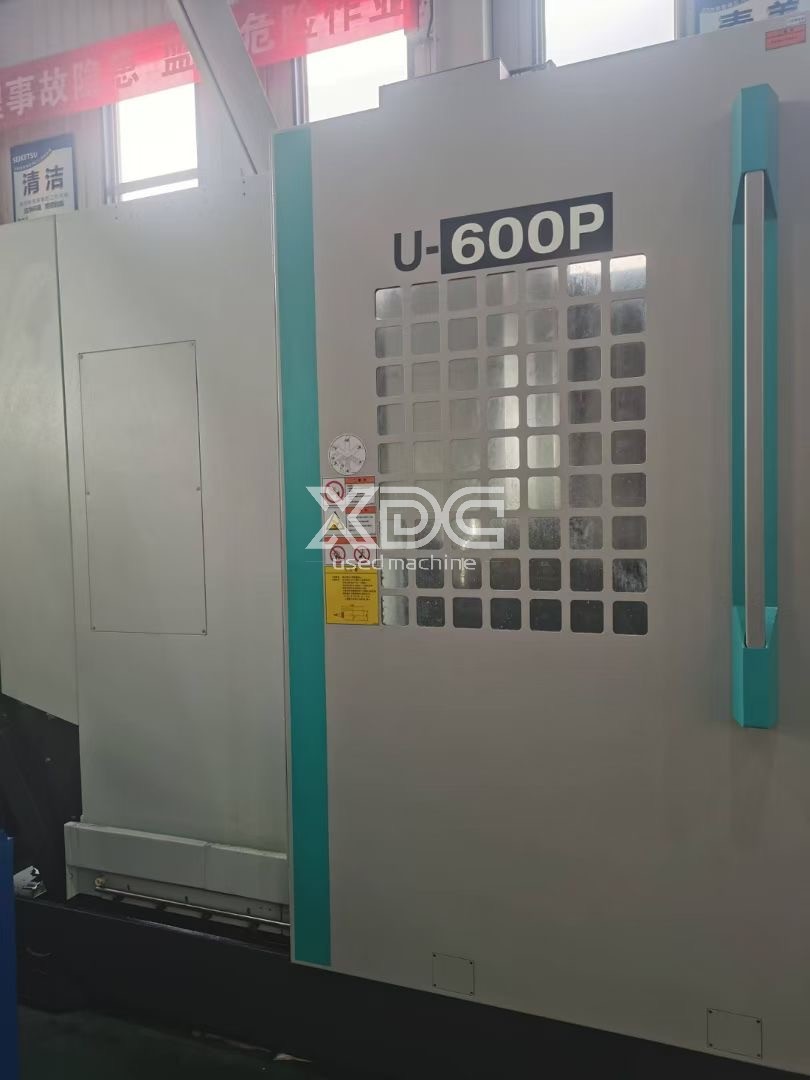

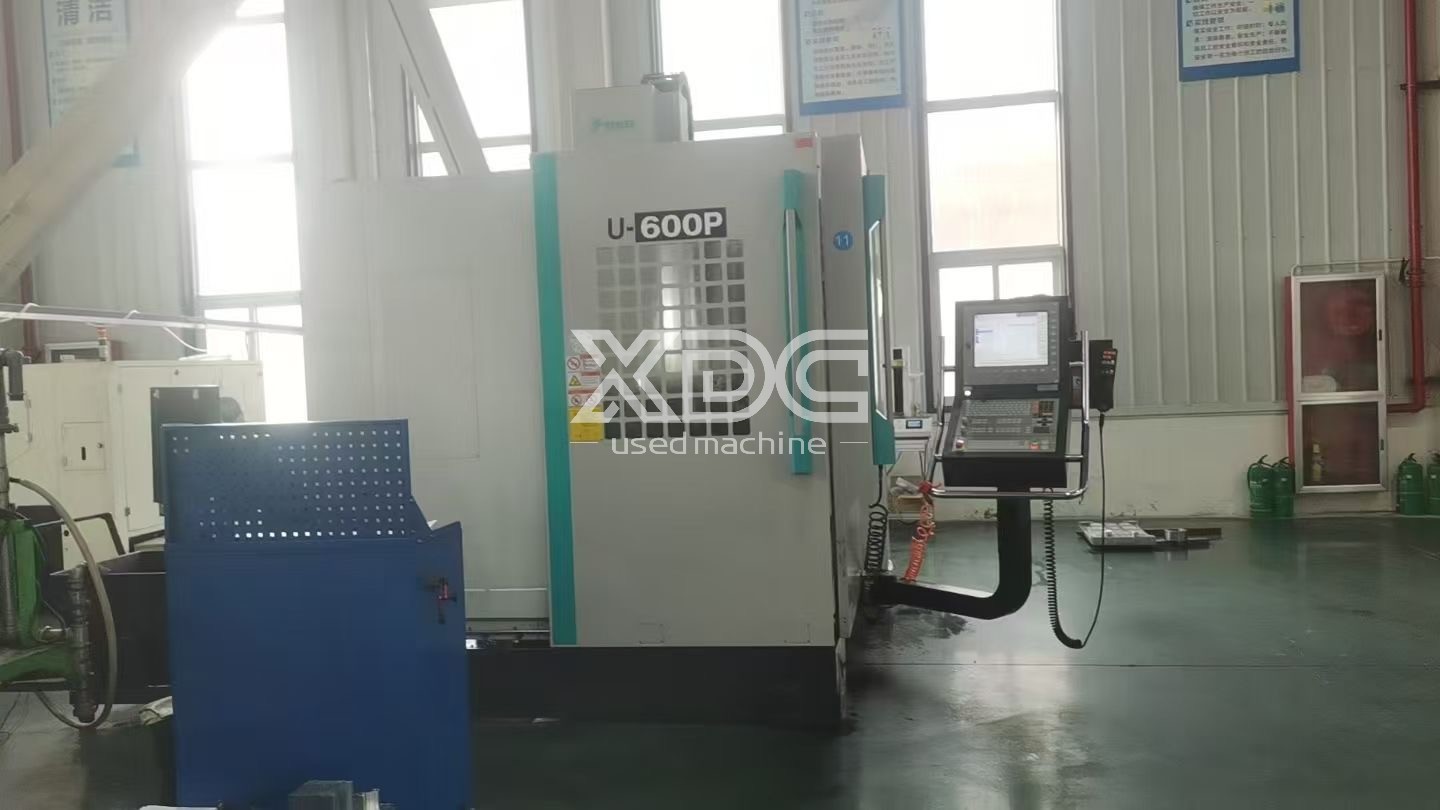

Taiwan Youjia U-600P Five-axis Machining Center

Model: U-600P

X-axis travel: 460mm.Y-axis travel: 620mm.Z-axis travel: 400mm

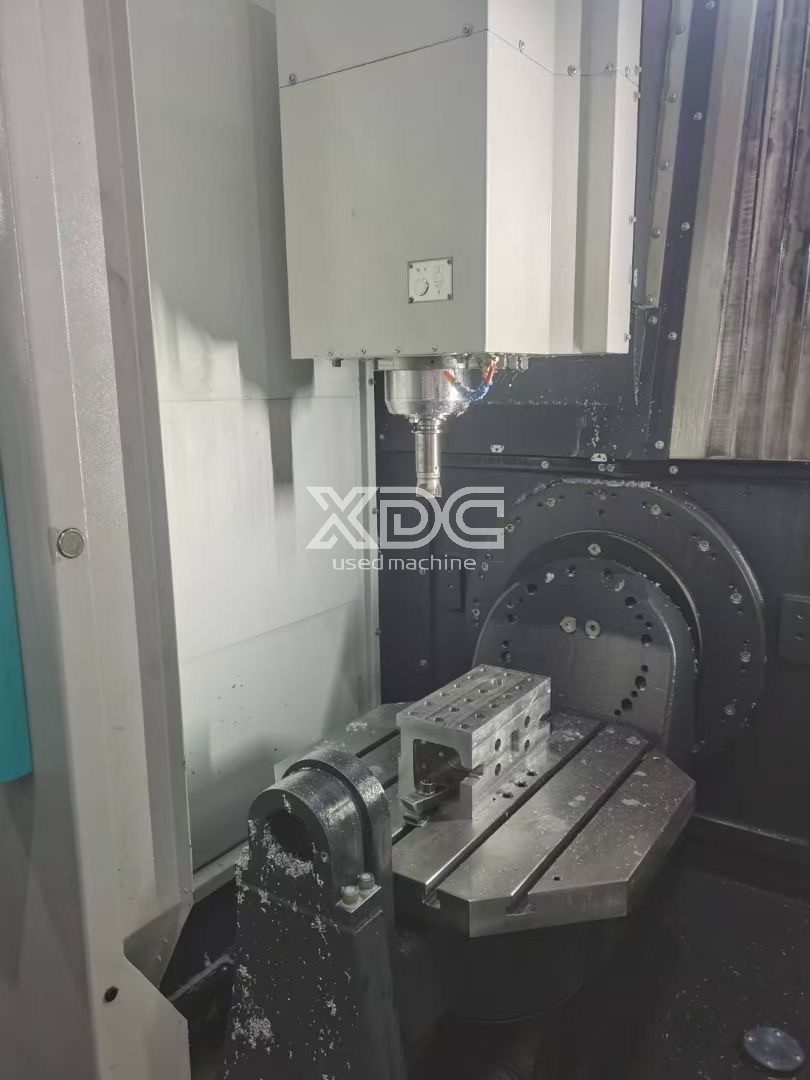

Tilt angle of A-axis: +110°--90°.Rotation angle of C-axis: 360°

Workbench size: φ600mm.Workbench load capacity: 250kg

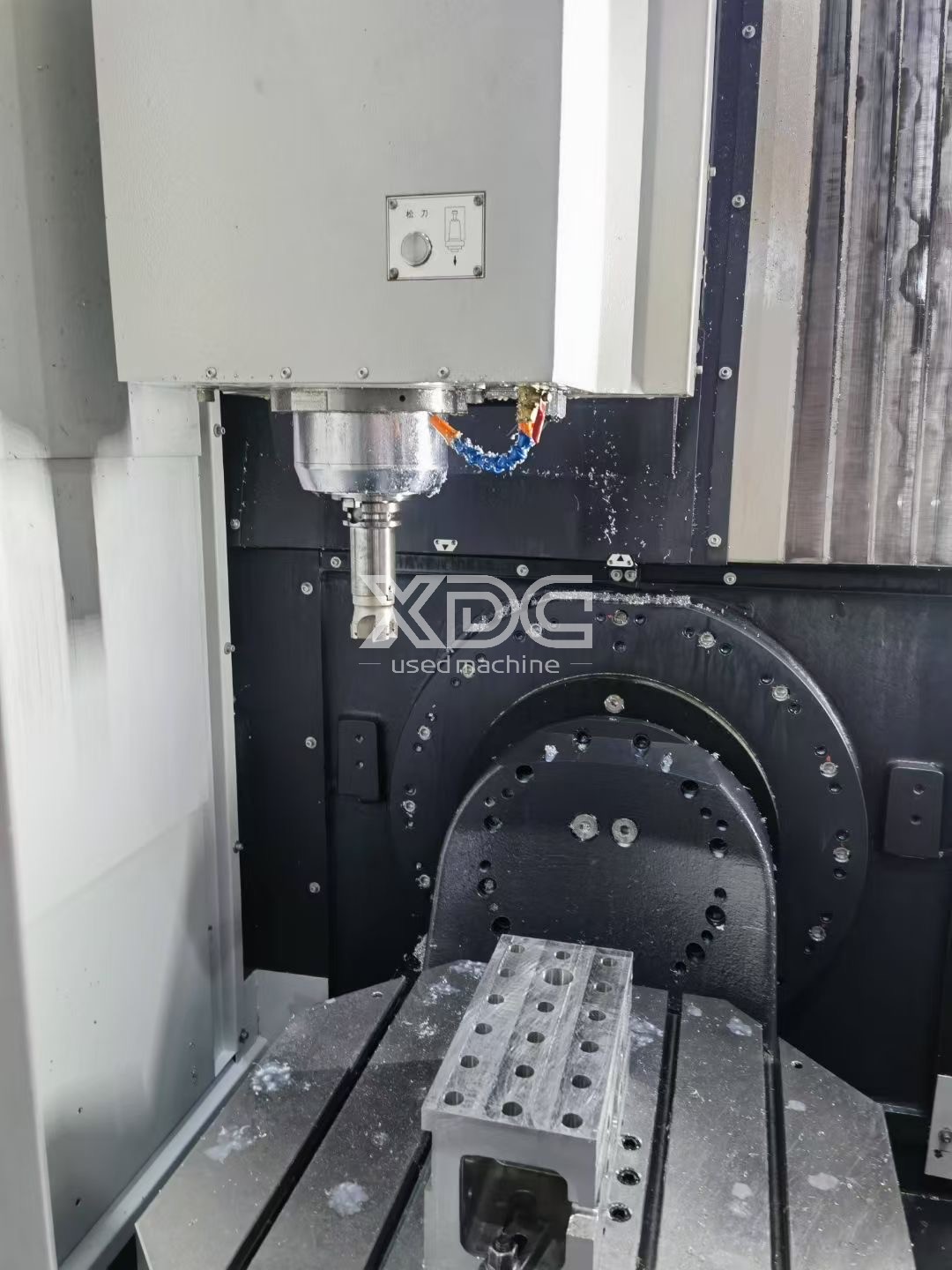

Minimum indexing unit: 0.001°.Spindle speed: 10,000rpm

Spindle hole taper: 7/24 tape rNO.40.Spindle horsepower: 7.5/11kw

X-axis rapid feed: 30m/min.Y-axis rapid feed: 30m/min.Z-axis rapid feed: 30m/min

Tool magazine type: Arm type.Number of tools: 24

Tool holder bolt: P-40T(45`).Tool weight: 7kg

Tool length: 280mm.Tool diameter: Ф80mm

Tool diameter (without adjacent tools): Ф150mm

Others: Floor area: 3850x2350mm.Mechanical weight: 8,145kg

Machine height: 3000mm.Power capacity: 35KVA

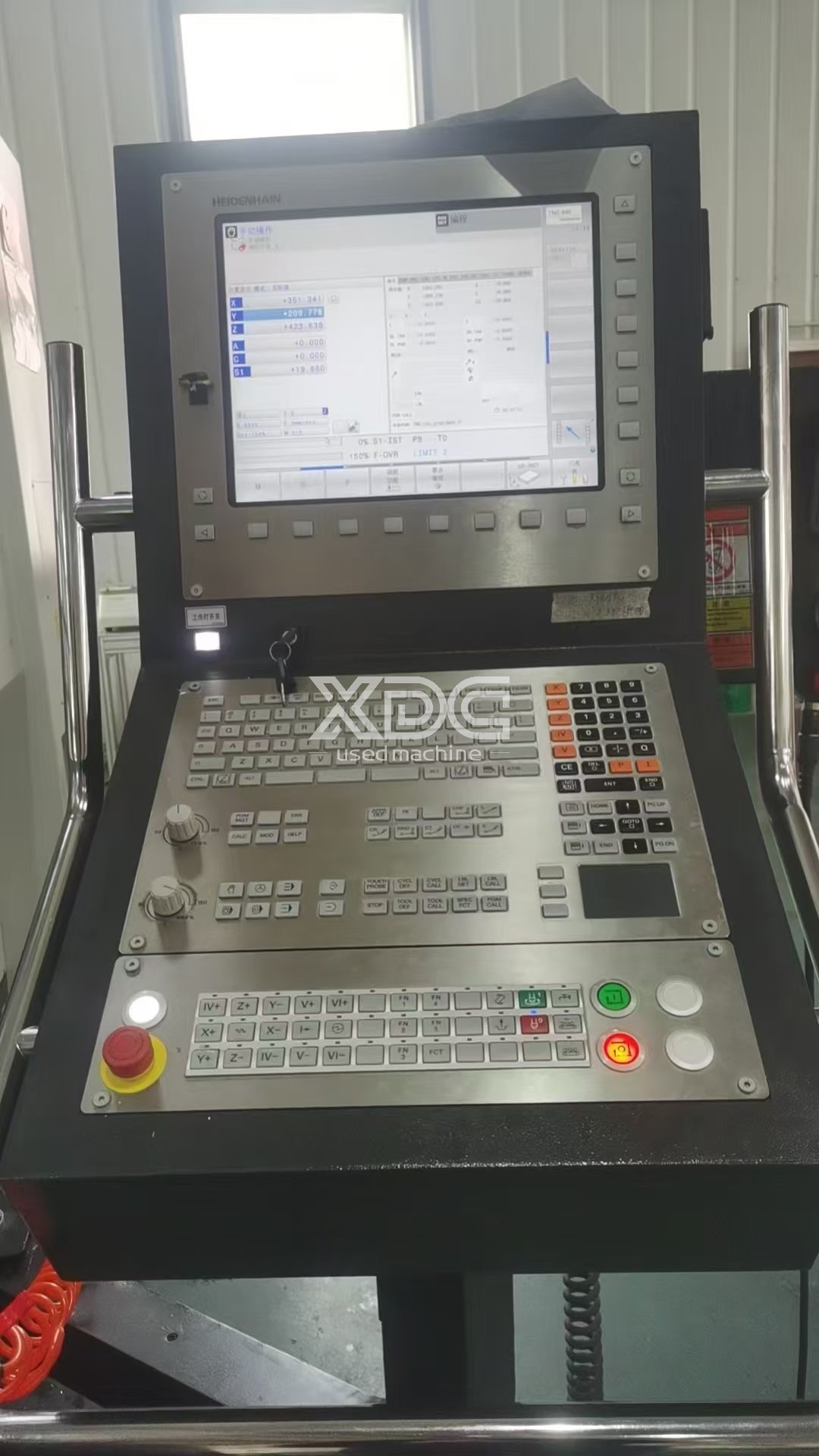

Air pressure source: 6-8bar.The latest Heidenhain system
