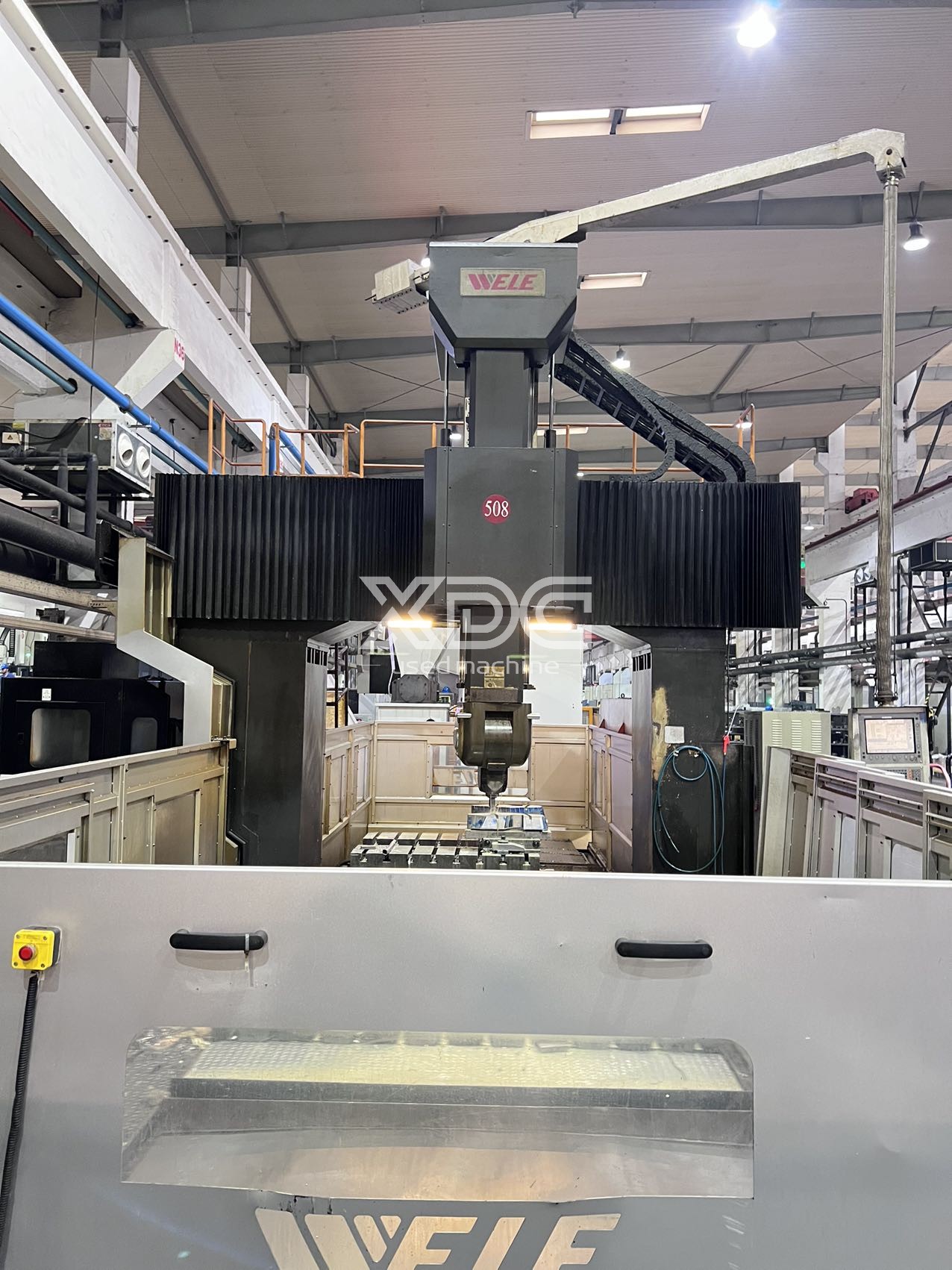

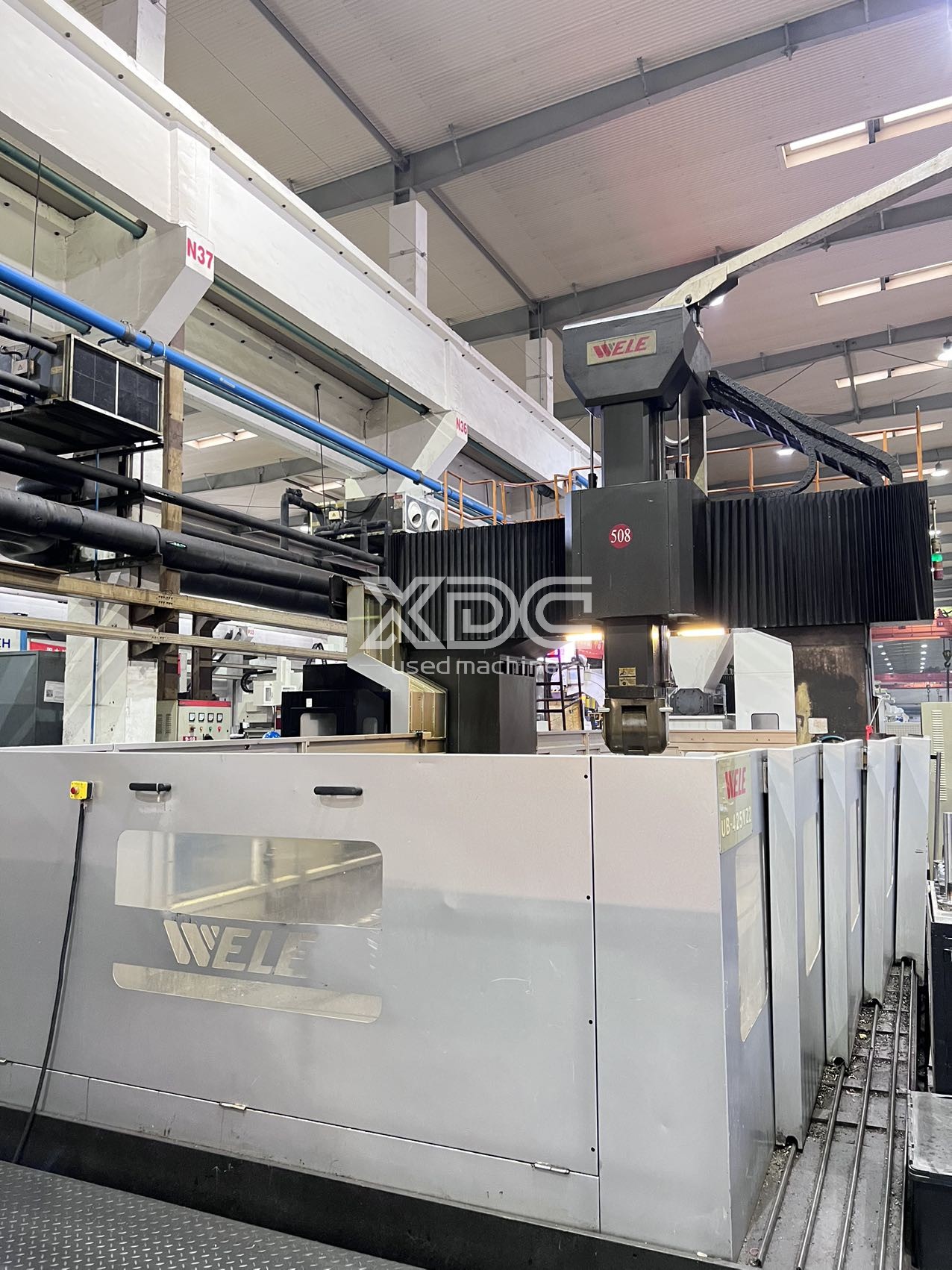

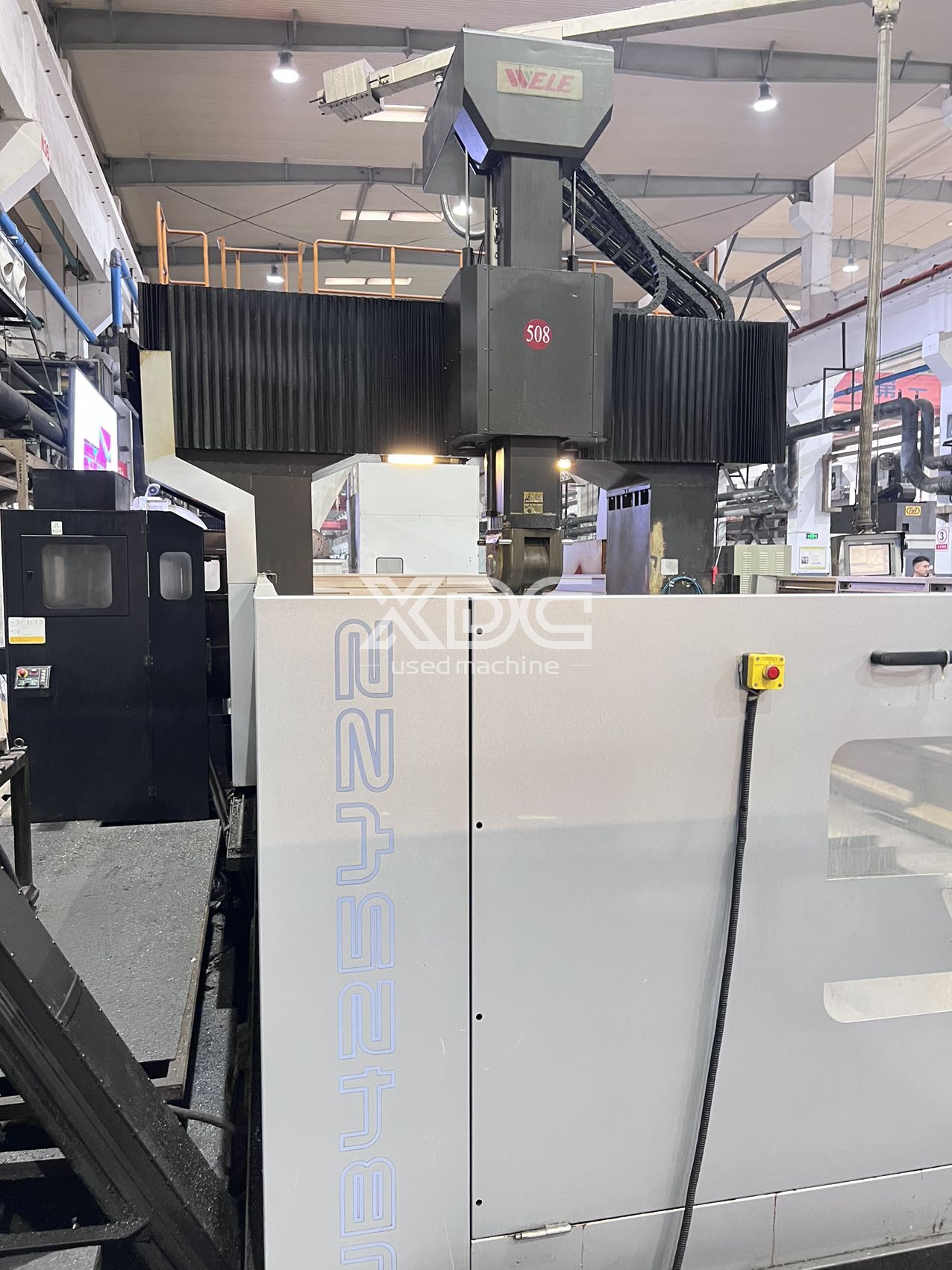

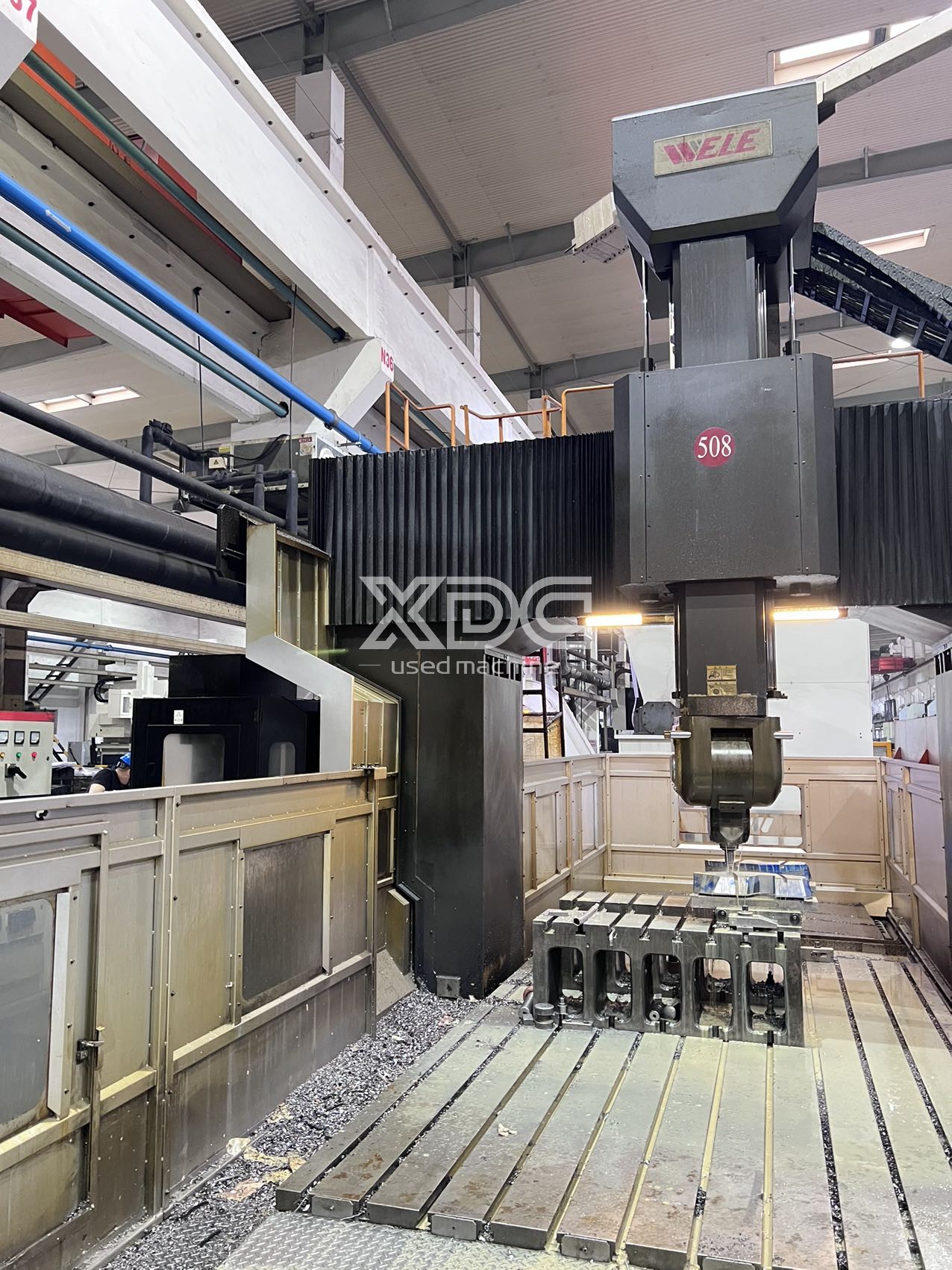

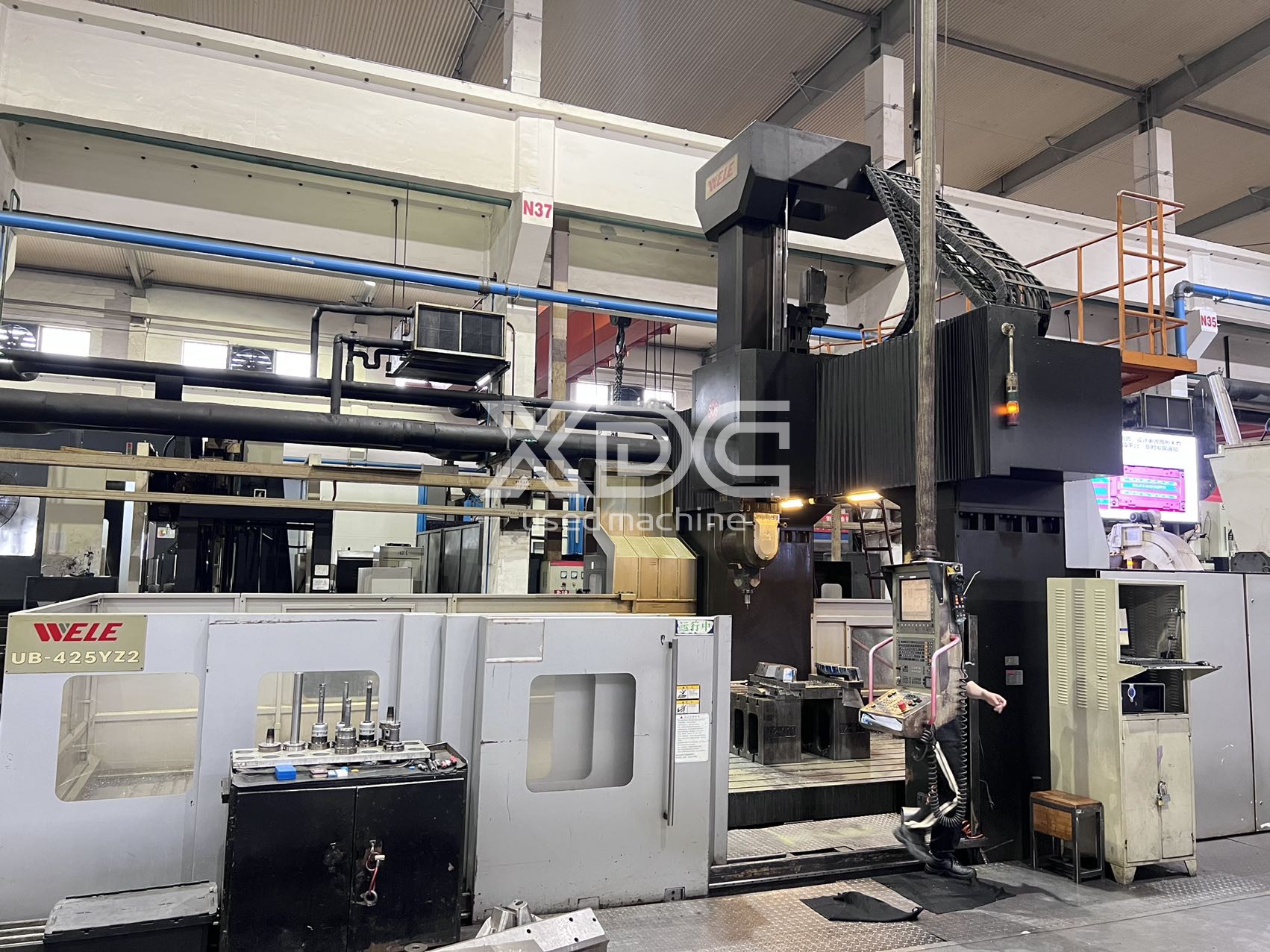

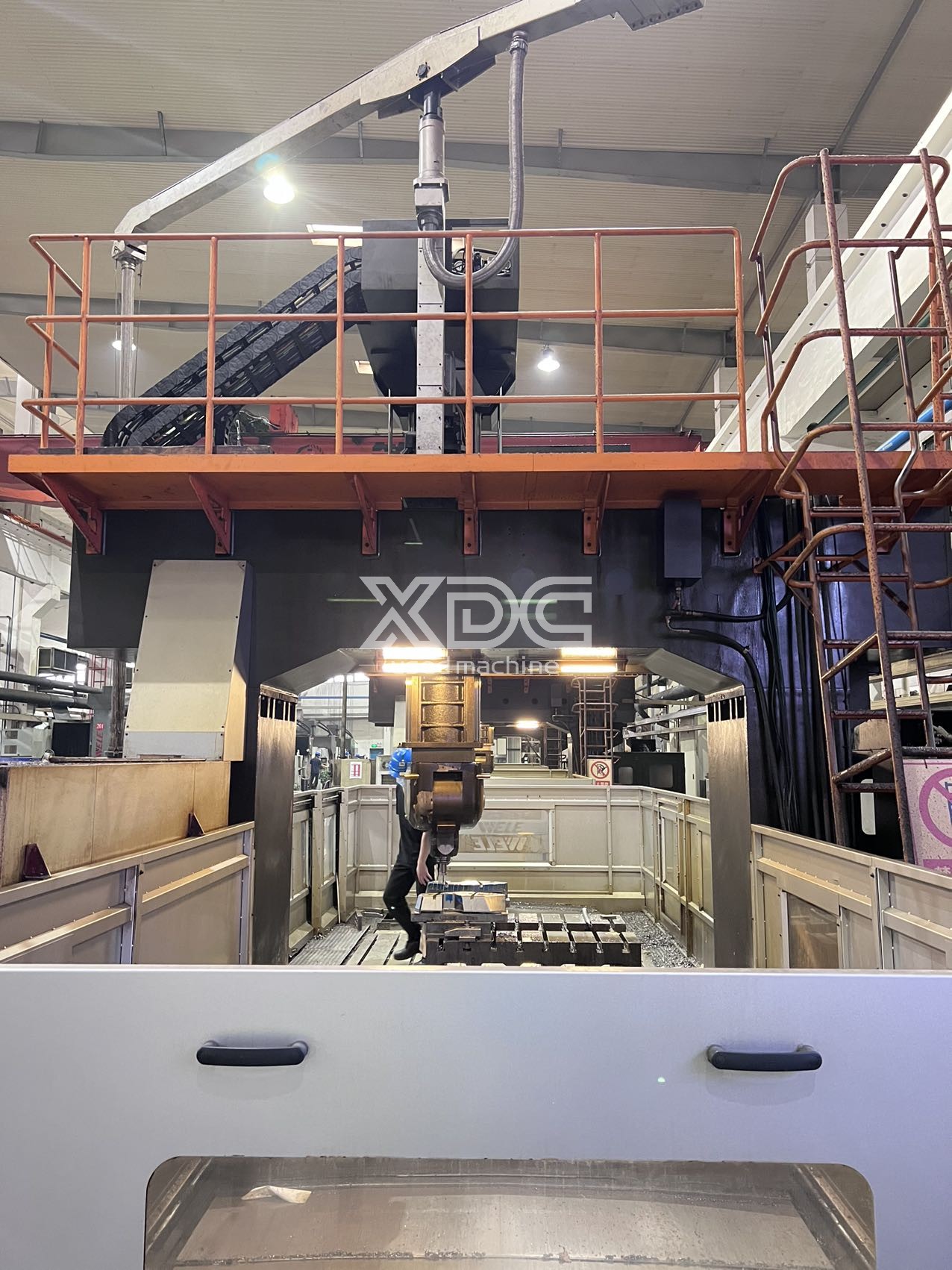

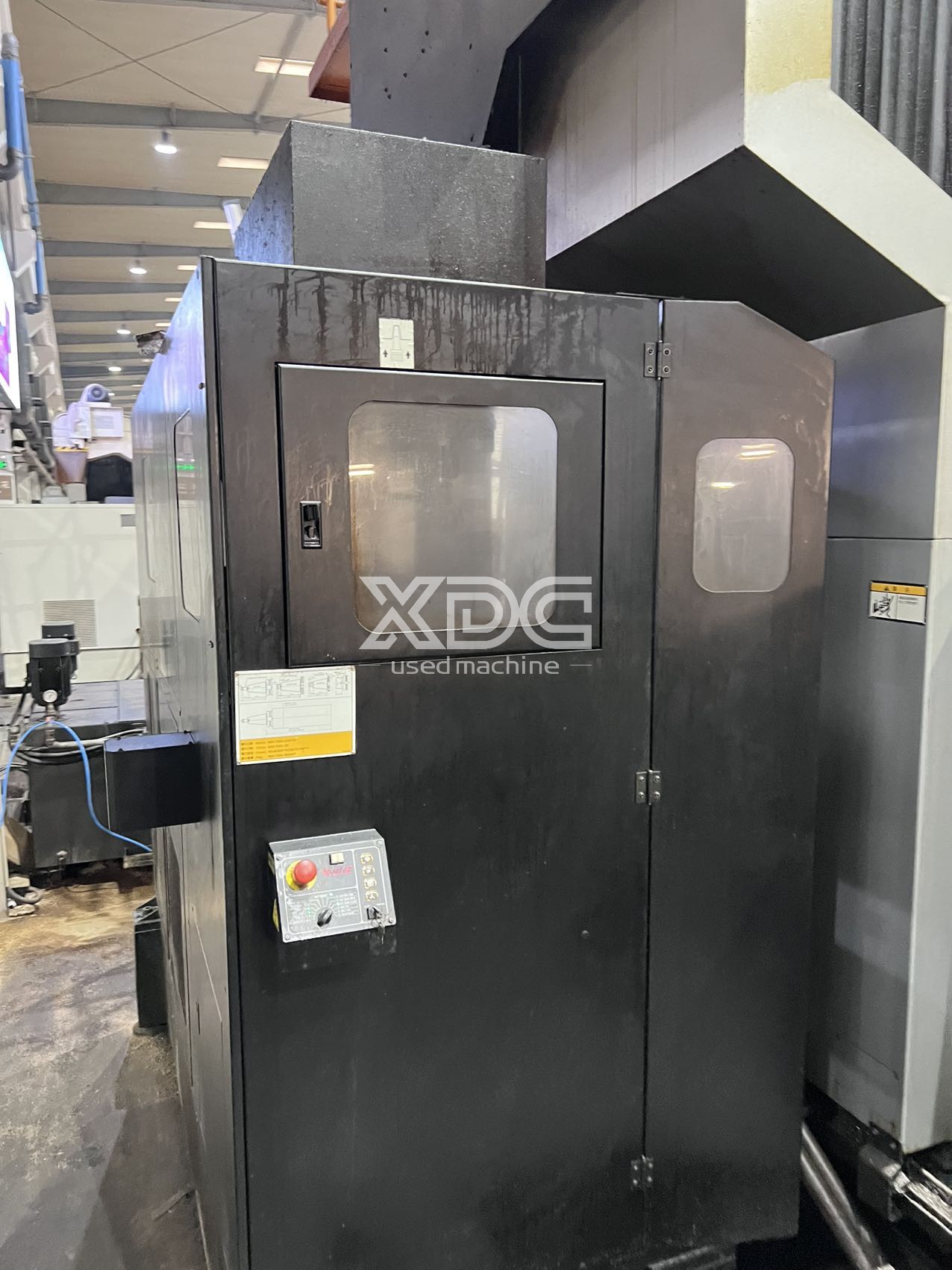

Used WELE Five-axis Simultaneous Gantry Machining Center

Original WELE Five-axis Simultaneous Gantry Machining Center from Taiwan

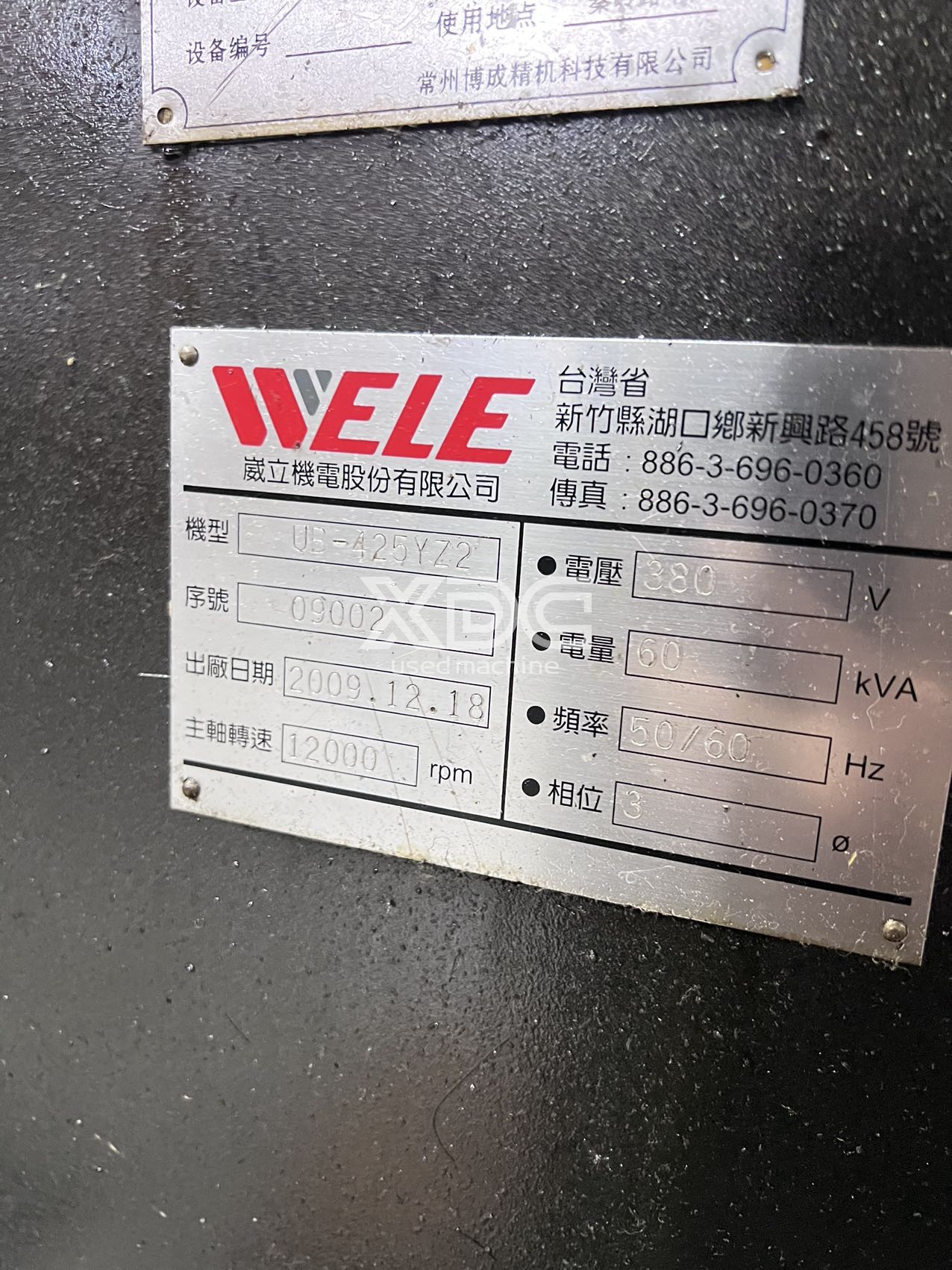

Model: UB-425ZY2, Serial Number: 09002

Worktable: 4000mmX2400mm, Door Width: 2800mm

Stroke: X-axis 4060mm, Y-axis 2550mm, Z-axis 1000mm

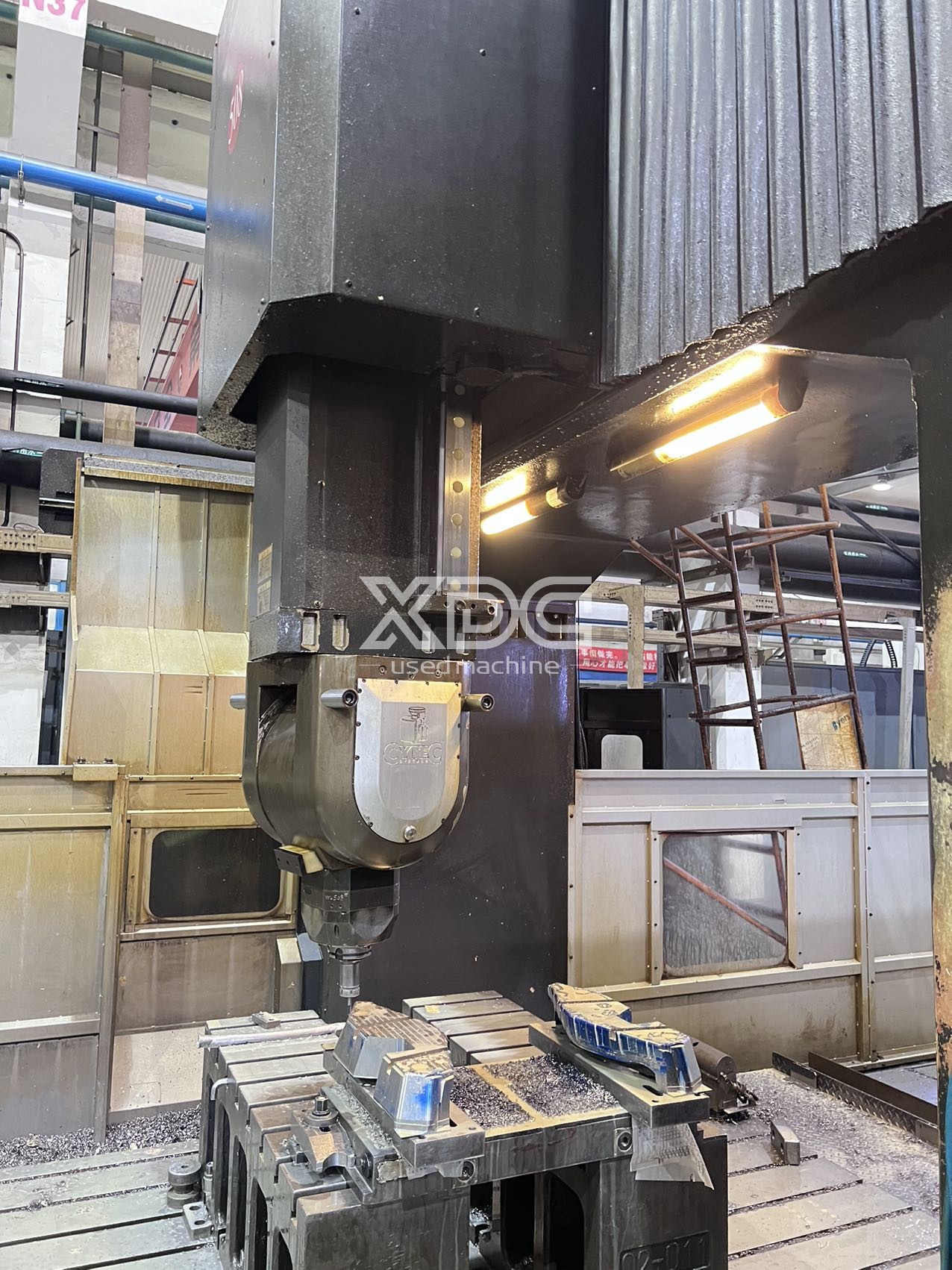

Rotation Angle: B-axis ±110°, C-axis ±360°

Spindle Speed: Up to 12000rpm, HSK A100 Taper Hole

Spindle Power and Torque: 34kw and 200N.m

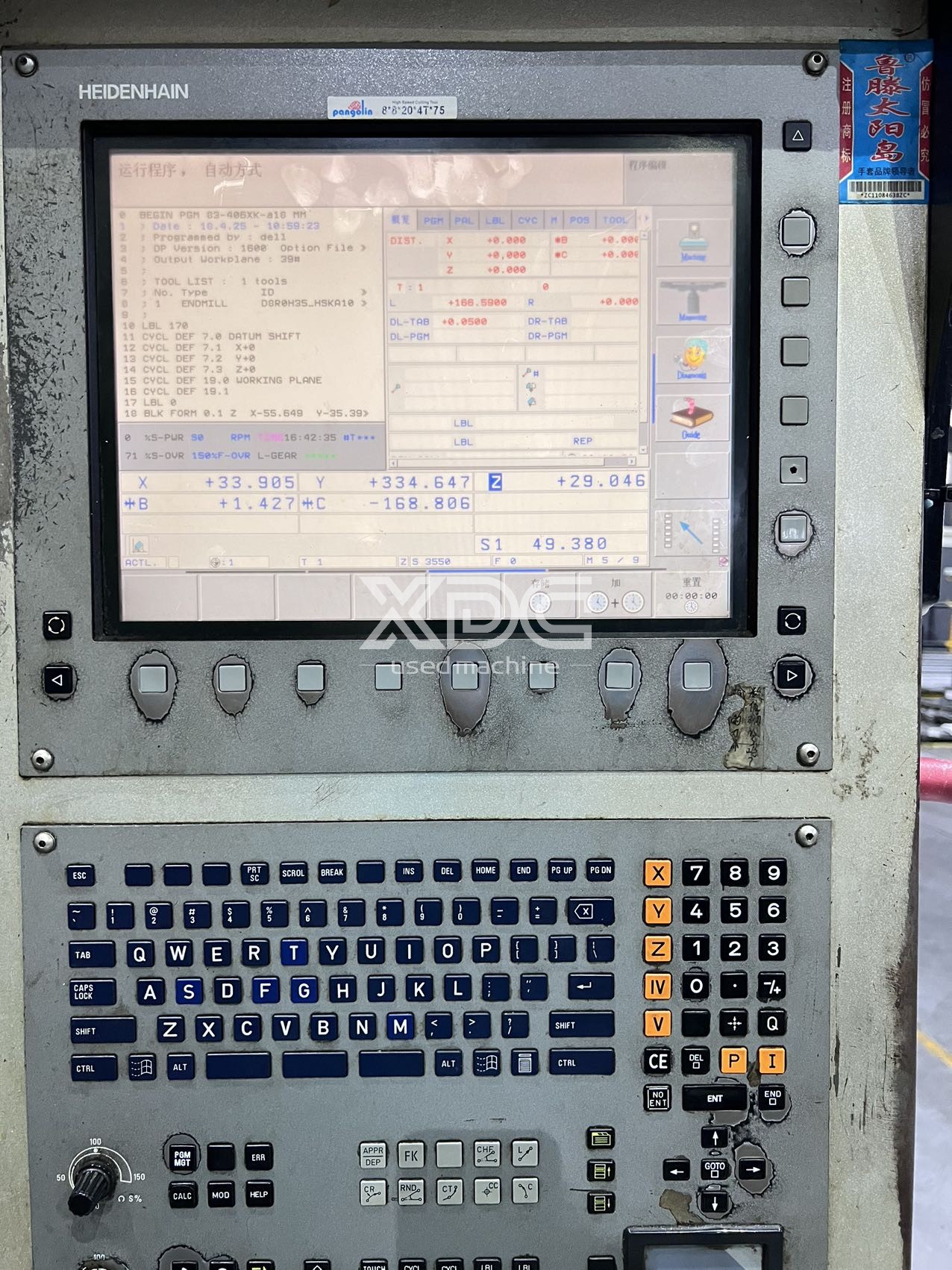

Tool Magazine: 32 Tool Positions, System: Heidenhain iTNC530,

 Full Closed-loop Optical Grating. Manufactured in 2009.
