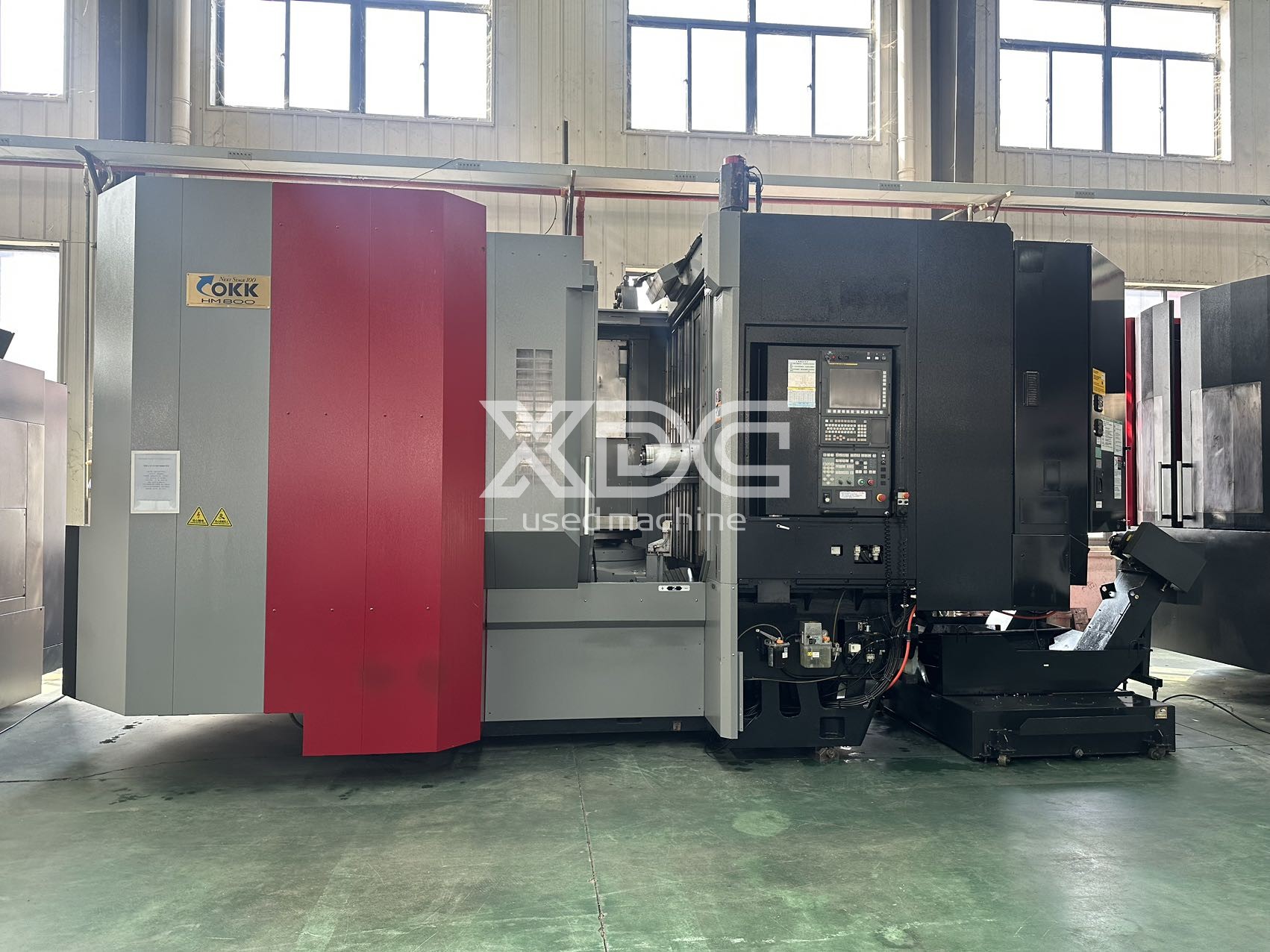

Japanese OKK HM800 Horizontal Machining Center
Travel of three axes: 1400*1100*1050mm

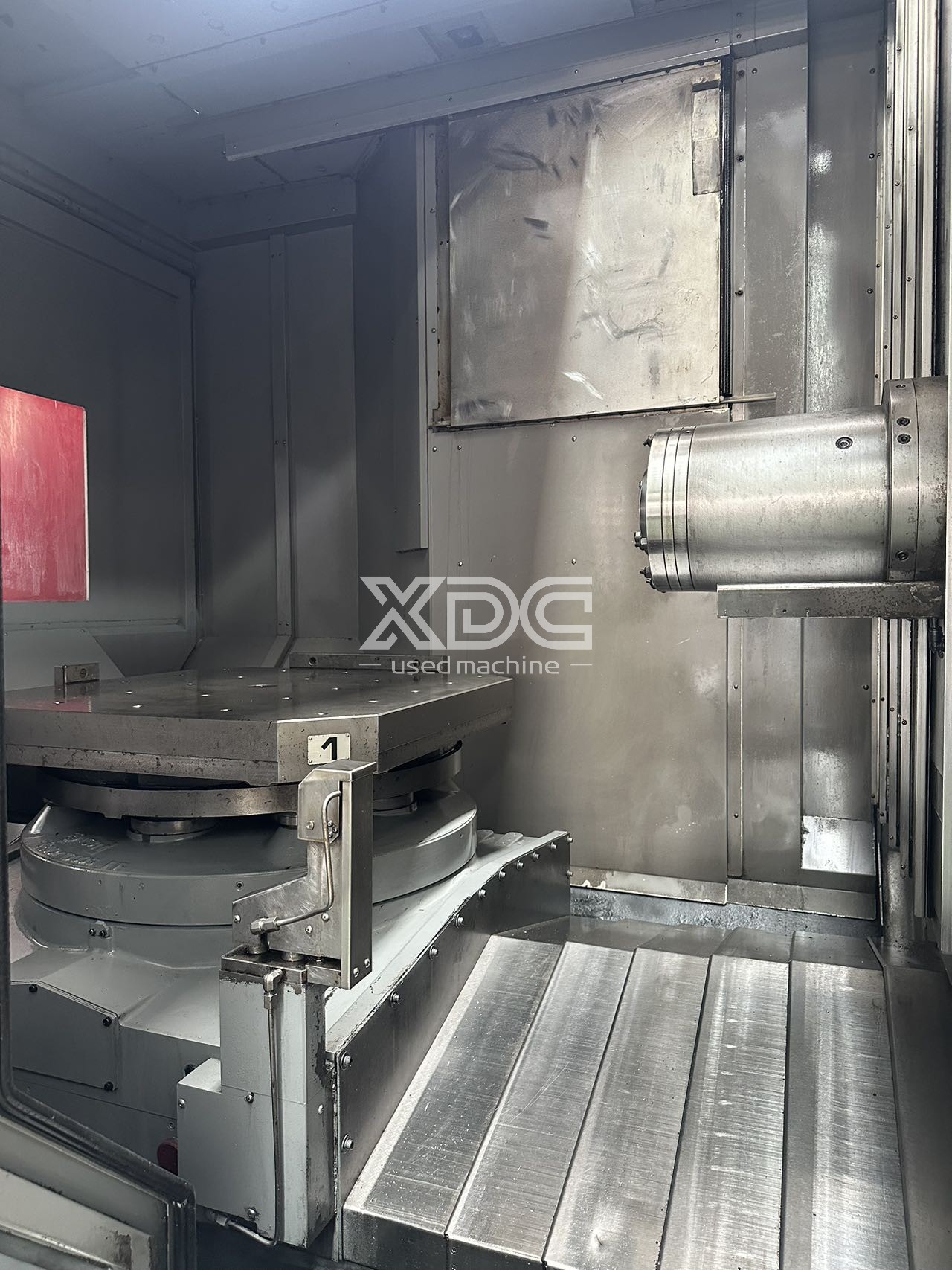

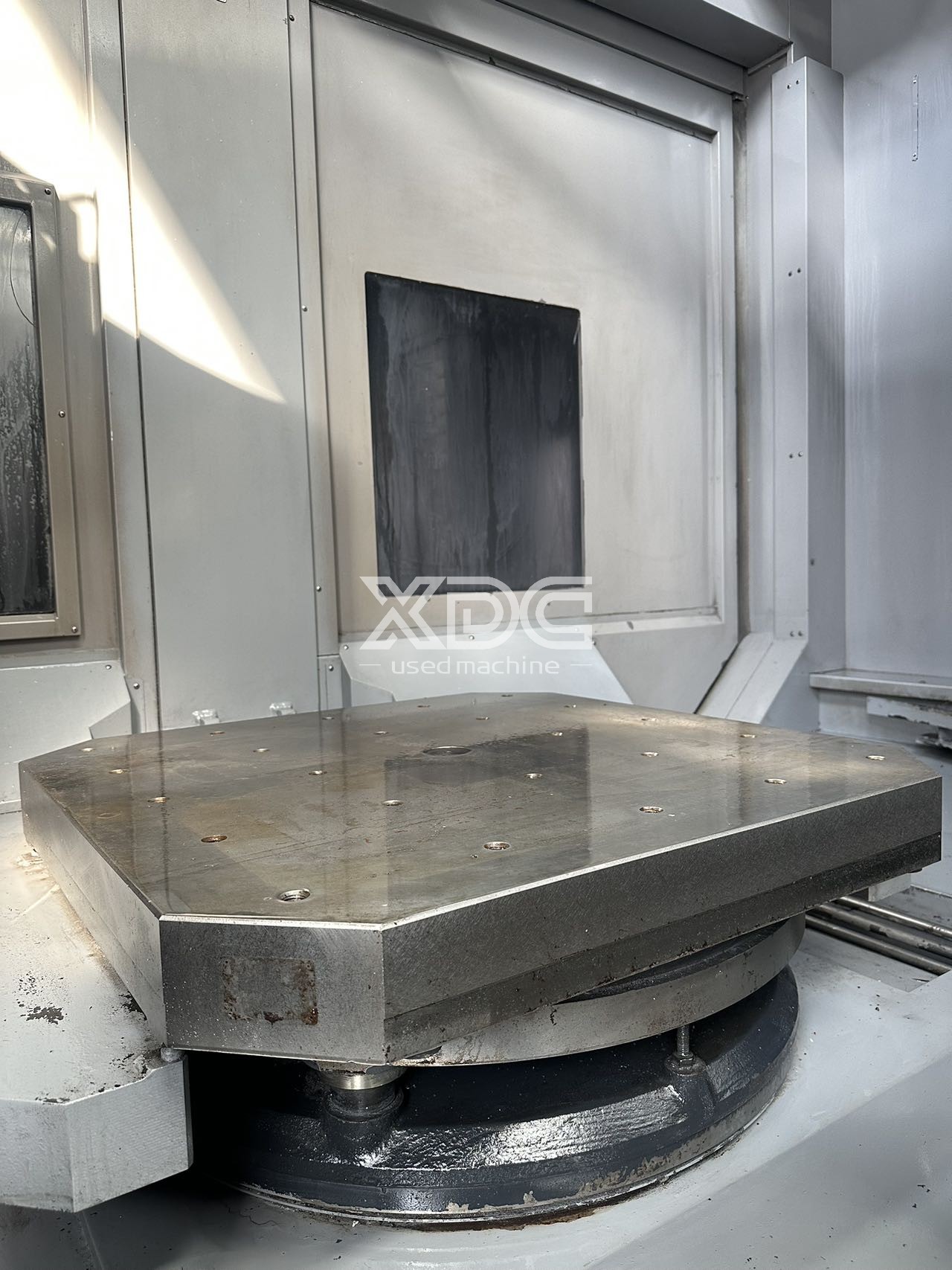

Worktable size: 800x800mm

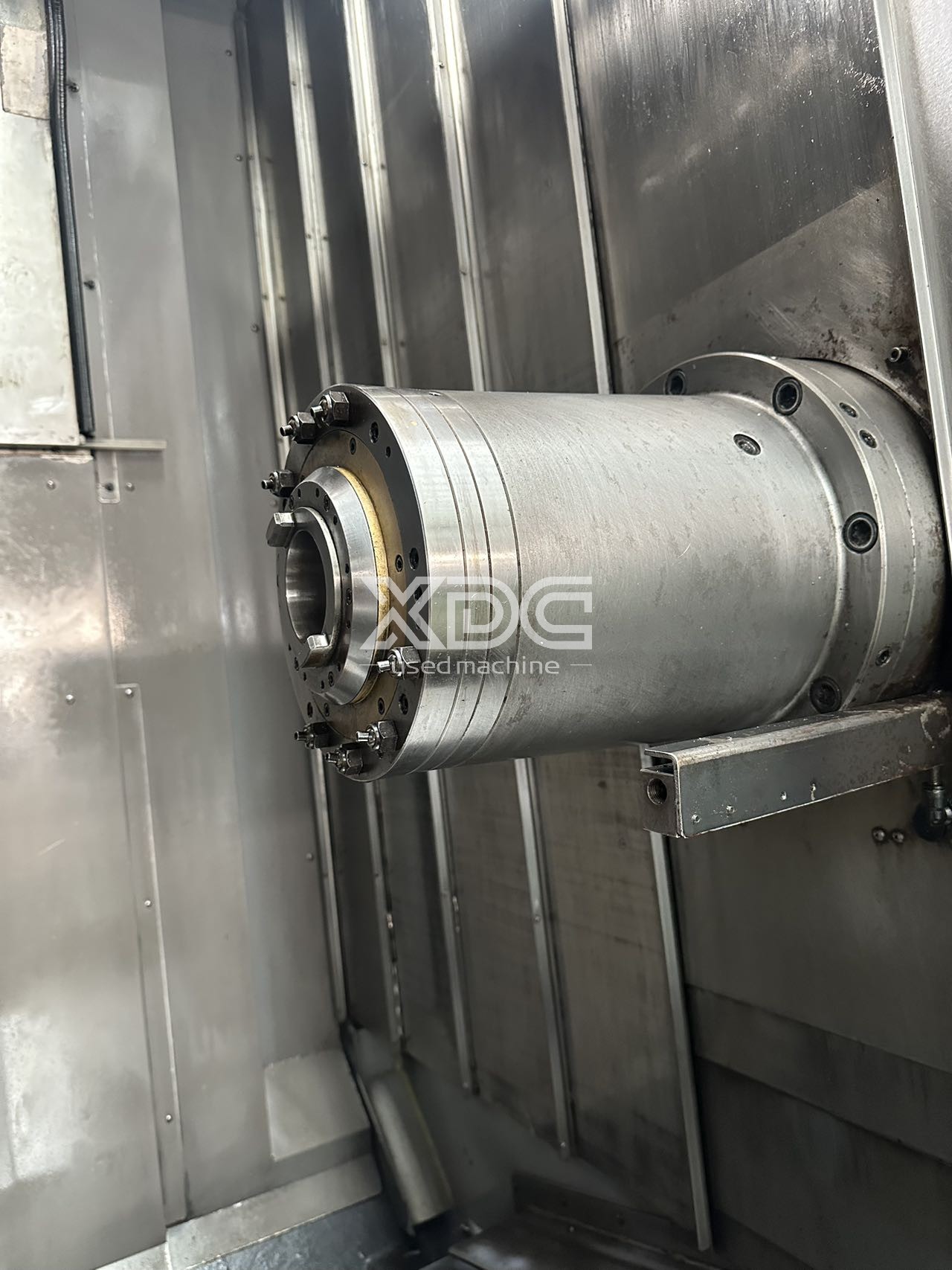

Spindle speed: 8000rpm (Electrospindle, with 2-speed shift)

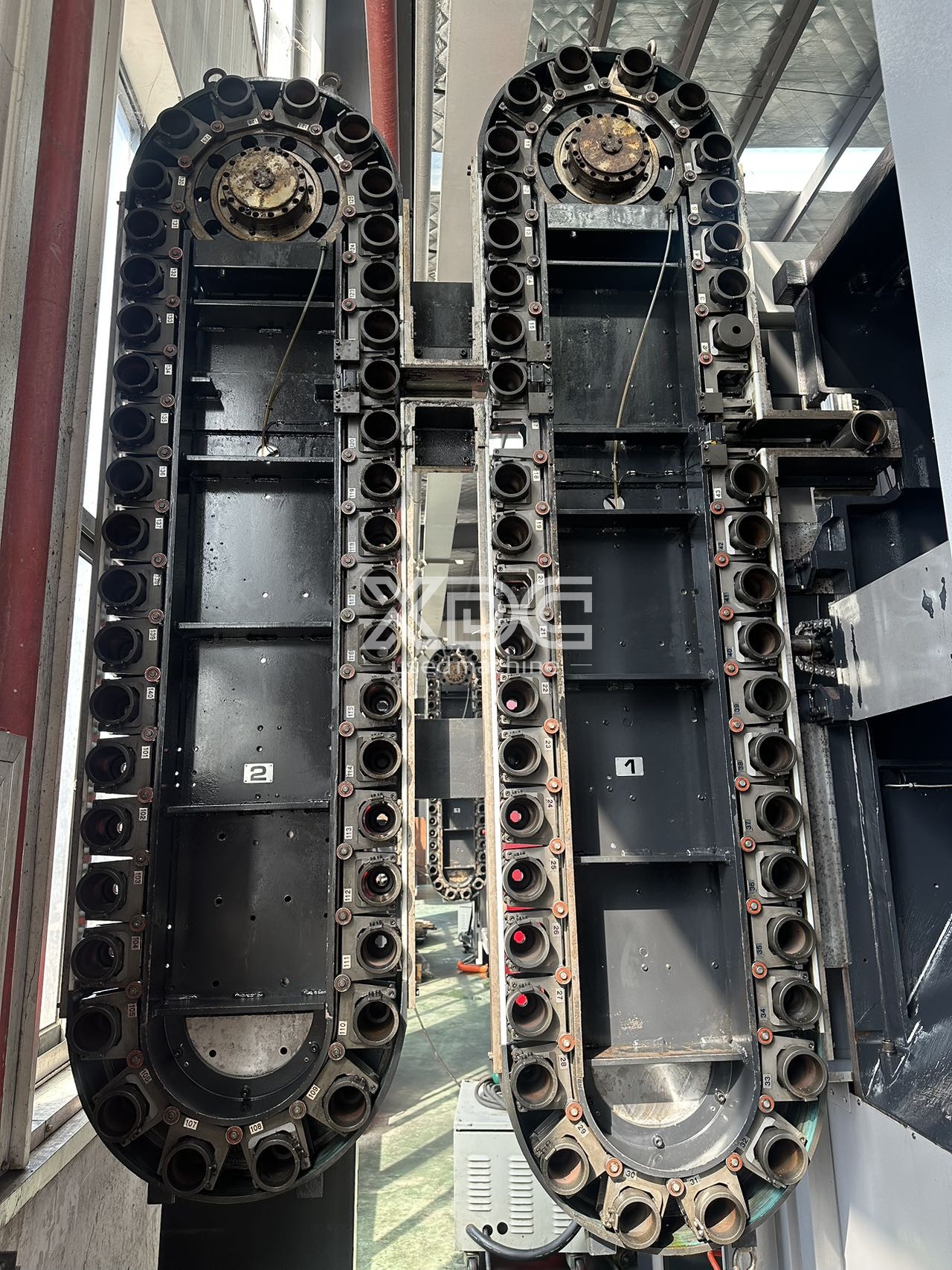

Tool magazine: 80-tool magazine, equipped with three-axis optical grating rulers
Worktable indexing: One minute per degree, BT50 spindle

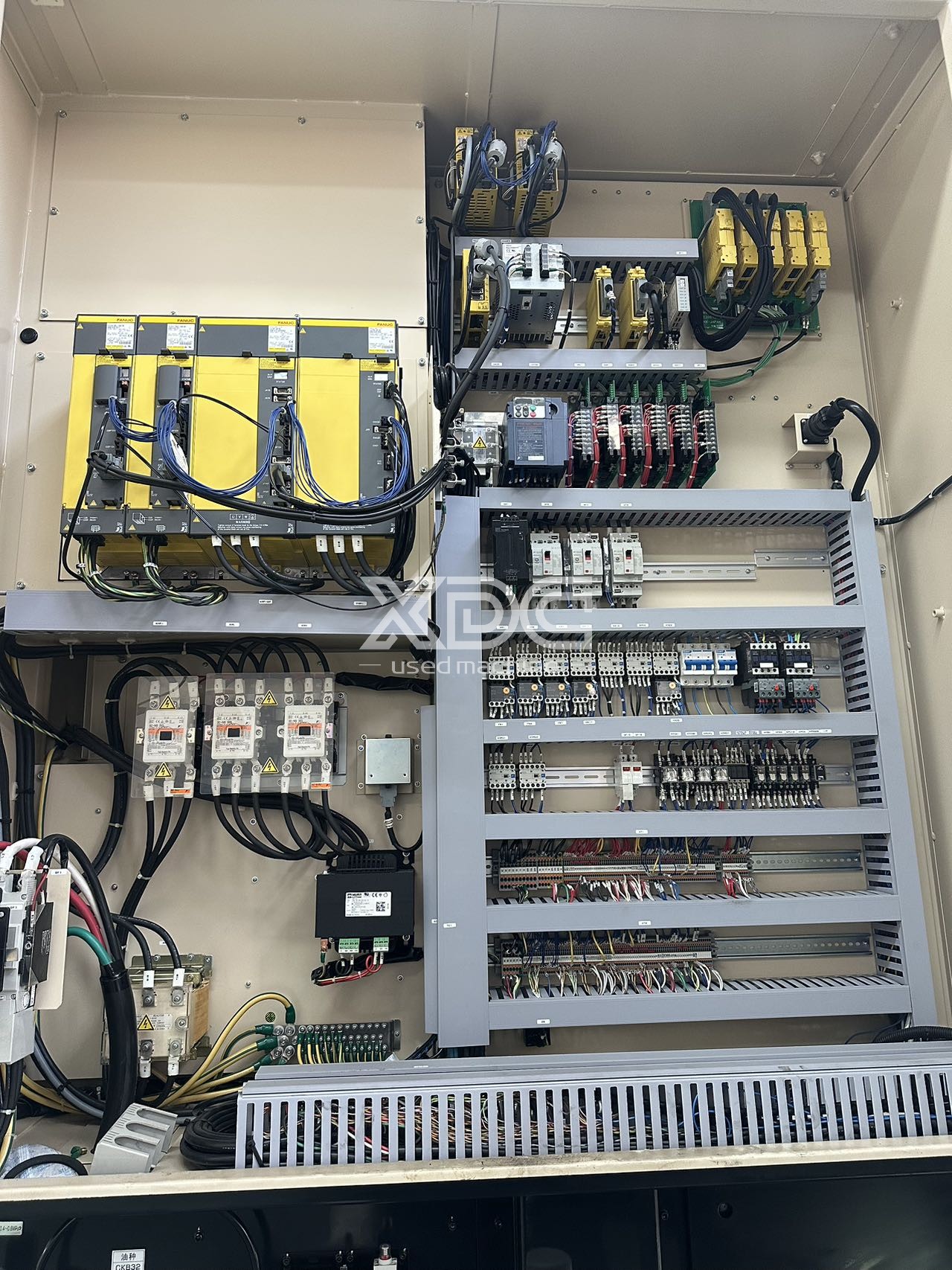

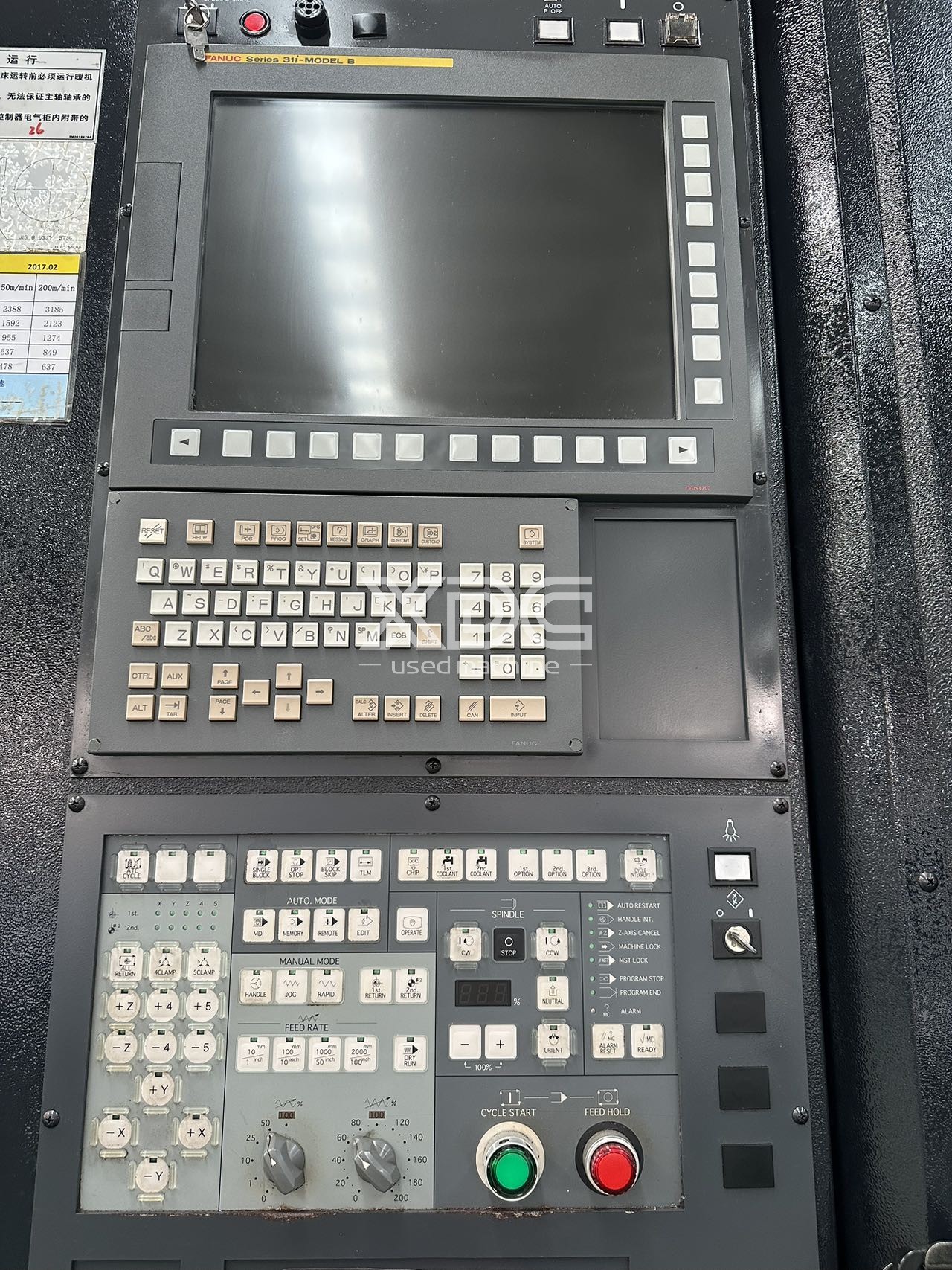

System: FANUC 31i-MODEL B
Distance from the top surface of the worktable to the spindle center: 60～1160mm
Distance from the worktable center to the spindle end face: 200~1250mm

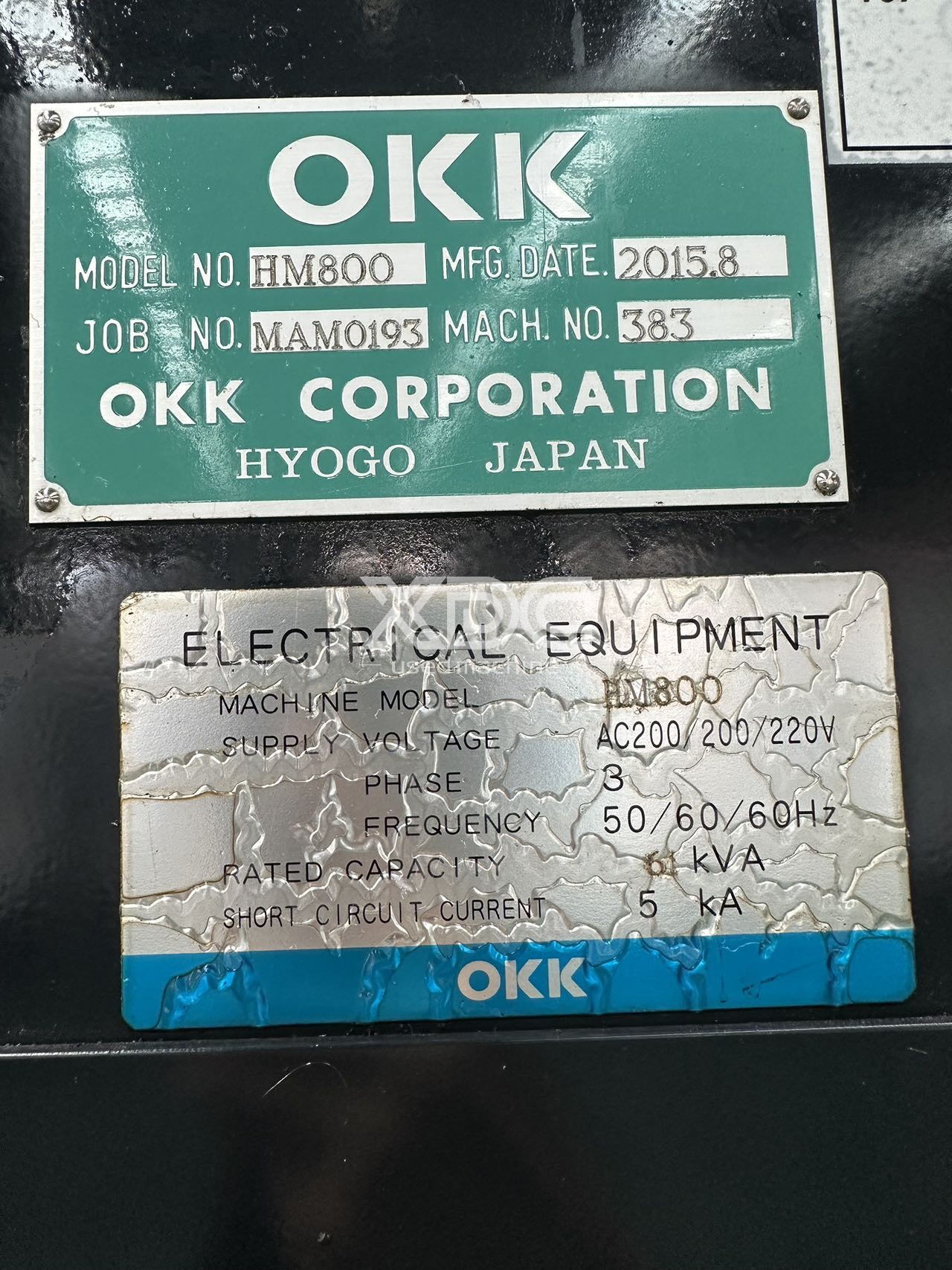

Machine weight: 24.5 tons, manufactured in 2015

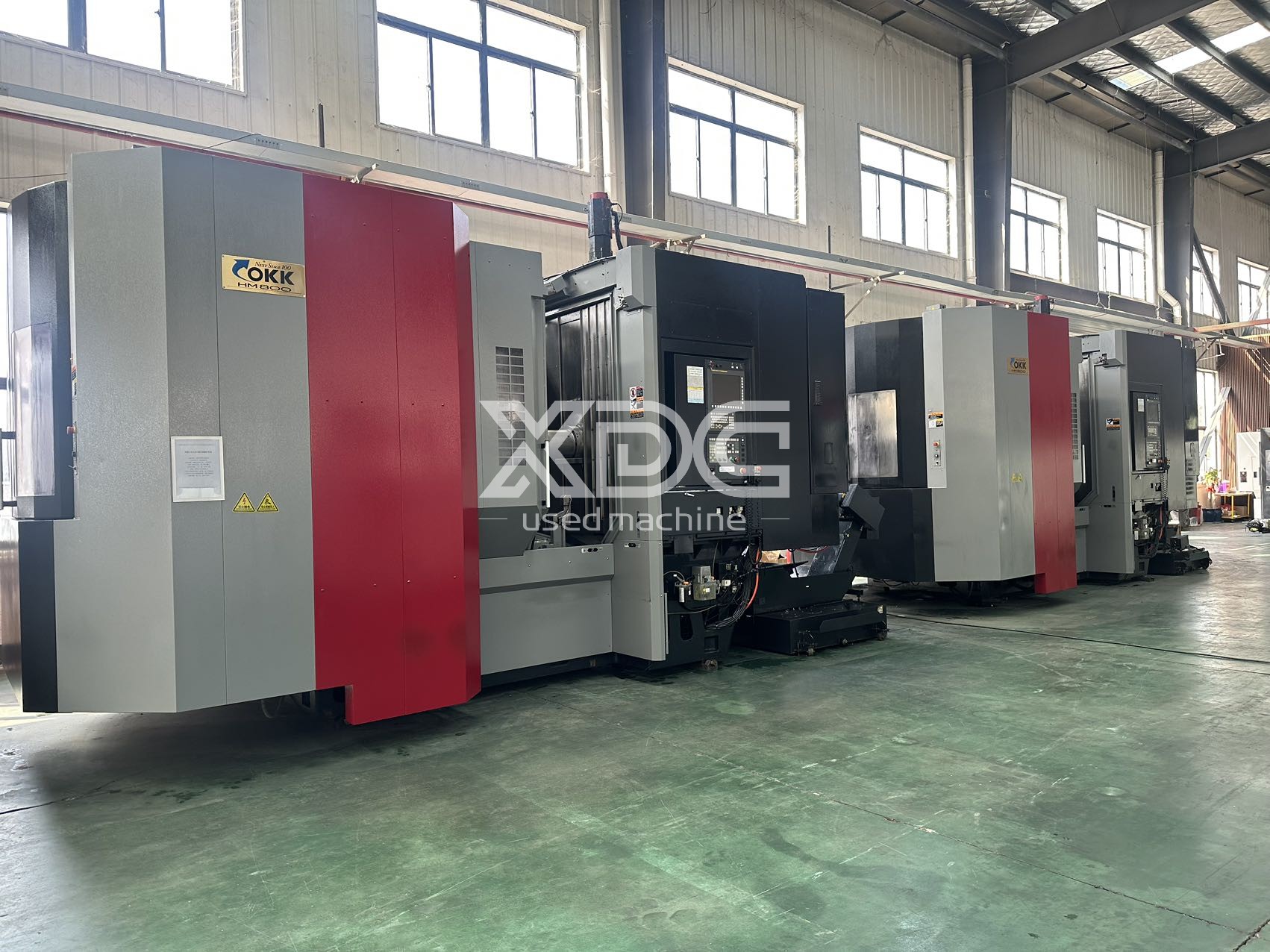

There are 2 units of the same model.
