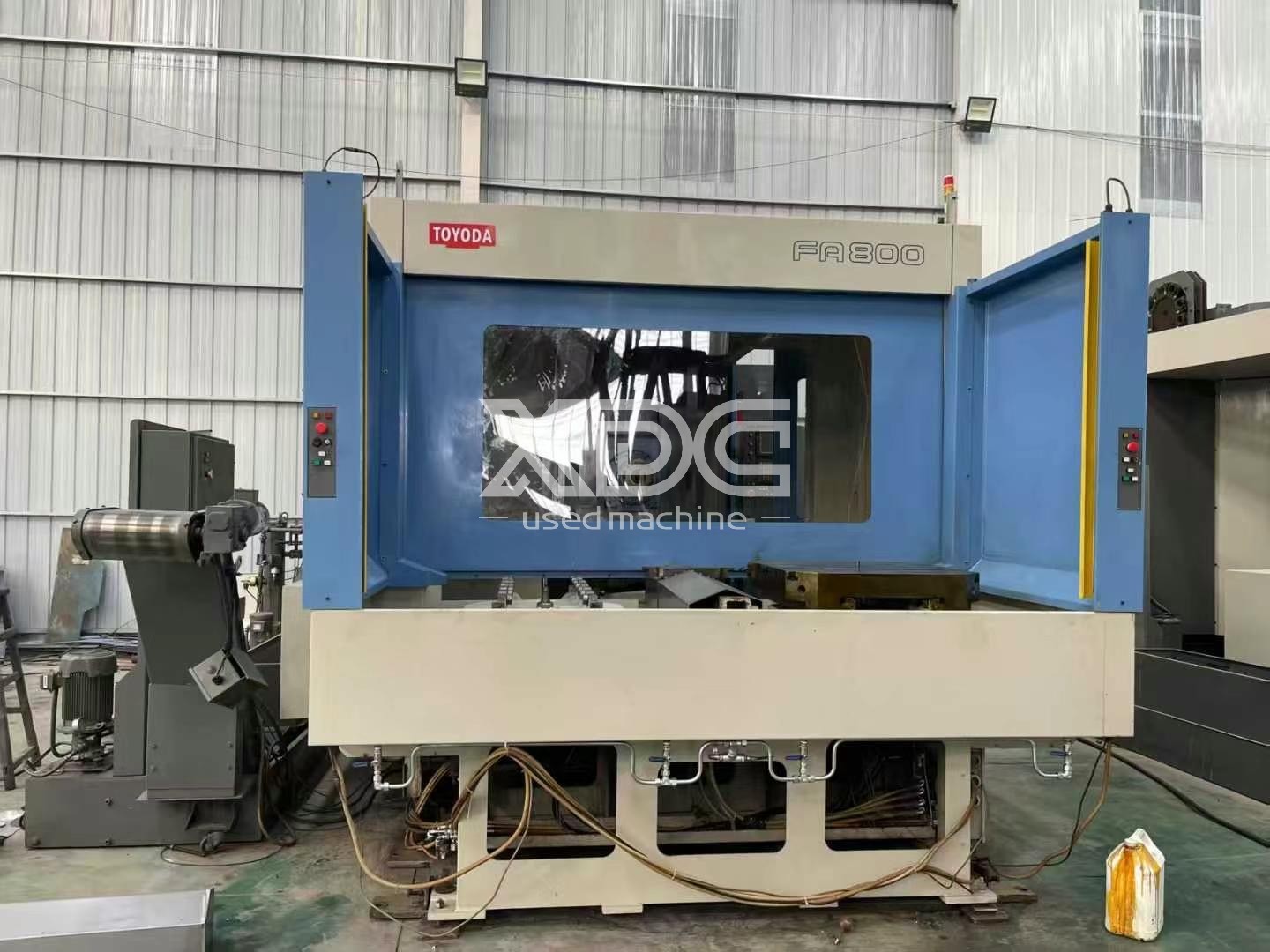

Toyoda FH800 Double-station Horizontal Machining Center
The accuracy of each axis is within 0.01mm! With an excellent Y-axis design, it is driven by dual lead screws and dual motors, enabling high-speed and high-rigidity machining of workpieces!
FANUC 16i-MB system
XYZ travel: 1350mm, 1150mm, 1150mm

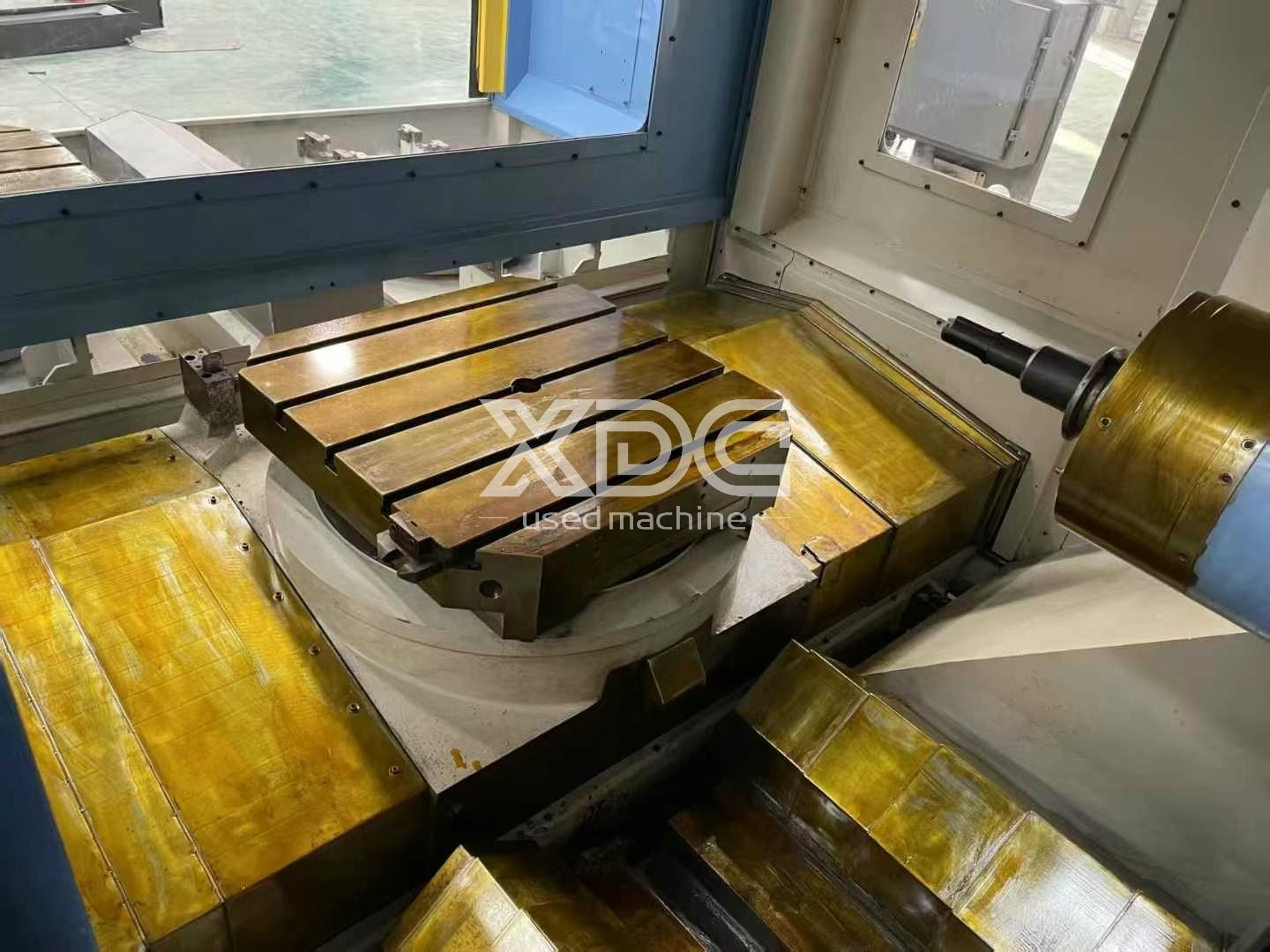

The worktable has a 1° indexing
BT50 tool holder, tool magazine capacity: 40 tools
Worktable size: 800*800mm, load-bearing capacity: 2500KG
Rapid traverse speed: 48m/min
Spindle speed: 6000 revolutions per minute
Spindle power: 37KW
High-pressure central coolant through the spindle: 80kg
Three-axis hardened guideways!
Product Description
