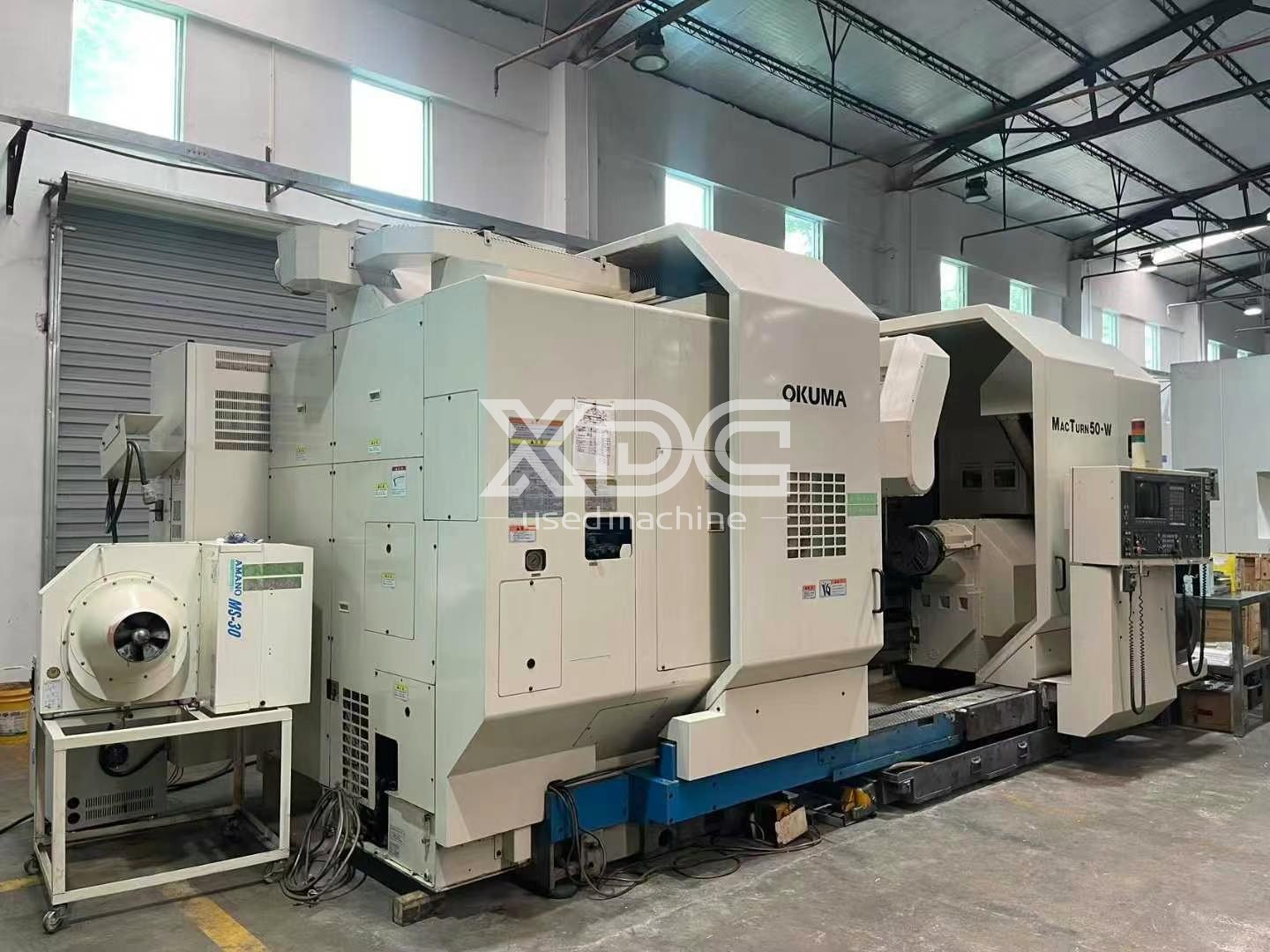

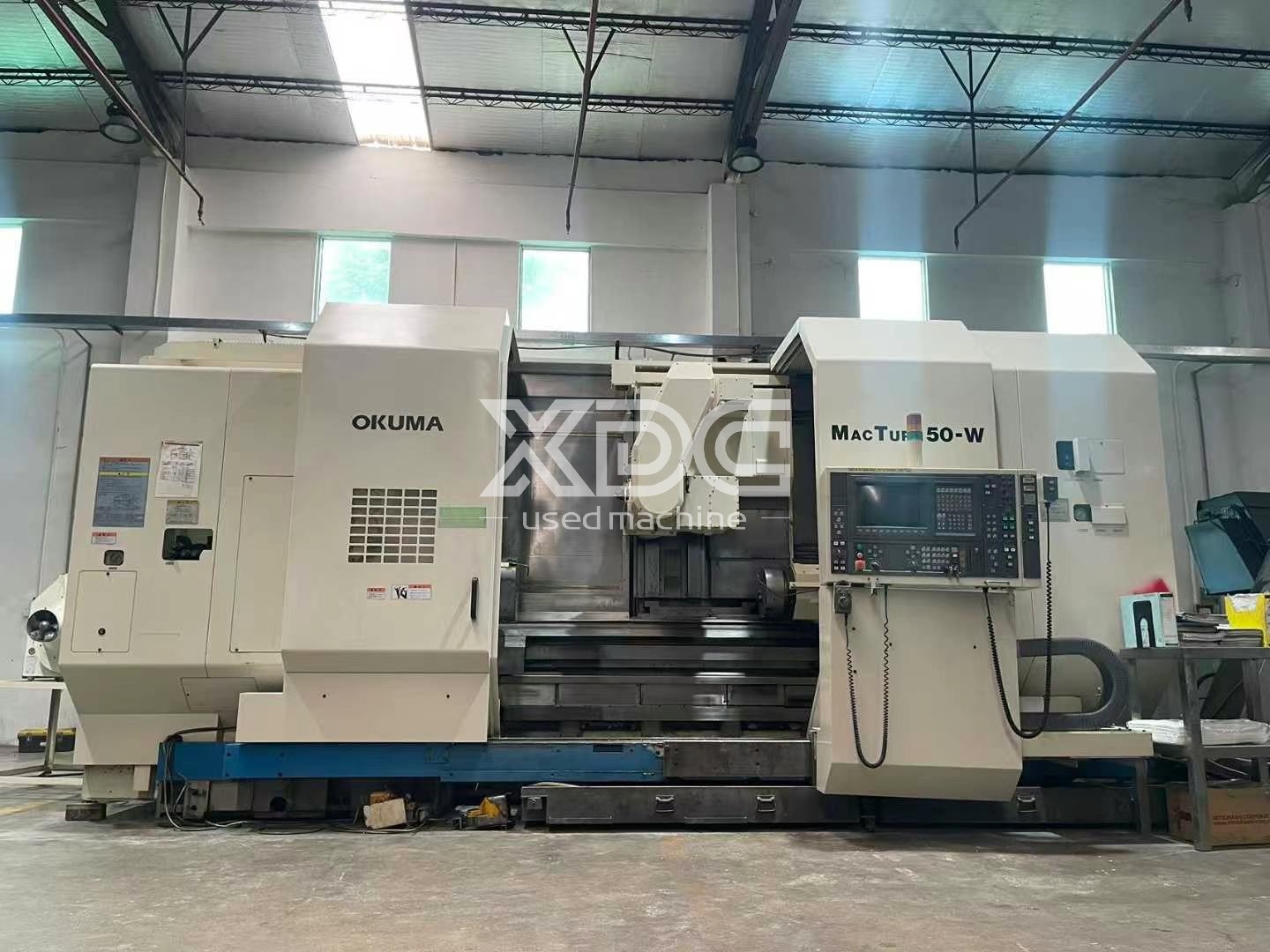

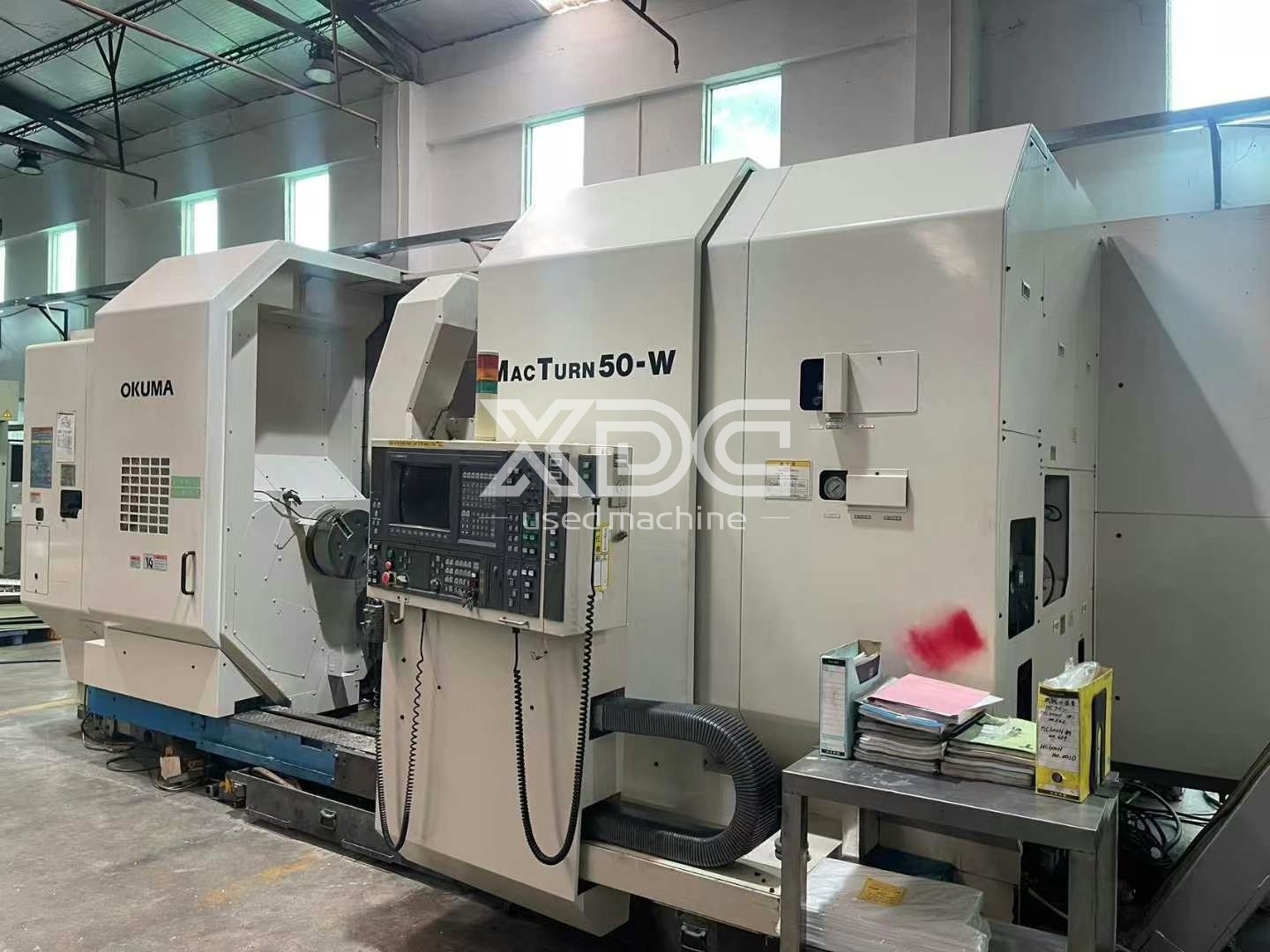

Japanese top-level Okuma MAC TRUN 50-W head-swinging five-axis turning and milling machine.
The first turning spindle has a 16.69-inch chuck with a speed of 3200 revolutions per minute.
The second turning spindle has a 15.75-inch chuck with a speed of 3200 revolutions per minute.
The head-swinging milling spindle (BT50) has a speed of 3000 revolutions per minute.

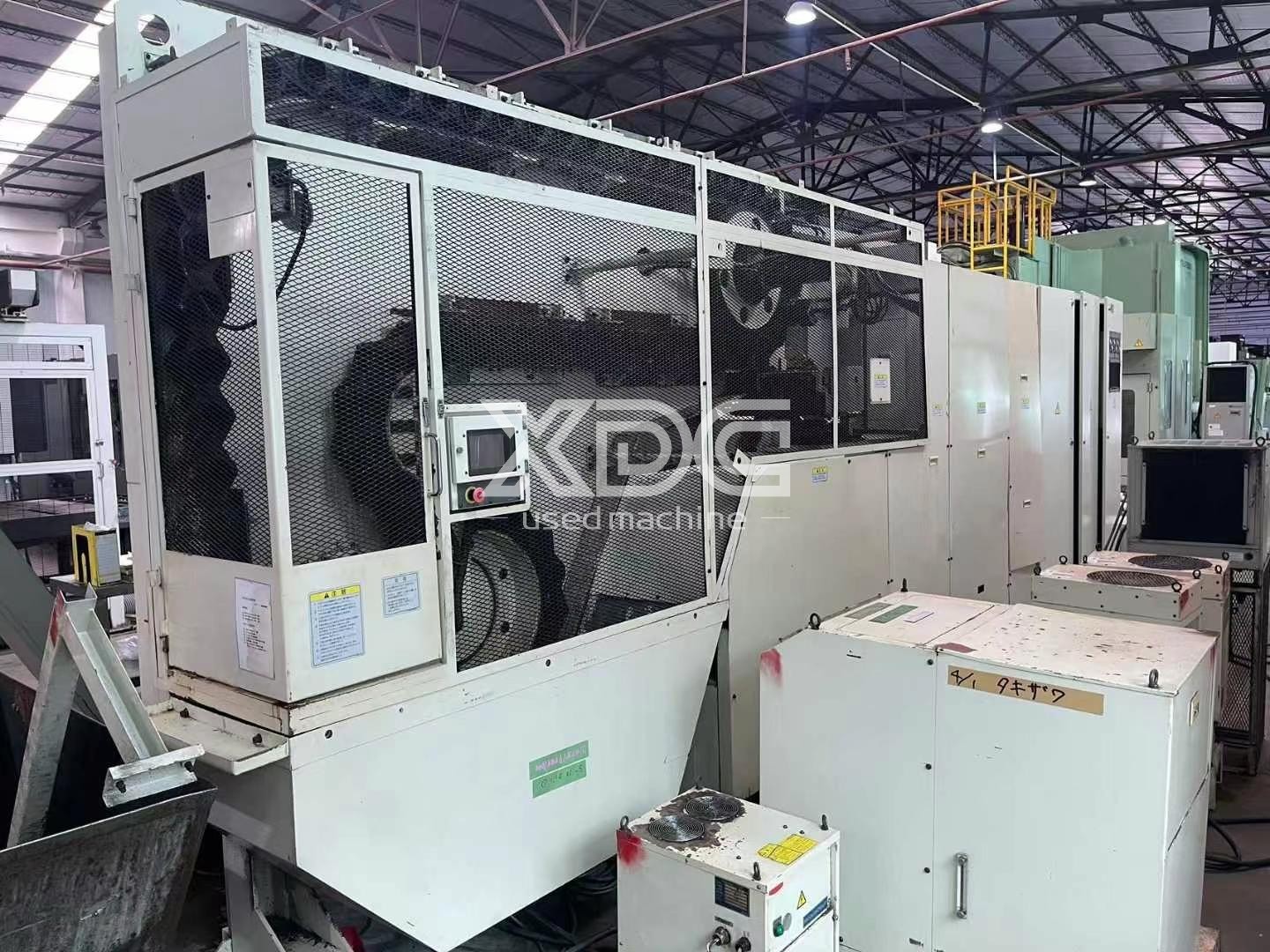

It is equipped with a large tool magazine with 72 tools.
The travel of X, Z, and Y axes is 598*1660*230mm.
The C axis has a 360-degree indexing function.
The maximum turning length is 1500mm, and the maximum turning diameter is 580mm.
The whole machine weighs 23 tons and comes with some cutting tools.
