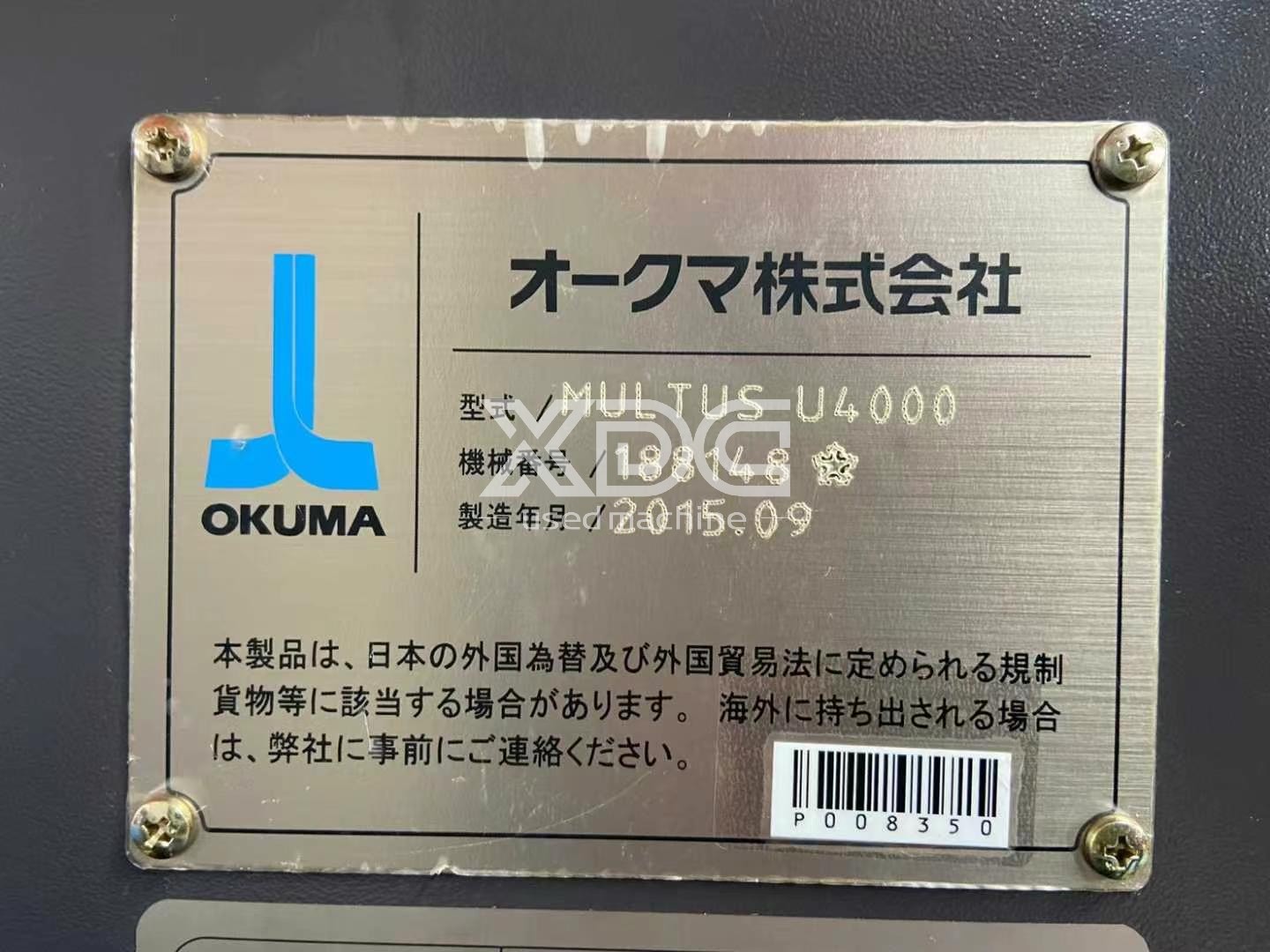

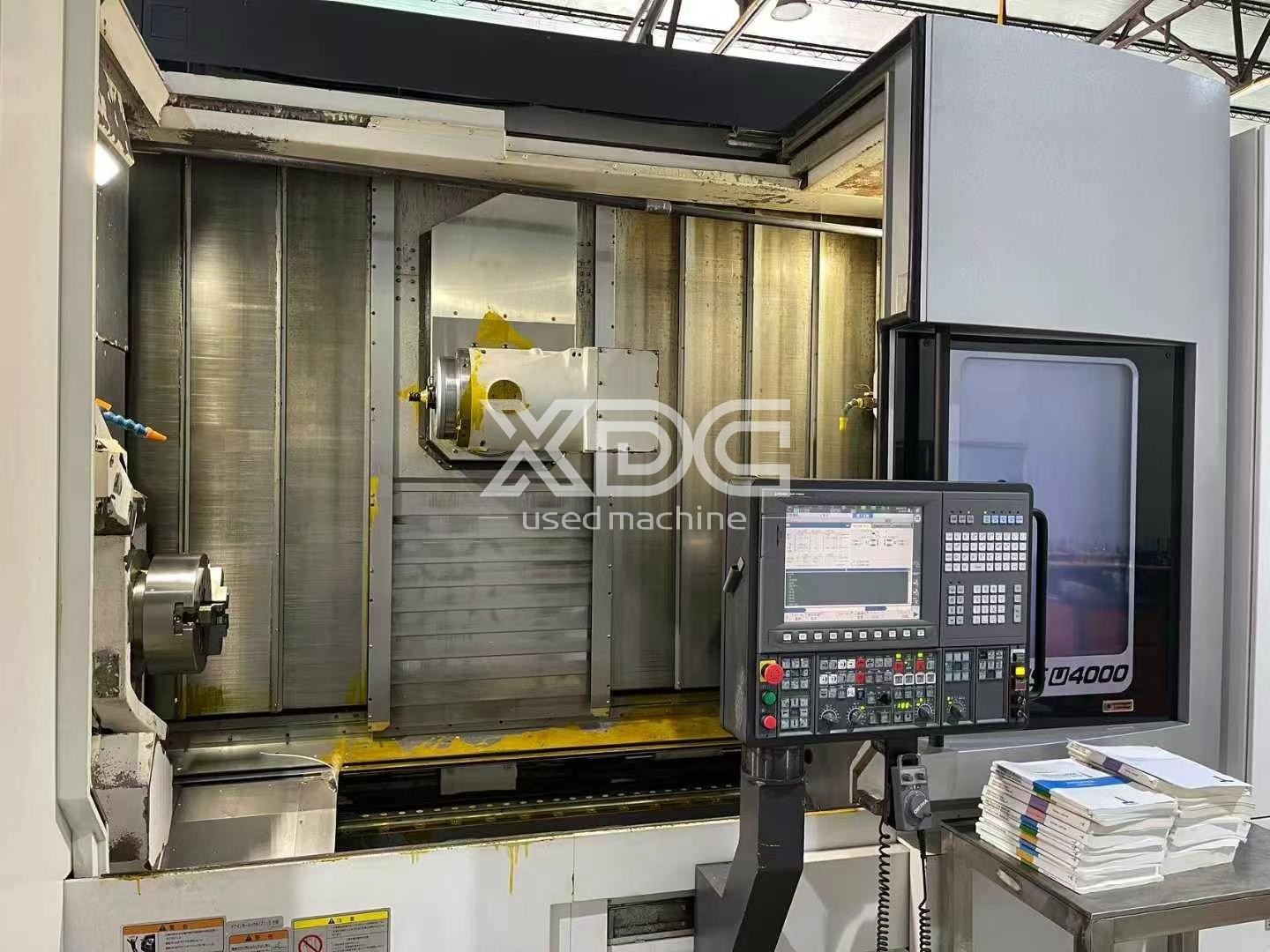

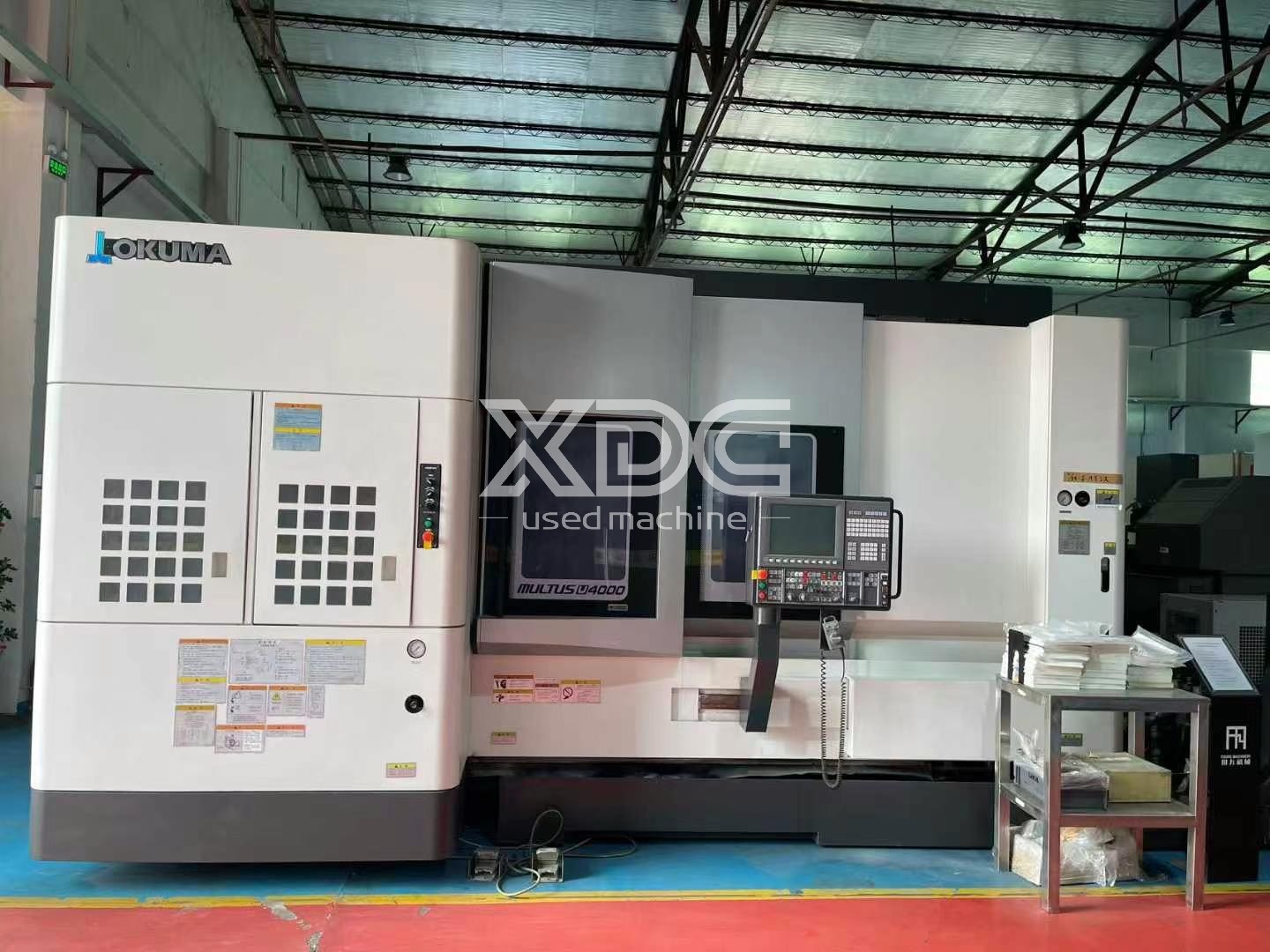

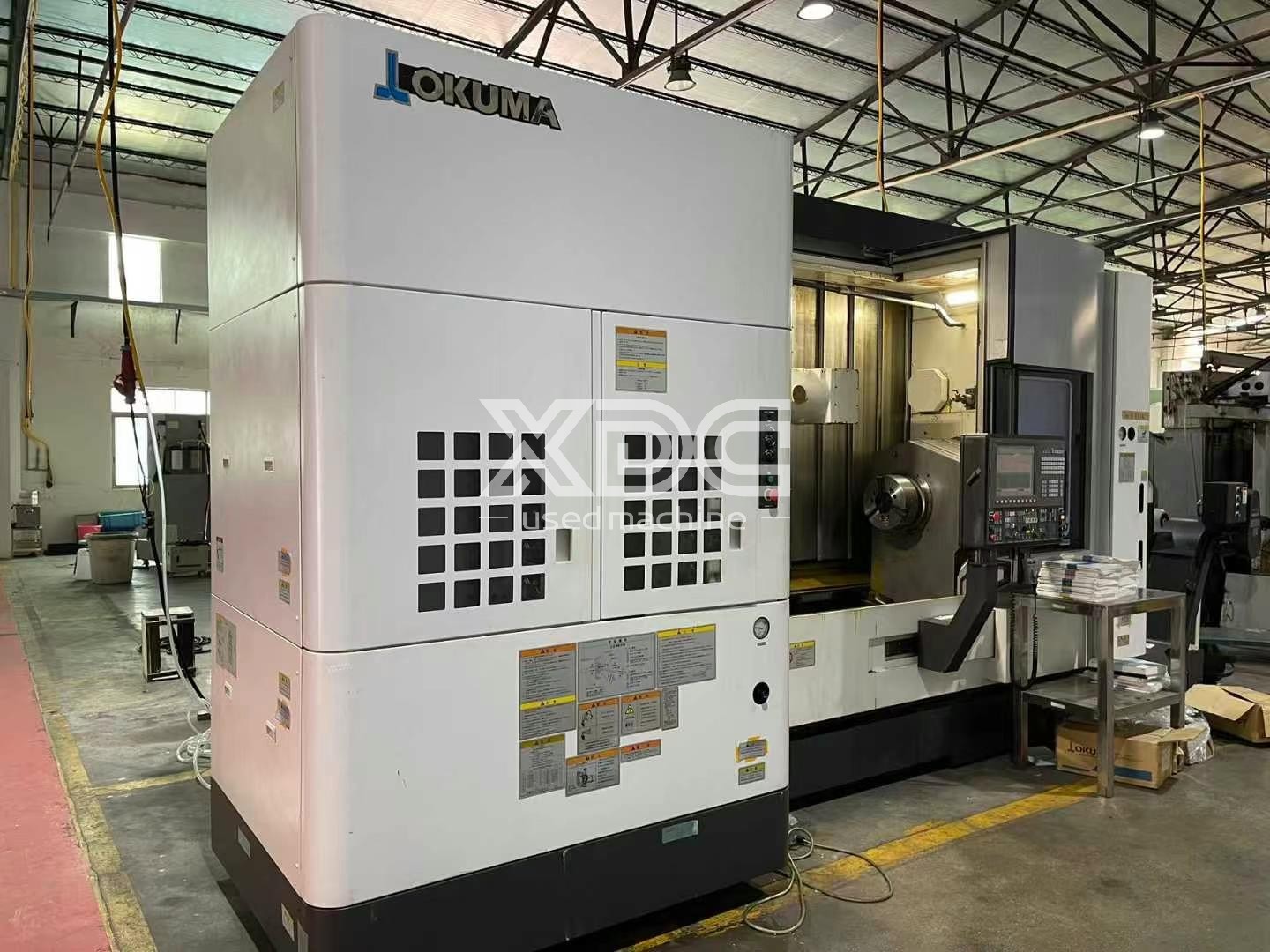

The latest five-axis turning and milling compound machining center
MULTUS - U4000 of Japan's top brand Okuma.
It is equipped with a sub-spindle! Five-axis linkage and tool tip following functions are available.
It has been rarely used since installation and meets the accuracy standards of a new machine.

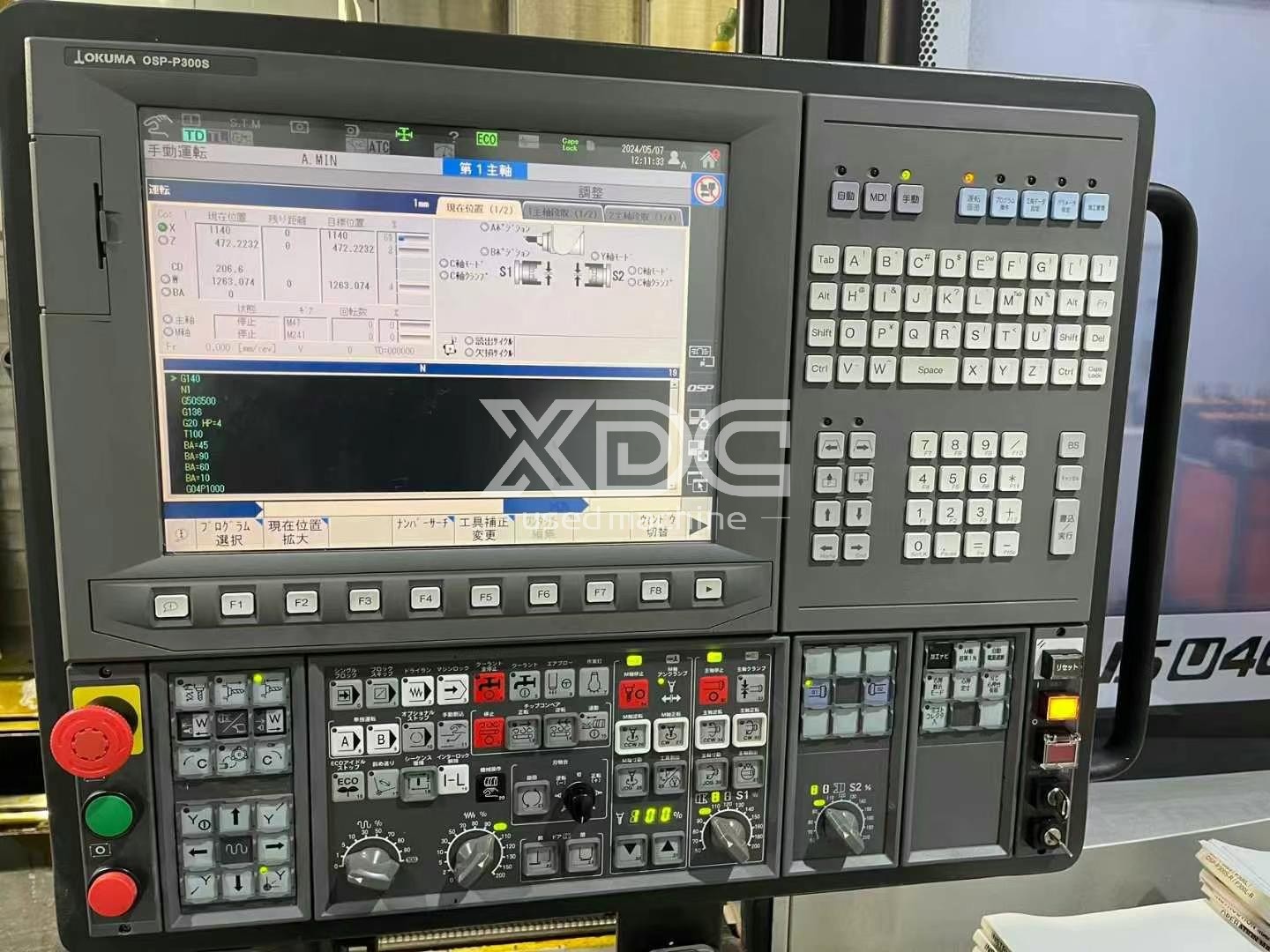

Year: 2015 (The power-on time is 8000 hours).System: OSP-P300S

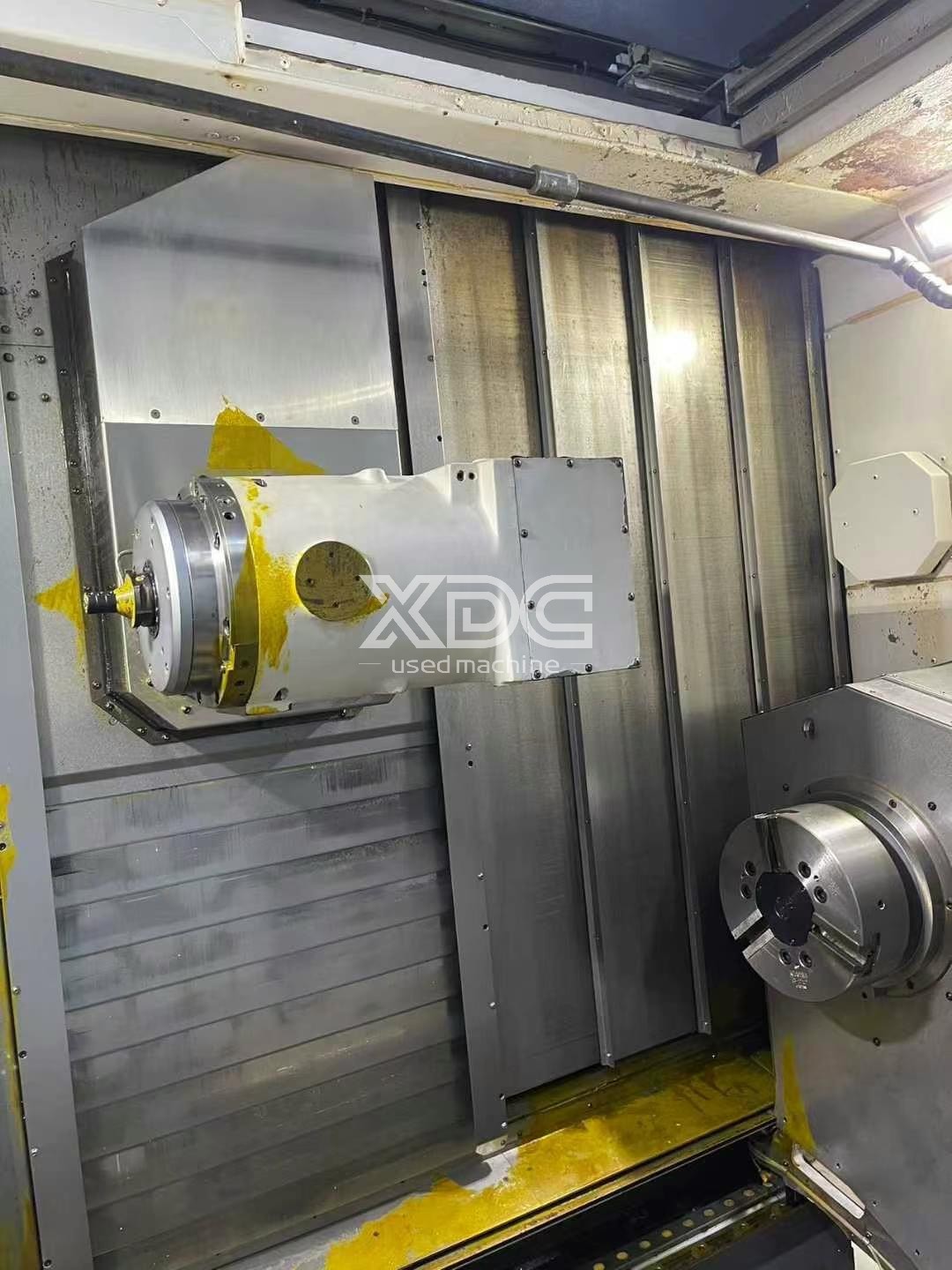

Dual spindles. The main spindle and the sub-spindle are equipped with 15.75-inch chucks.
The ATC has a tool magazine with 80 tools.
The maximum machining diameter is 650mm,
and the maximum machining length is 1500mm.
The travel of XYZW axes: 695*300*1600*1600mm
The speed of the main and sub-spindles is 4200 rpm, the speed of the milling spindle is 12000 rpm.
The through hole diameter is 140mm. The tool holder is CAPTO C6. It is equipped with a central coolant outlet.
