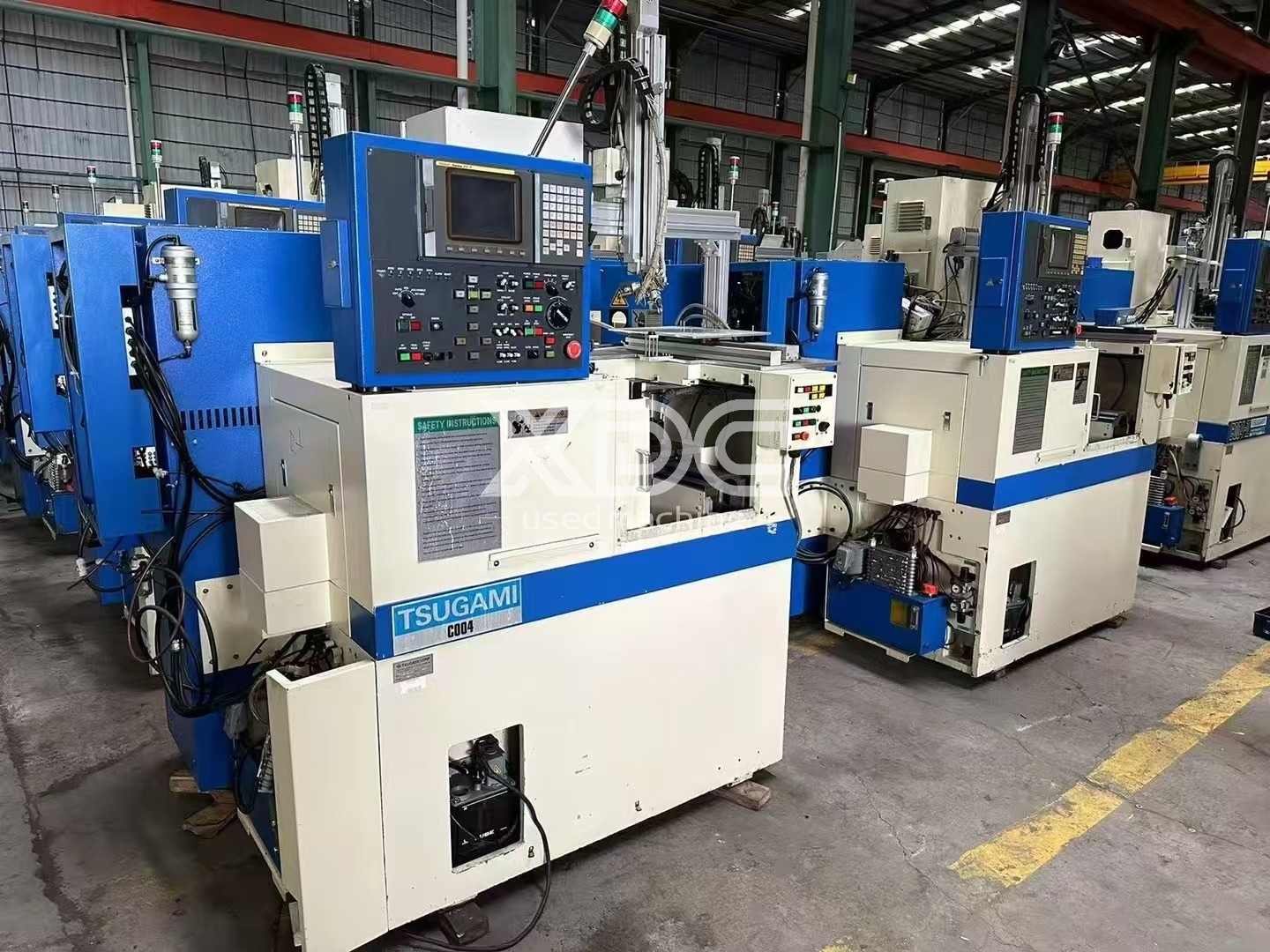

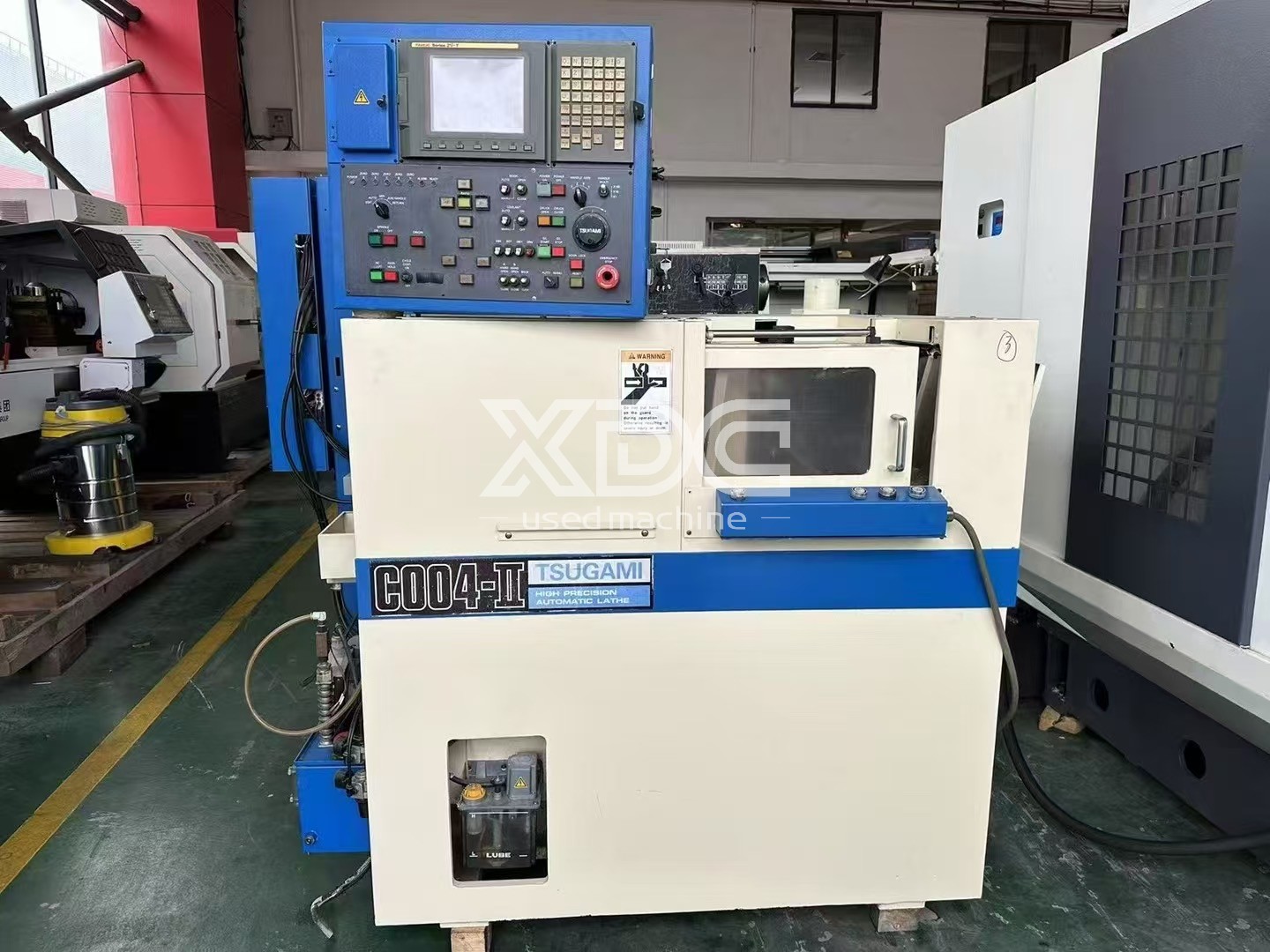

Tsugami C004-II is a high-precision CNC lathe.
The maximum machining diameter is 260mm, and the maximum through-hole diameter is 45mm.
The travel of the X-axis is 440mm, and the travel of the Z-axis is 220mm.
Spindle speed: 80-12000 rpm.
Feed rate: 60*60*15
Spindle motor: 2.2/3.7KW (10 minutes/continuous).
Mechanical weight: 2200kg.

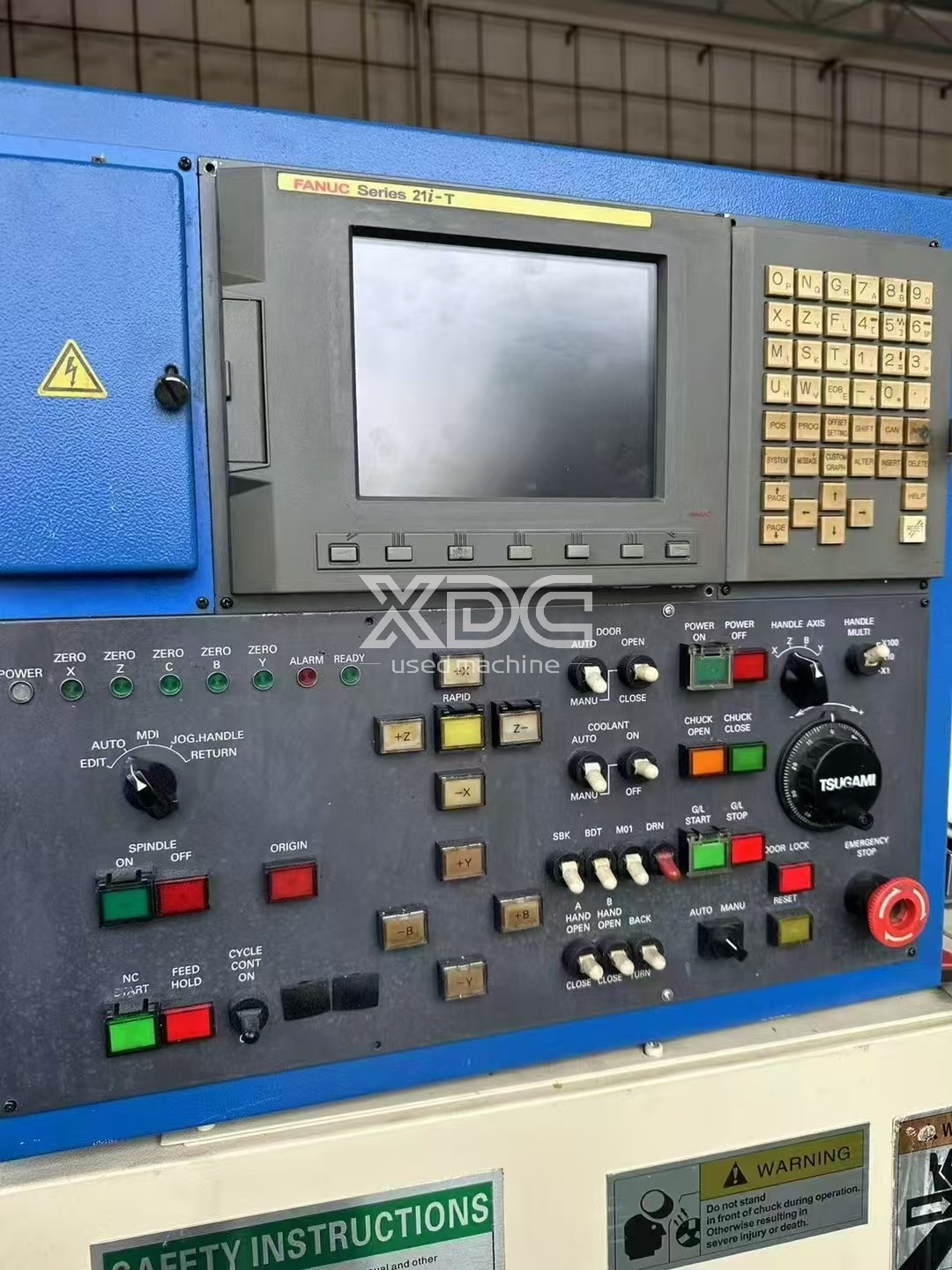

Mechanical dimensions: 1500*1200*2240mm. It is equipped with FANUC-21i.

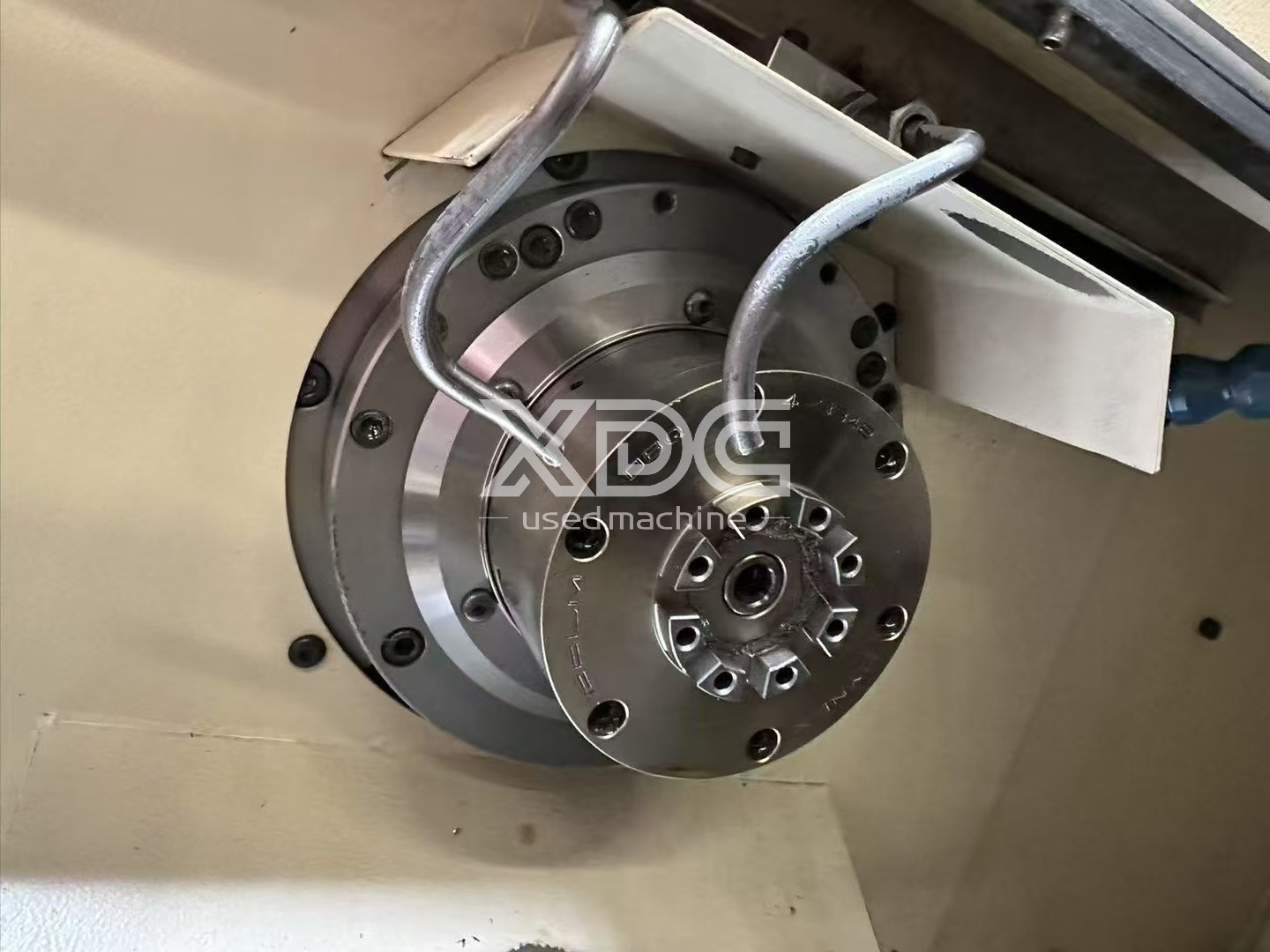

The spindle is driven by a built-in motor and is equipped with high-precision ceramic bearings.
