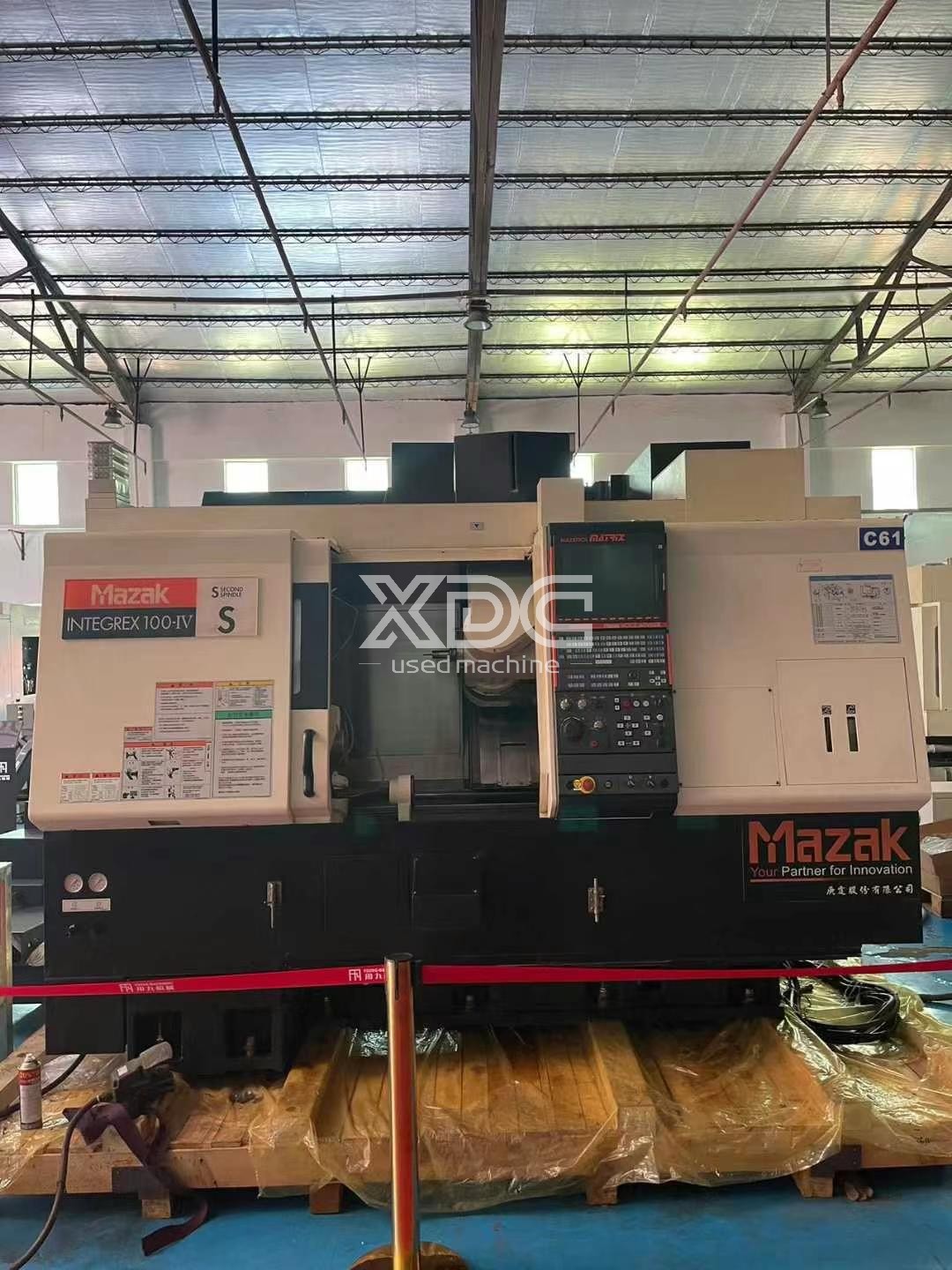

Mazak INTEGREX 100IVS of Yamazaki Mazak from Japan,
with five-axis simultaneous control and tool tip following function,
is a turning-milling compound machining center. Imported tool holders will be provided.
Maximum swing diameter, maximum machining diameter: 600mm
Maximum machining length: 850mm
Travel of X, Z, Y axes: 535x900x210mm
B axis: -30°～+210°
Transverse double spindles with 6-inch chucks, maximum speed of 6000 rpm, through-hole diameter of 61mm

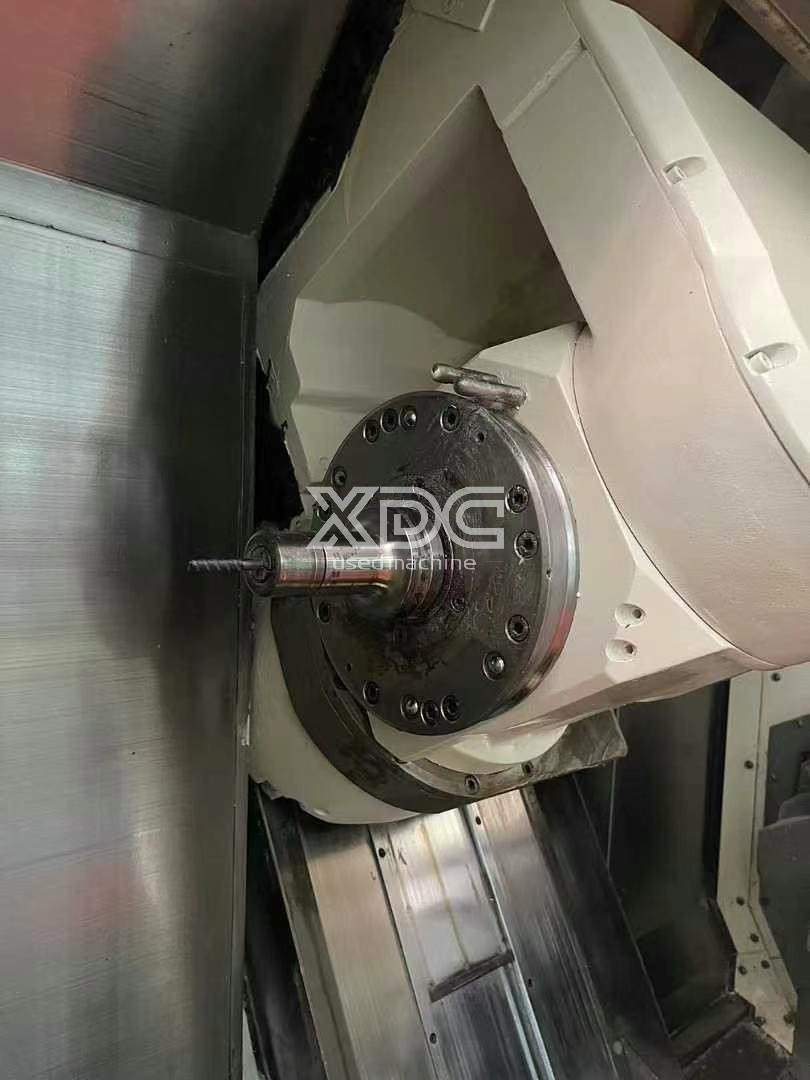

Milling spindle speed of 12000 rpm, torque of 57.3N·M

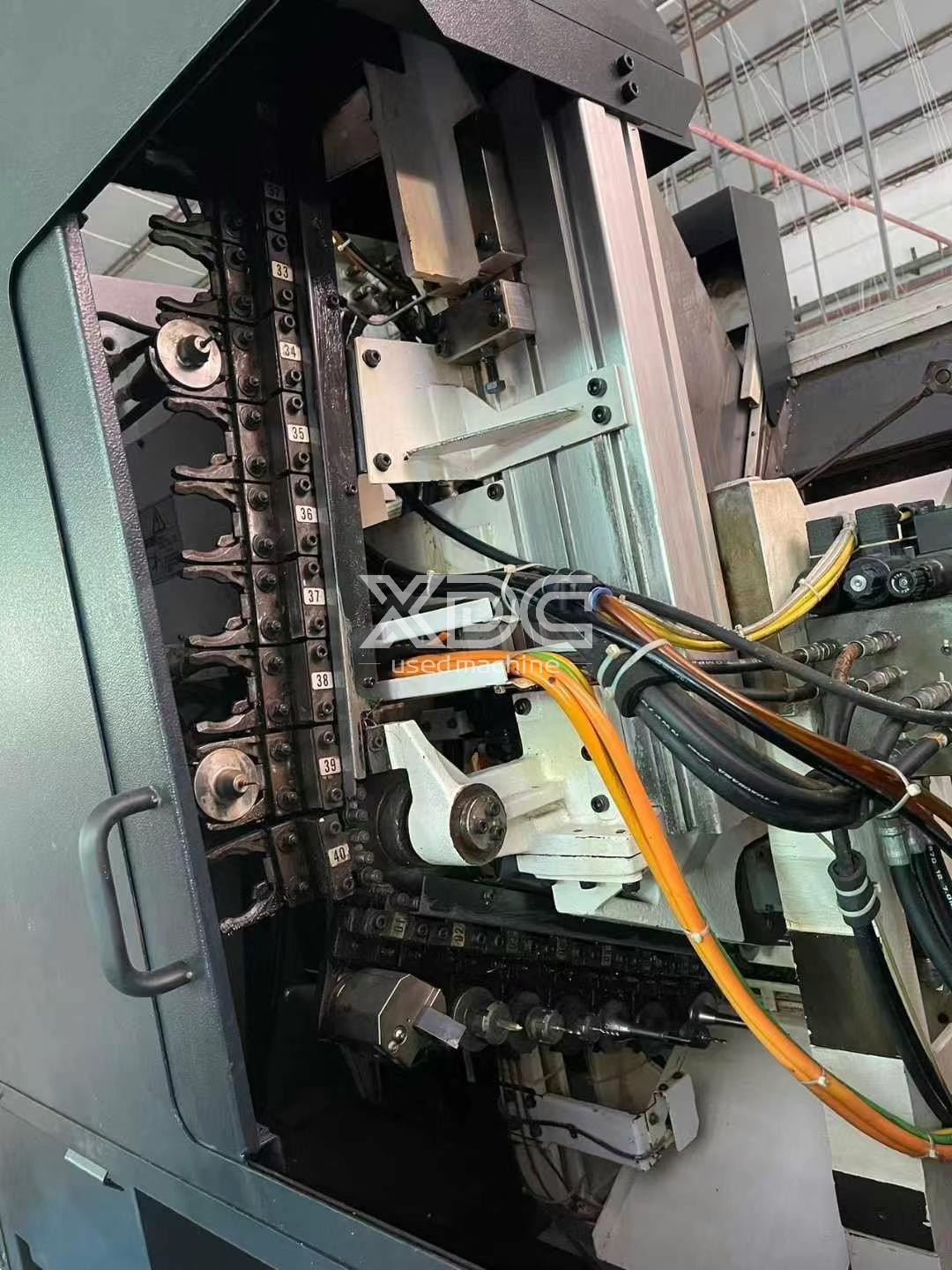

BT40 tool holders, 40-tool magazine (including tool holders)
Indexing accuracy: 0.0001 degree
