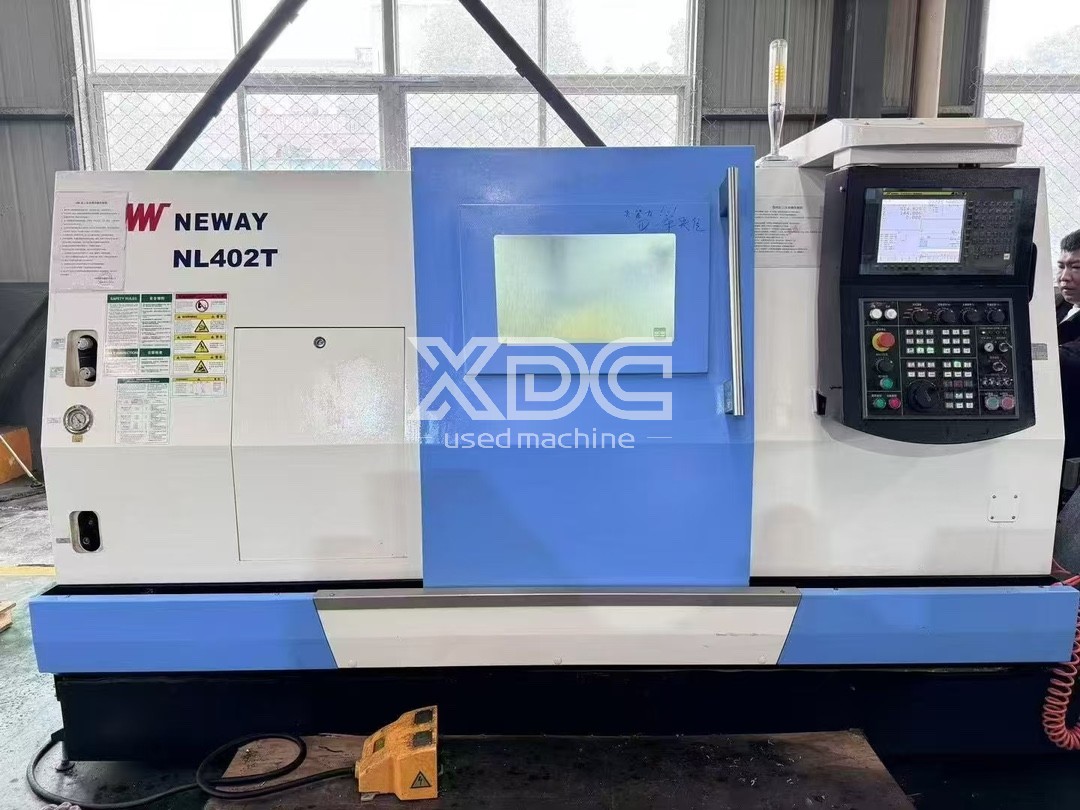

🚩 Neway NL402T turning milling composite

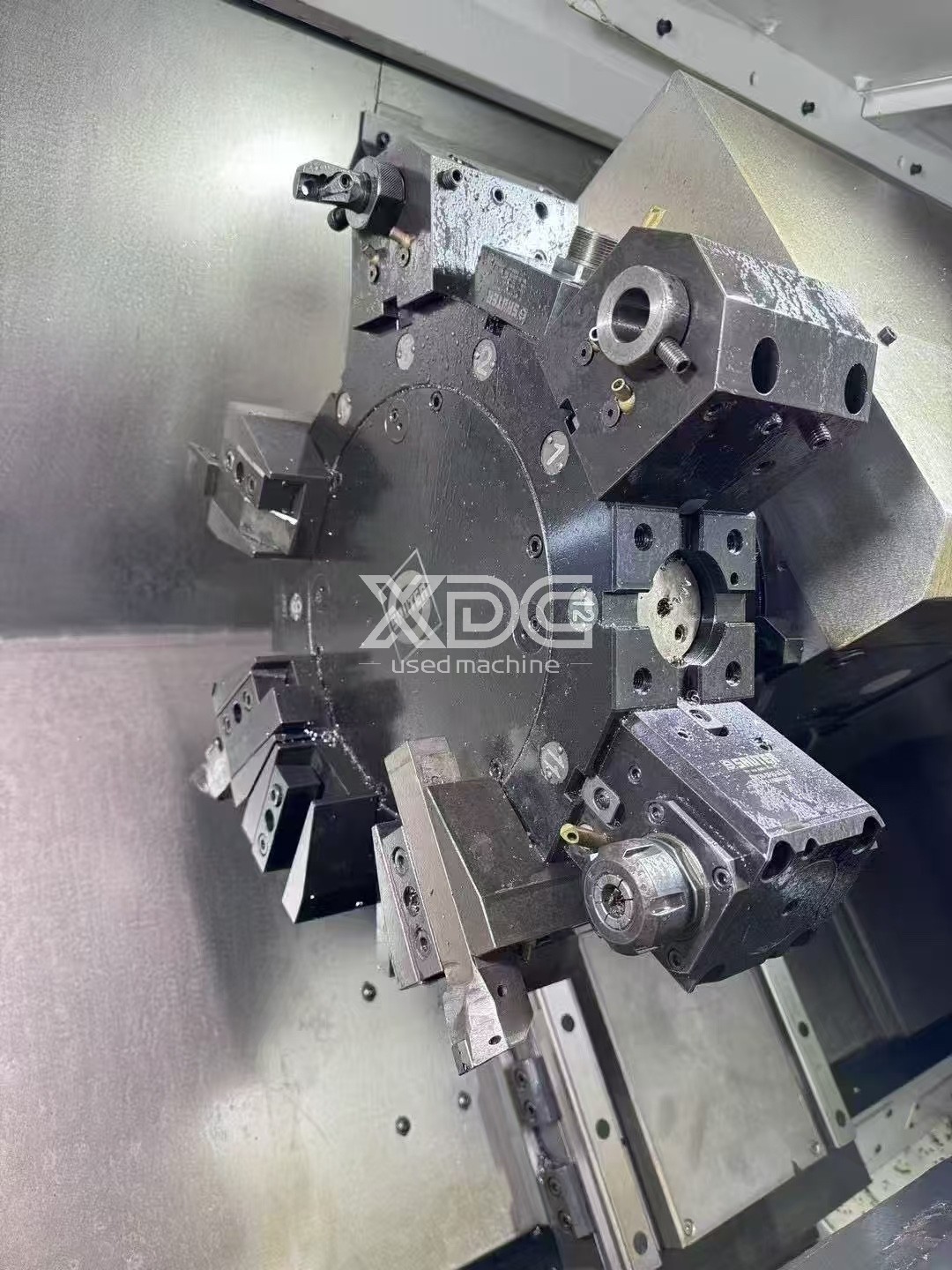

10 inch hydraulic chuck, 12 station servo power turret
Processing dimensions
• Large turning diameter of bed: Φ650mm
• Large rotation diameter of saddle: Φ480mm
• Maximum cutting diameter: Φ400mm
Maximum cutting length: 500mm
• Maximum diameter of bar material: Φ51mm
Main motor power: 11/15kW
• Maximum spindle speed: 3000rpm
• Spindle end model: A2-6
• Spindle through-hole diameter: Φ65mm
• Spindle taper hole taper: metric 80
• Diameter of tailstock sleeve: Φ100mm
Tail frame sleeve stroke: 100mm
Conical hole taper: live * 5#
X-axis travel: 275mm, fast moving speed 20m/min
Z-axis travel: 530mm, fast moving speed 24m/mi
• Number of job positions: 12
• Maximum speed of power knife: 5000rpm
