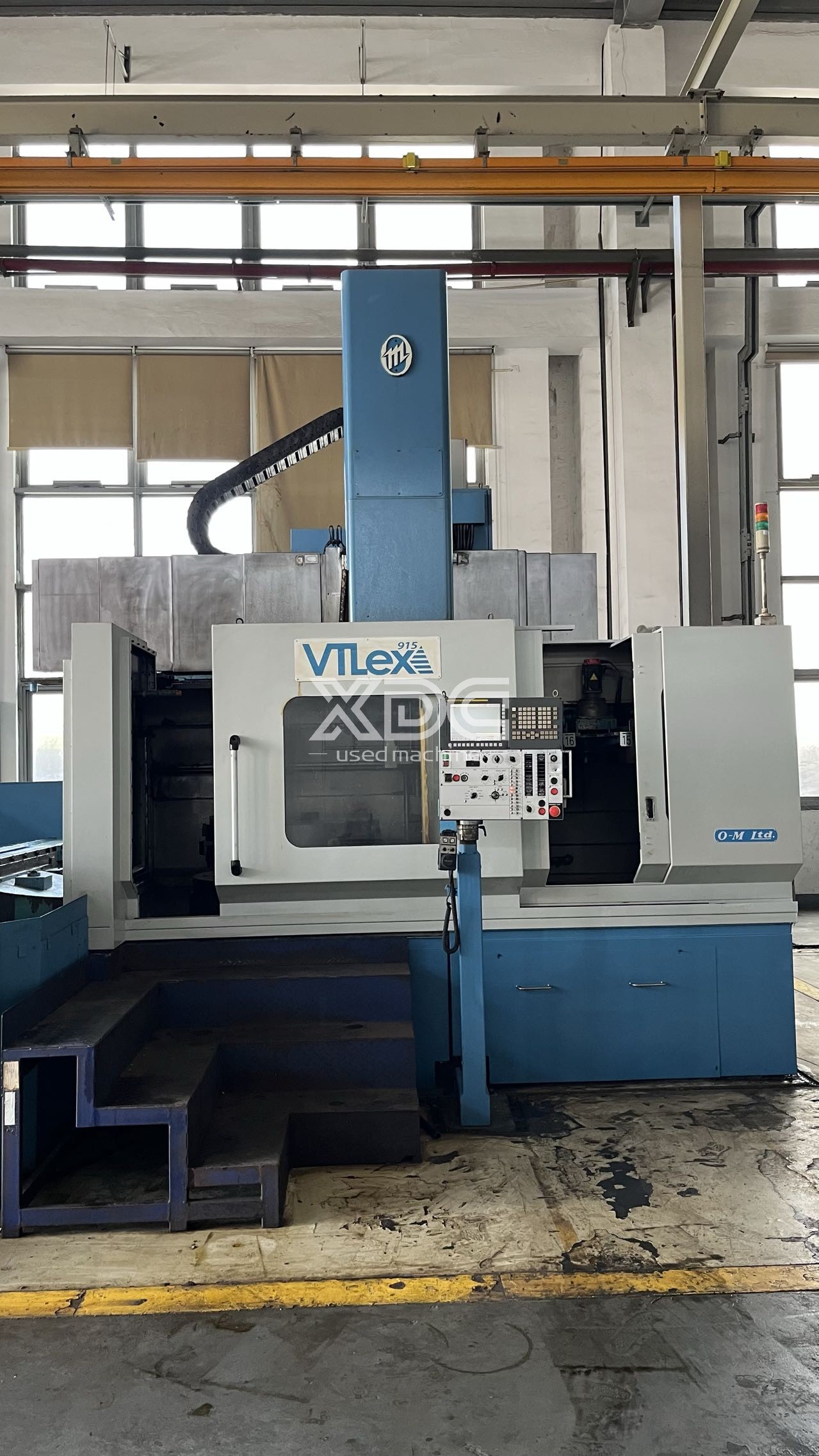

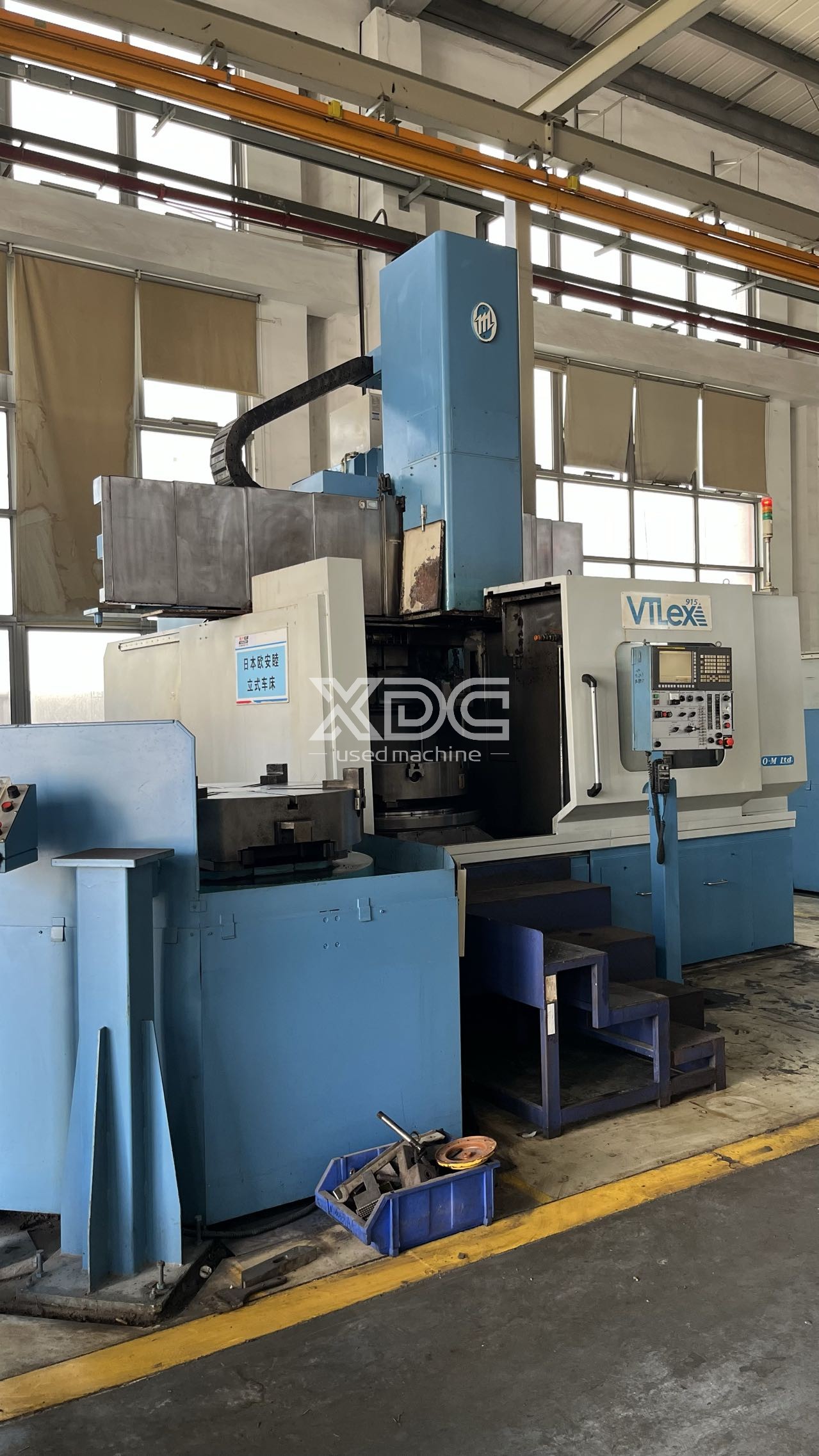

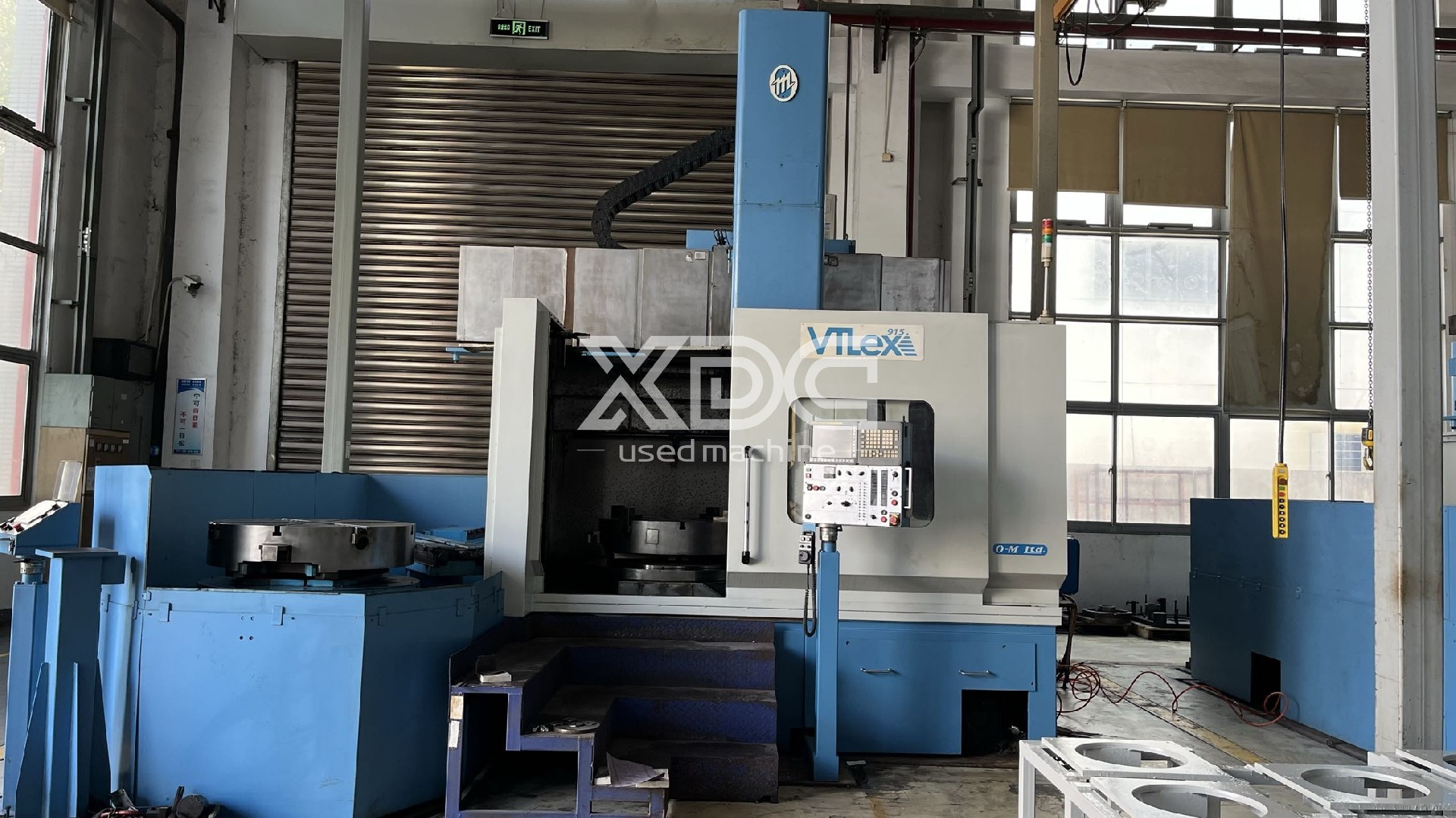

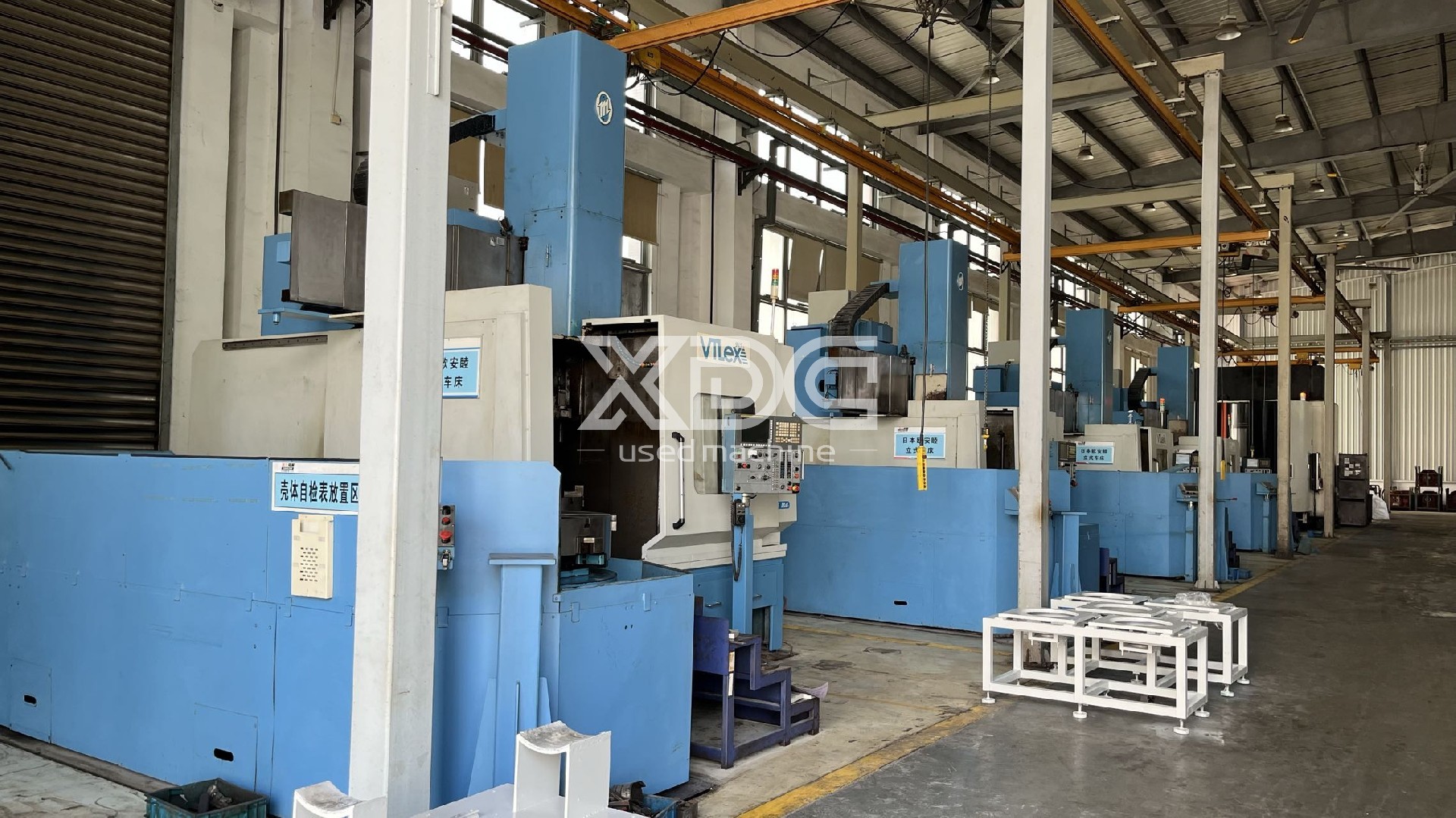

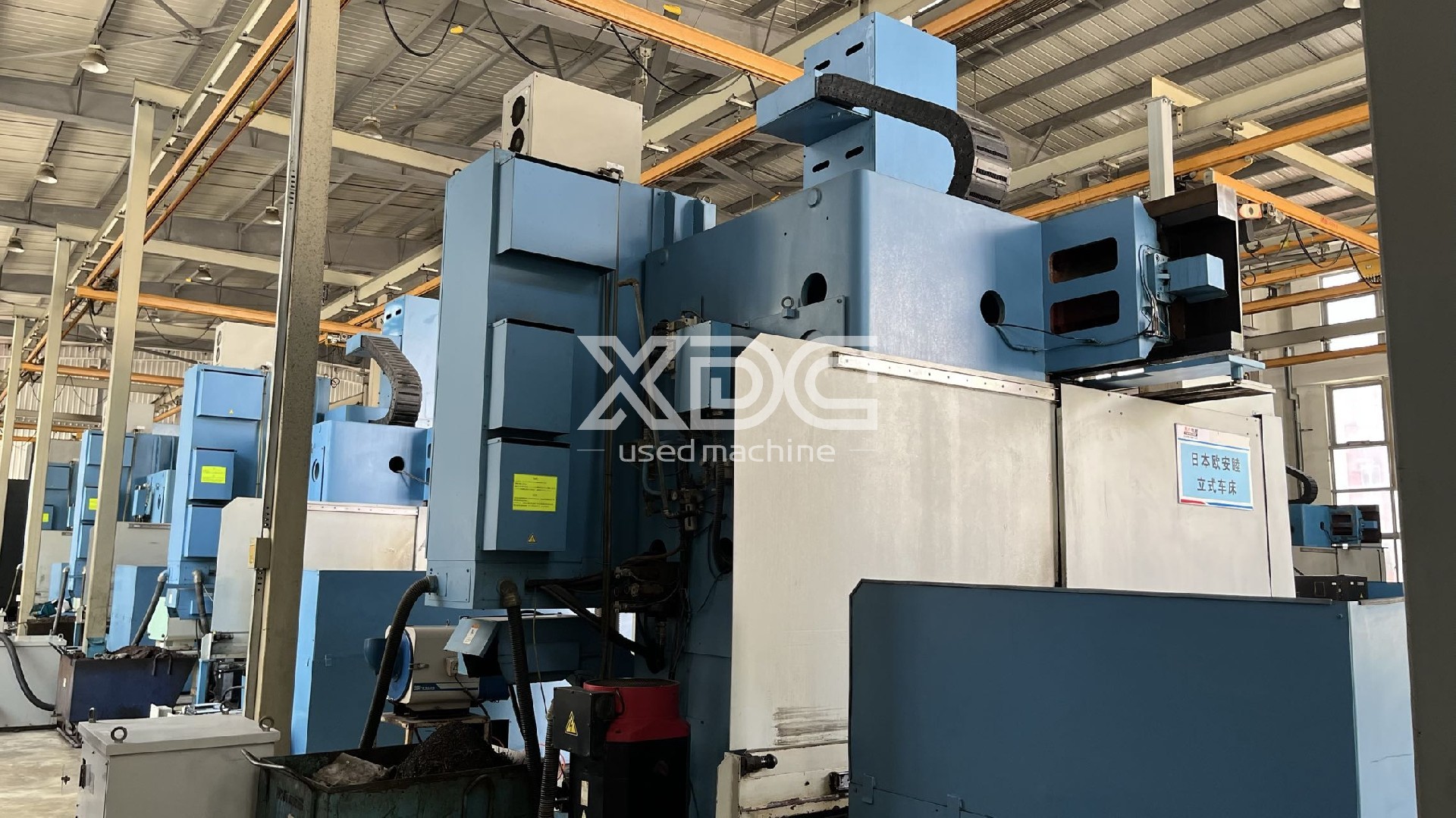

Japan OM VTLEX915 Vertical CNC Lathe
There are 3 units of the same model, with dual workstations and equipped with a grating ruler.

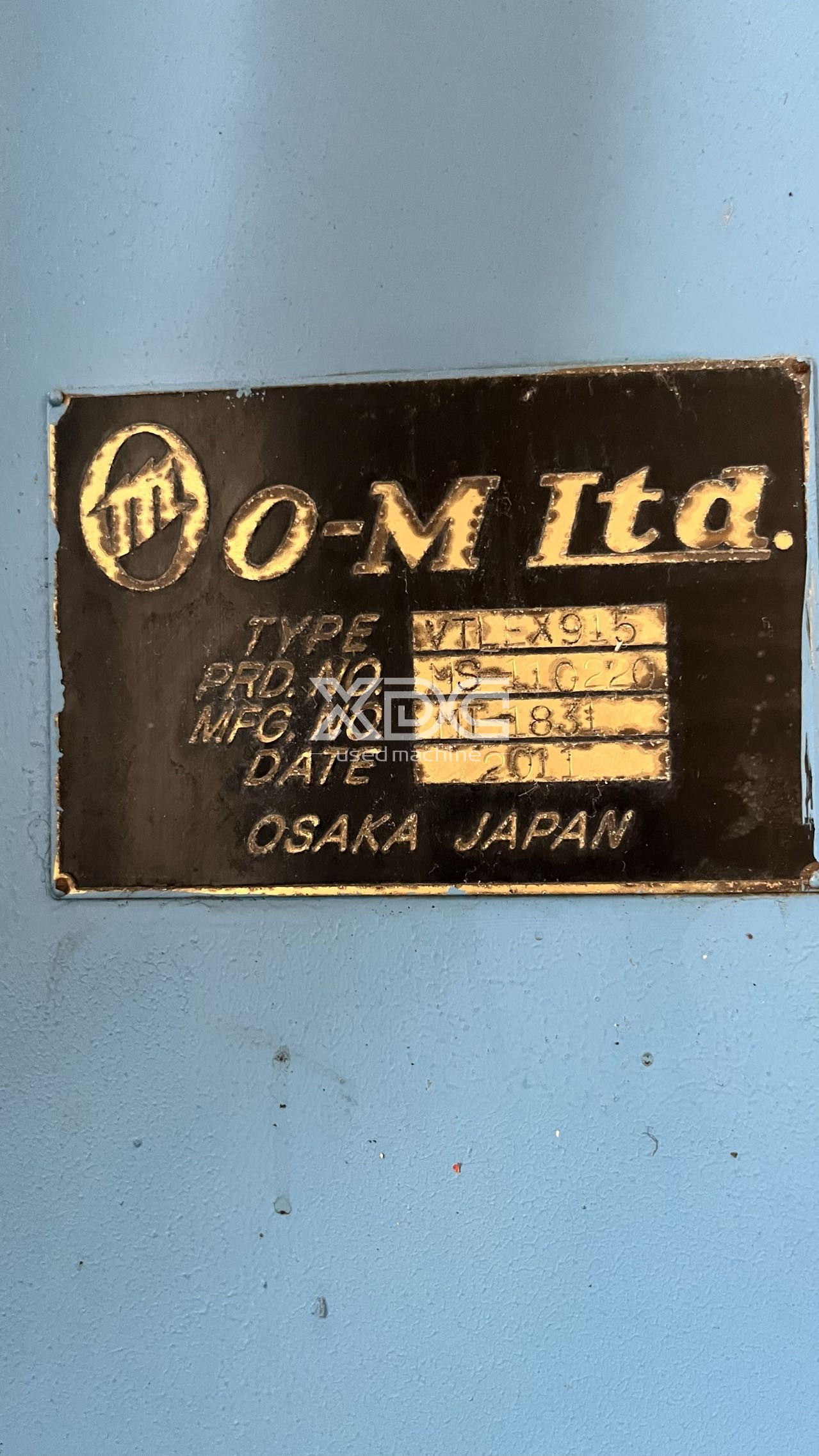

They were manufactured in 2011 and 2012 respectively. It has 12 tools.

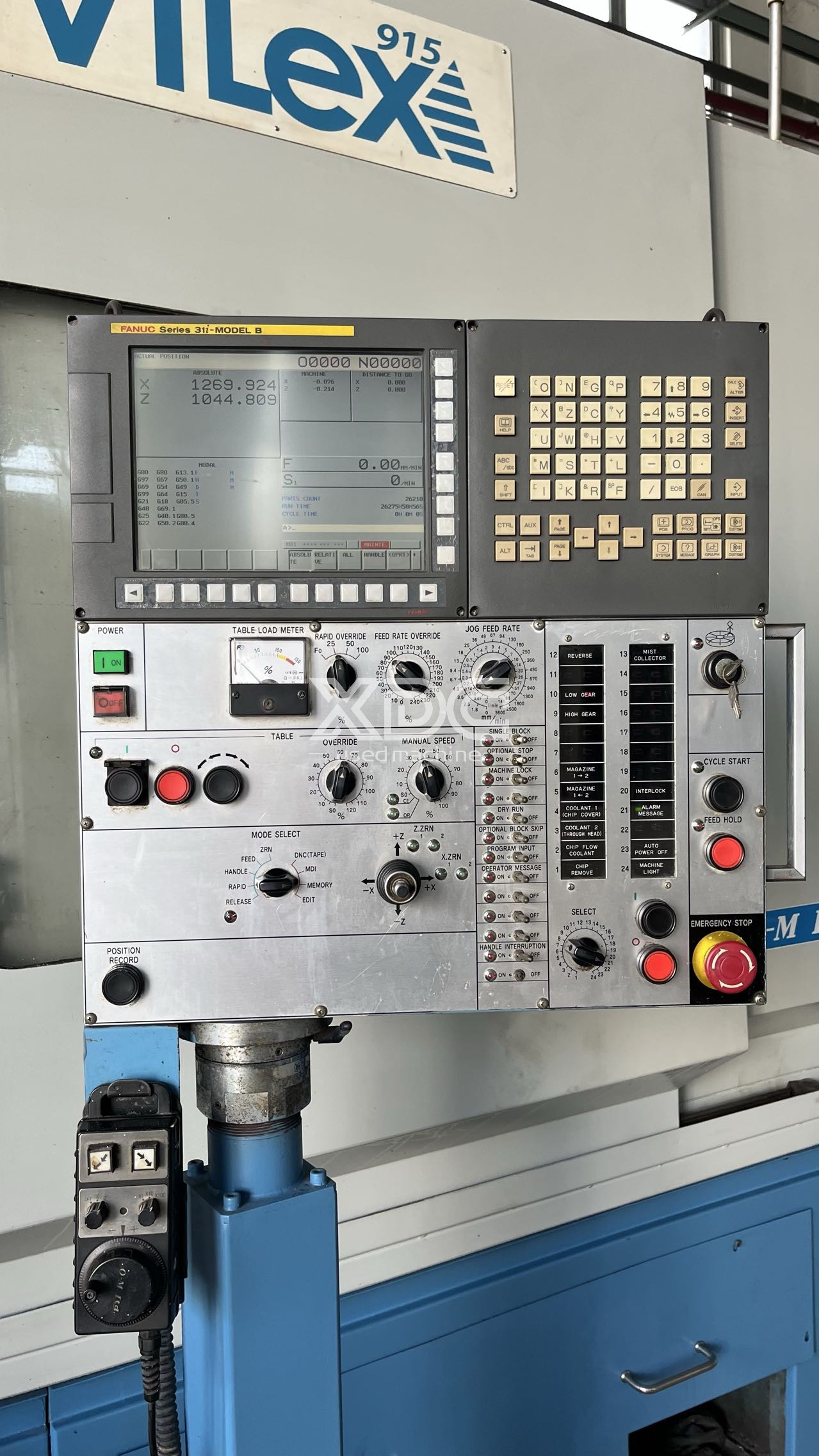

FANUC31i-MODEL B system XZ travel: 2300*800mm,
Maximum swing diameter: 1250mm,
Turning diameter: 1000mm
Maximum external turning diameter: 1000mm
Maximum machining height: 800mm

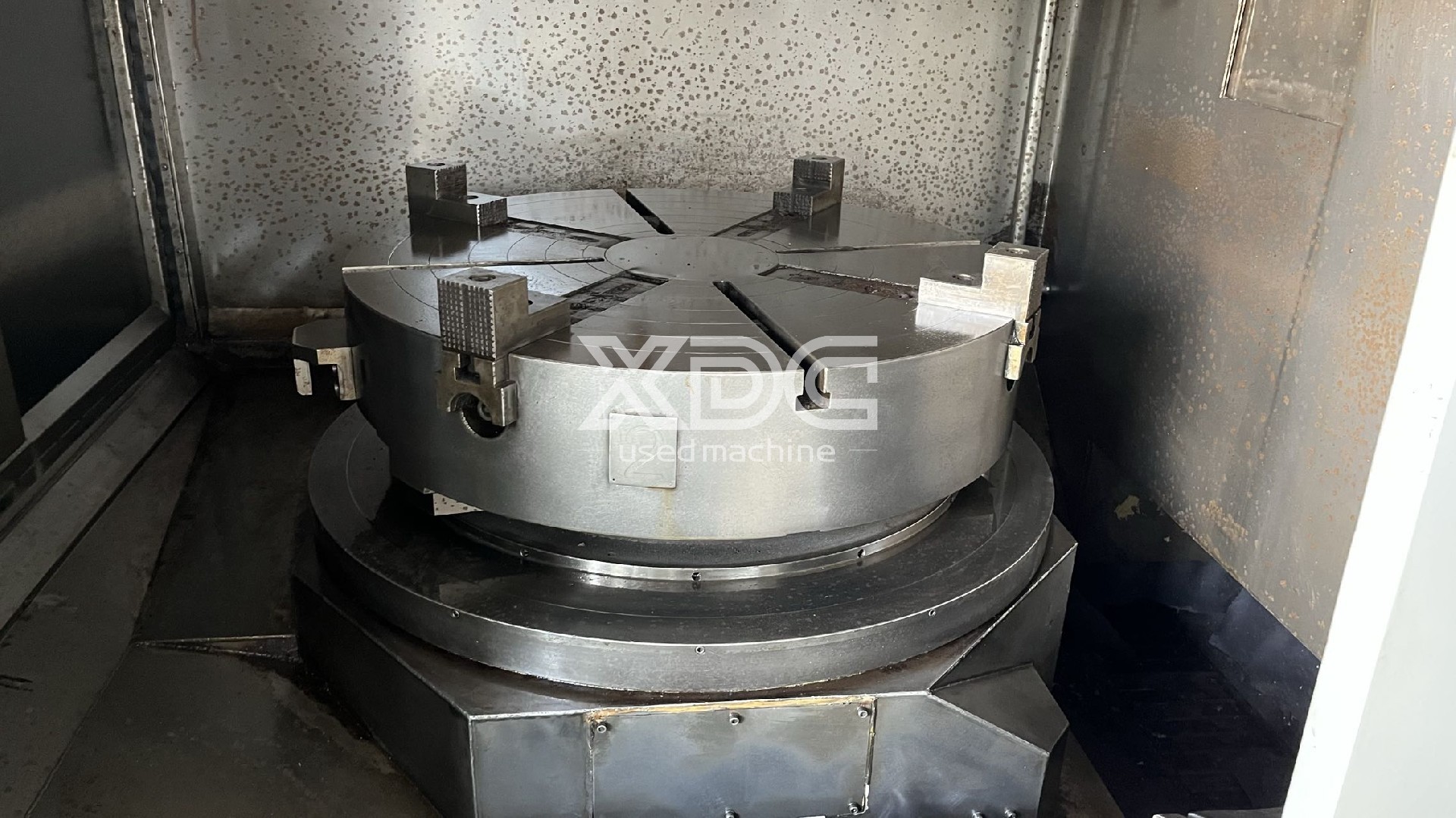

Worktable diameter: 915mm
Worktable load capacity: 1500kg
Maximum spindle torque: 5370nm
Maximum turning force: 25000N
The spindle transmission mode is belt drive, and the guide rail type is hard guide rail.
Overall dimensions: 5200×6000×4000mm.
Performance characteristics: The overall design of the column from the base to the top ensures precision and seismic resistance;

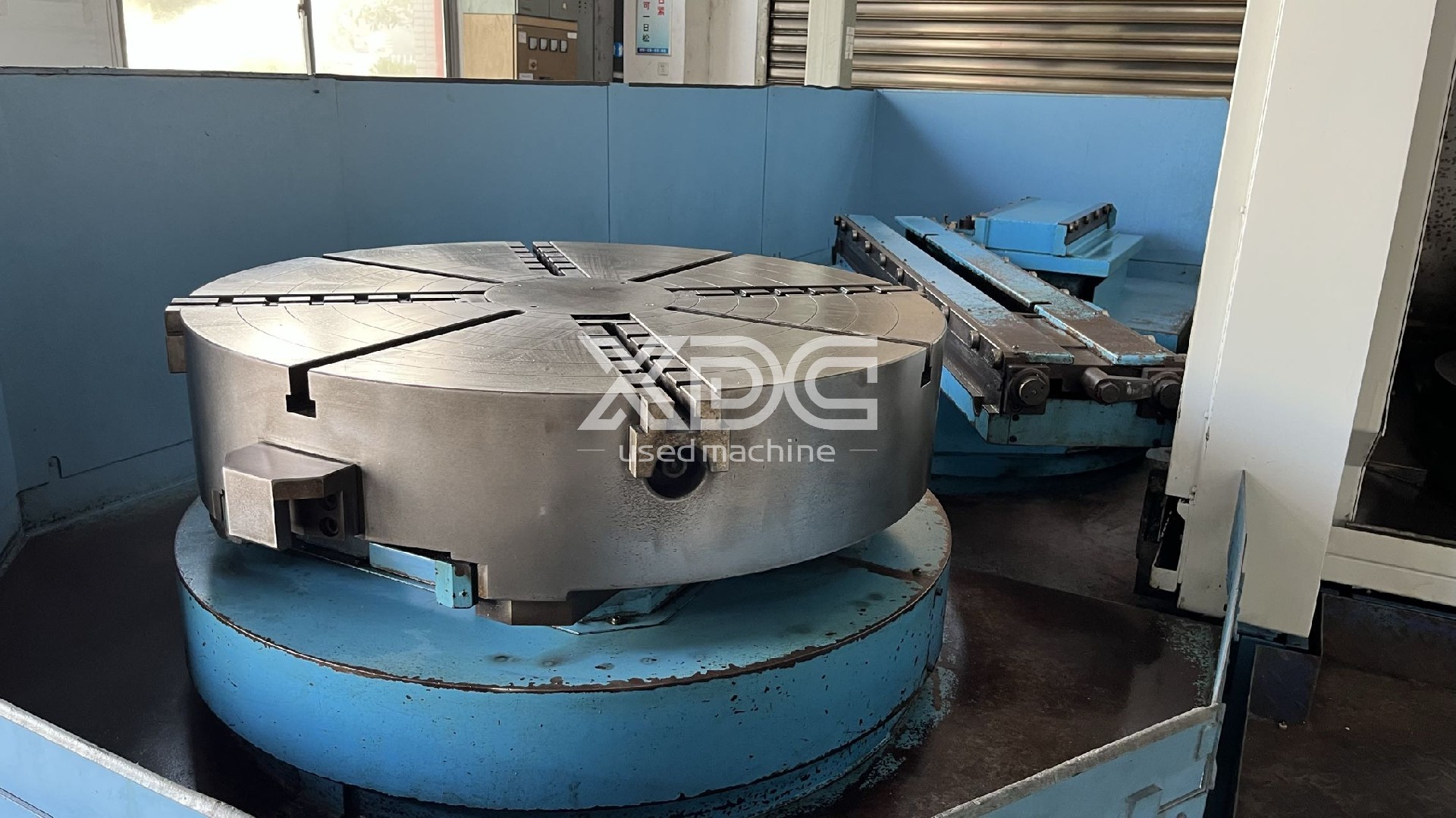

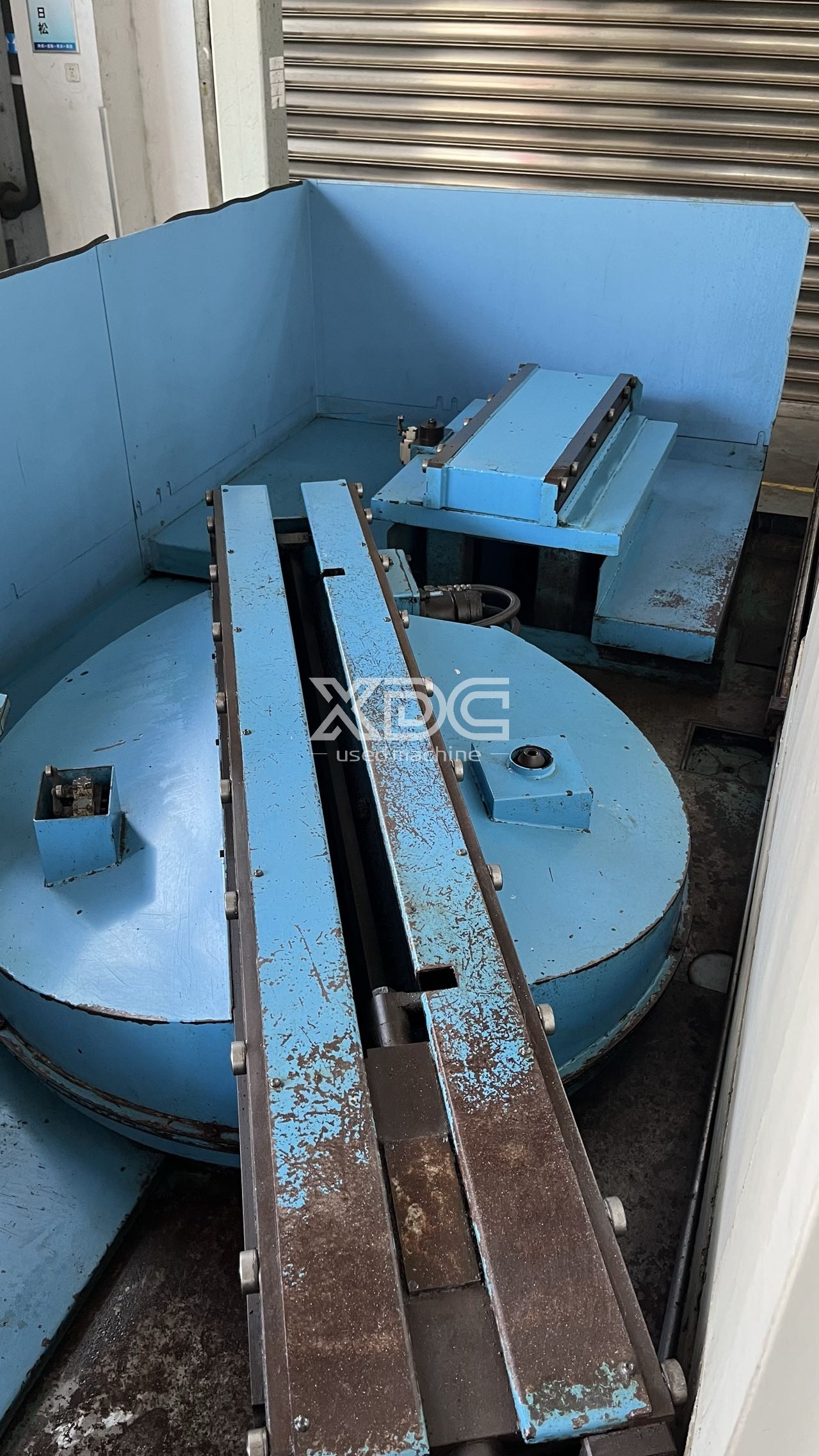

The dual-exchange table design features high repeat positioning accuracy and high stability;
Precise control enables the machining of complex parts; The rapid feed speeds of the X and Z axes are 16000mm/min and 12000mm/min respectively,
and the worktable speed range is 4-800rpm, which can improve the machining efficiency.
