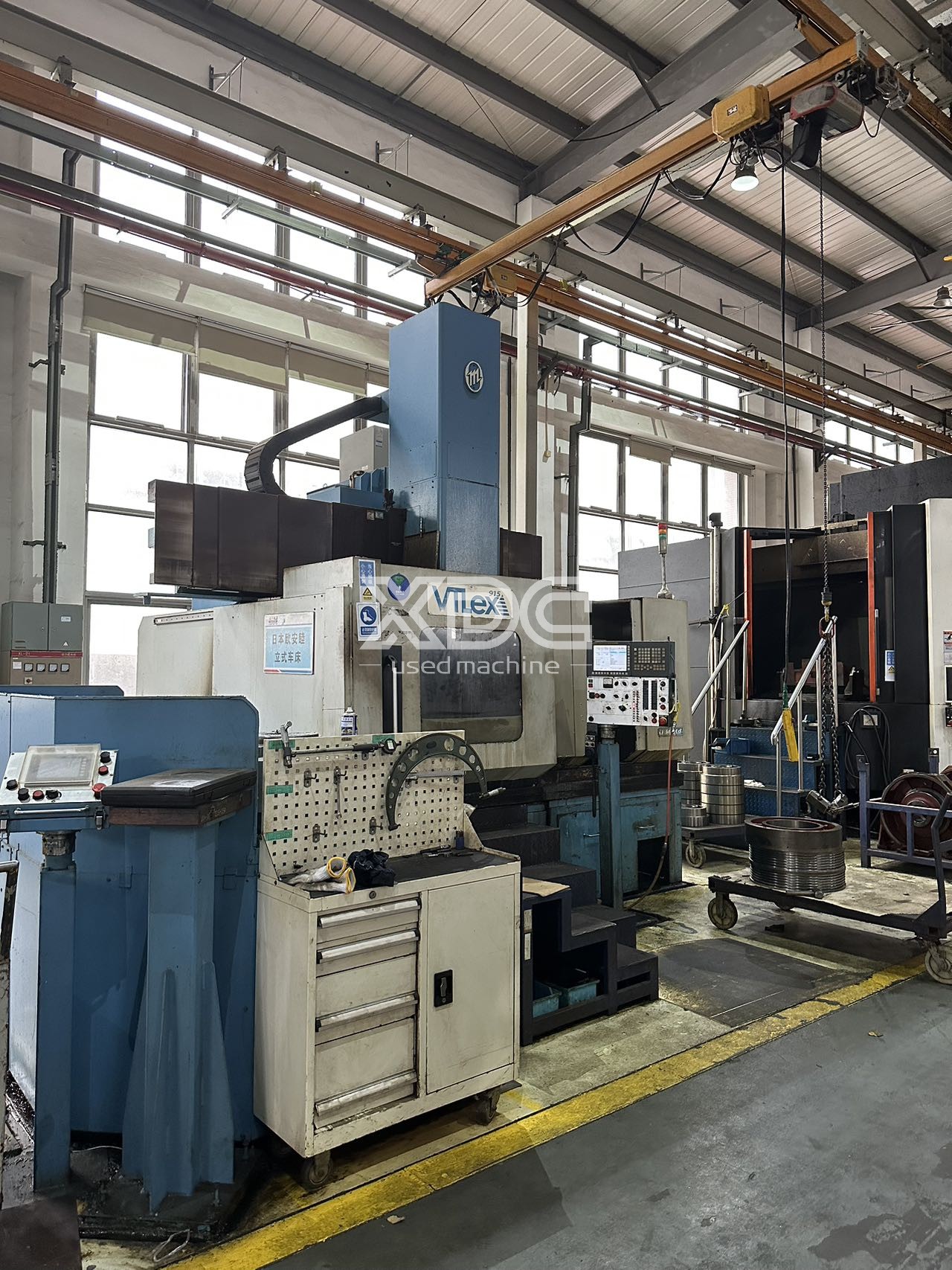

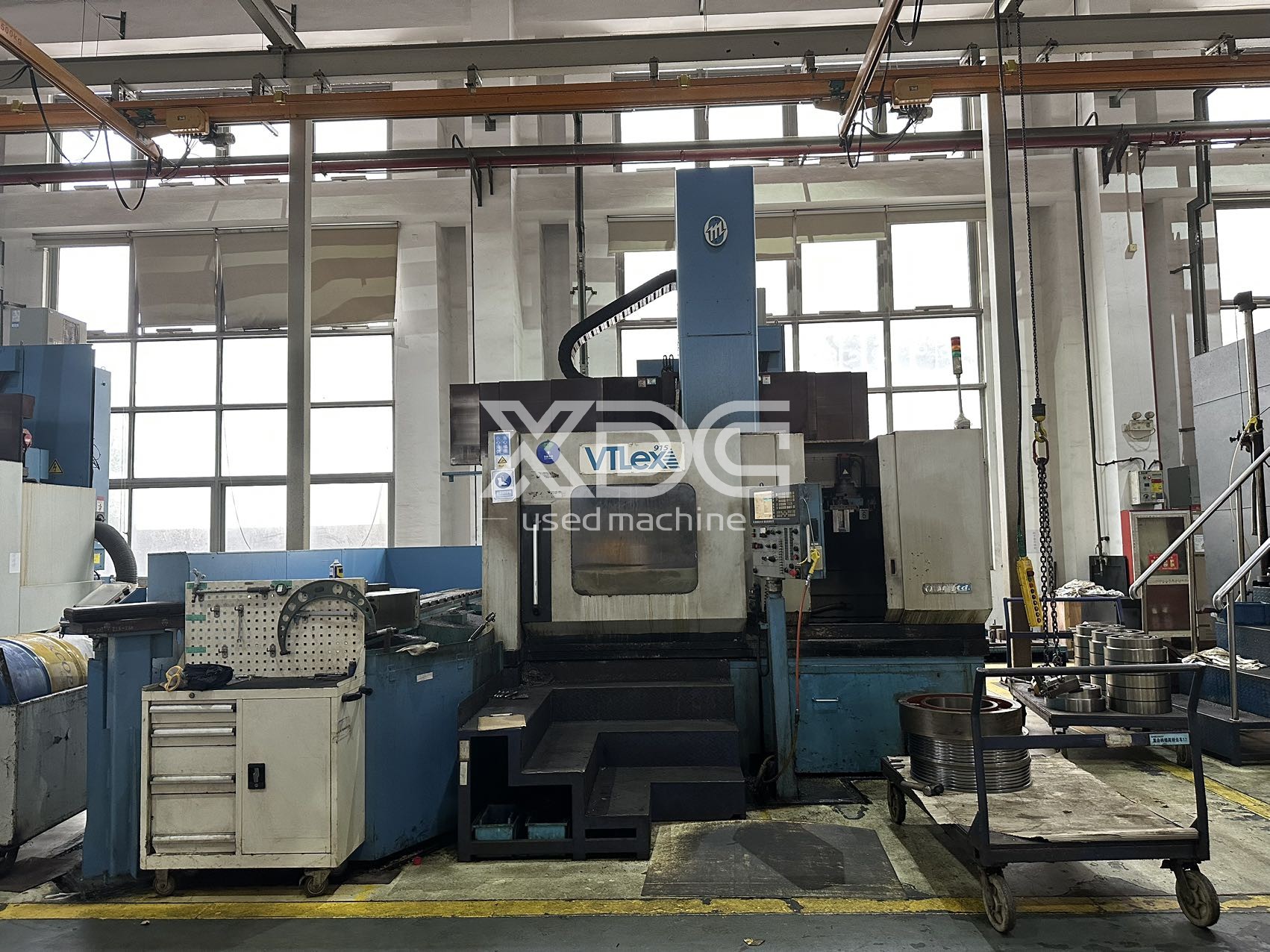

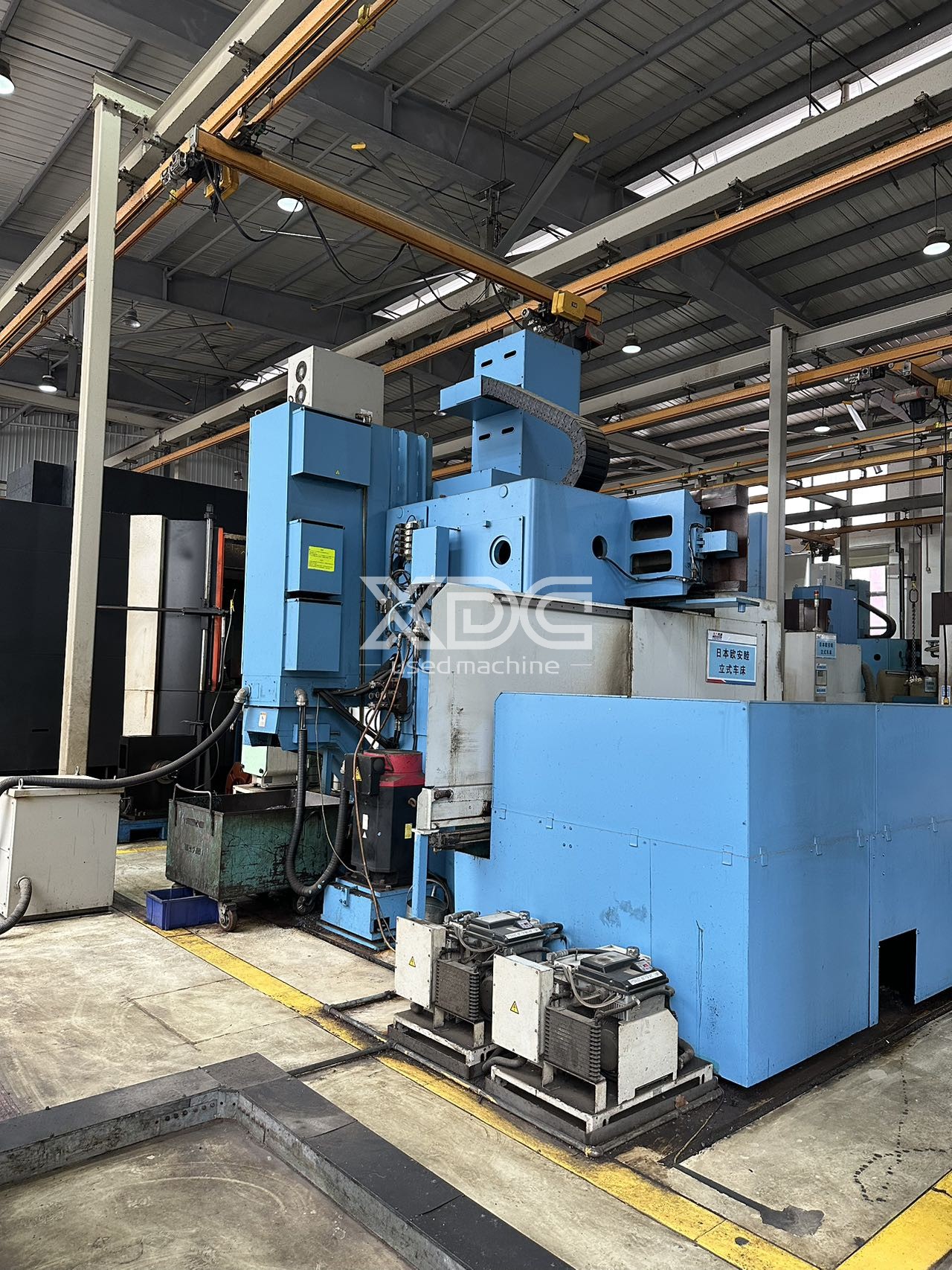

Japanese OM VTLEX915 vertical CNC lathe

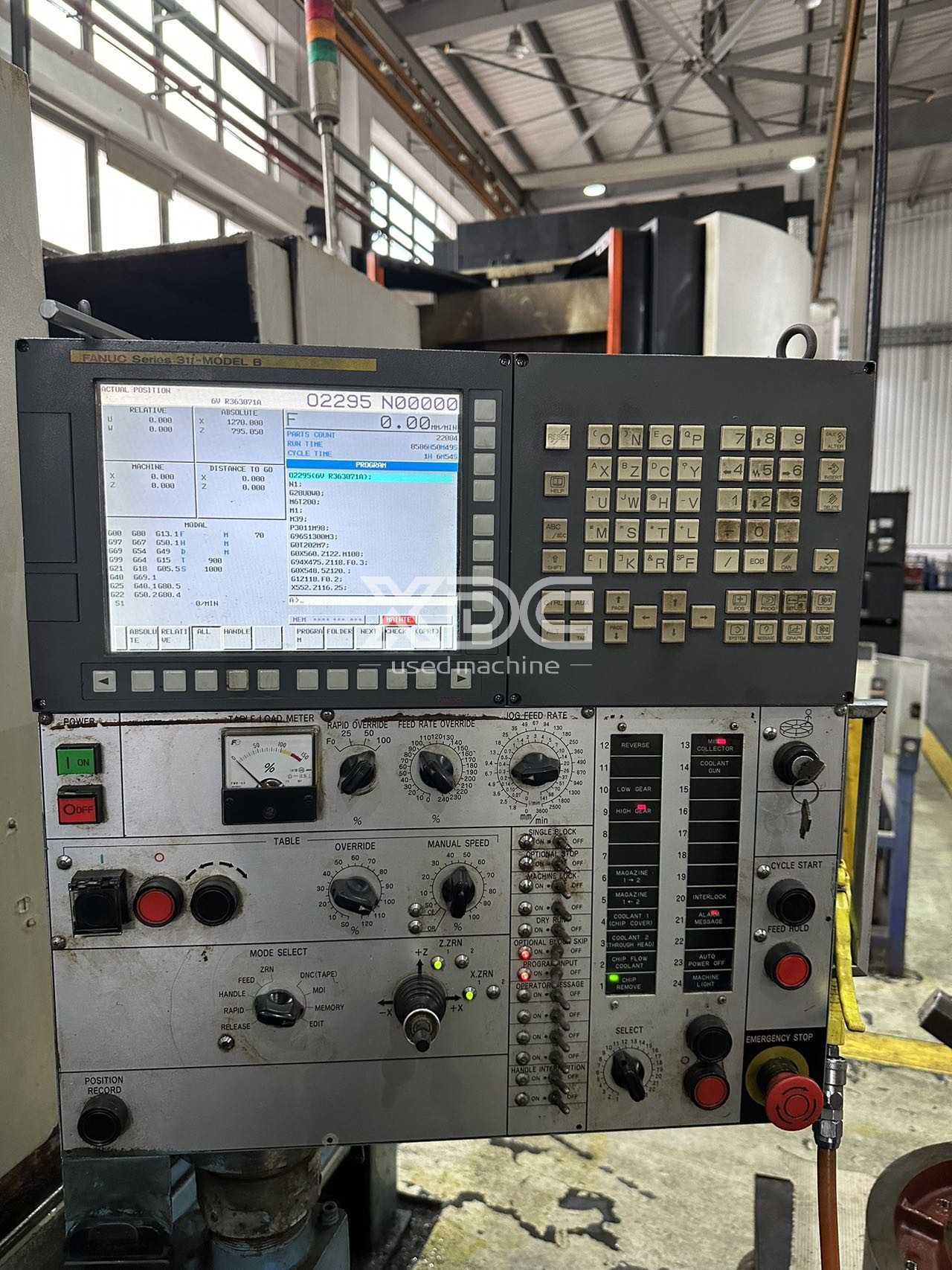

Equipped with FANUC 31i - MODEL B system and linear encoder
XZ travel: 1065*800mm
Maximum swing diameter: 1250mm
Turning diameter: 1000mm
Maximum outer diameter for turning: 1000mm
Maximum machining height: 800mm

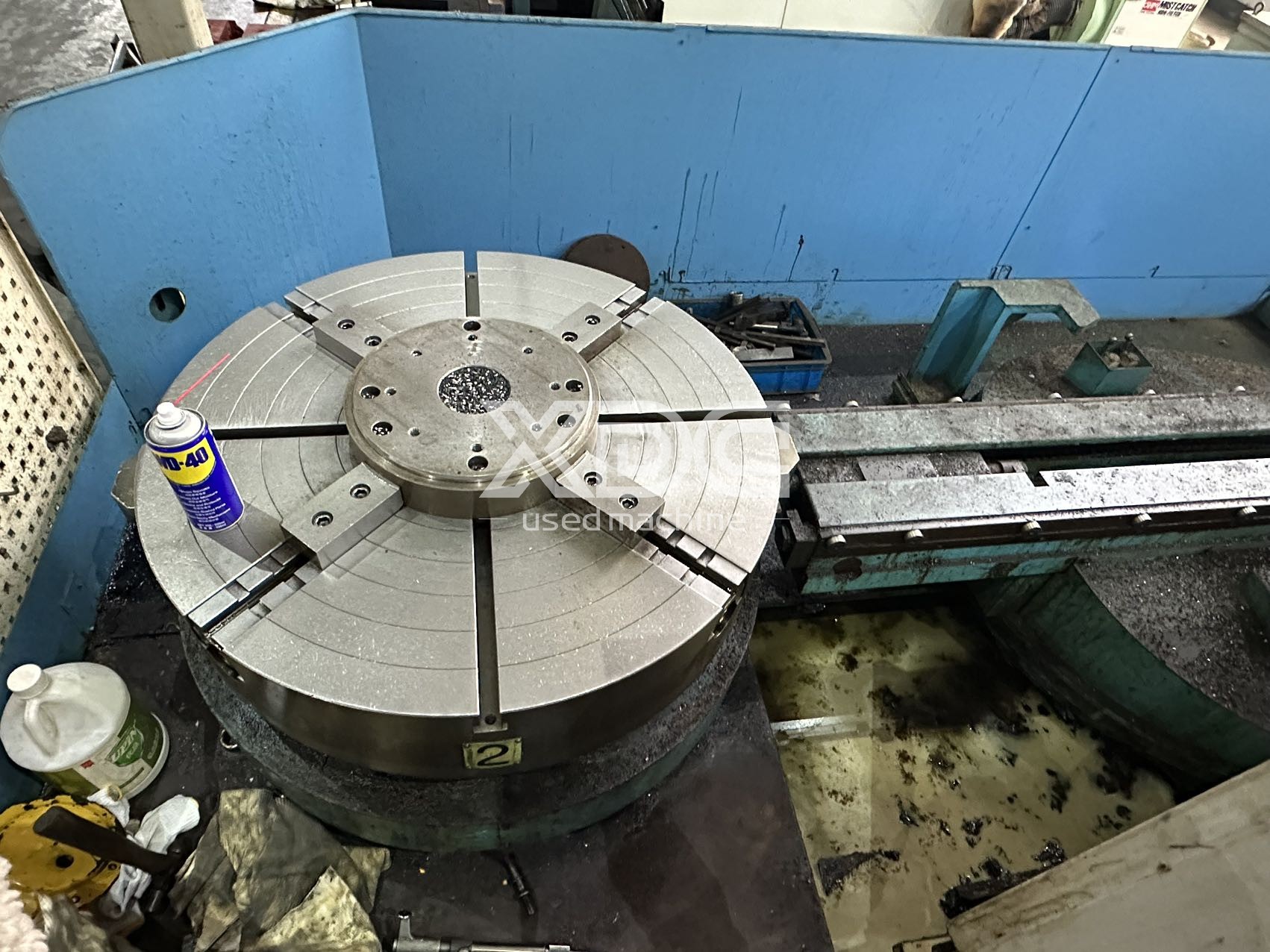

Worktable diameter: 915mm, worktable load - bearing capacity: 1500kg
Maximum spindle torque: 5370nm, maximum turning force: 25000N. The spindle is driven by belt.

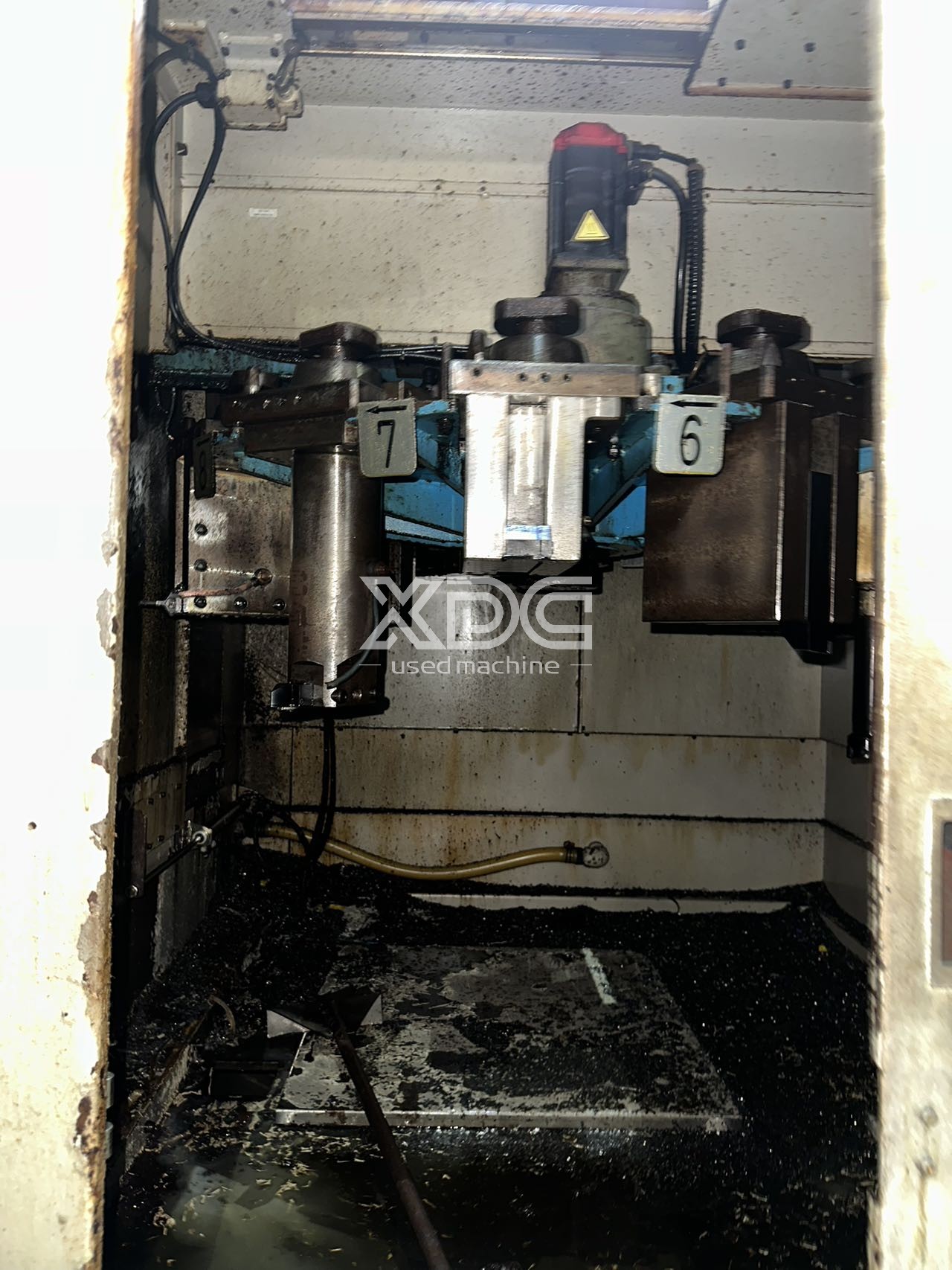

Tool magazine capacity: 12 tools. Tool magazine type: disc - type. Guideway type: hardened guideway.
Overall dimensions: 5200×6000×4000mm.

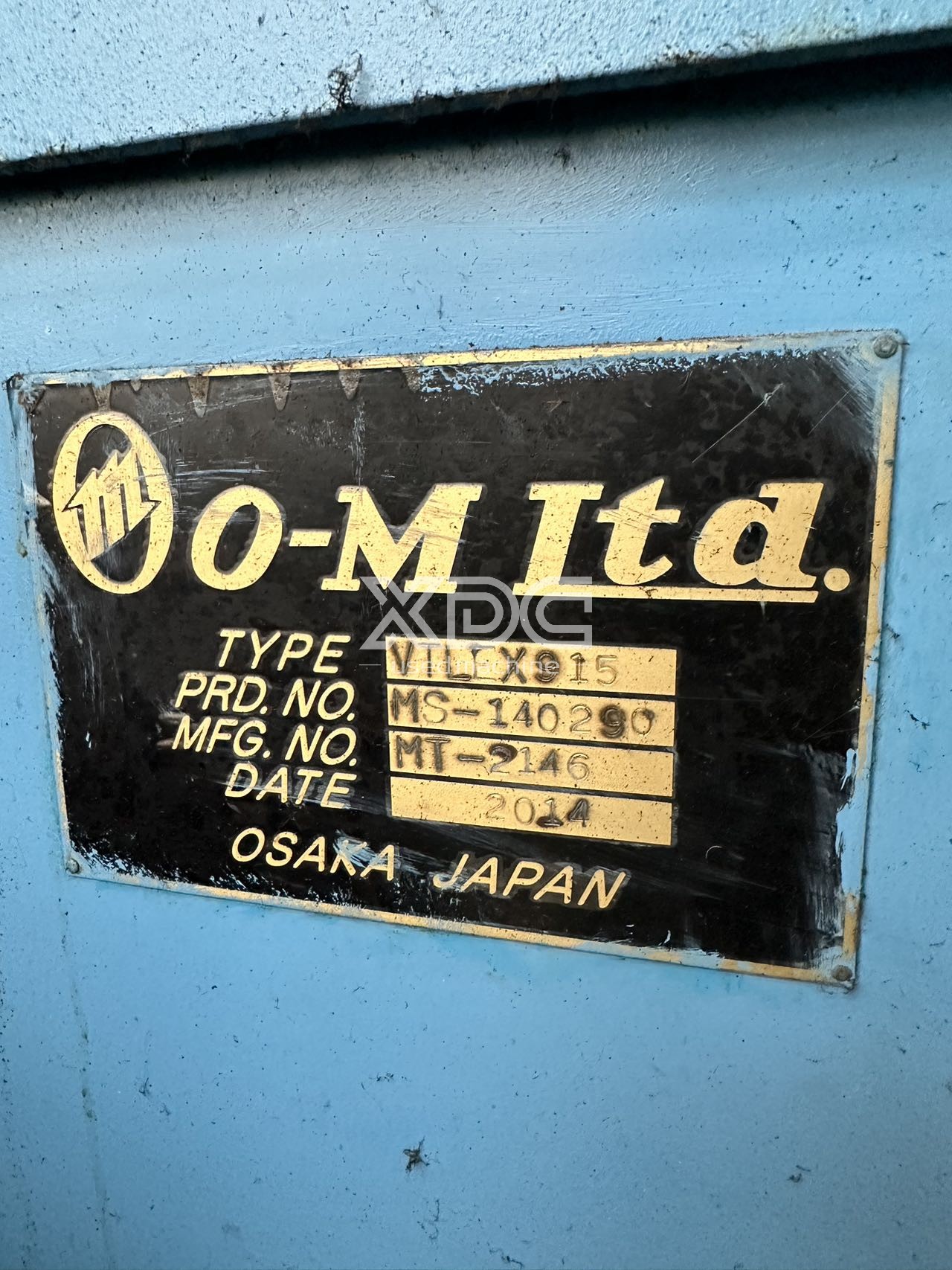

Manufactured in 2014
