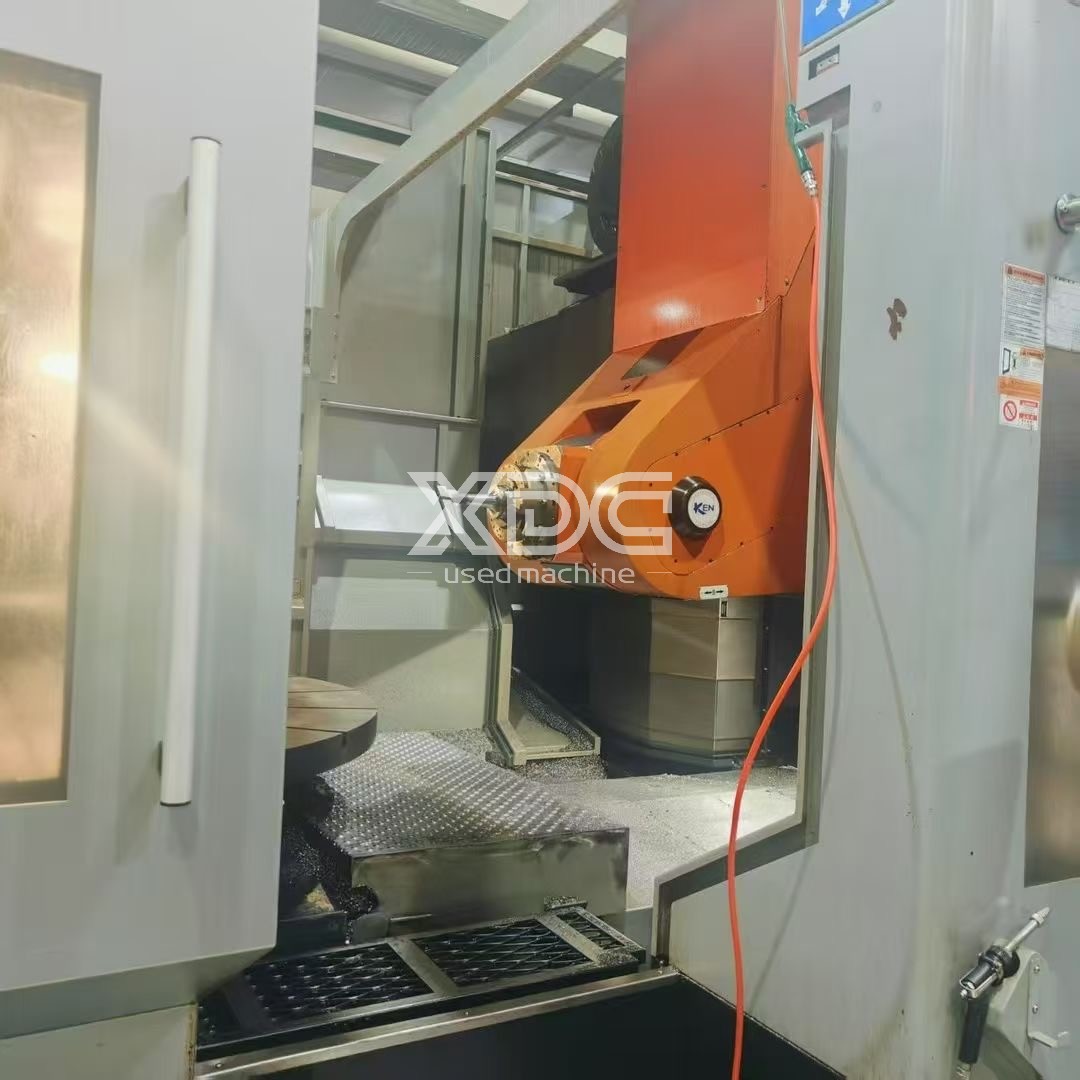

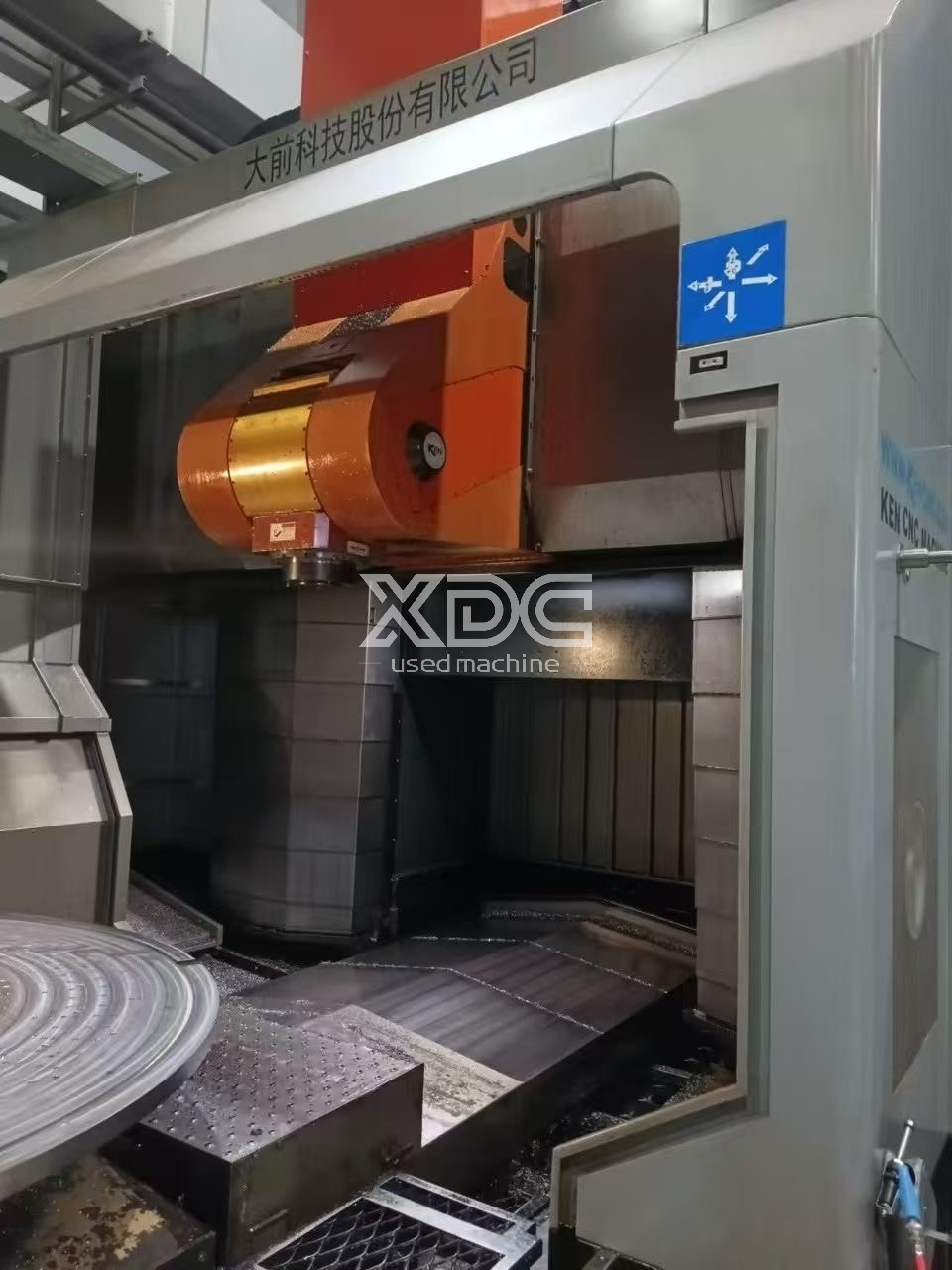

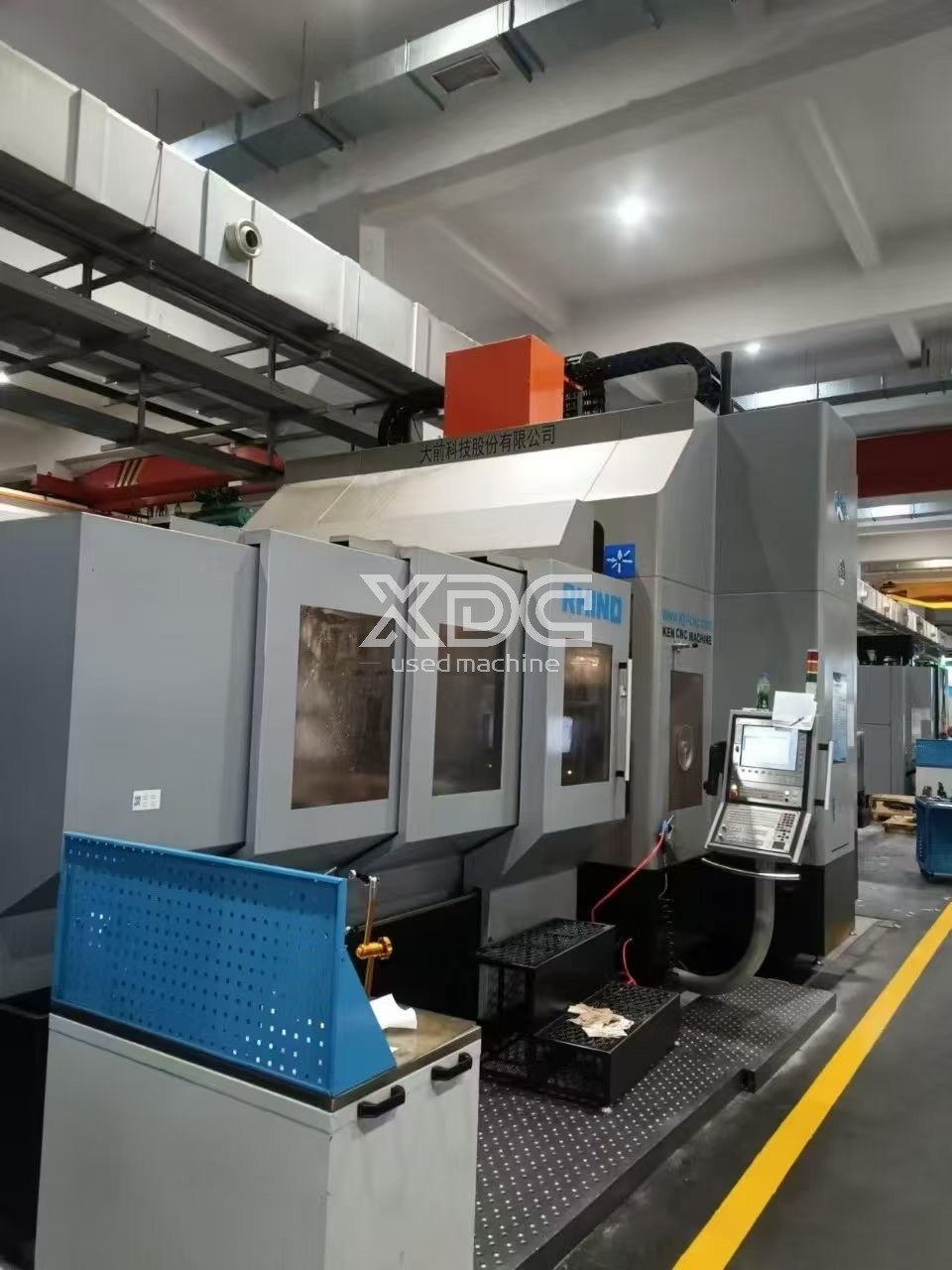

Taiwan Daqian Technology RHINO-1250 5-axis milling-turning compound center
Brand: KEN ICHI Daqian Technology
Model: RHINO-1250
Product center: 5-axis milling-turning compound center

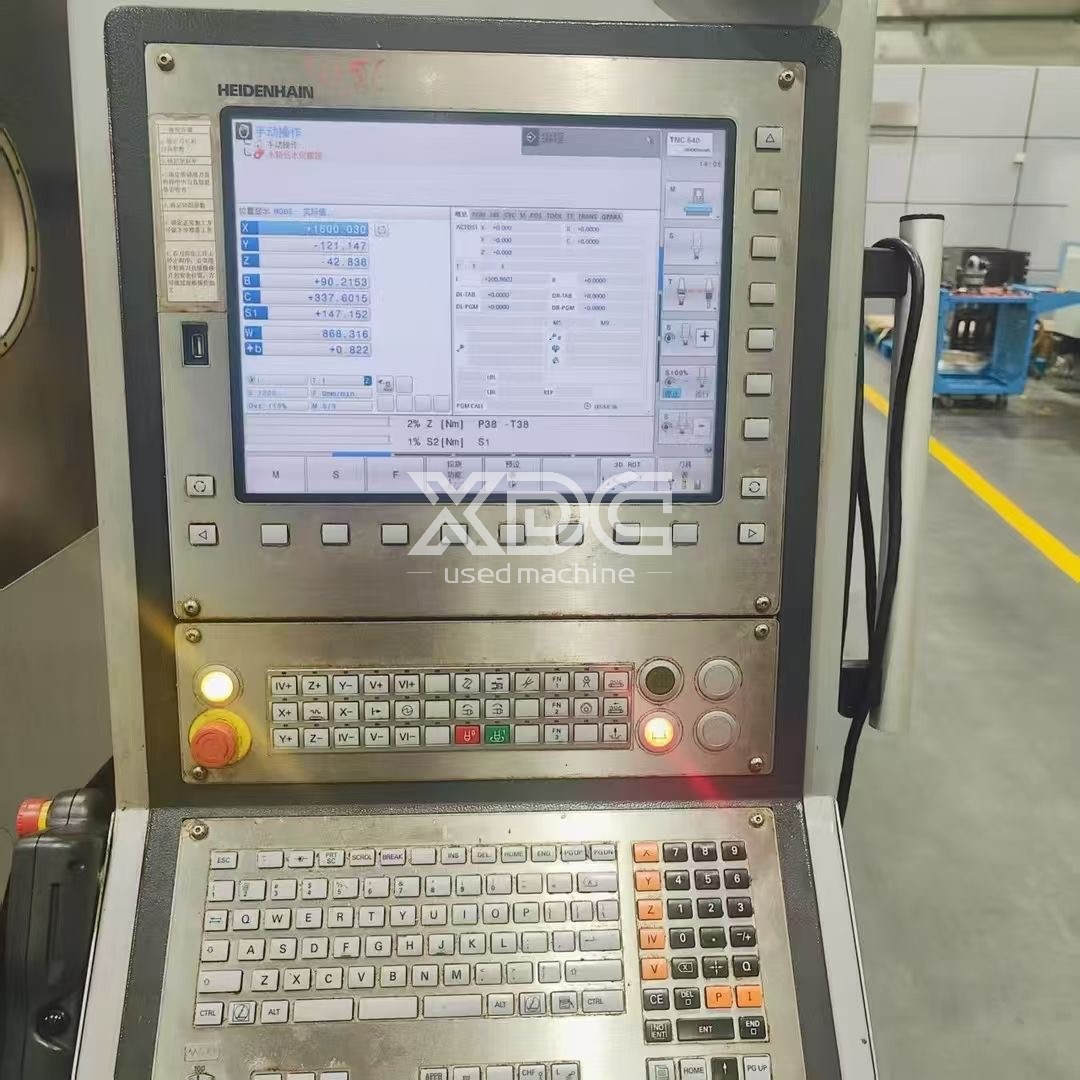

System: HEIDENHAIN 640
X-axis travel: 2200mm
Y-axis travel: 2350mm
Z-axis travel: 1400mm
A-axis travel: +40°~-120°
C-axis travel: 360°
Worktable diameter: Ф1250 mm

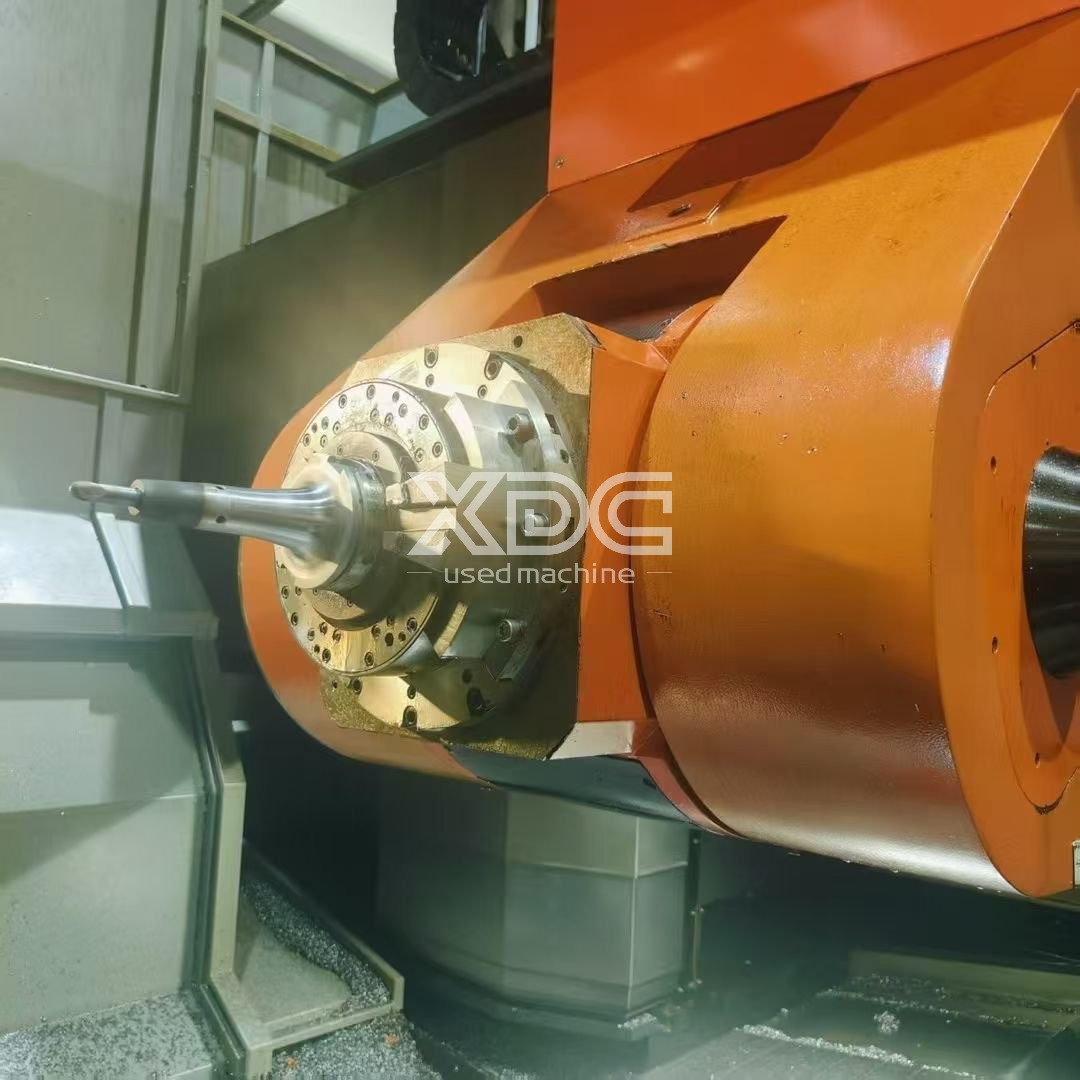

Spindle: HSK-A100
Spindle speed: 12000 rpm
Spindle power: 50 kW
Spindle torque: 314 Nm
Worktable milling speed: 20 rpm
Worktable turning speed: 300 rpm
Distance between two columns: 1650mm
Distance from spindle nose to worktable: 0-1400mm
Maximum machining diameter: 2200 mm
Accessories: Full-enclosed sheet metal shield for the whole machine,
probe, tool setter, chip conveyor, through-spindle coolant, etc.
