Used Mazak 9-axis Turning and Milling

Yamazaki Mazak 9-axis Five-axis Simultaneous

Turning and Milling Compound Machining Center from Japan

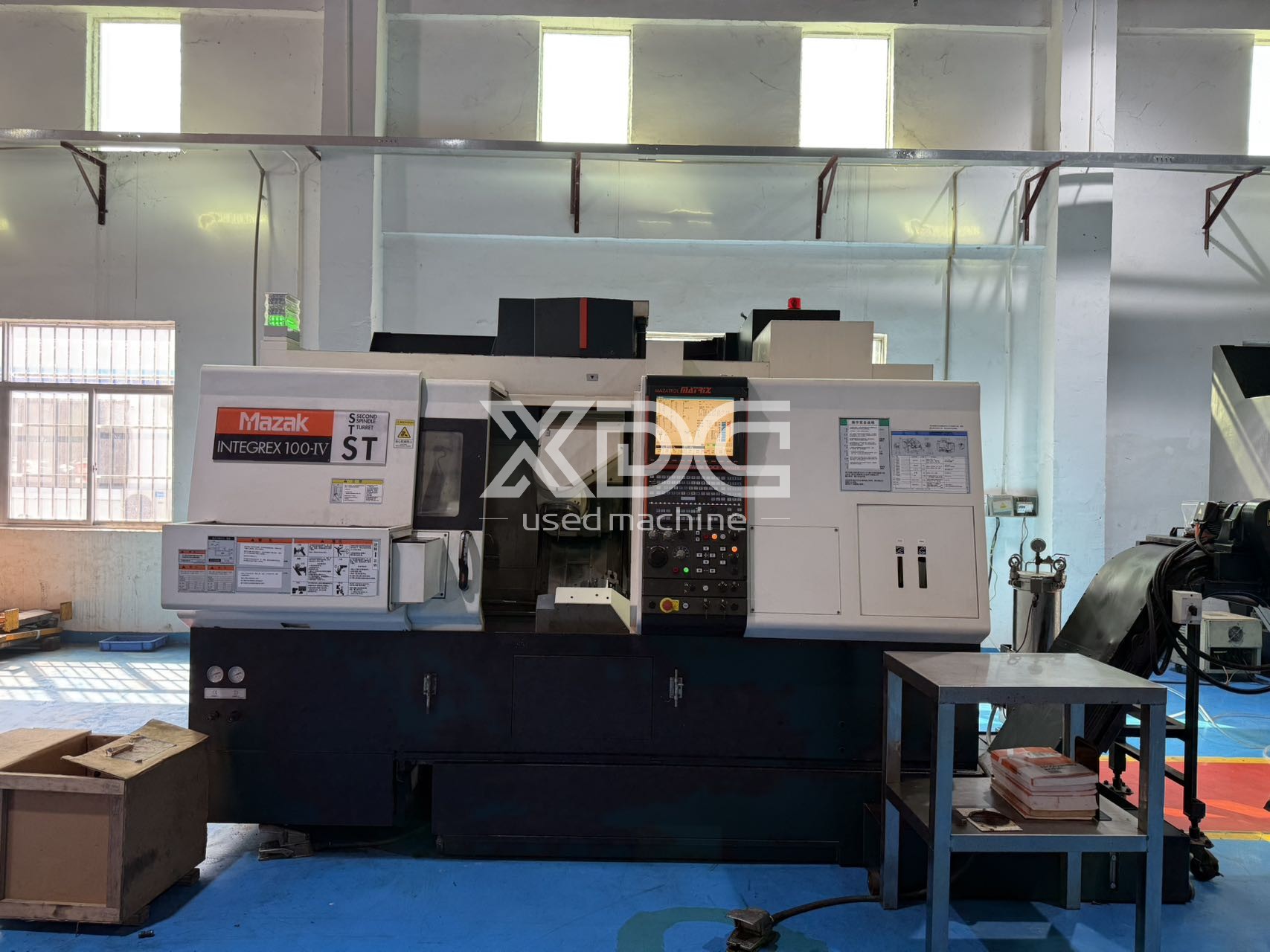

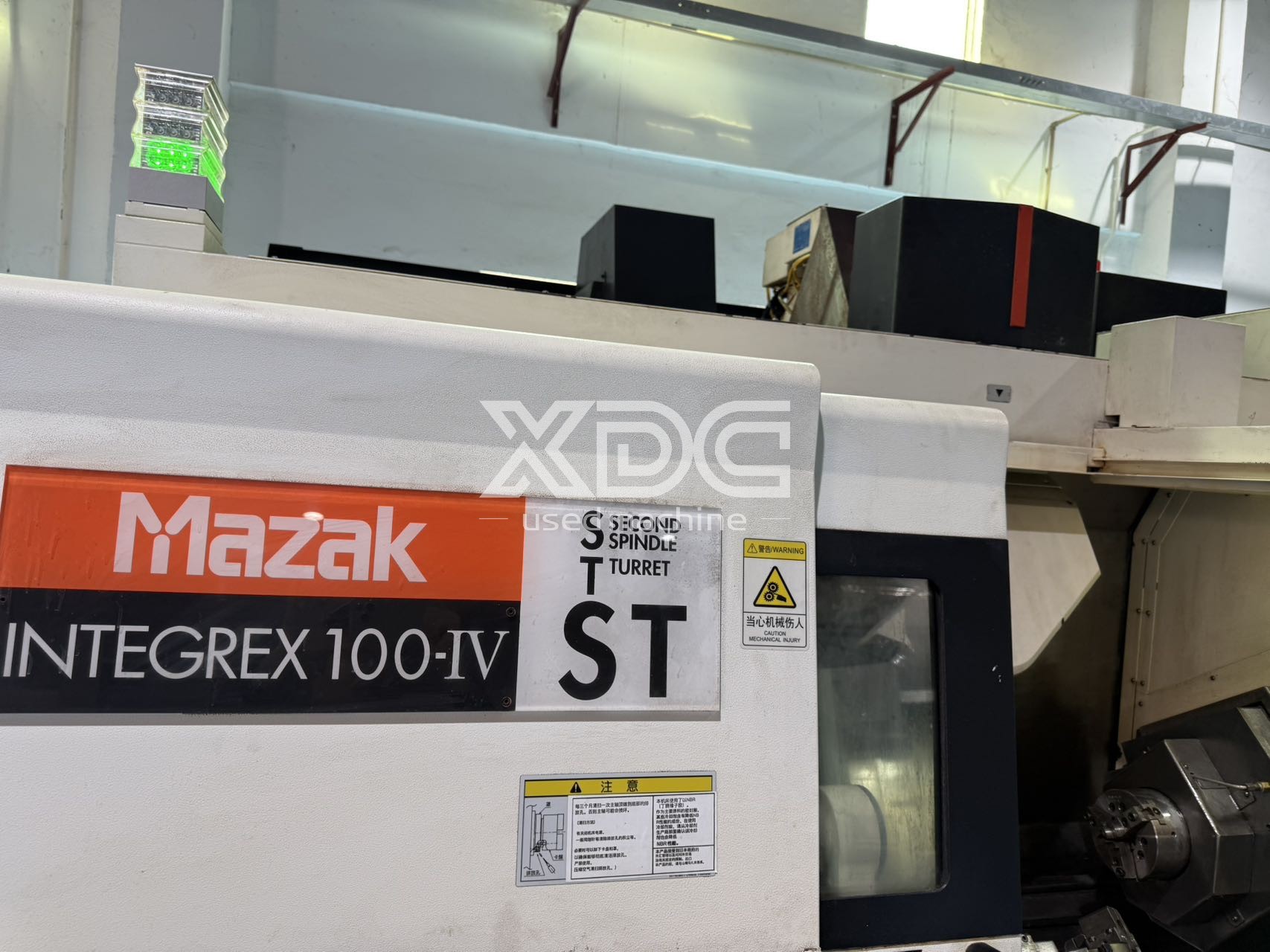

INTEGREX 100IVST with five-axis simultaneous motion

and tool tip following function. Imported tool holders are provided.

Maximum swing diameter and maximum machining diameter: 600mm

Maximum machining length: 850mm

Travel of X, Z and Y axes: 535x900x210mm

B axis: -30° to +210°

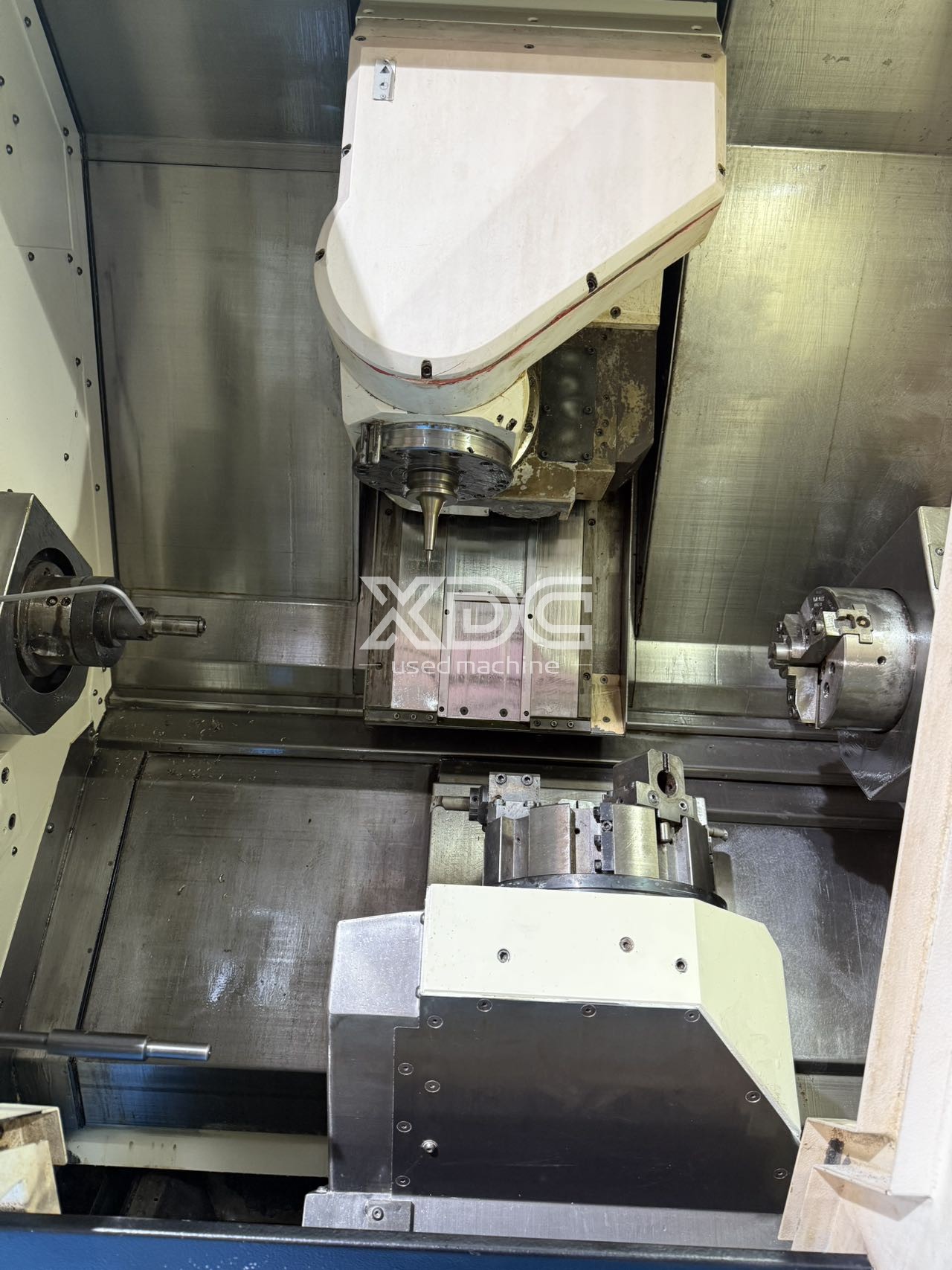

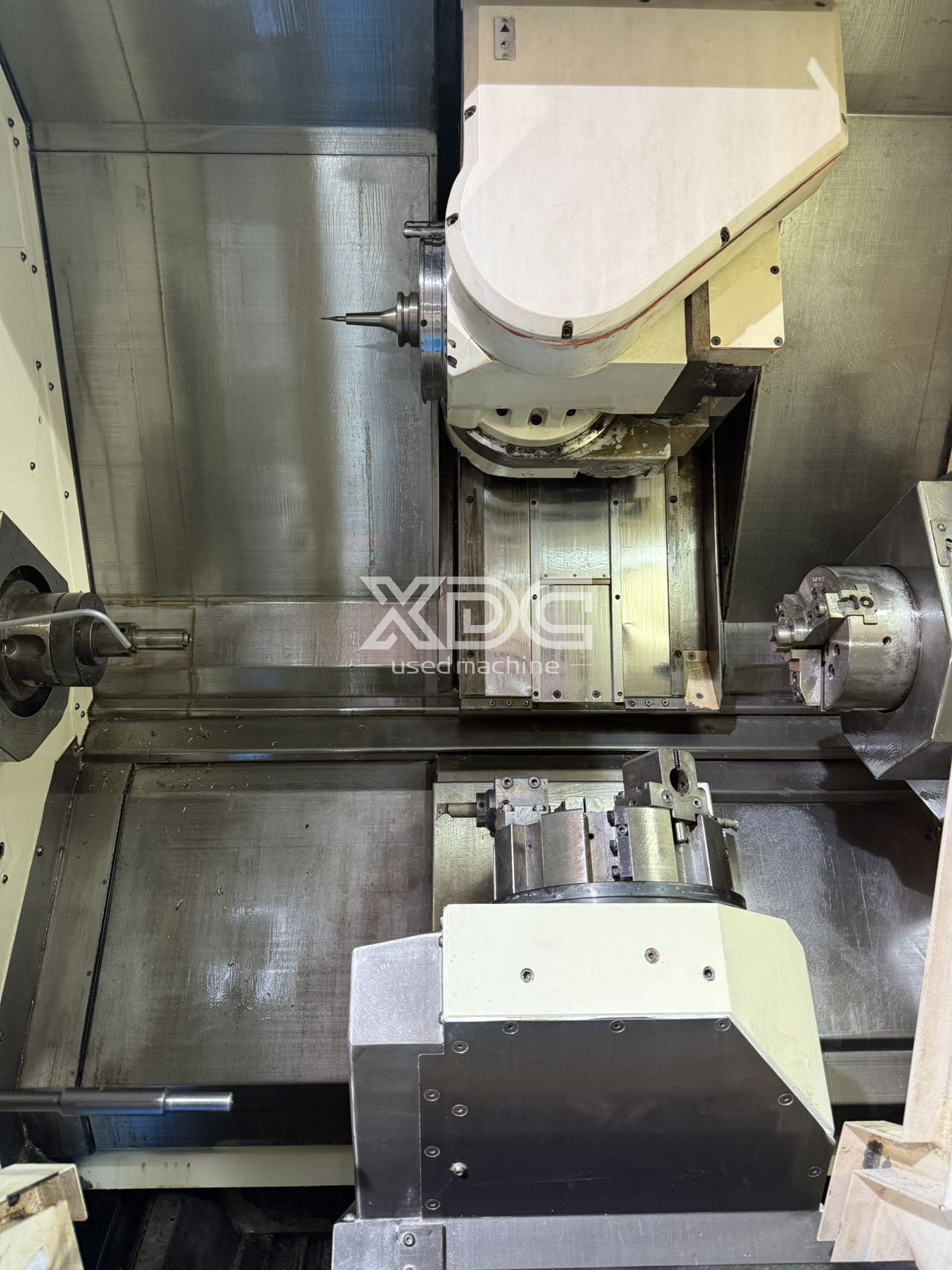

Transverse double main shafts with 6-inch chucks, maximum speed of 6000 rpm, through-hole diameter of 61mm

Milling spindle speed of 12000 rpm, torque of 57.3N·M

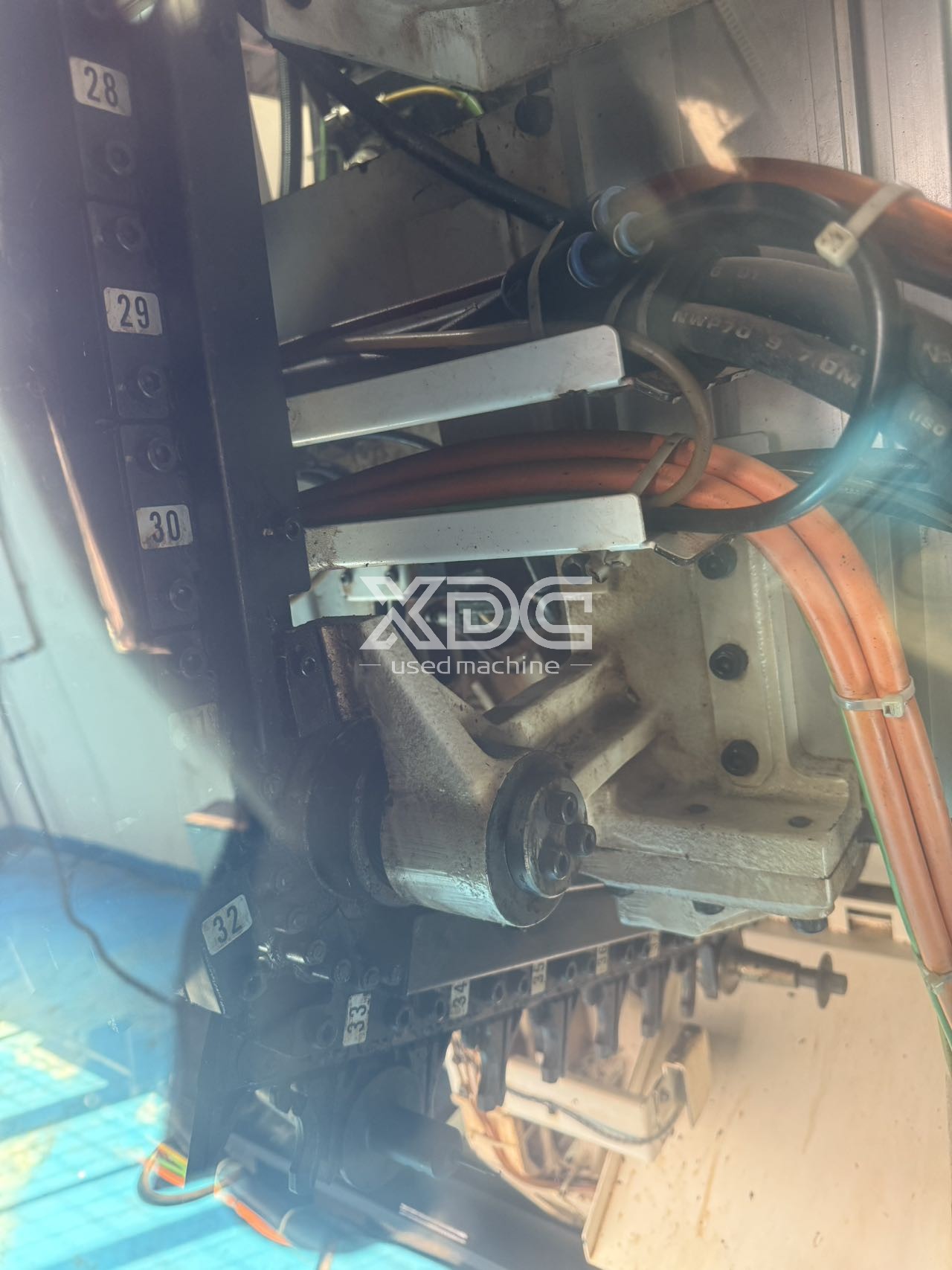

BT40 tool holders, 40-tool magazine (with tool holders)

Indexing accuracy: 0.0001 degree

With center coolant through and lower turret.
