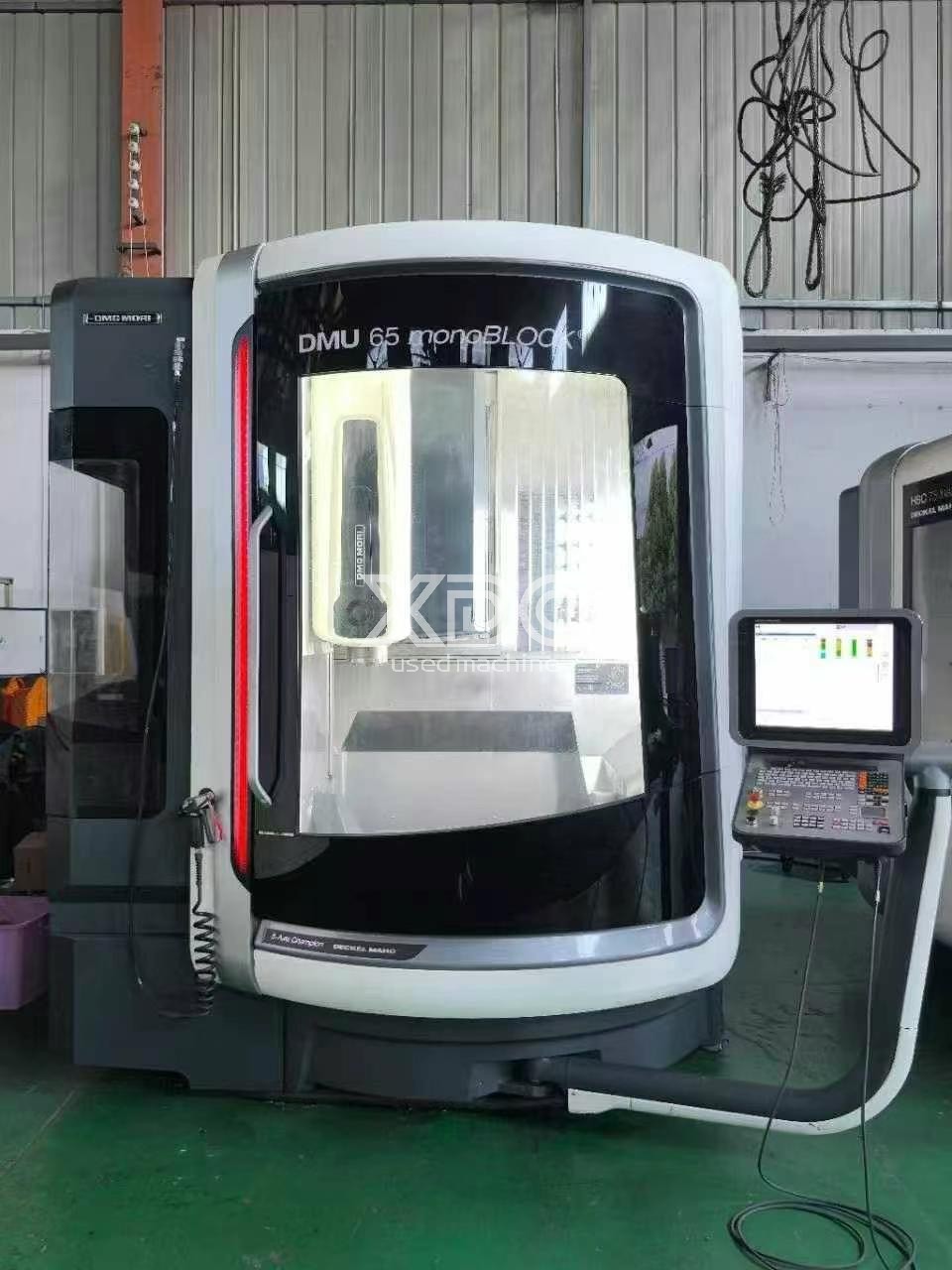

DMG Mori Five-axis Simultaneous Machining Center DMU65monoBLOCK
Manufactured in 2017, and it can be tested on site.
Machine tool configuration:

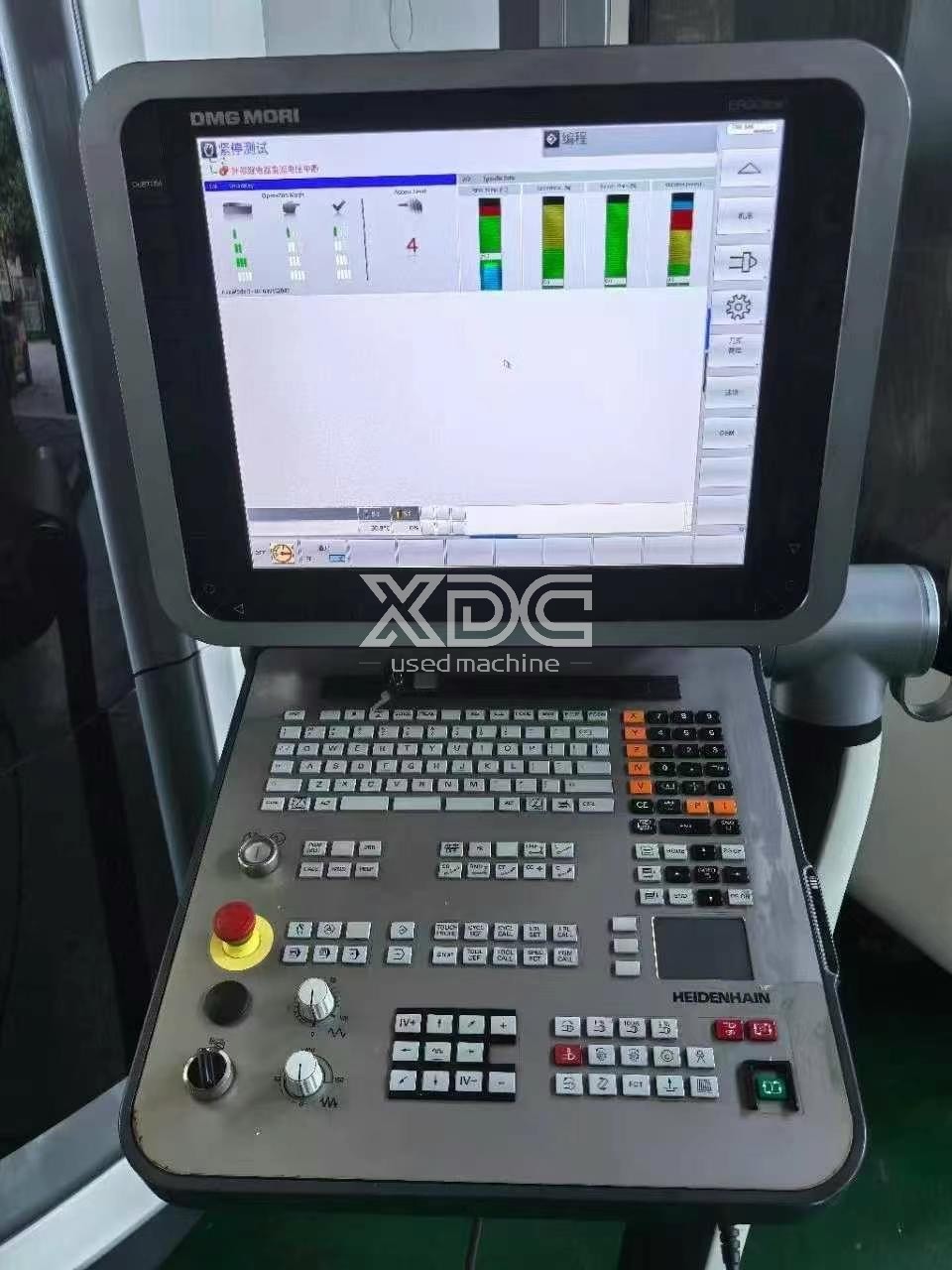

Heidenhain TNC640
Travel of X/Y/Z axes: 735/650/560 mm

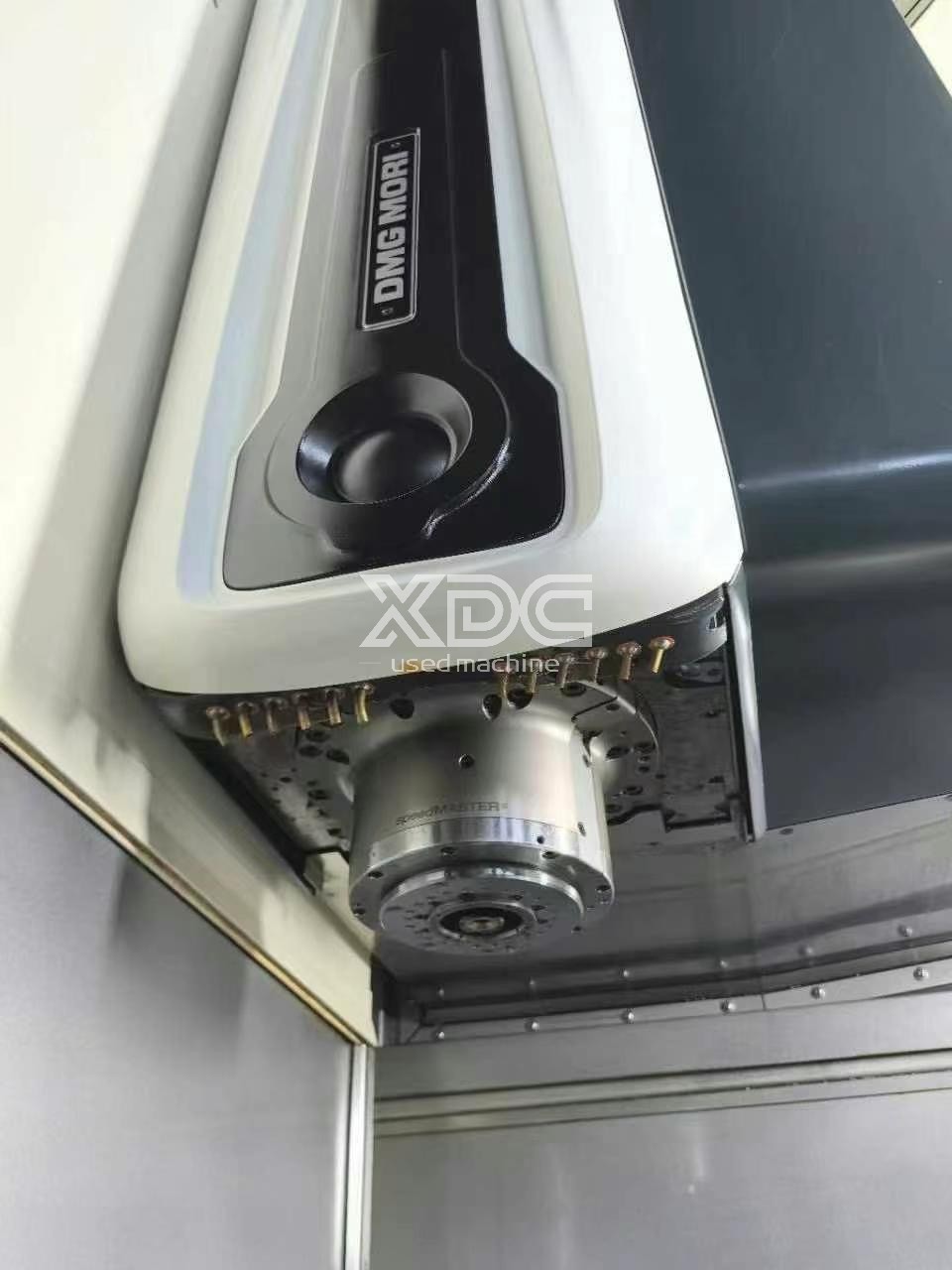

Spindle speed: 20000rpm, HSK-A63
Spindle power: 35/25KW (40% ED, 100%ED)
Spindle torque: 130/86 Nm

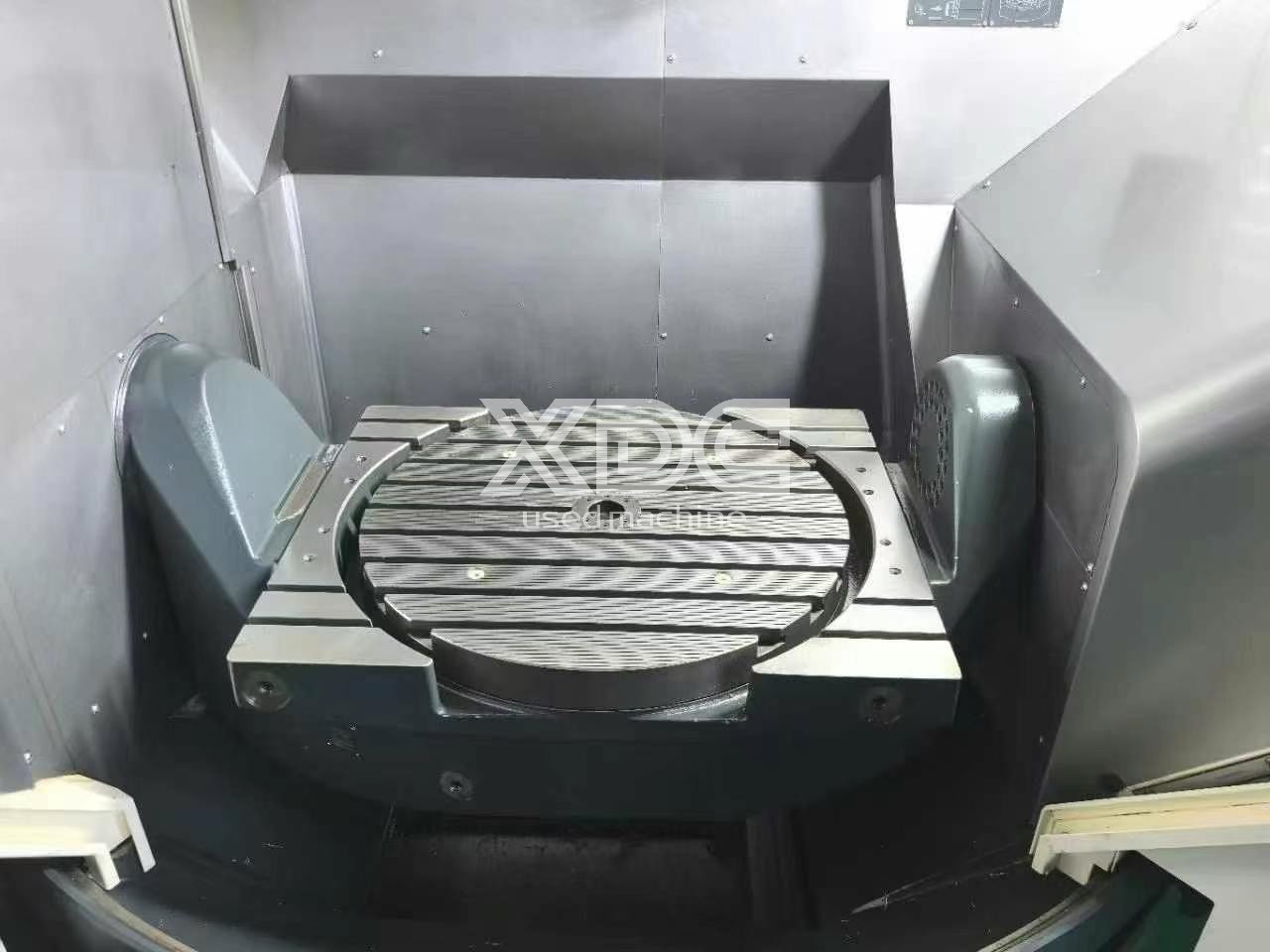

Diameter of the NC rotary worktable: 650mm, embedded in a rigid worktable with a diameter of 800x650mm
Maximum workpiece weight: 600kg
A axis: +/-120°, C axis: 360°
