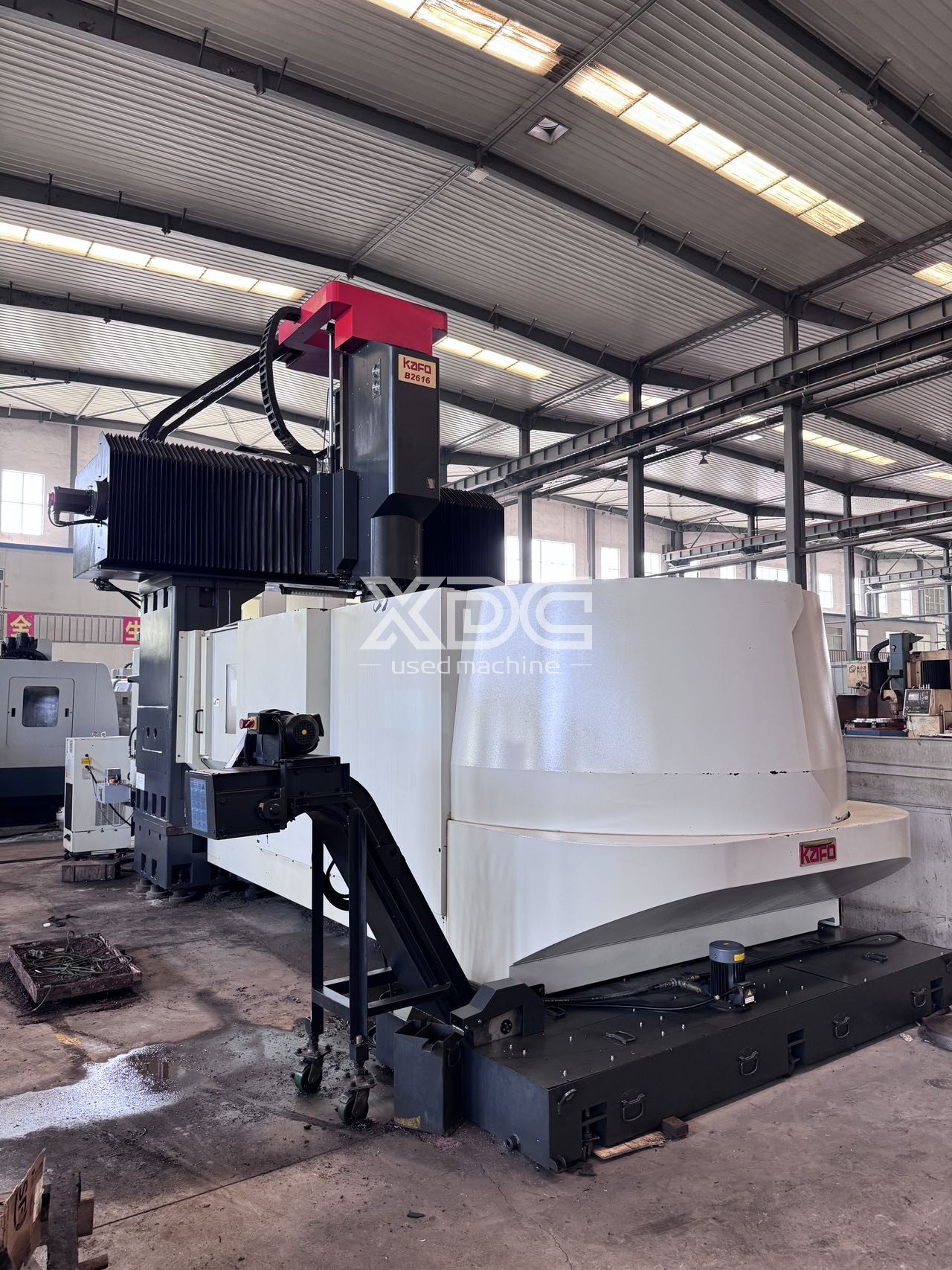

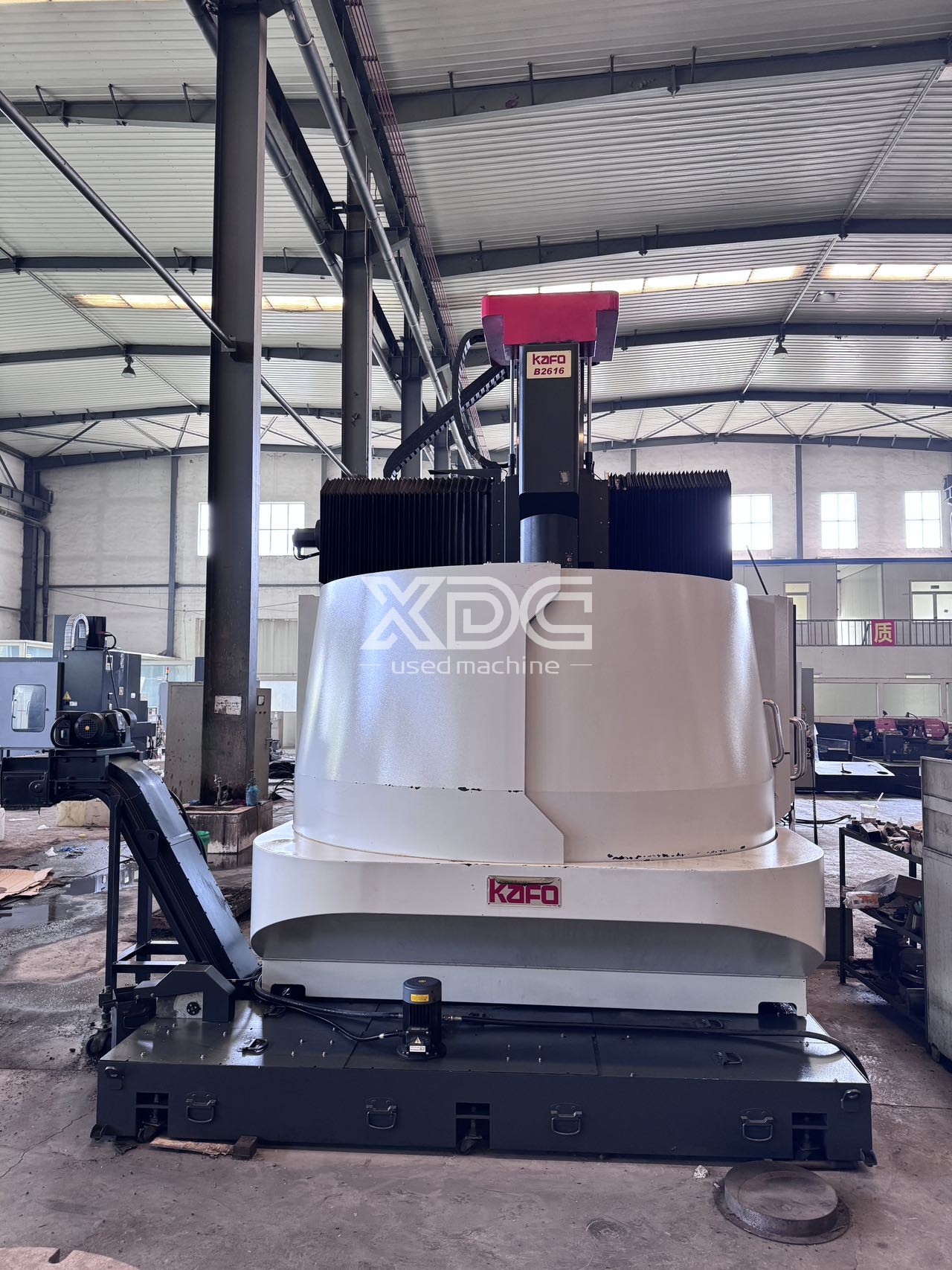

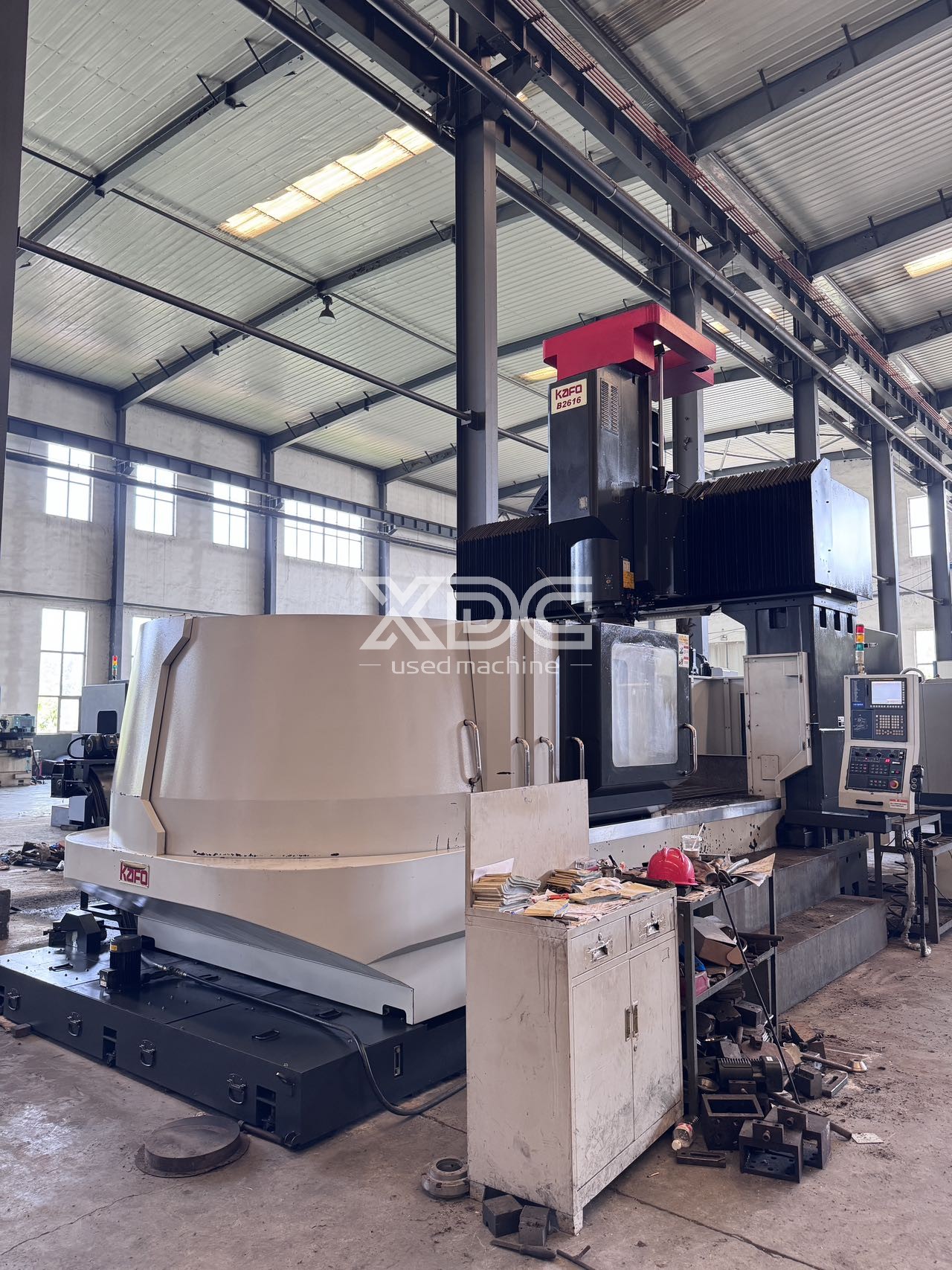

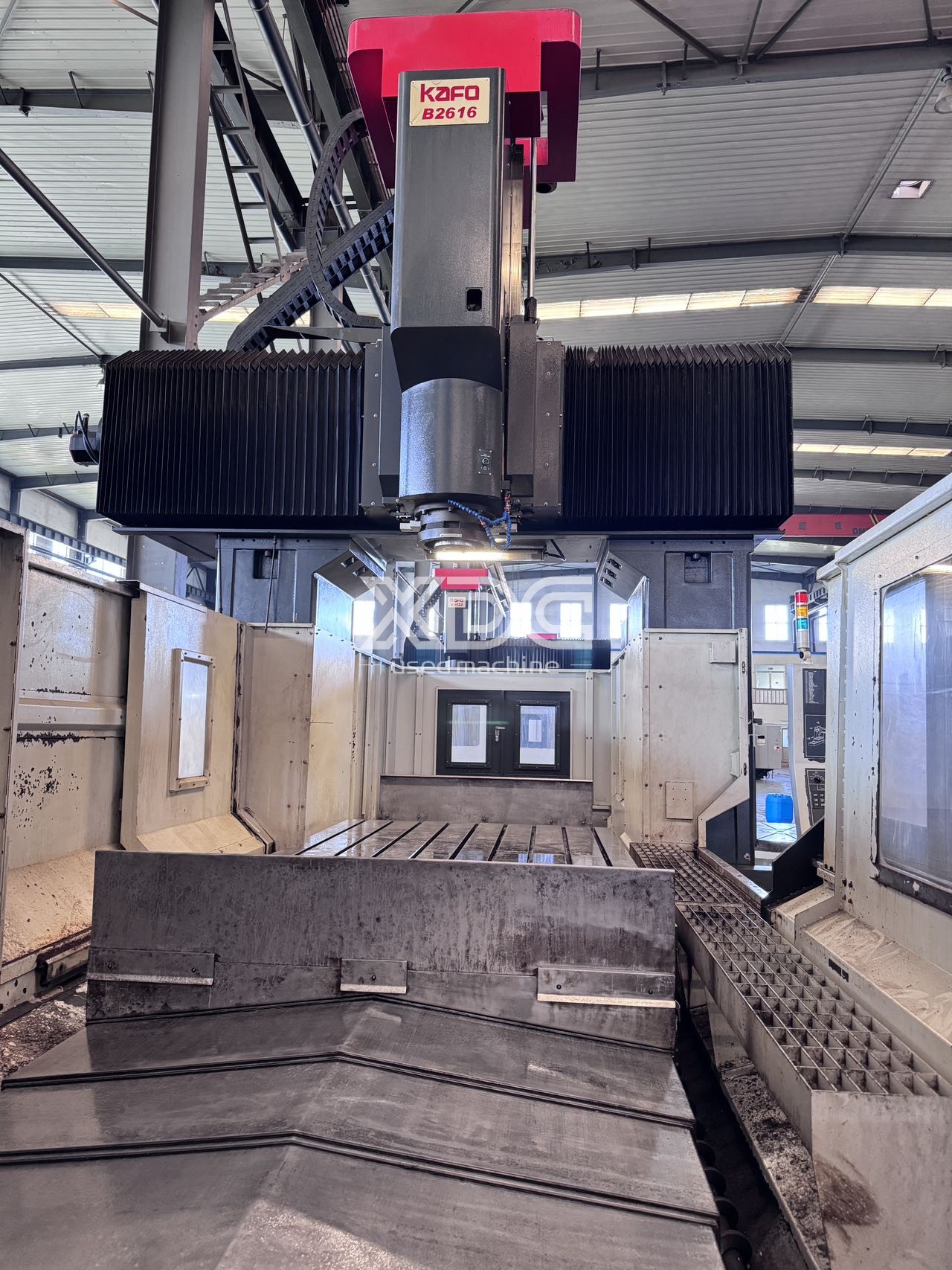

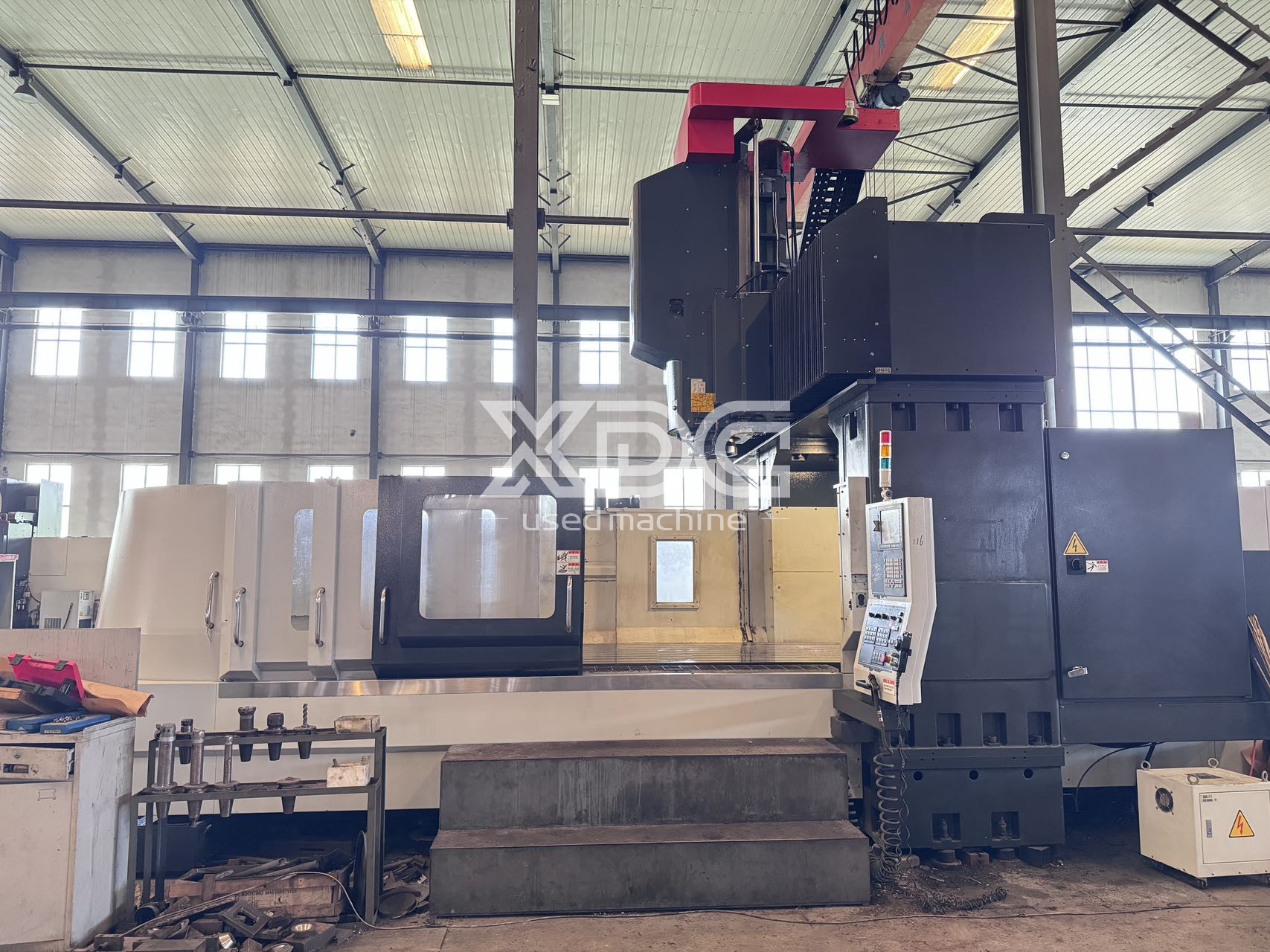

Used KAFO (Taiwan) B-2616 CNC Gantry Milling Machine

KAFO (Taiwan) B-2616 CNC Gantry Milling Machine

•Optional configurations: Taiwan Tan Hsing 1560 4th axis,

right-angle head, universal head

•Travel: 2600×1600×900 mm

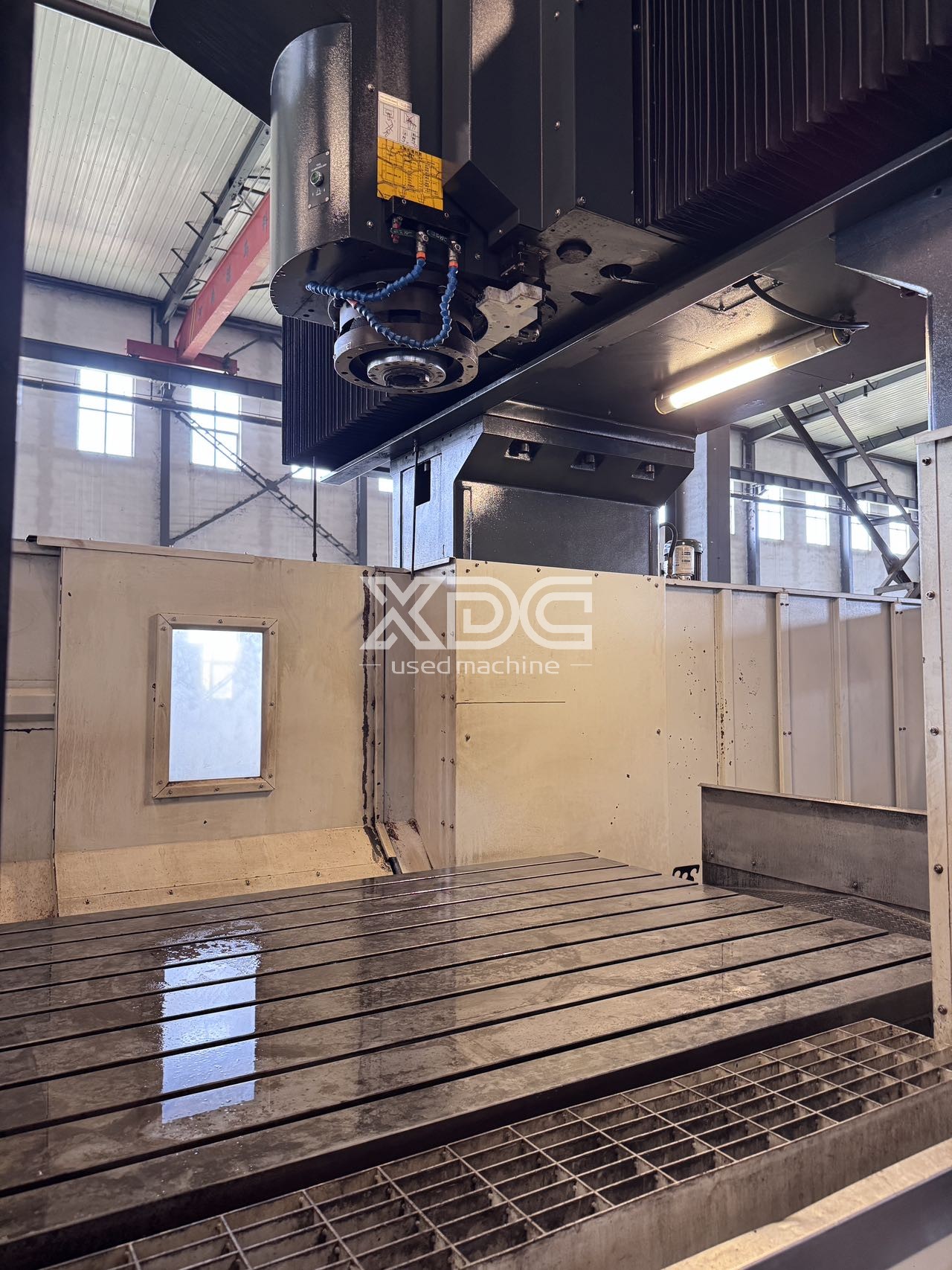

•Worktable: 2500×1500 mm

•Worktable load capacity: 9000 kg

•Distance from spindle to worktable: 1300 mm

•Gantry width: 1700 mm

•BT50 gear spindle speed: 6000 rpm

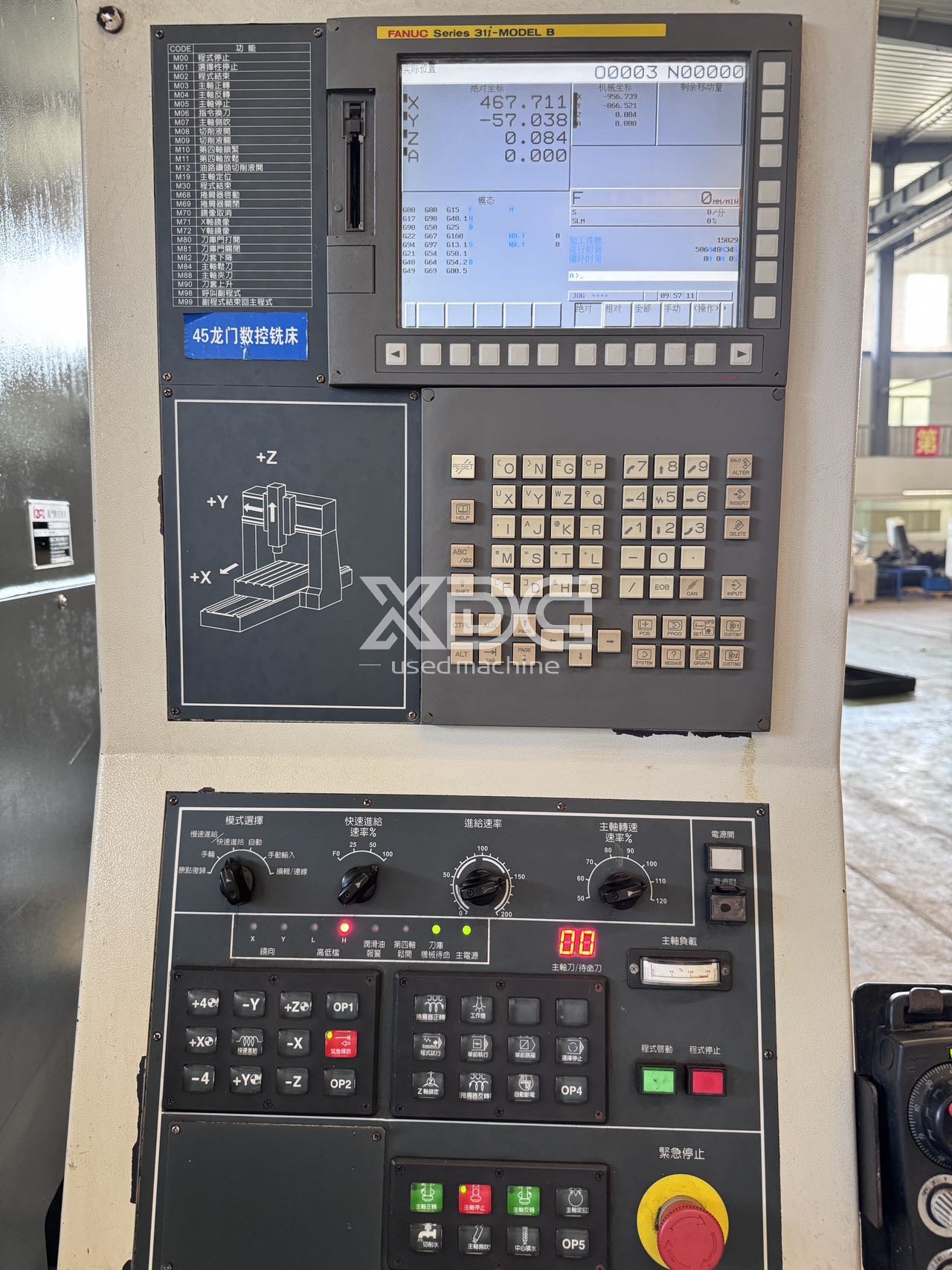

•System: Fanuc (Japan)

•Structure: Two linear axes + one hard rail (for the third axis)

•Spindle motor power: 22/26 kW
