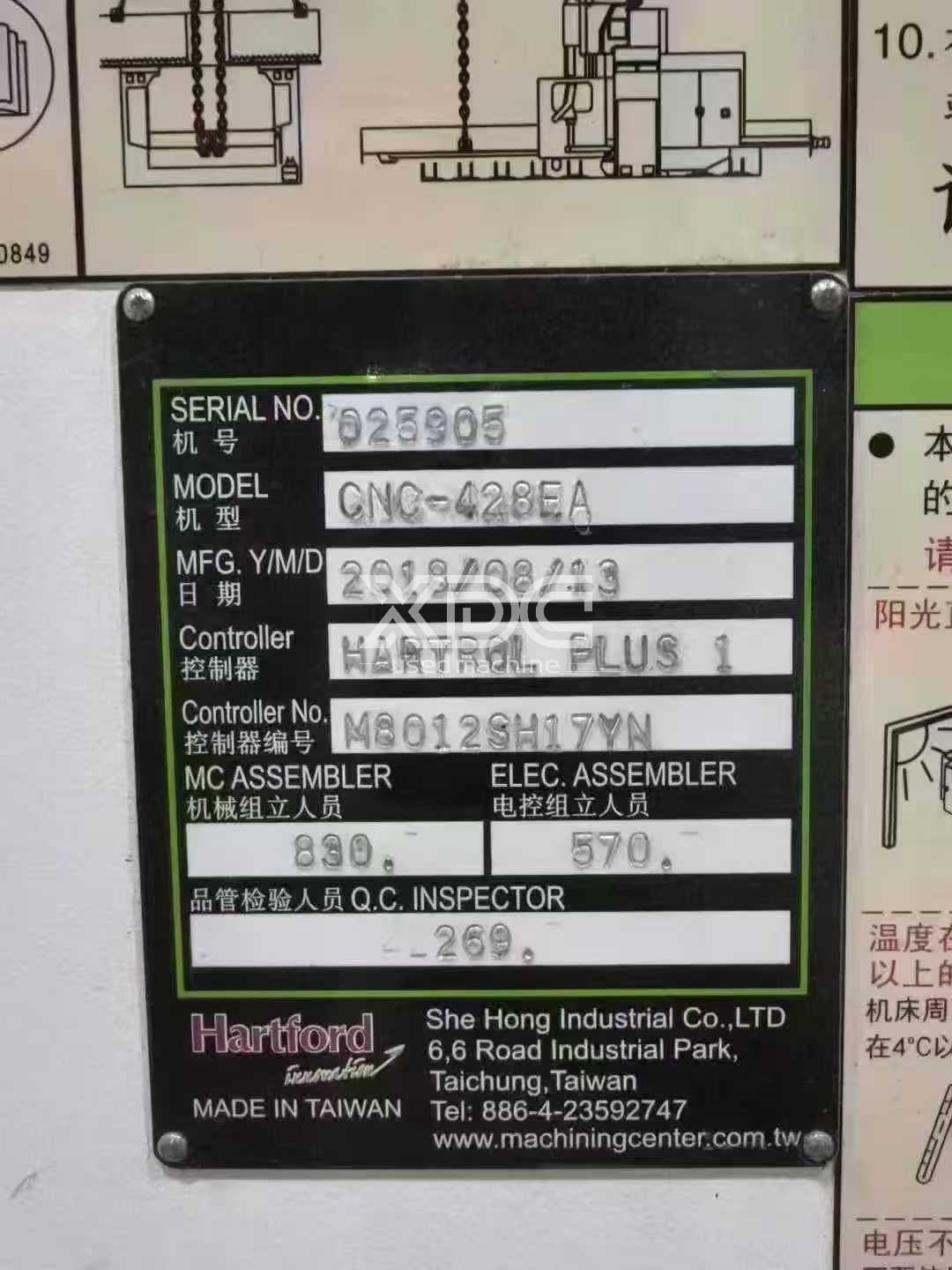

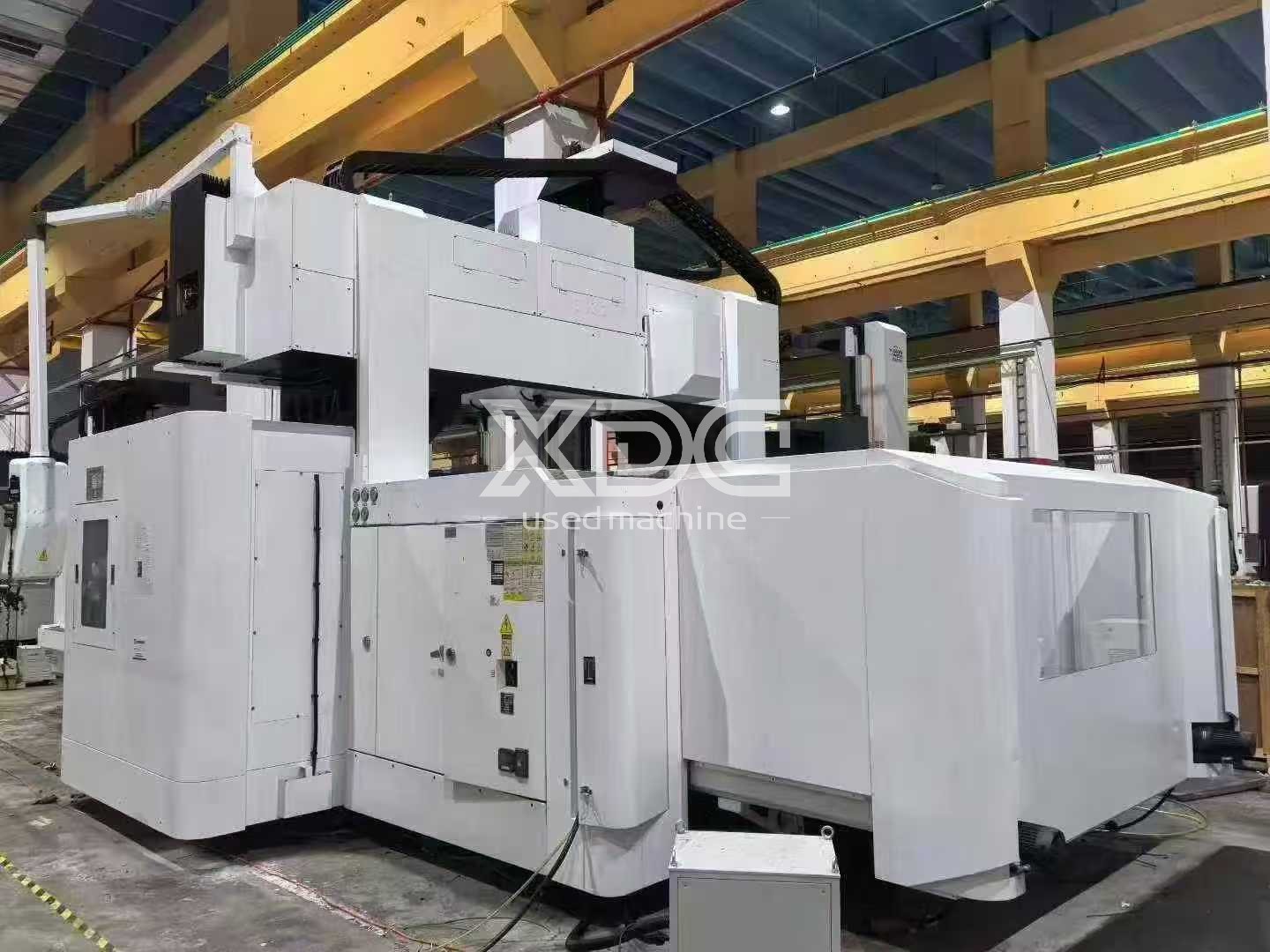

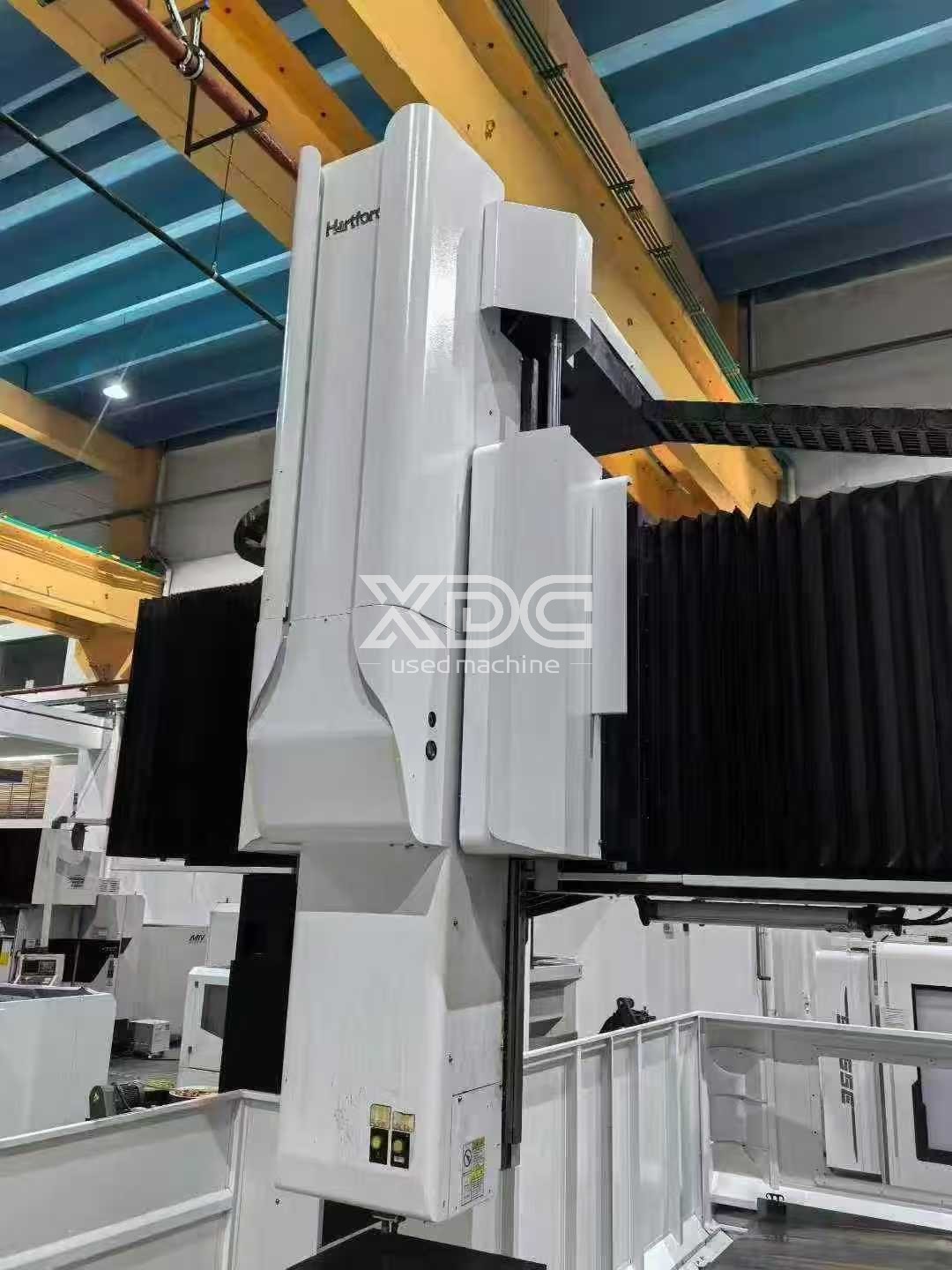

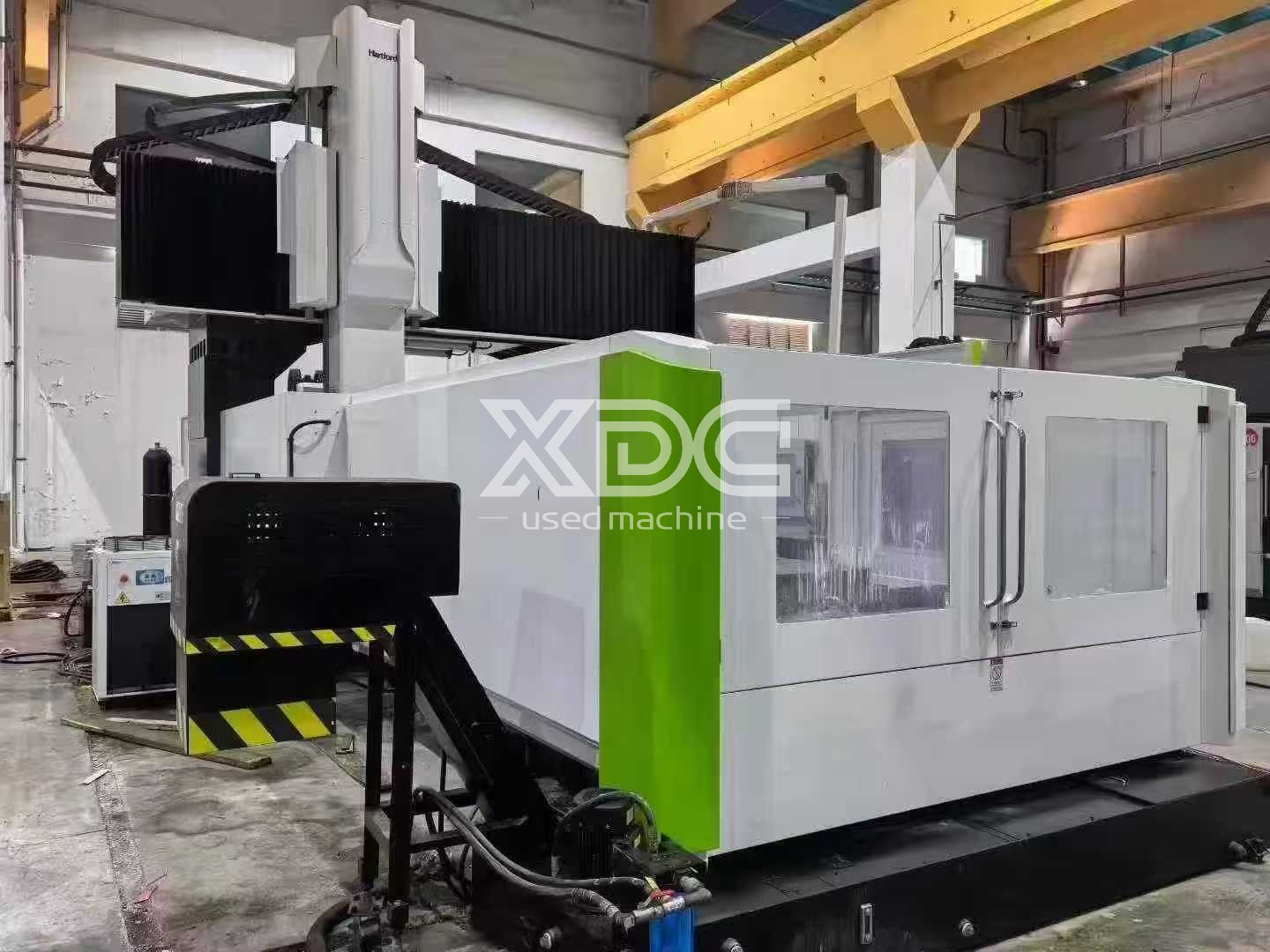

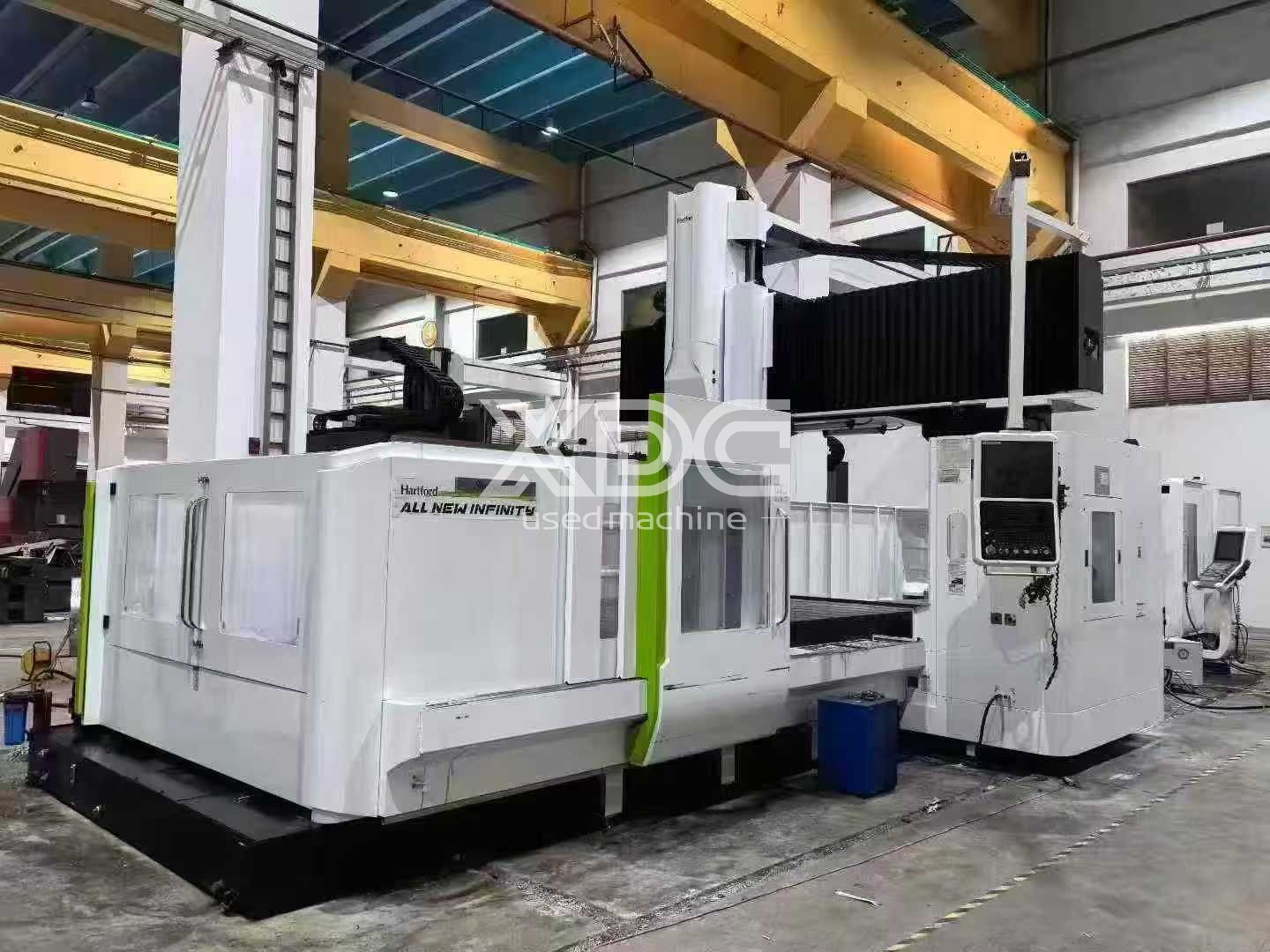

Hartford CNC-428EA Gantry

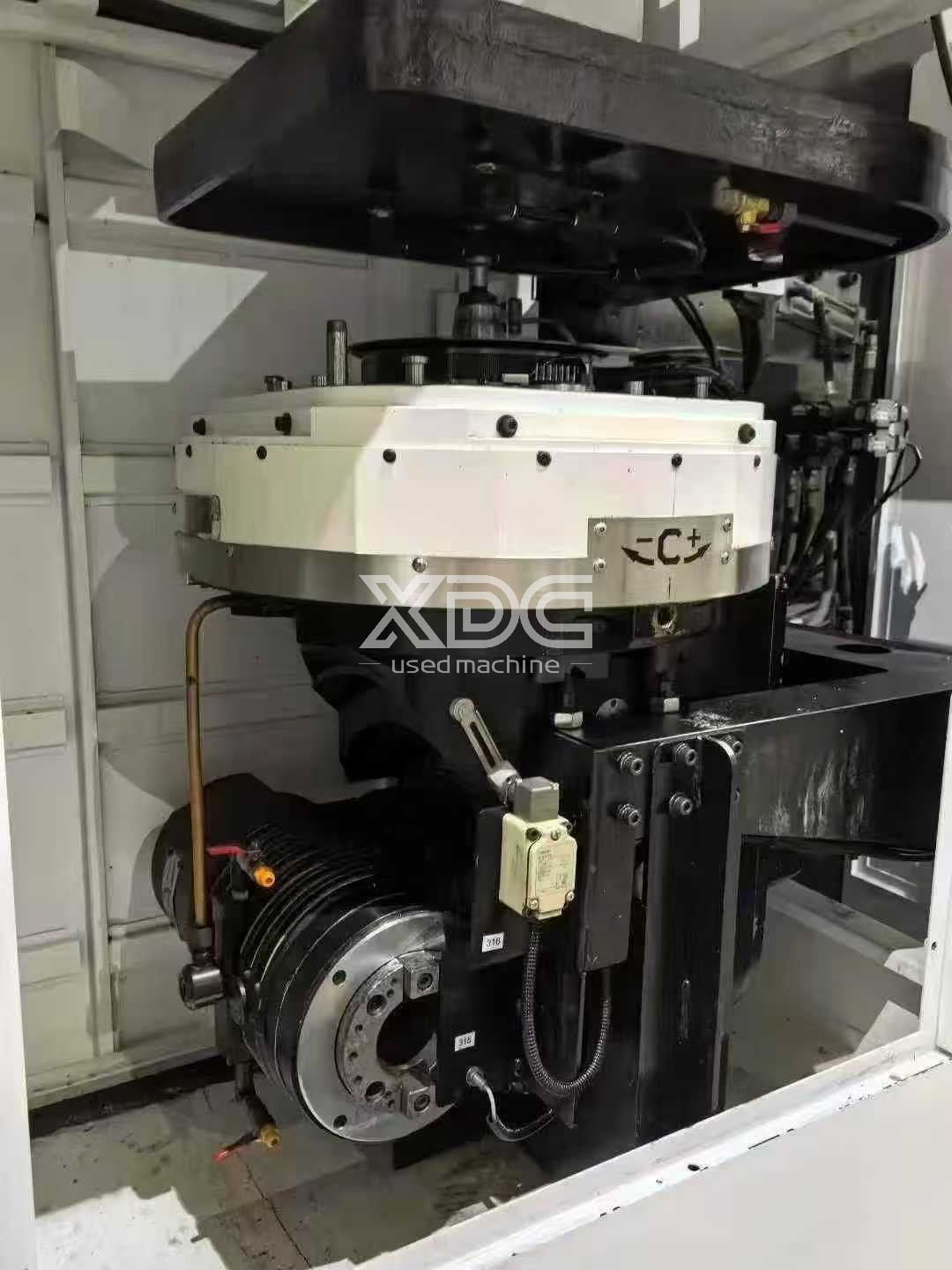

Optional AU360H automatic universal head (curved tooth 1 degree, 4000rpm)
Additional option: one extended head
Parameters

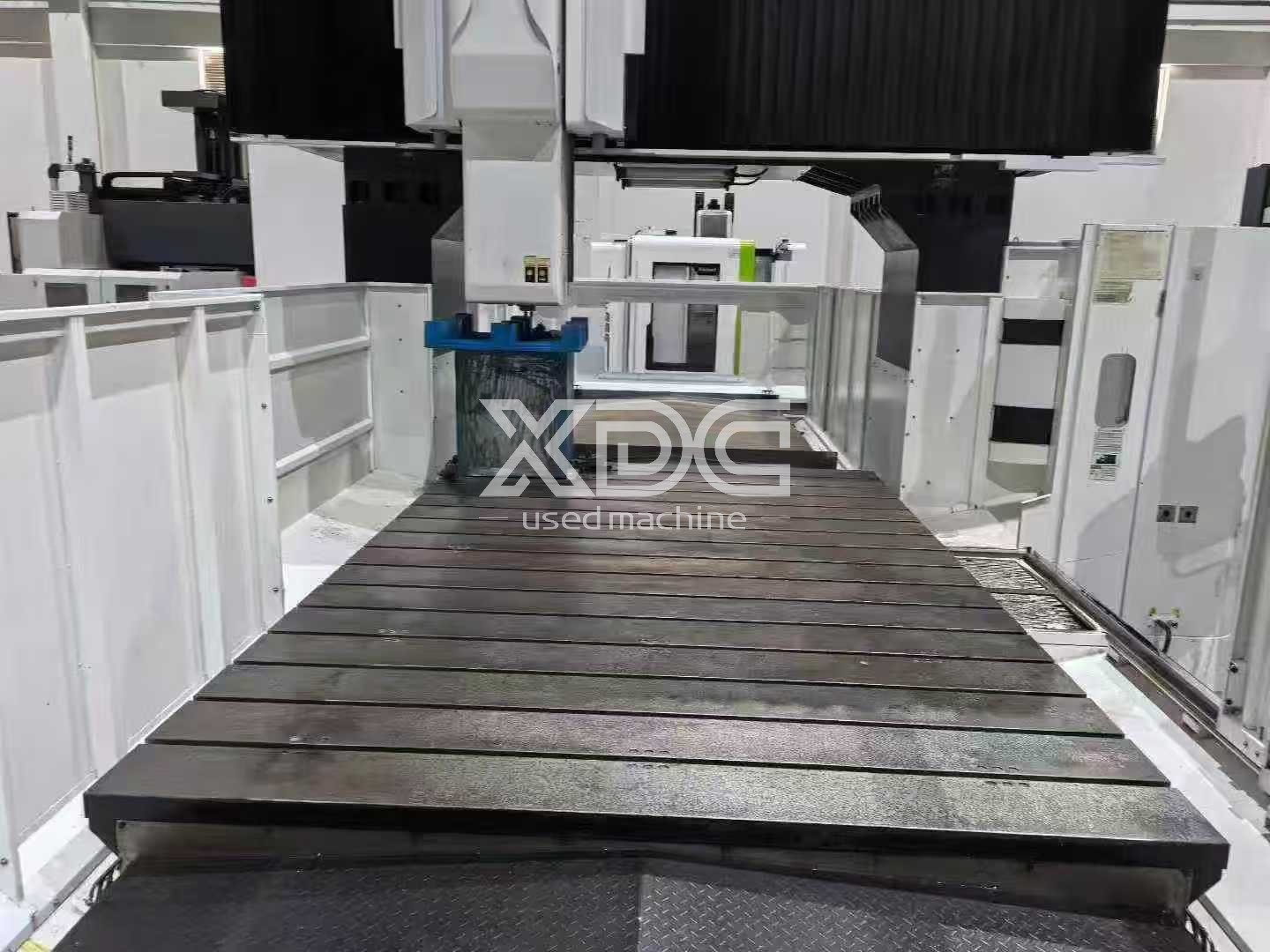

Worktable area: 4000x2500mm
Maximum worktable load: 18000kg
Longitudinal travel (X-axis): 4000mm
Transverse travel (Y-axis): 2800mm
Vertical travel (Z-axis): 1200mm
Spindle speed (gear type): 6000rpm
Rapid traverse speed (X/Y/Z): 16/18/16m/min
