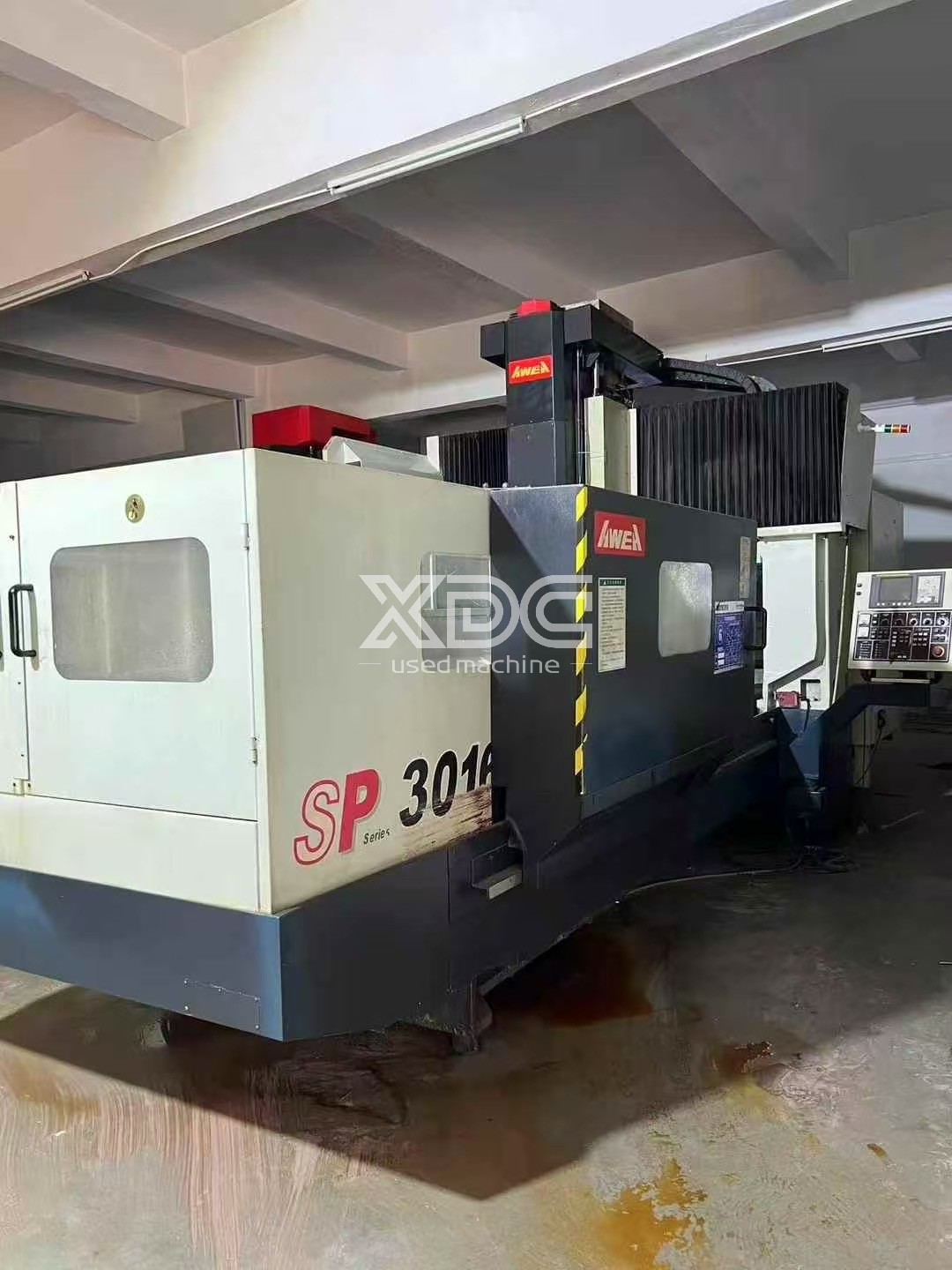

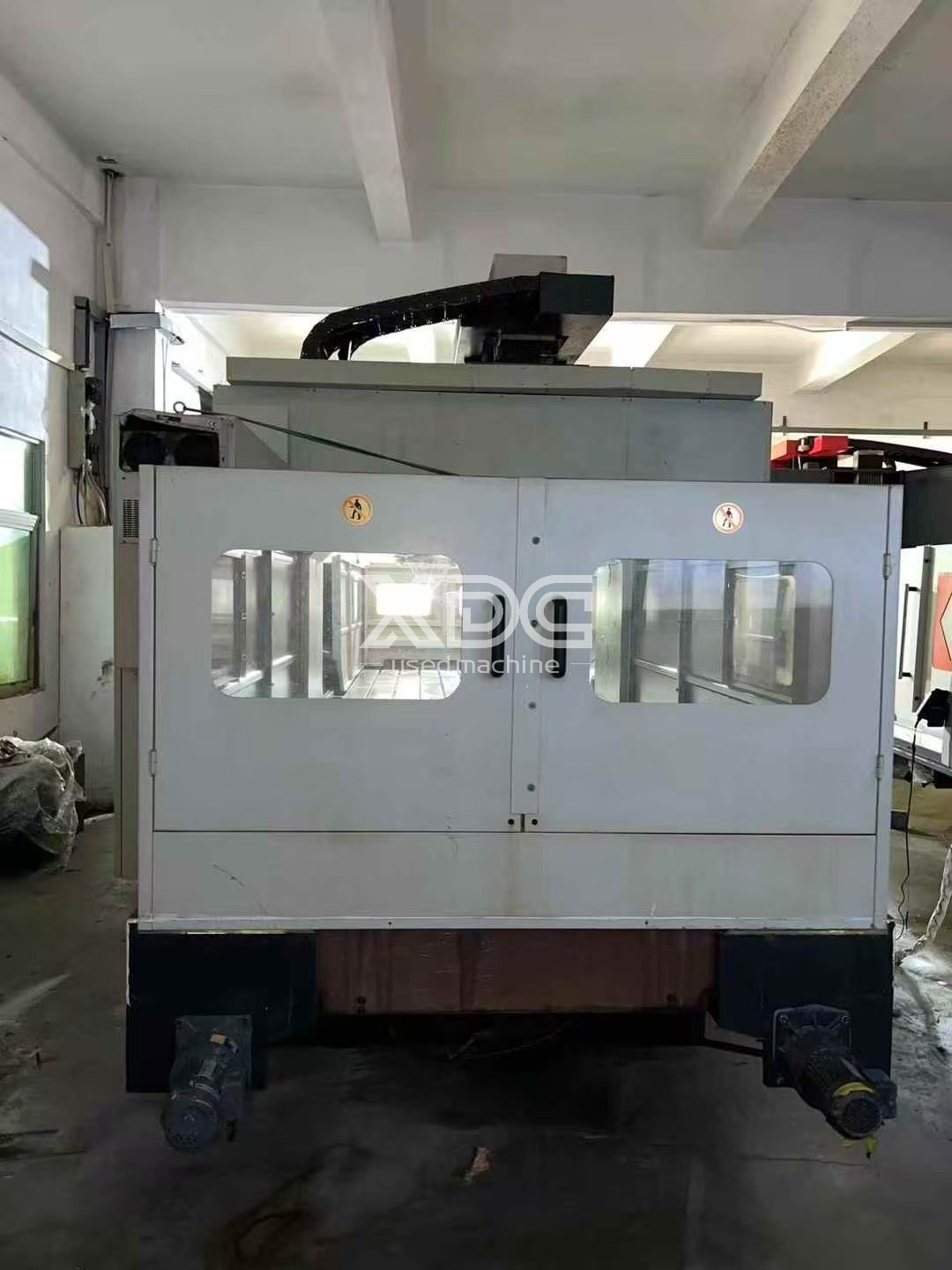

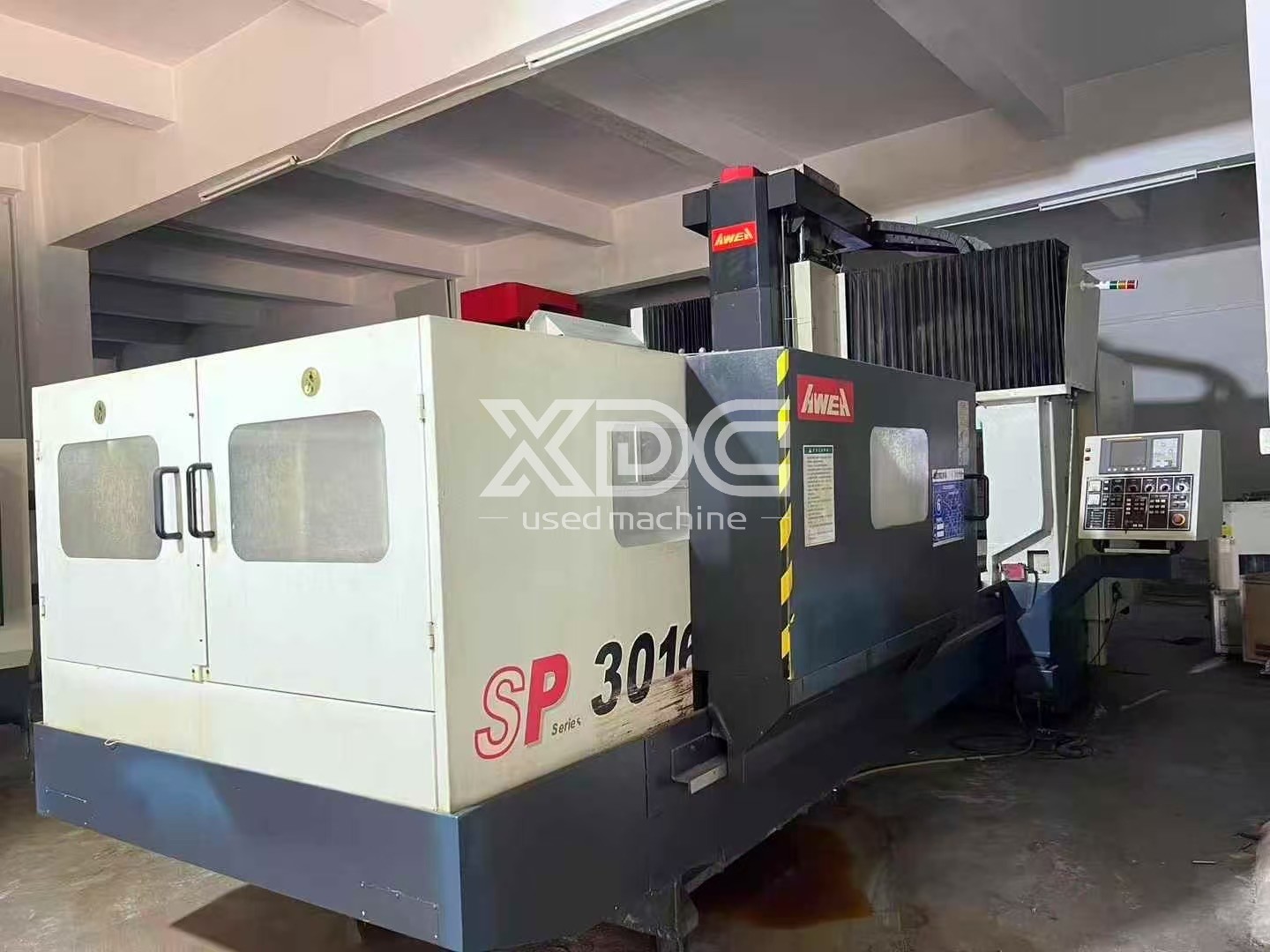

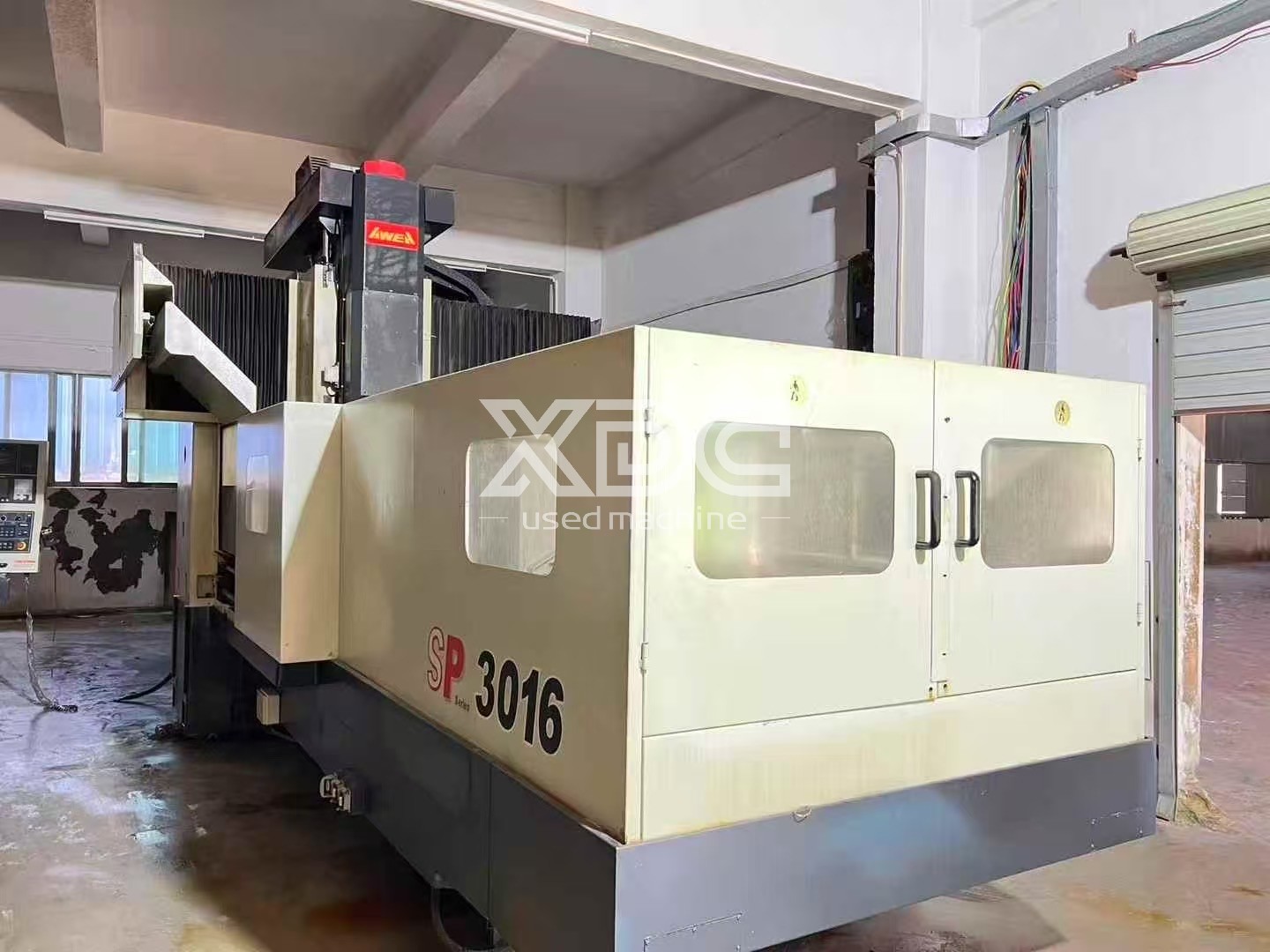

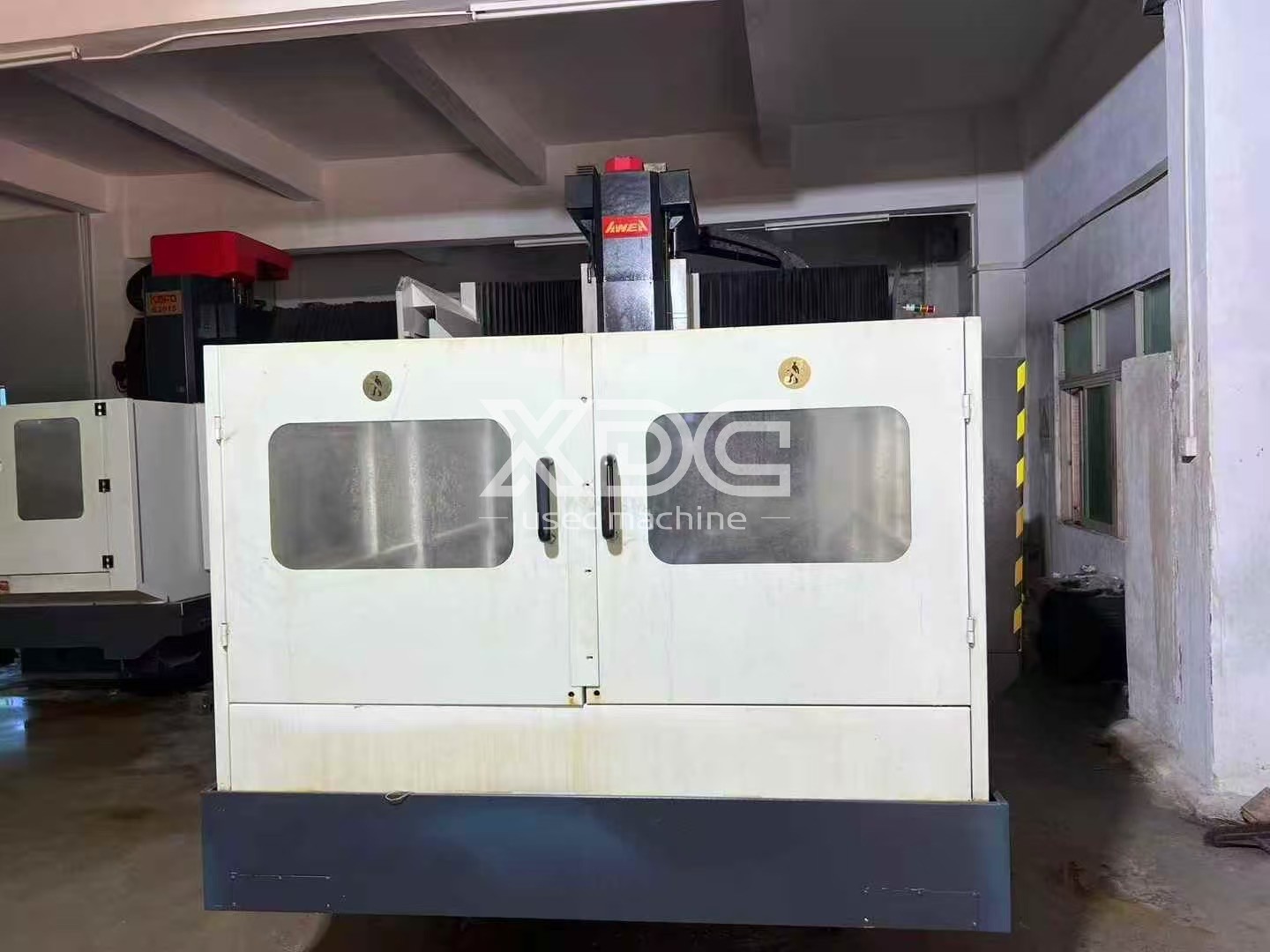

Used Taiwan AWEA SP-3016 Gantry Machining Center

Taiwan AWEA SP-3016 Gantry Machining Center

X-axis Stroke: 3060mm

Y-axis Stroke: 1600mm

Z-axis Stroke: 760mm

Distance Between Two Columns: 1700mm

Distance from Spindle Nose to Worktable Surface: 200-960mm

Worktable Size: 3000×1500mm

Maximum Worktable Load Capacity: 10000kg

Main Motor Power: 22/26kw

Tool Holder Type: BT50 Gear Head

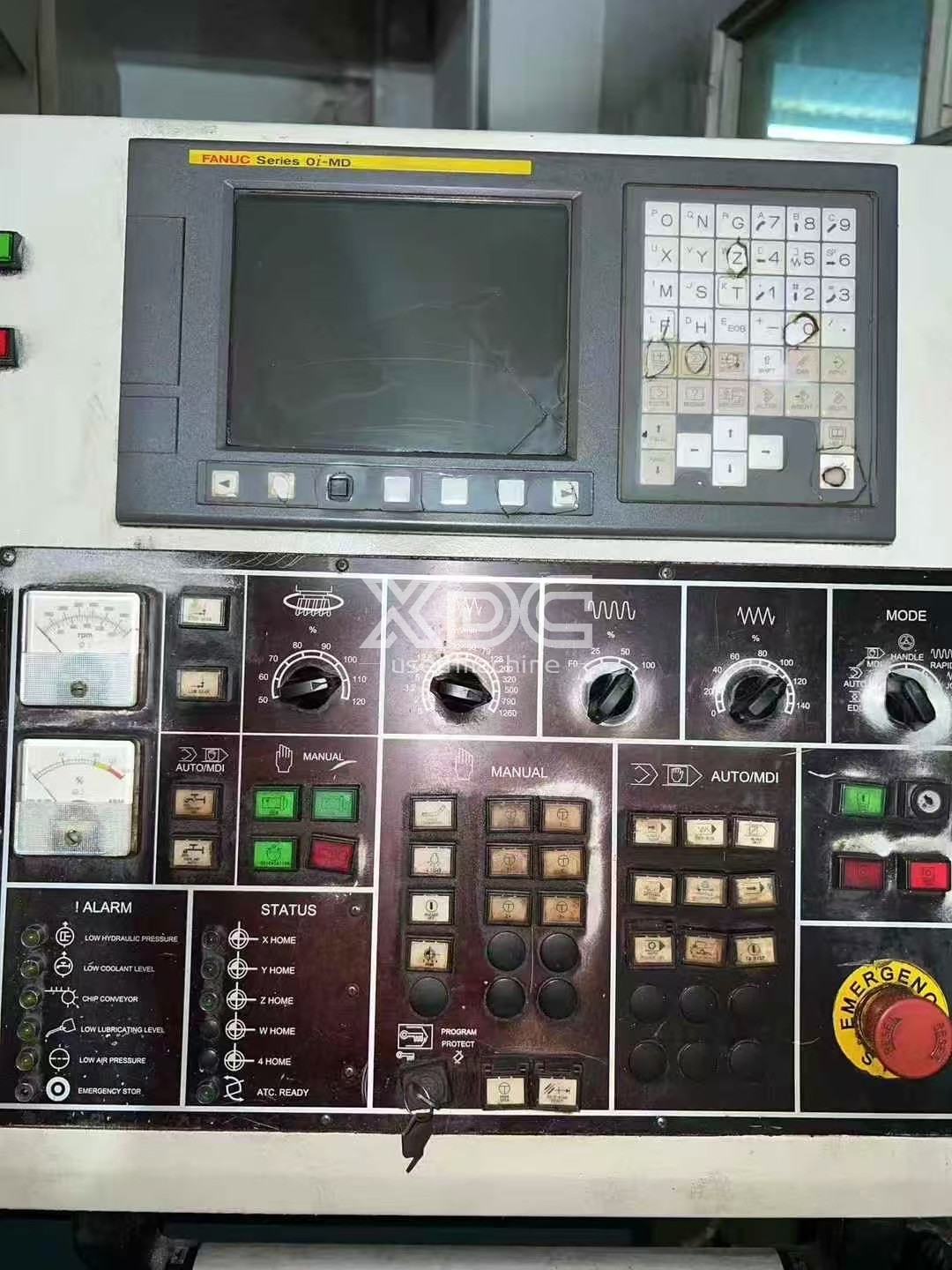

System: Fanuc oi-MD System,

Two-Line-One-Hard (X/Y axes with linear guides, Z axis with box way)
