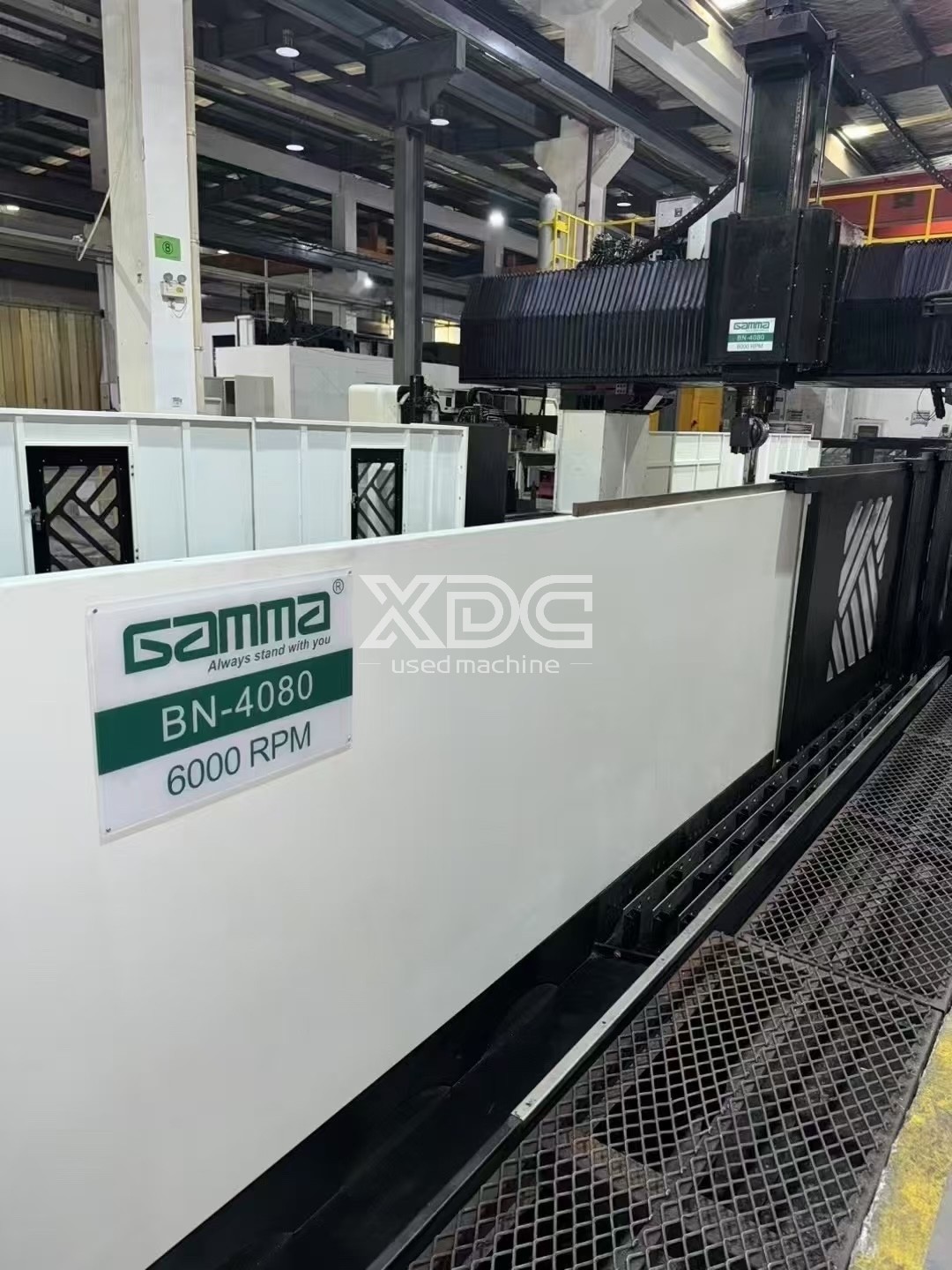

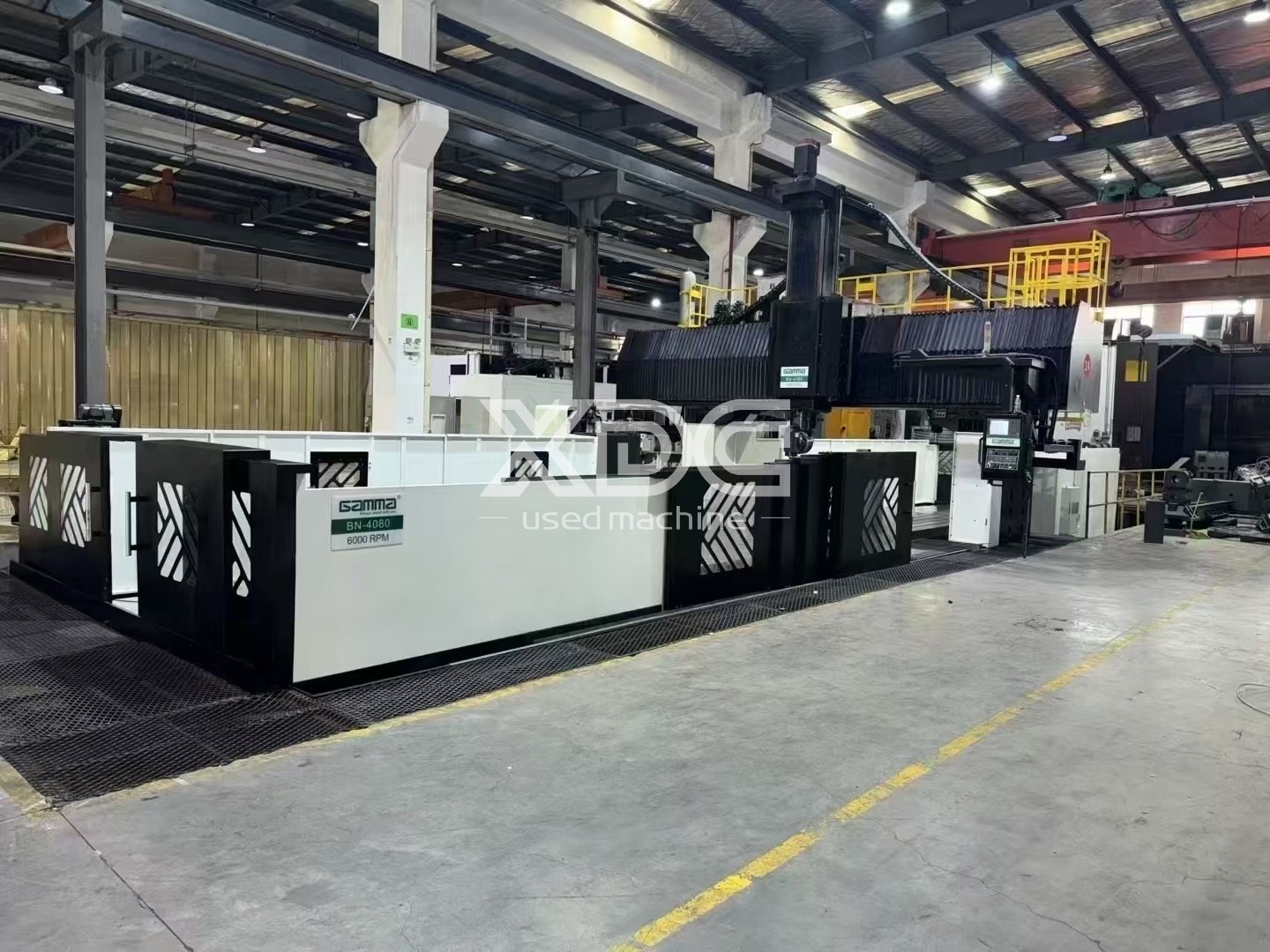

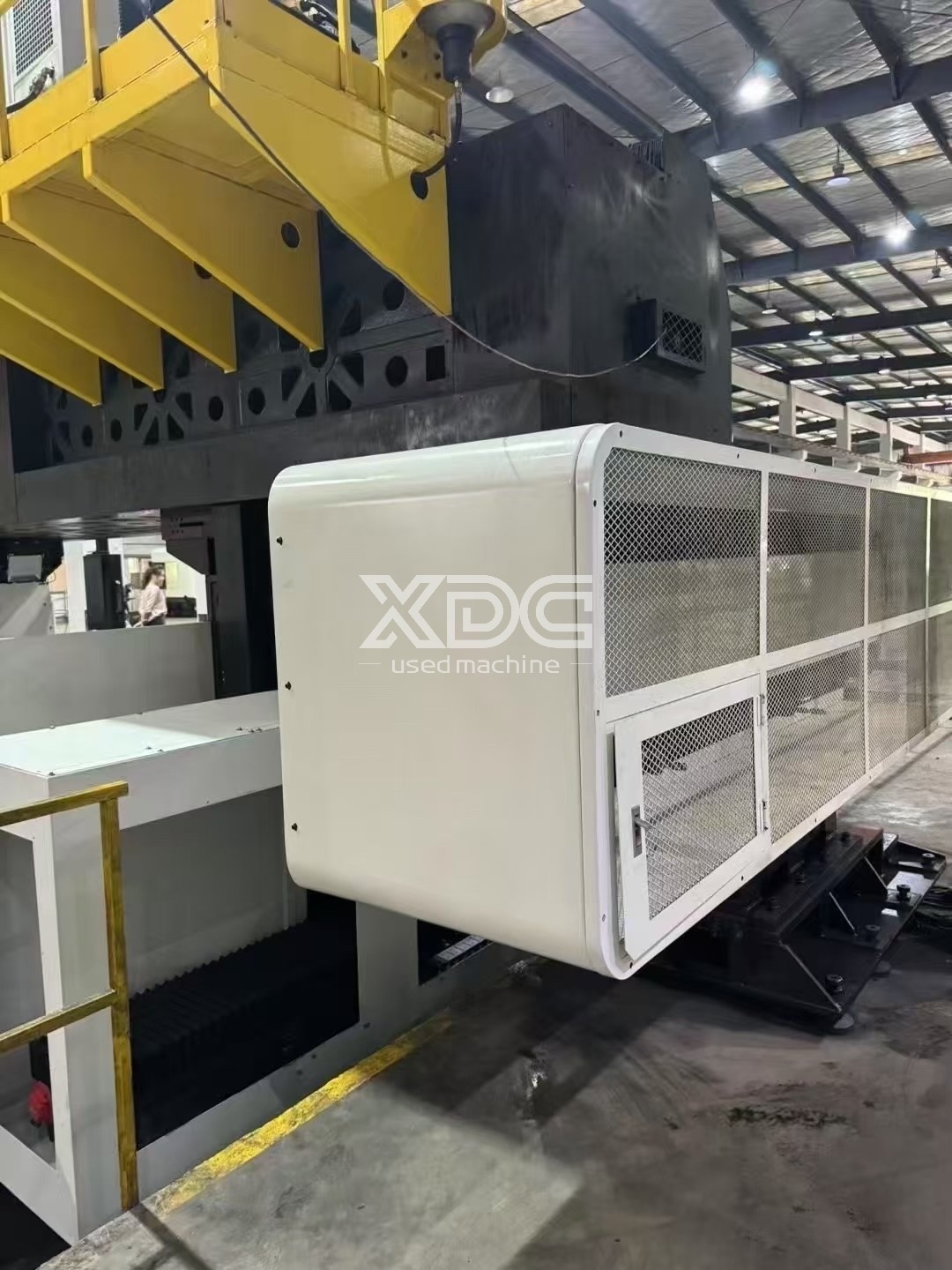

Gamma BN-4080 Gantry Machining Center
Travel: 8000*4600*1250

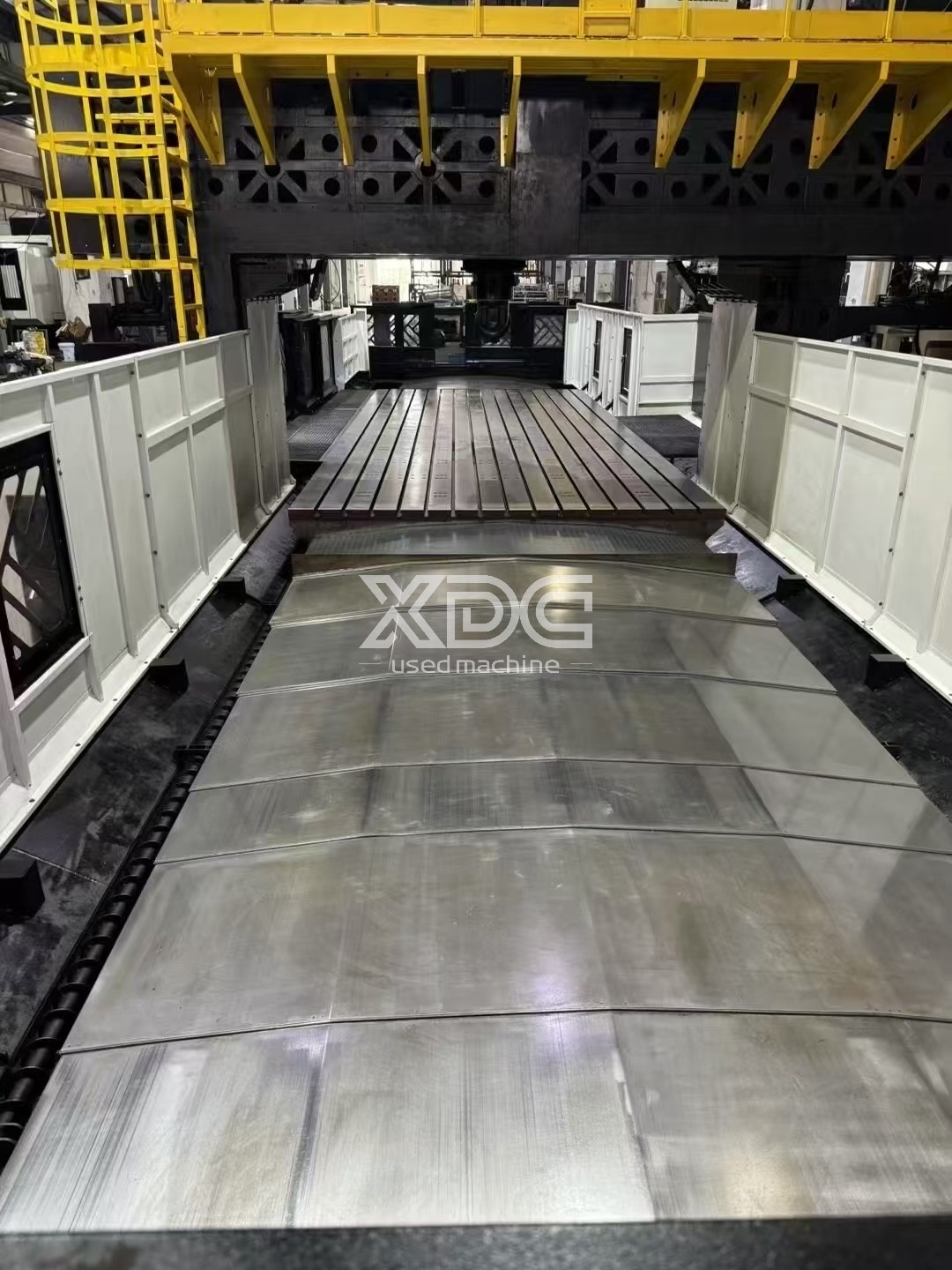

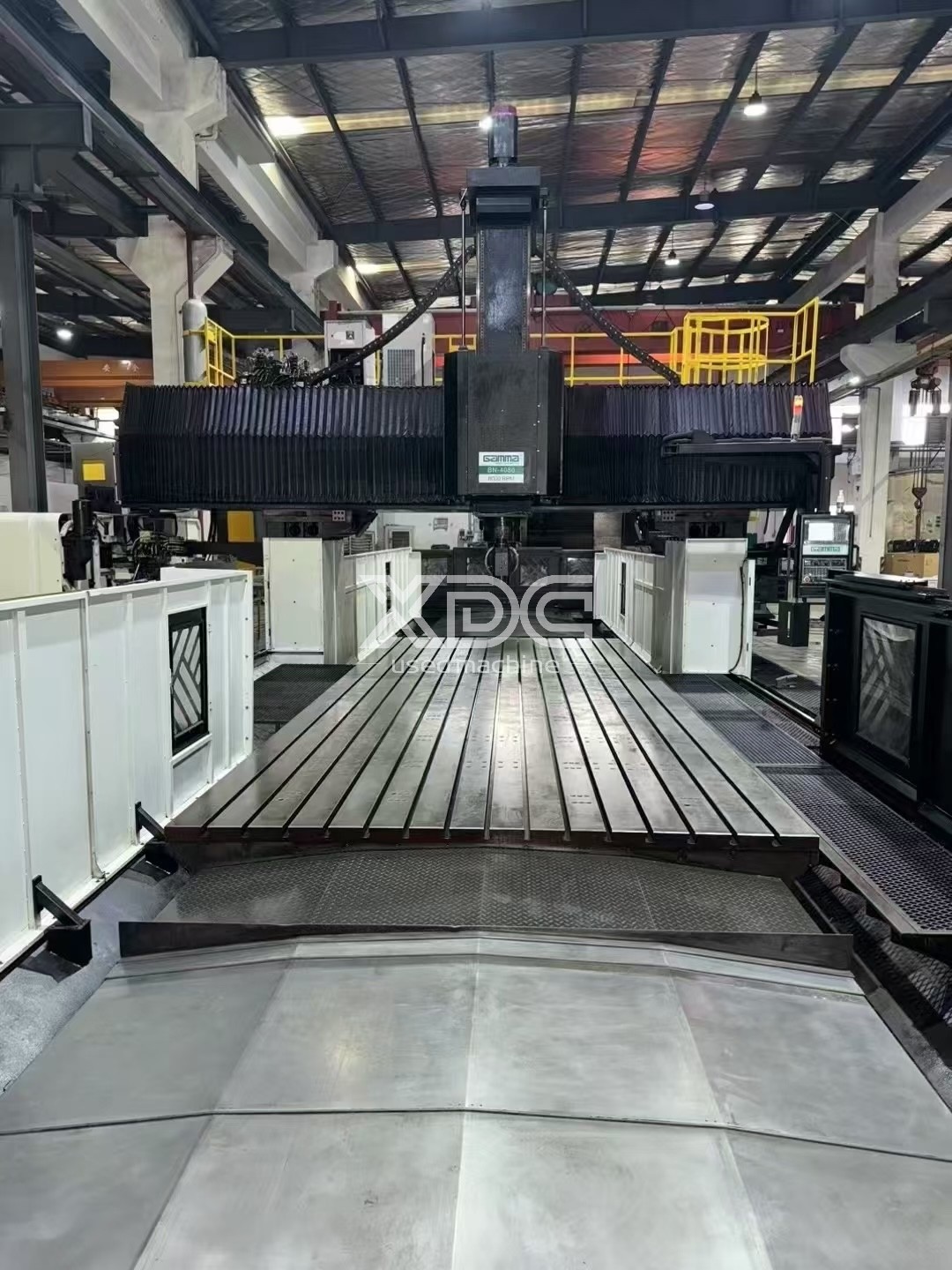

Worktable: 8000*3200
The 8-meter gantry is equipped with 4 guide rails of 65mm width;
the Z-axis has 4 guide rails of 55mm width;
the Y-axis is furnished with 3 guide rails of 65mm width.
It features a 60-tool vertical and horizontal tool magazine.

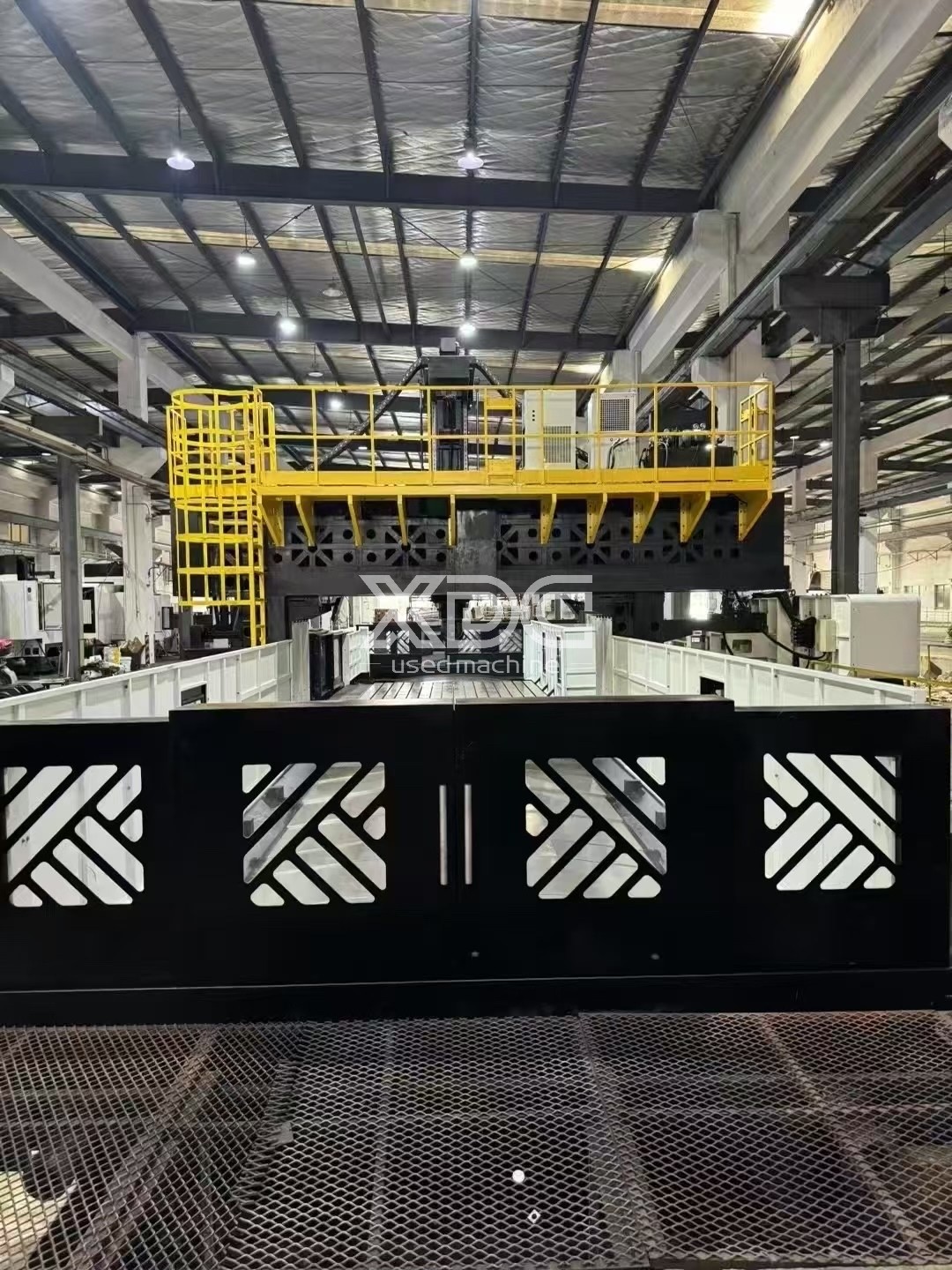

Gantry clearance: 4 meters in width and 1.7 meters in height.
It is a three-axis linear guideway machine!
Equipped with a grating ruler and a ZF gear head, with belt direct connection.
BT50, spindle speed 6000 rpm.
This is a heavy-duty machine with a self-weight of 105 tons!

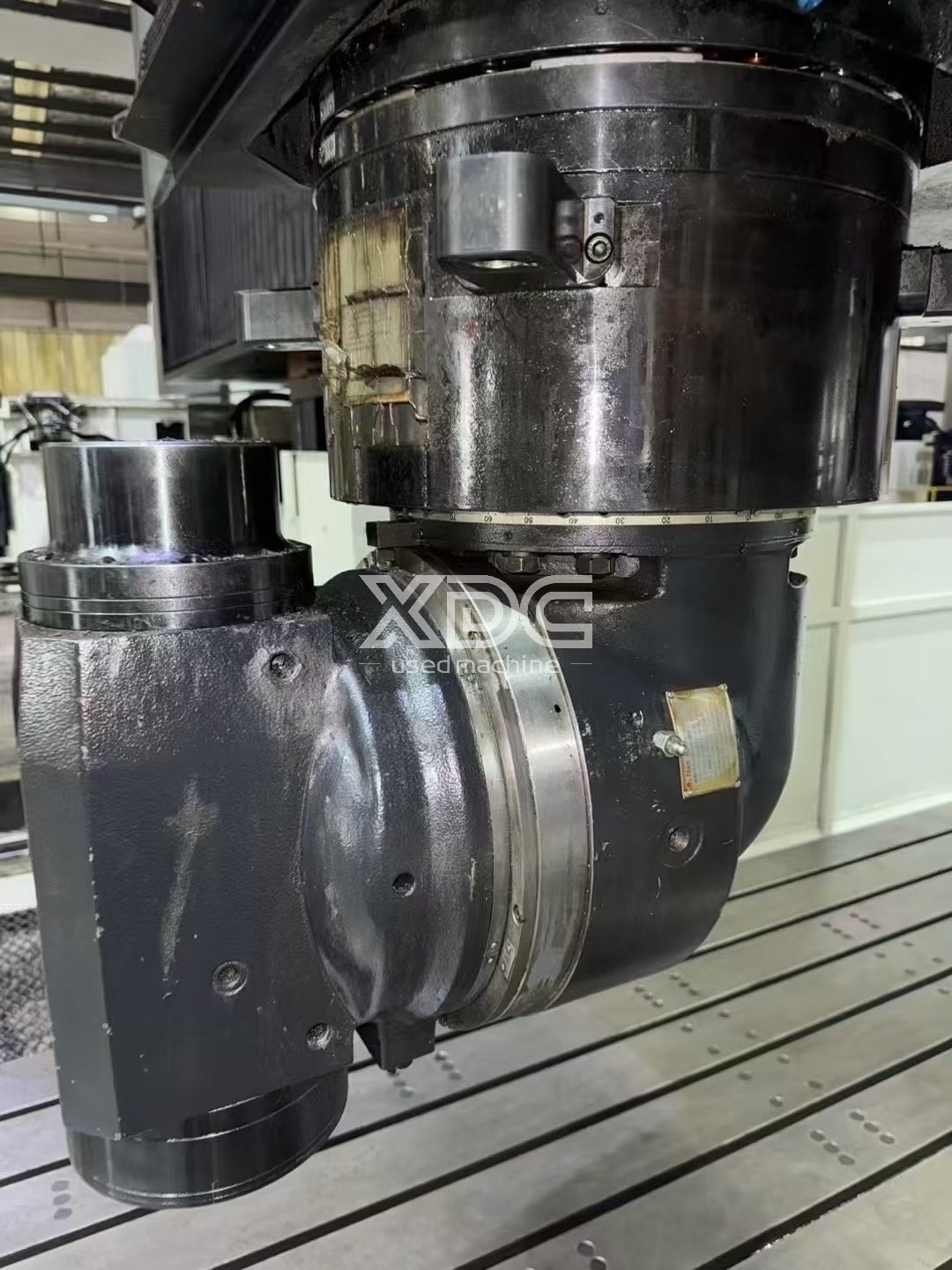

Comes with a fully automatic universal head + extension head + 90-degree right-angle head.

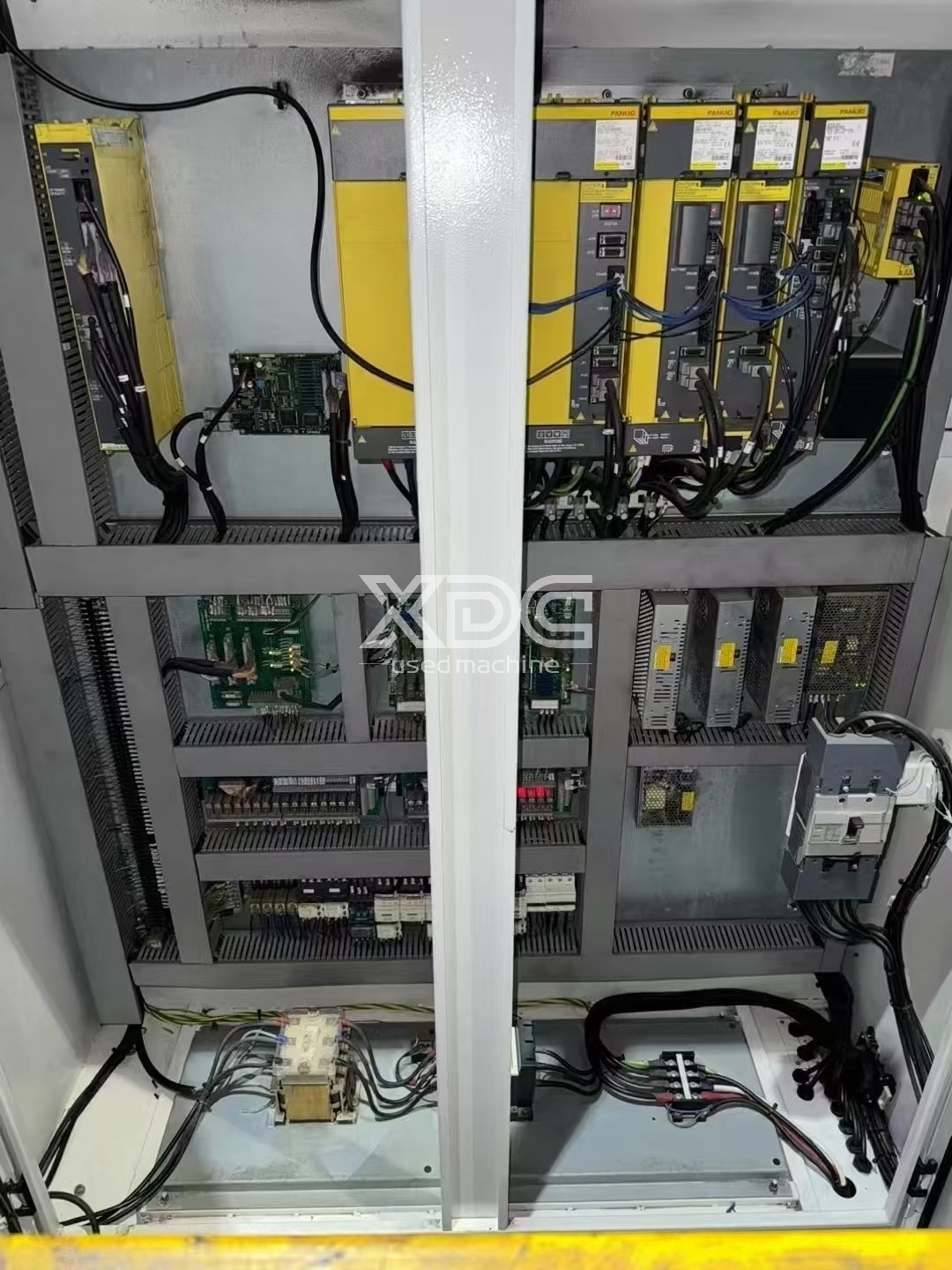

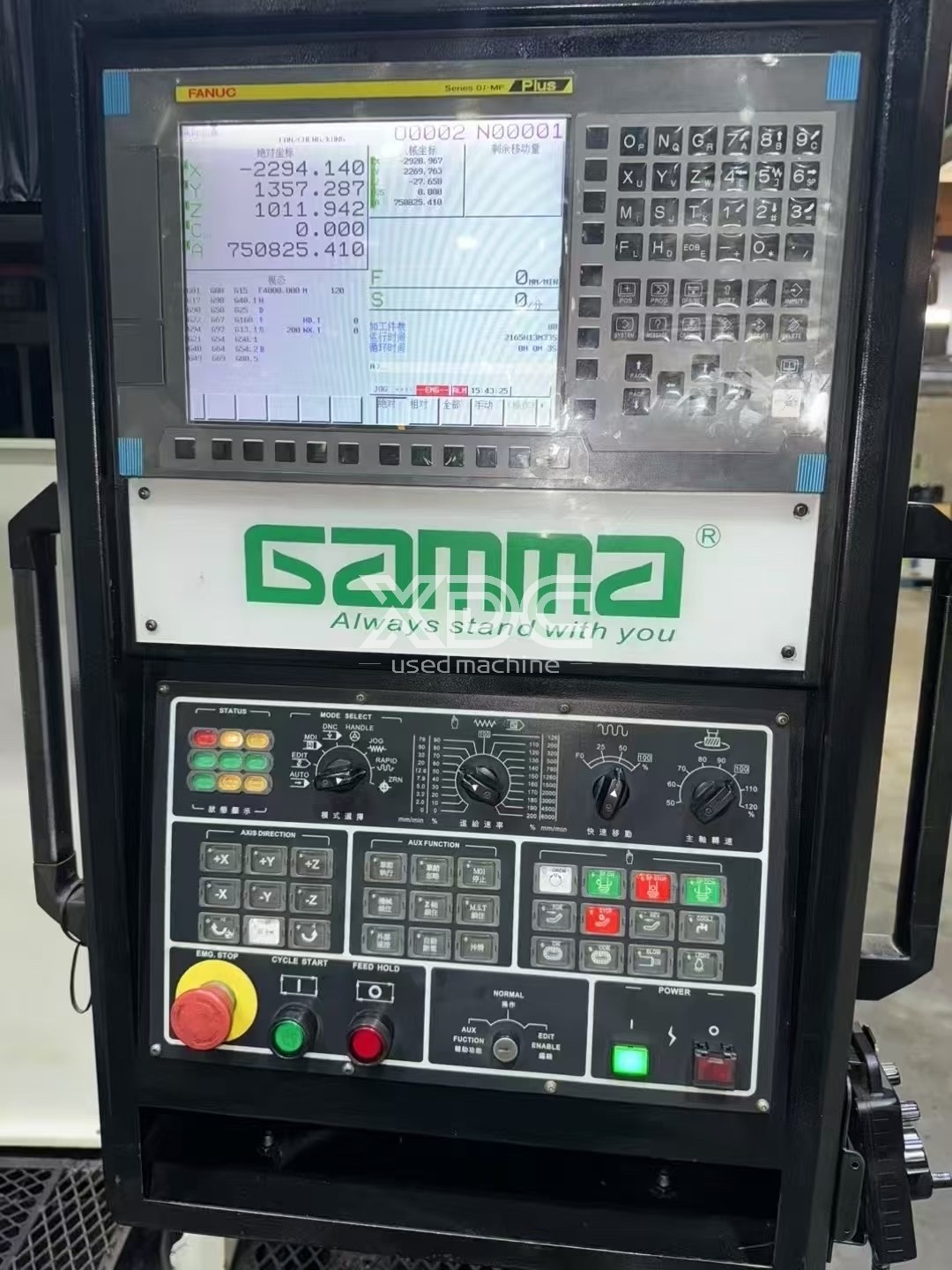

Fanuc 0i-MF plus system! Produced in 2022, brand new machine.
