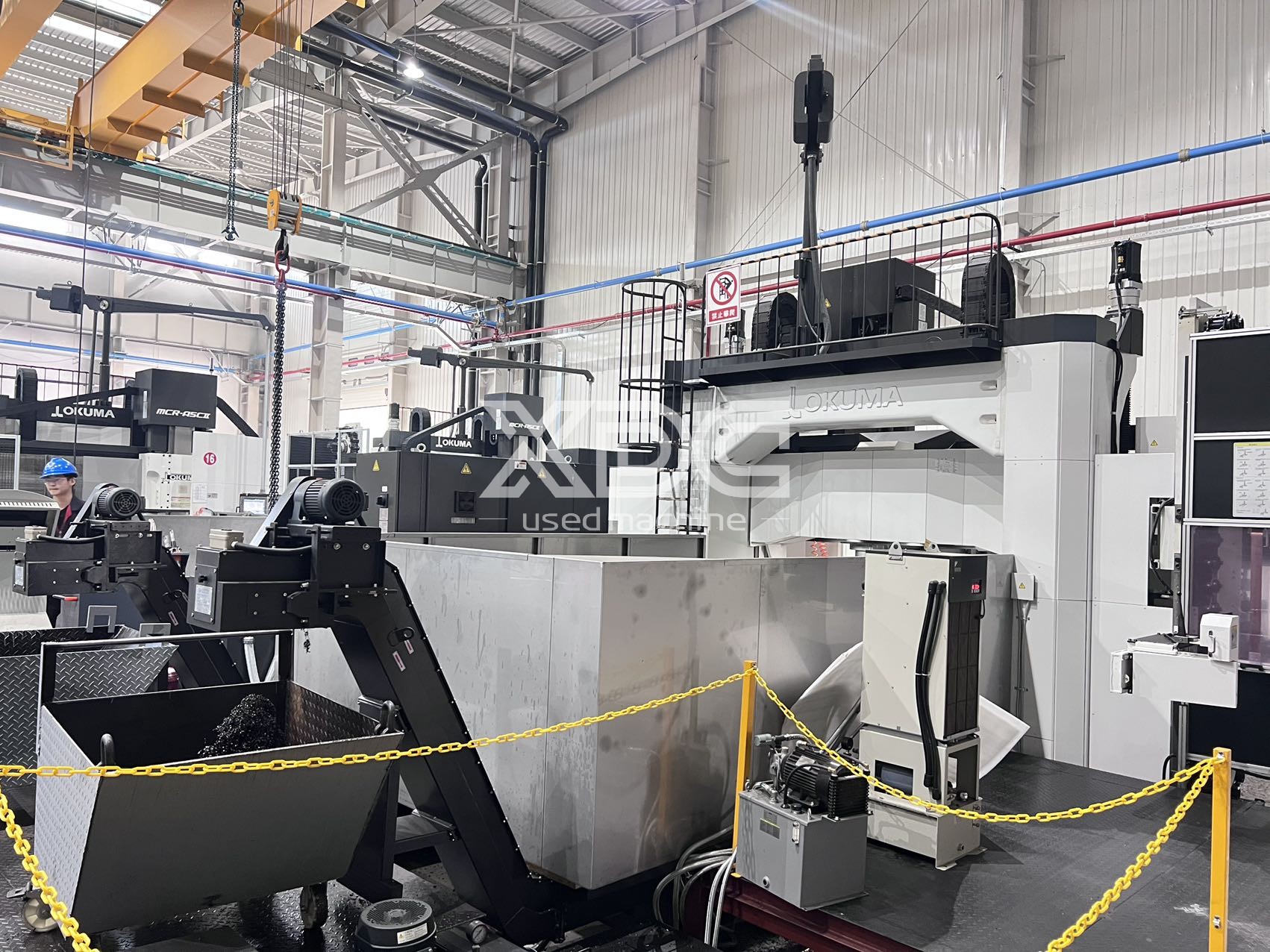

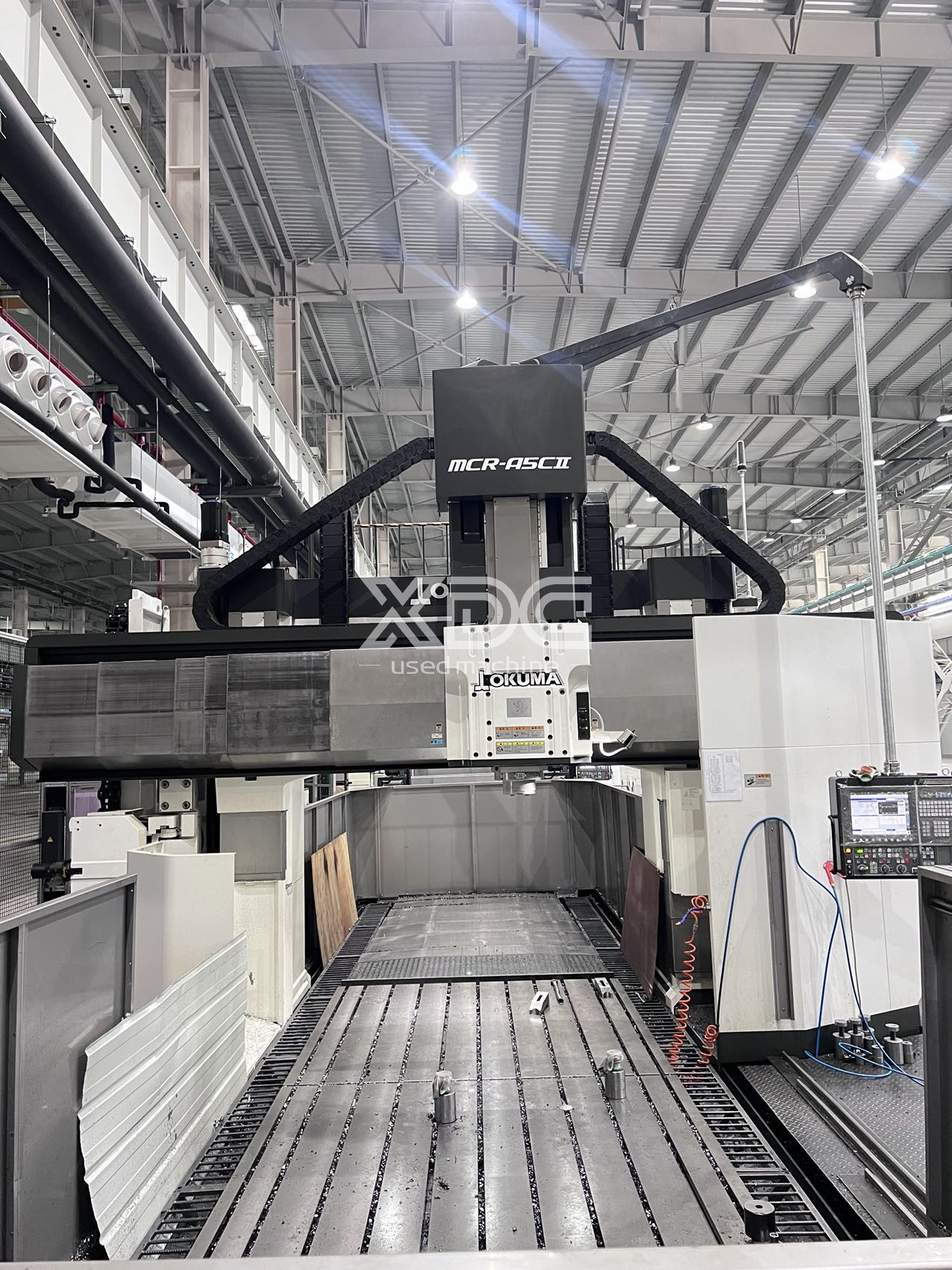

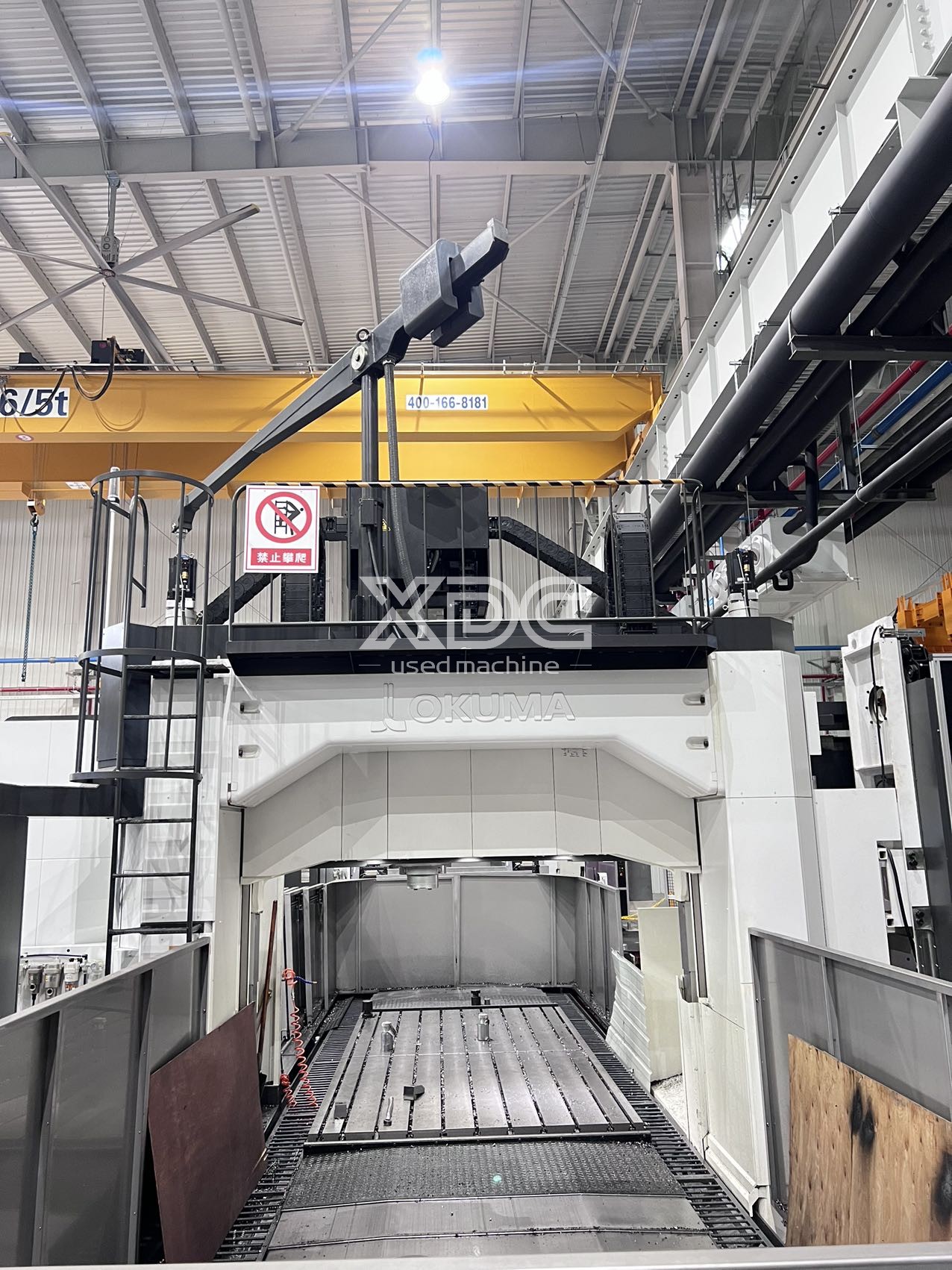

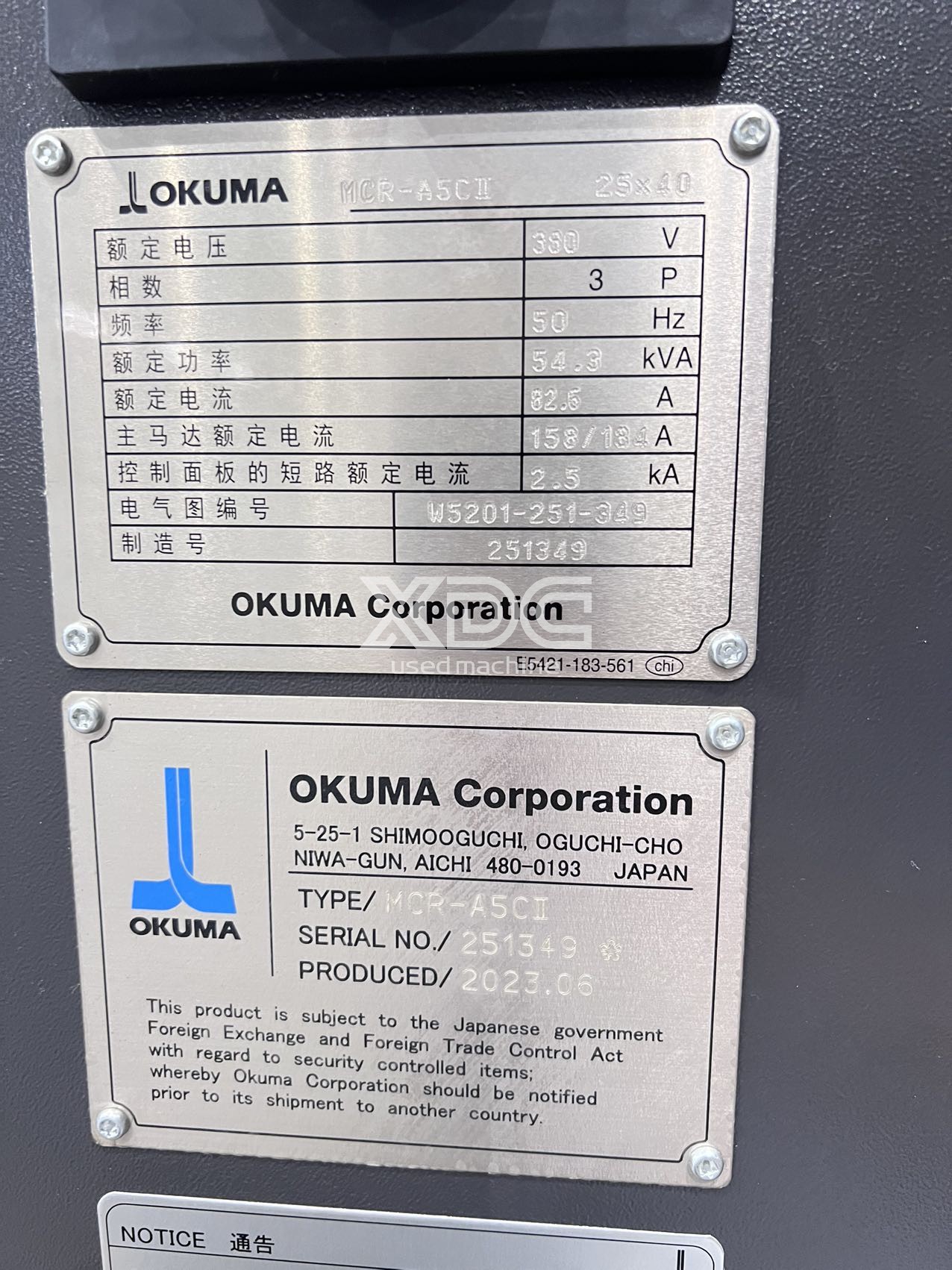

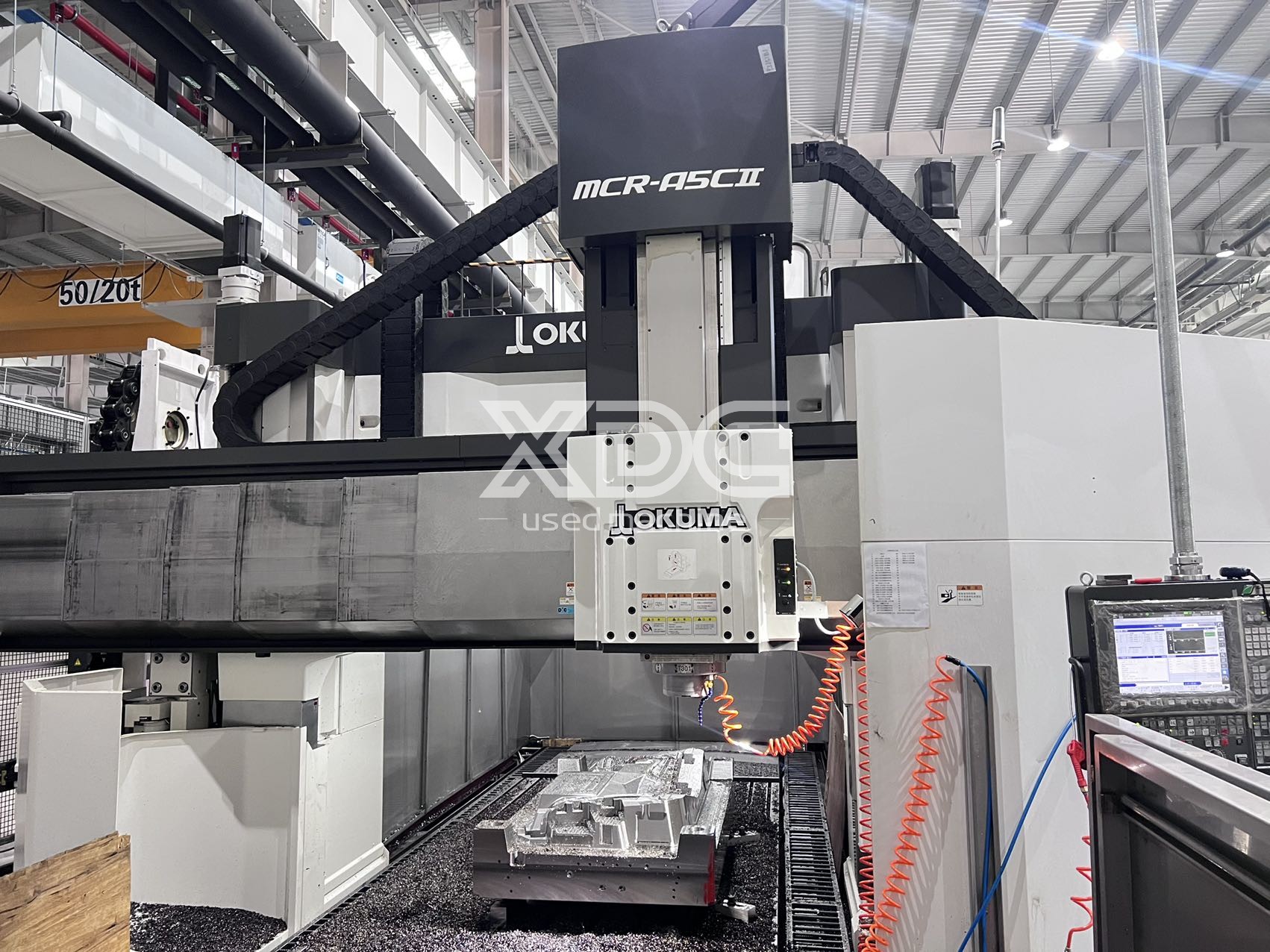

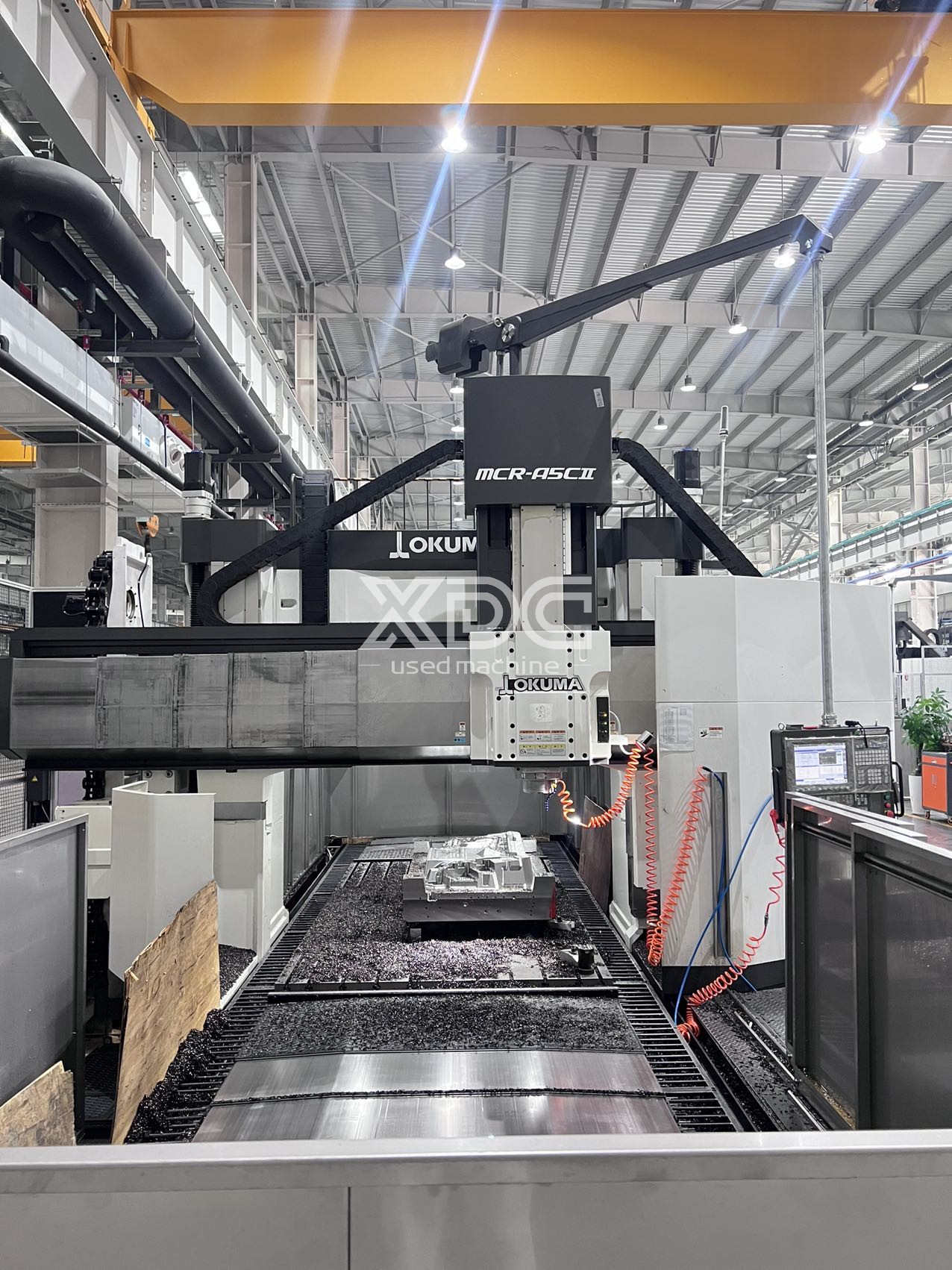

Okuma (Japan) MCR-A5Cll 25X40
The travel of the X-axis is 4 meters, the travel of the Y-axis is 2.5 meters,
the travel of the Z-axis is 0.8 meters,
and the lifting of the crossbeam of the W-axis is 1 meter

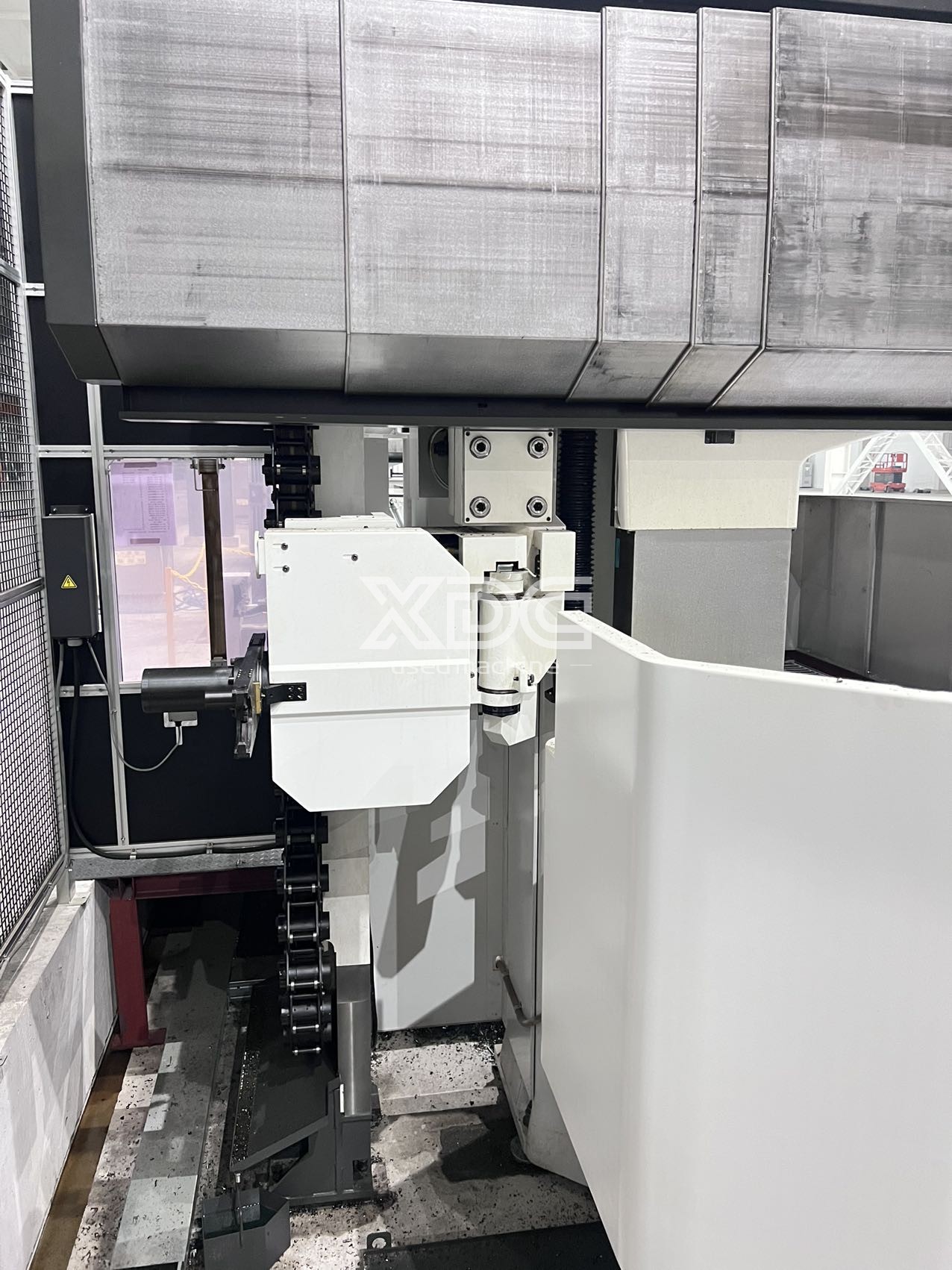

. All 4 machines are equipped with 90-degree side milling heads.
Among them, 2 machines have central coolant outlet,
and 2 machines do not have central coolant outlet.

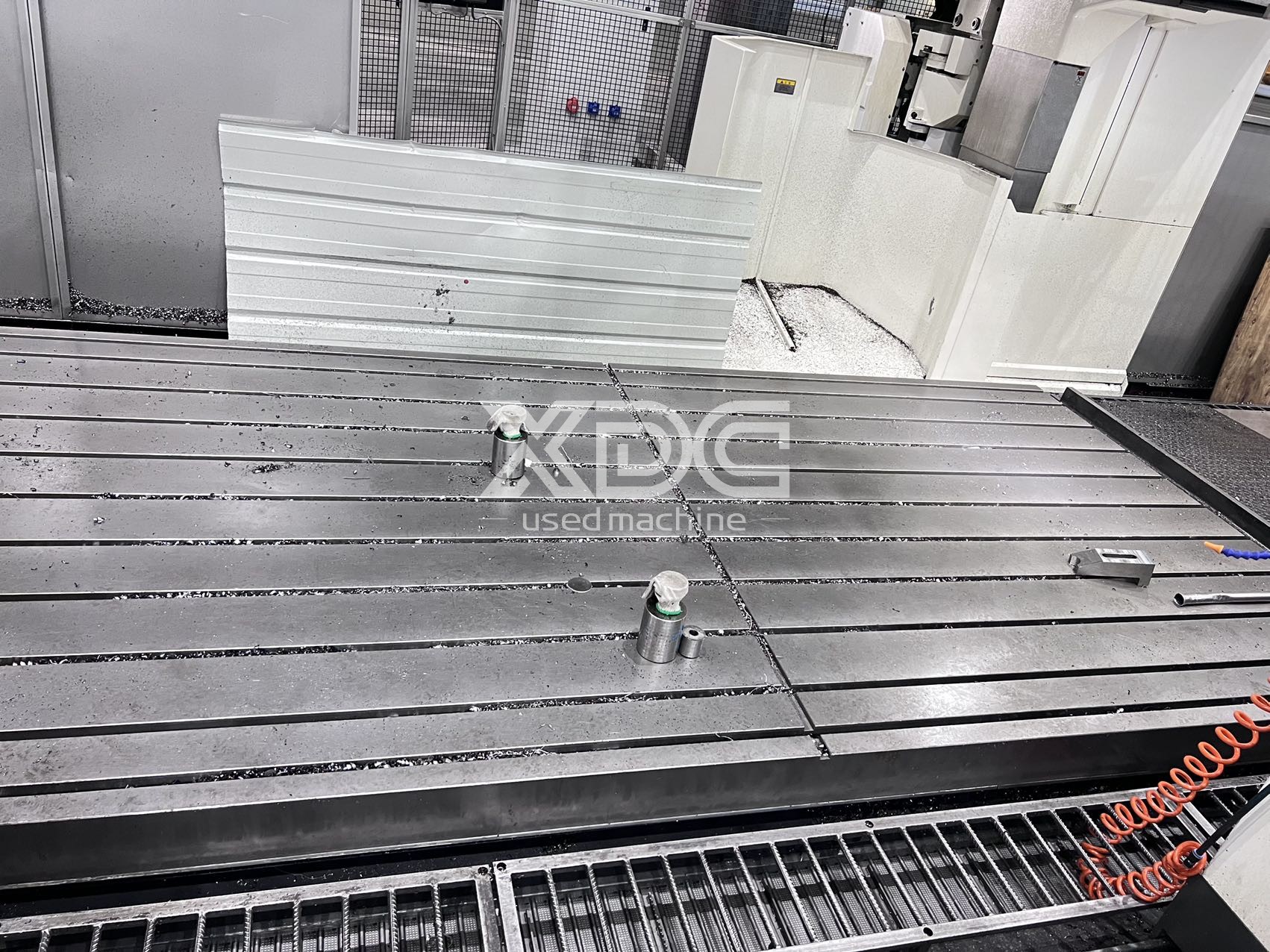

The maximum load capacity of the 4 machines is 22 tons.

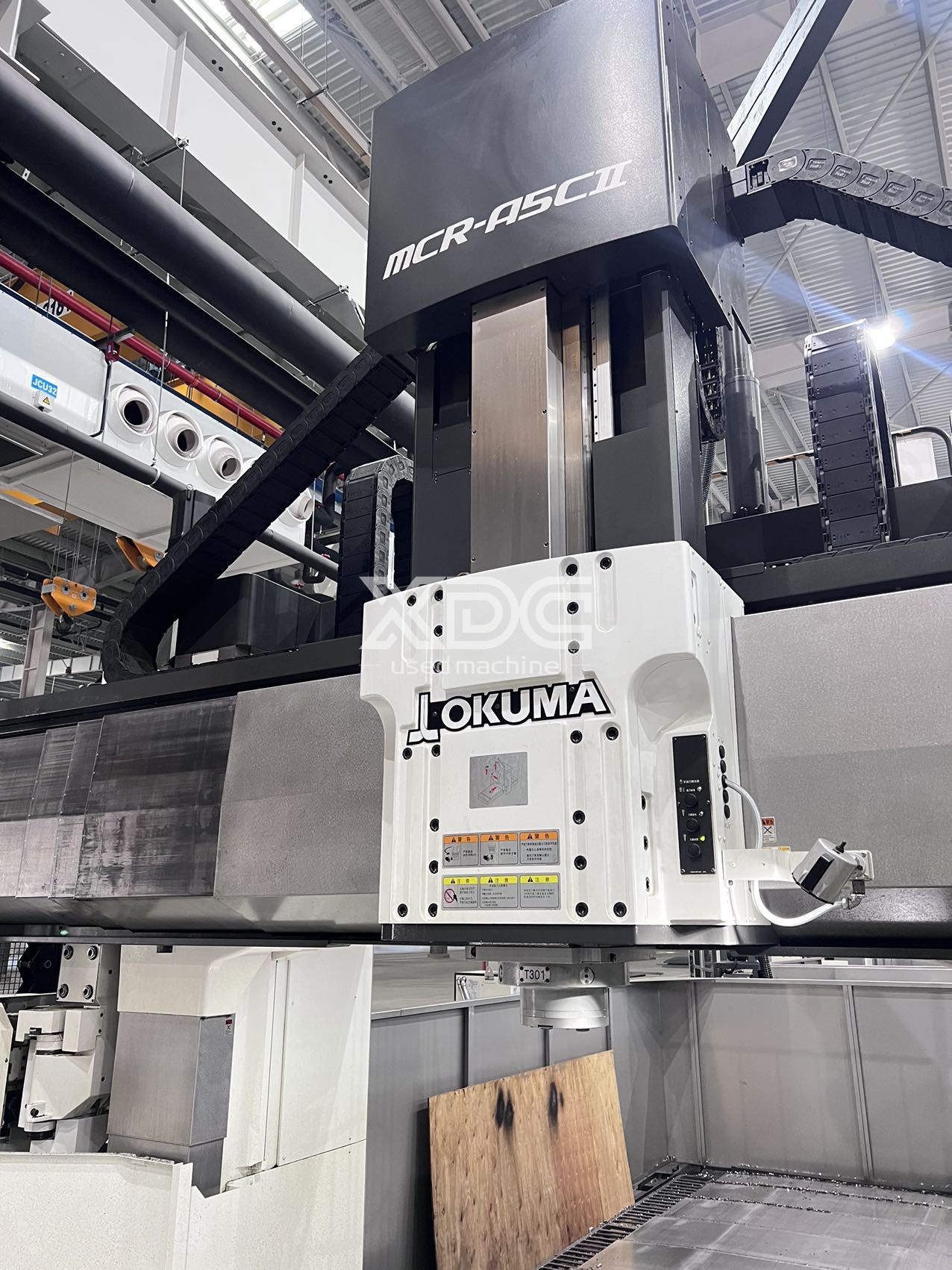

The maximum rotational speed of the vertical milling head spindle is 6000 revolutions per minute,
and the maximum rotational speed of the 90-degree head spindle is 3000 revolutions per minute.
The machine tool guide rails are hardened rails.
The tool specifications for the vertical head and the side head are of BT50 model.

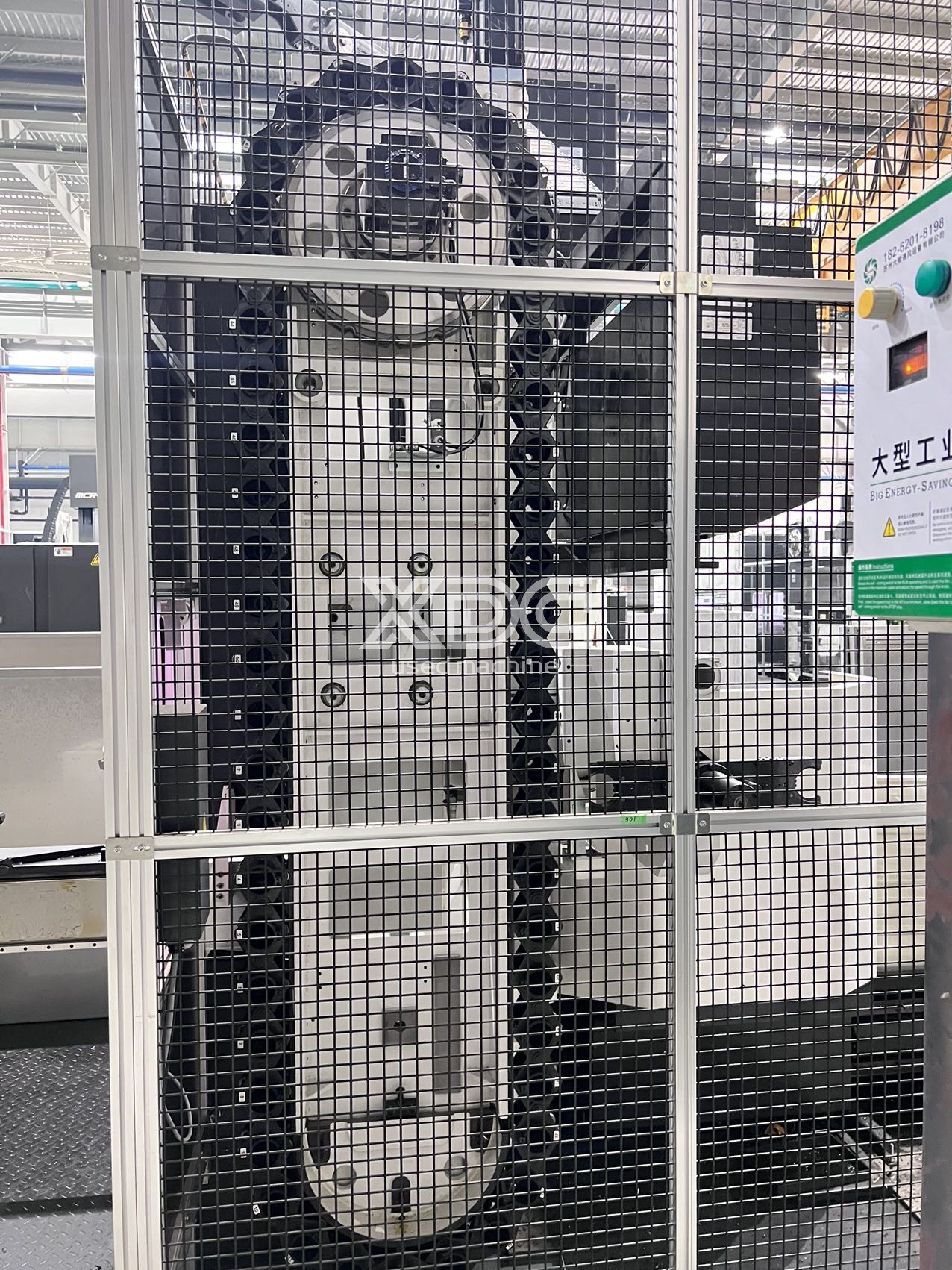

All machines have a tool magazine that can hold 50 tools.
