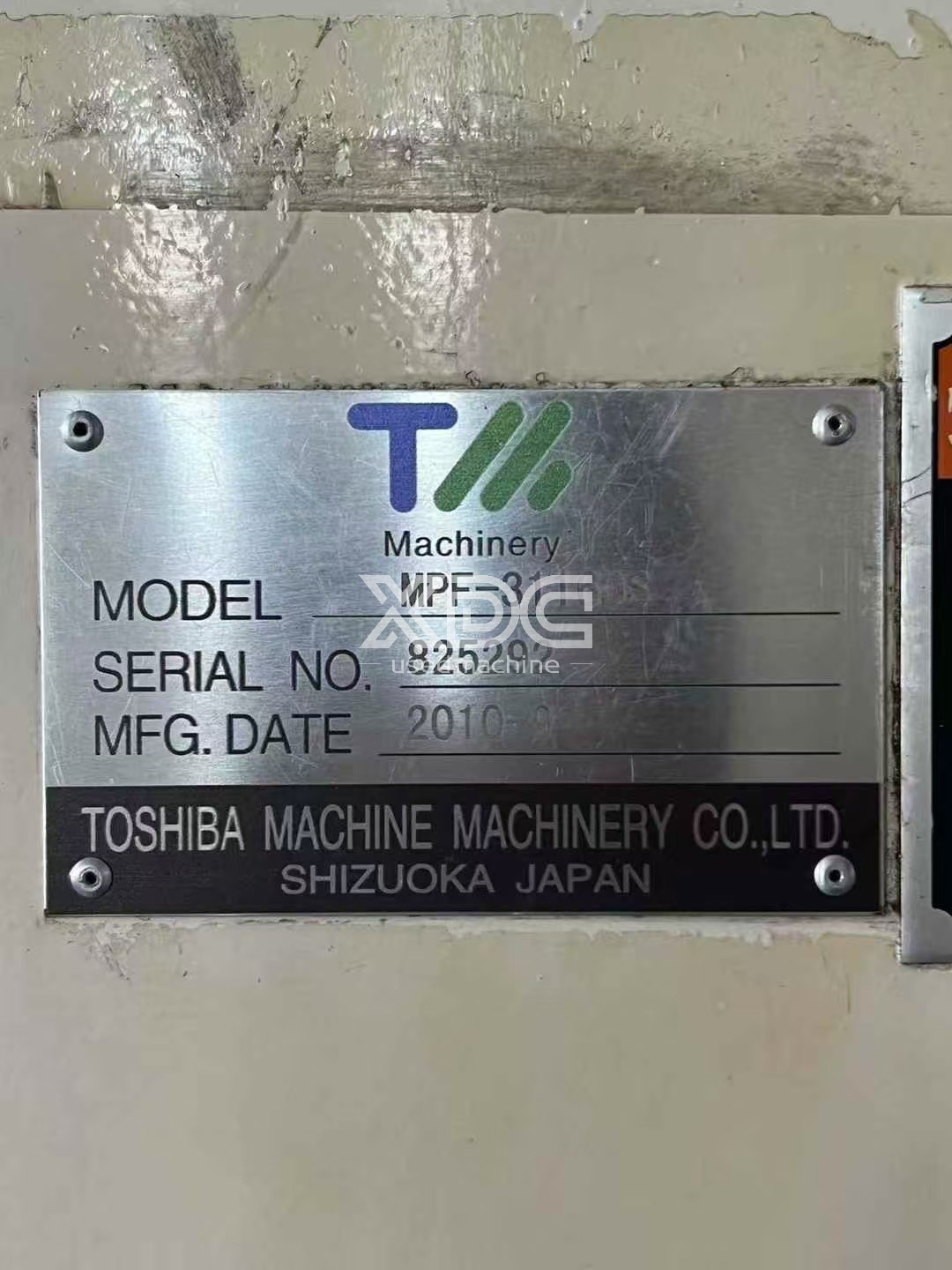

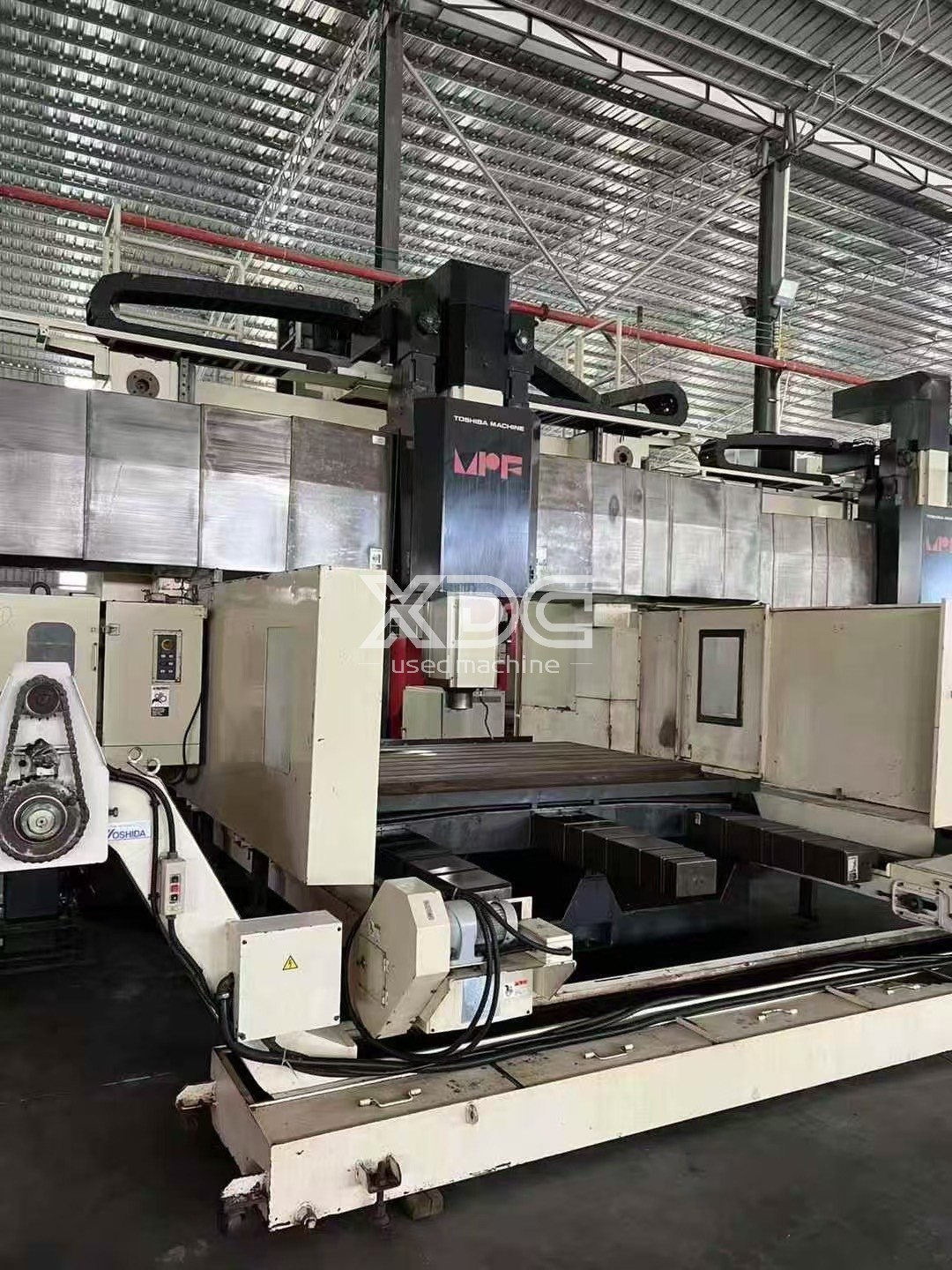

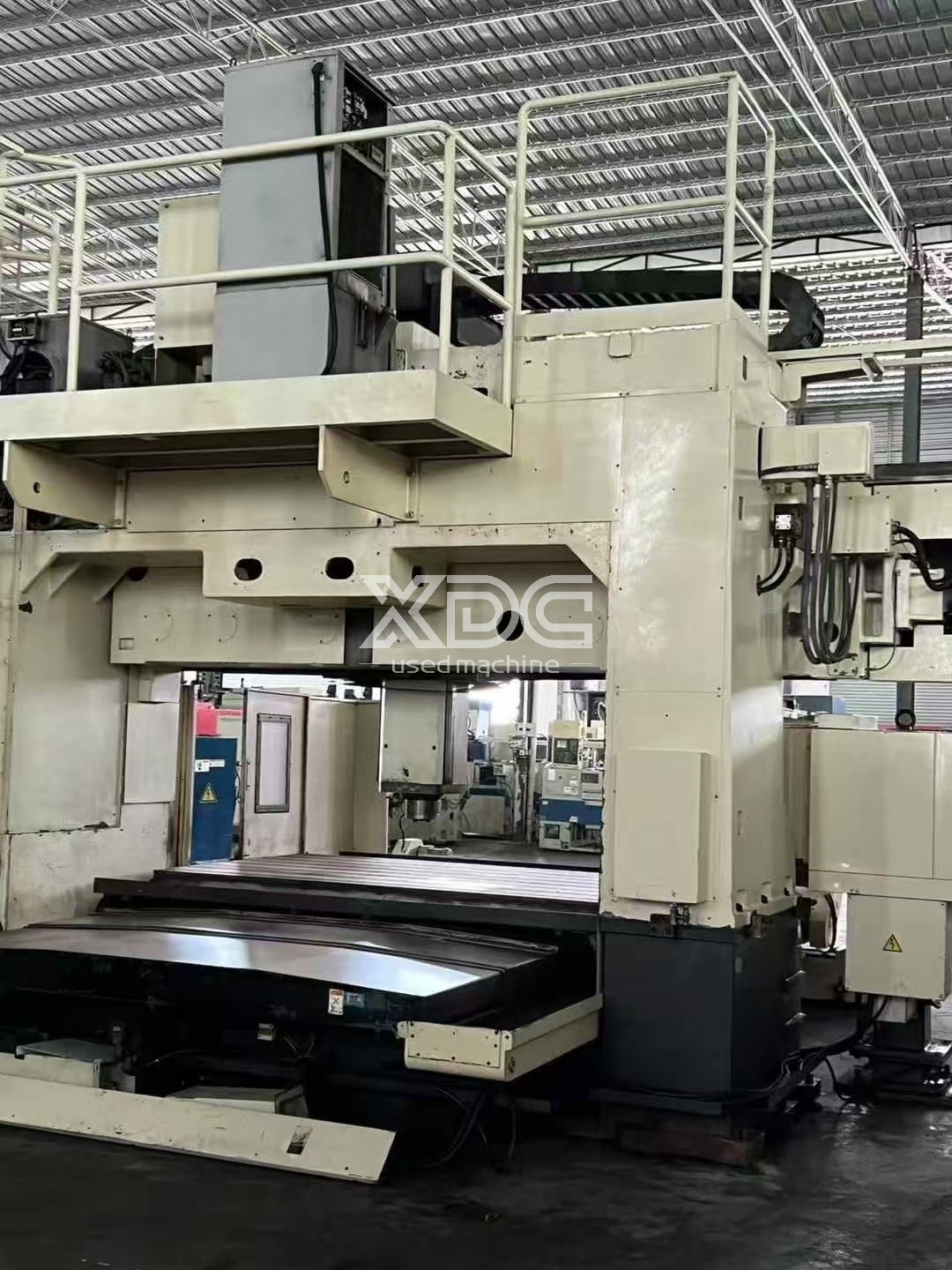

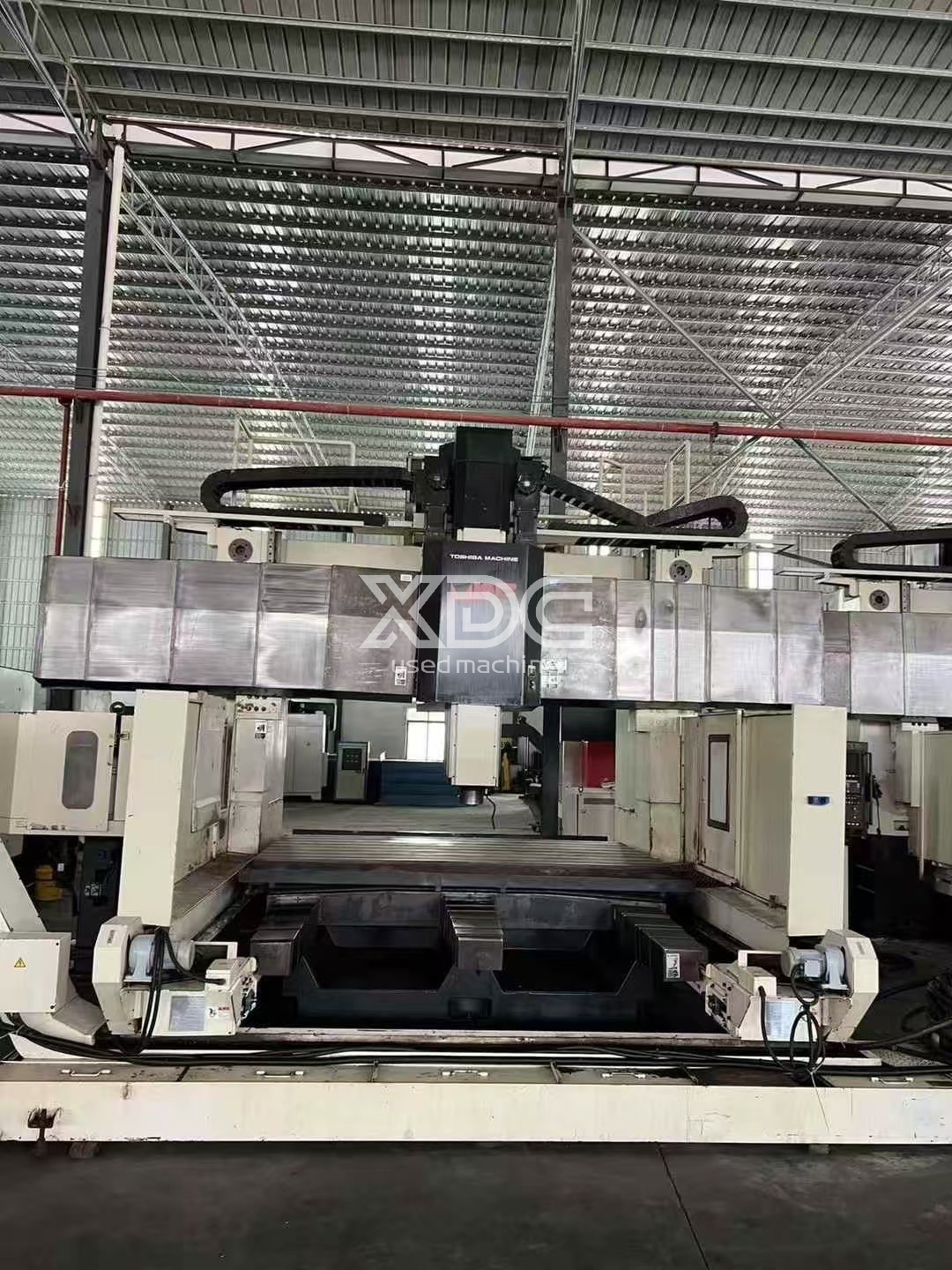

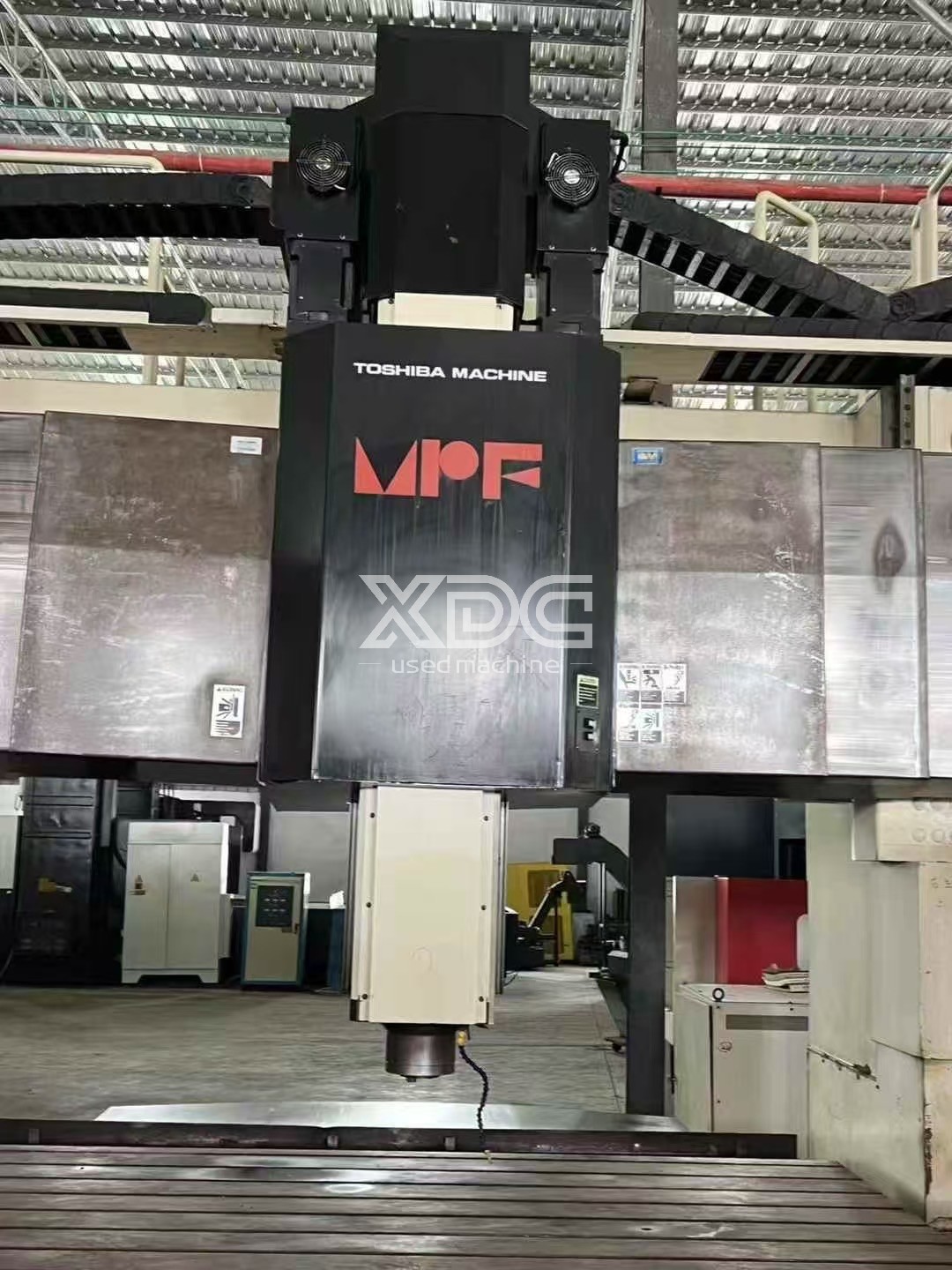

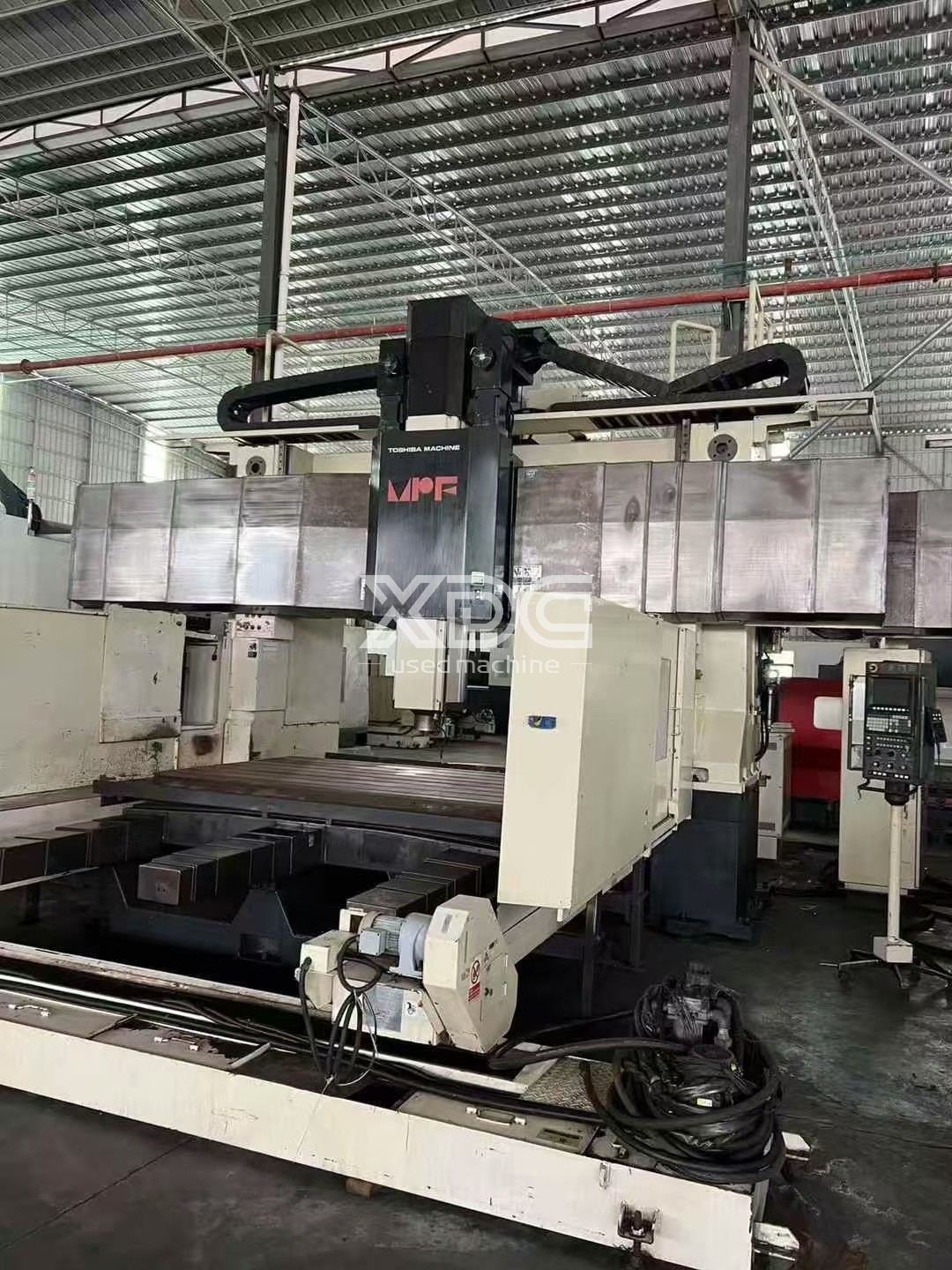

Toshiba MPF-3116DS High-speed Gantry Machining Center from Japan
Travel of 4 axes: 3100*1900*715*400mm
Worktable size: 2800*1600mm, and the elevation of the ram is 500mm
Load-bearing capacity: 10000kg, T-slot: 24*200mm
Spindle motor: 15/15kw
Door width: 3100mm, Door height: 1100mm
Spindle speed: 10000rpm
Overall dimensions: 4480*6250*5700mm

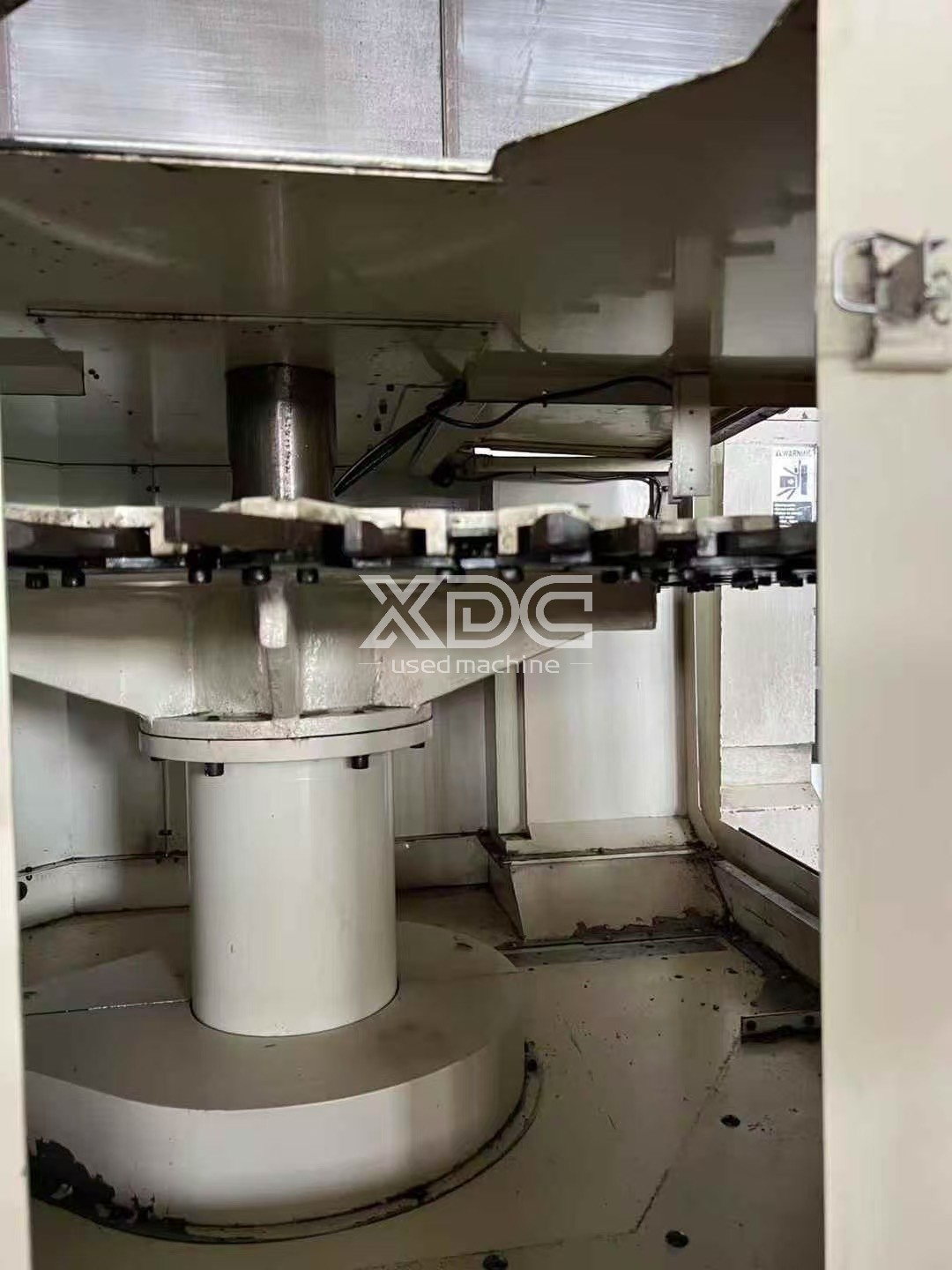

Weight: 30200kg. It is equipped with a tool magazine with 24 tools,

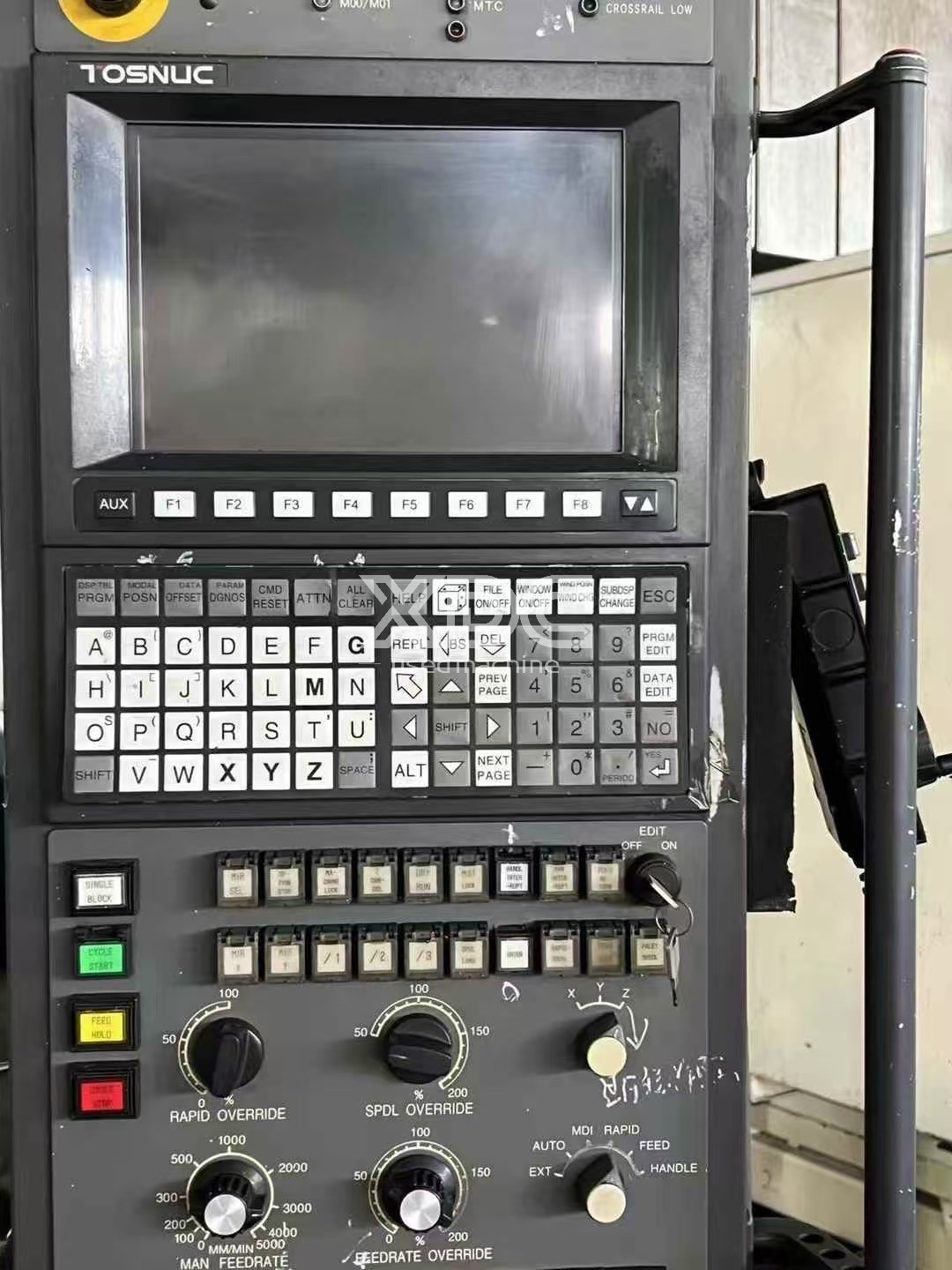

a BT50 electric spindle, high-torque linear guideways for three axes, and the 888 system.
