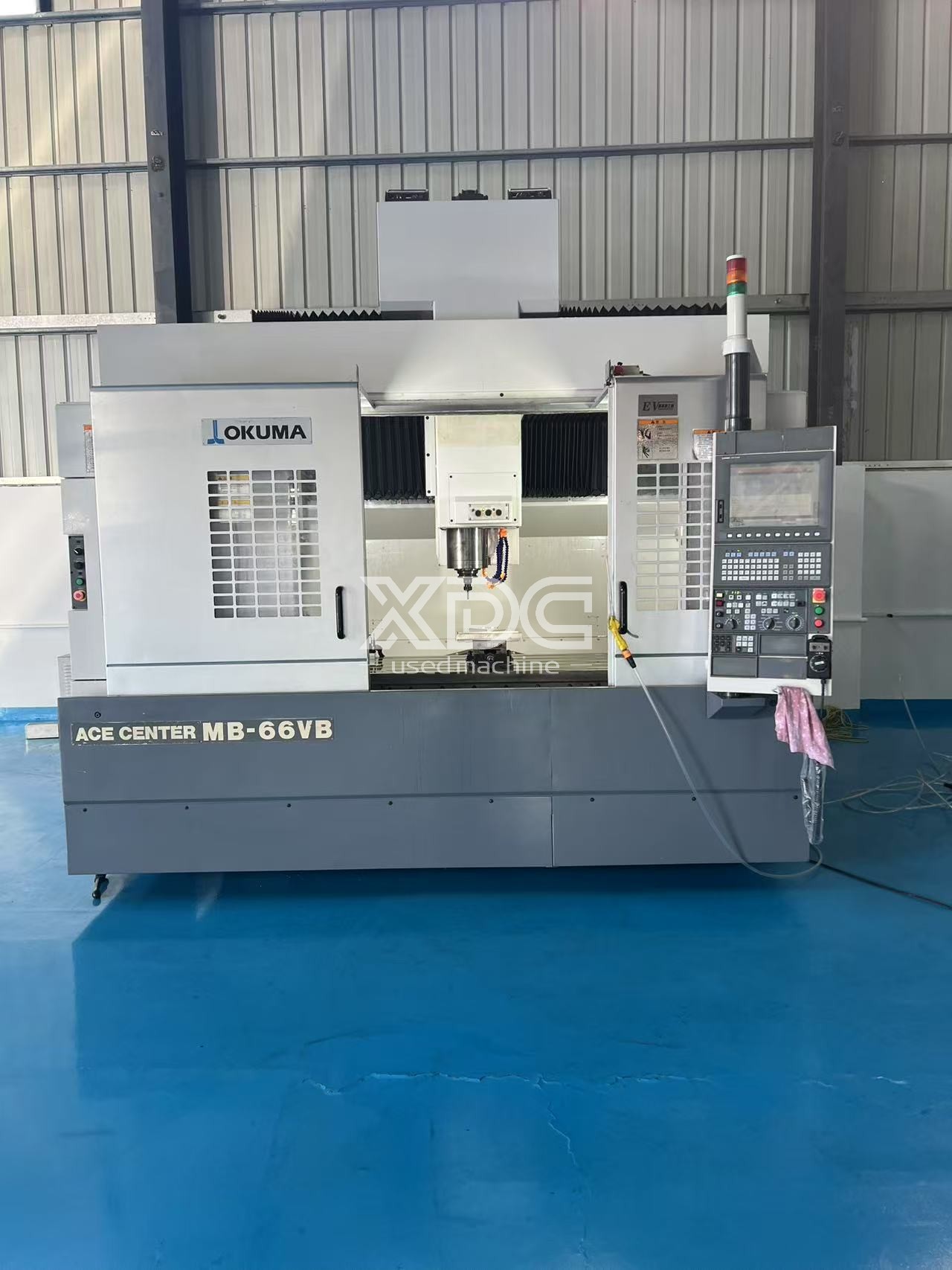

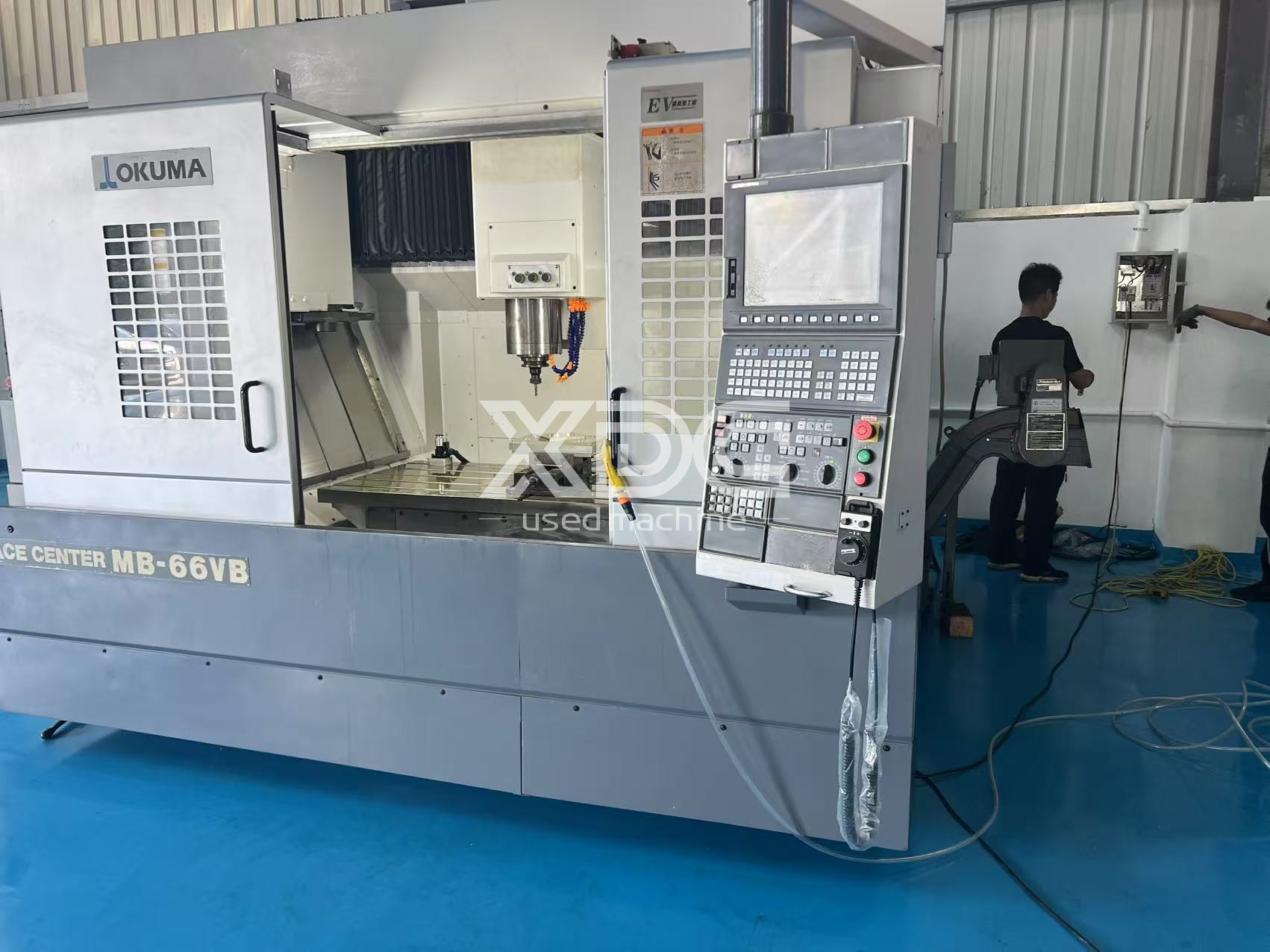

Used OKUMA M66VB vertical machining center

OKUMA M66VB vertical machining center

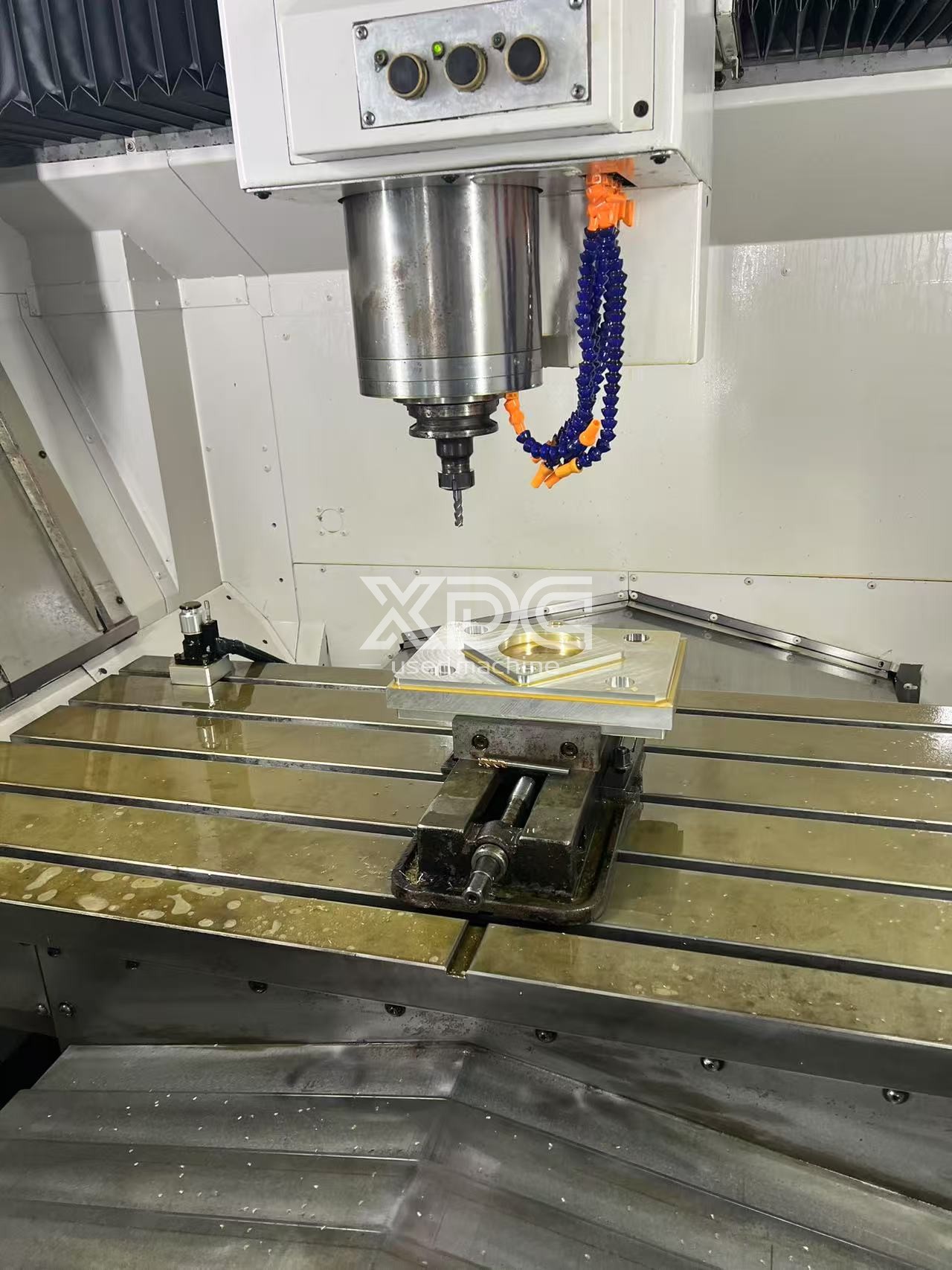

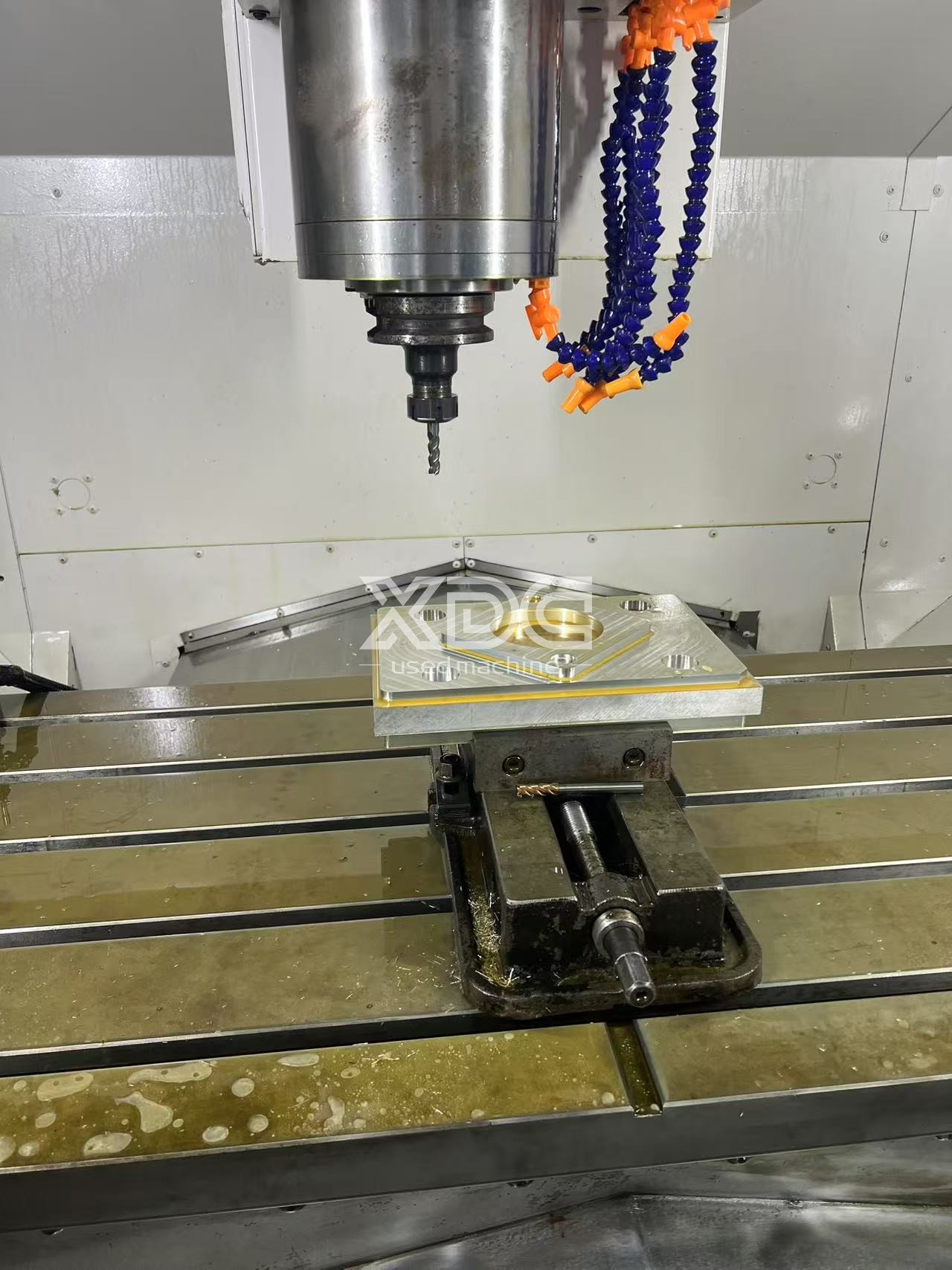

• Spindle parameters: Speed 6,000r/min (special specification);

Power 26/18.5kW (10min/continuous);

Torque 199/146N·m (5min/continuous); Taper 7/24 No.50.

• Feed parameters: Rapid feed speed 40m/min (X, Y axes);

 Cutting feed speed 32m/min; Maximum acceleration 0.7G.

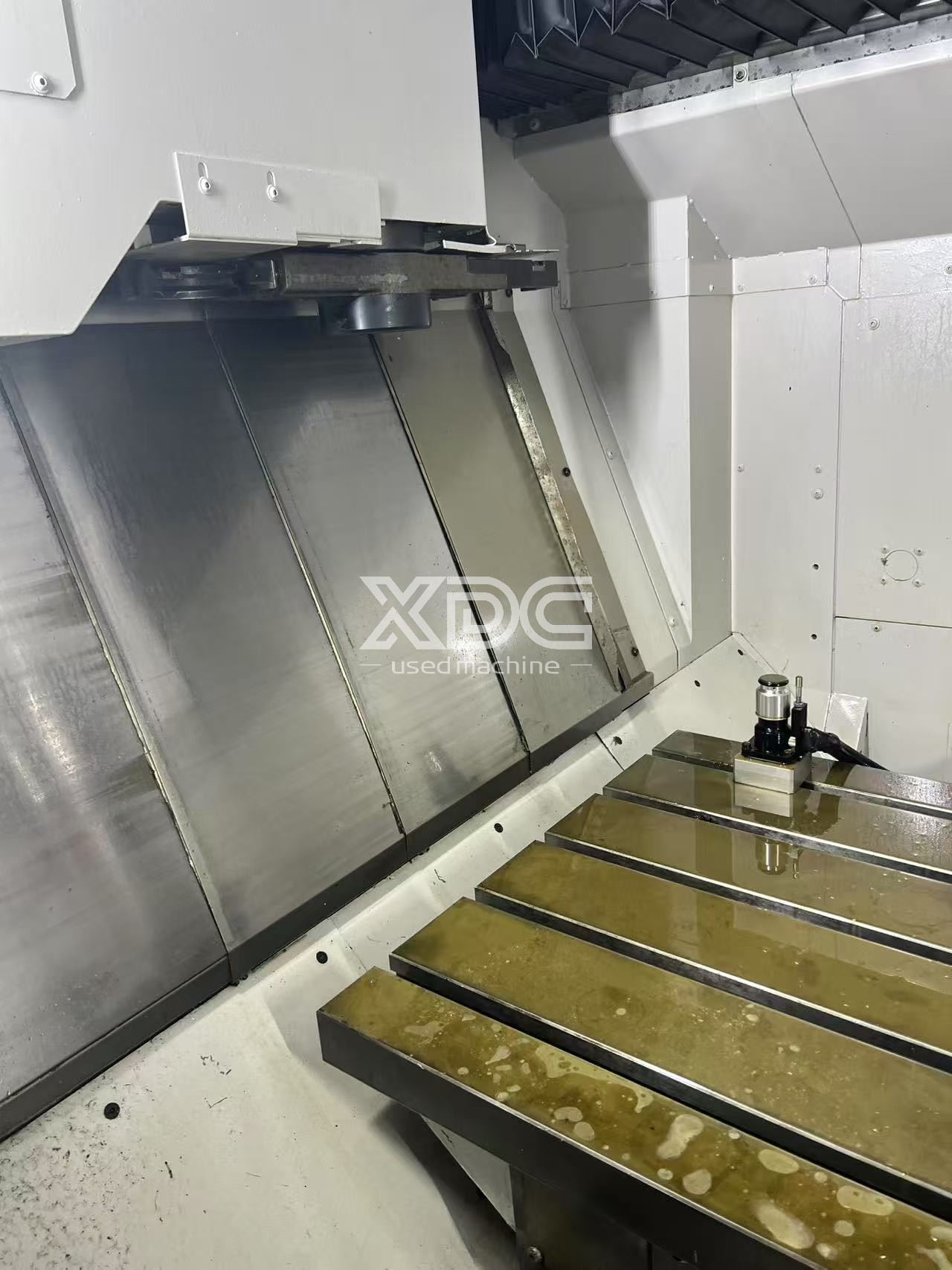

• Machine specifications: Worktable size 1,530×660mm;

 Maximum worktable load 500kg; Gantry width 600mm;

 Machine size (L×W×H) 3,035×3,325×3,295mm; Weight 7,300kg.

• Tool magazine parameters: Disc-type tool magazine,

 capacity 20 tools, tool change time 7Sec.
