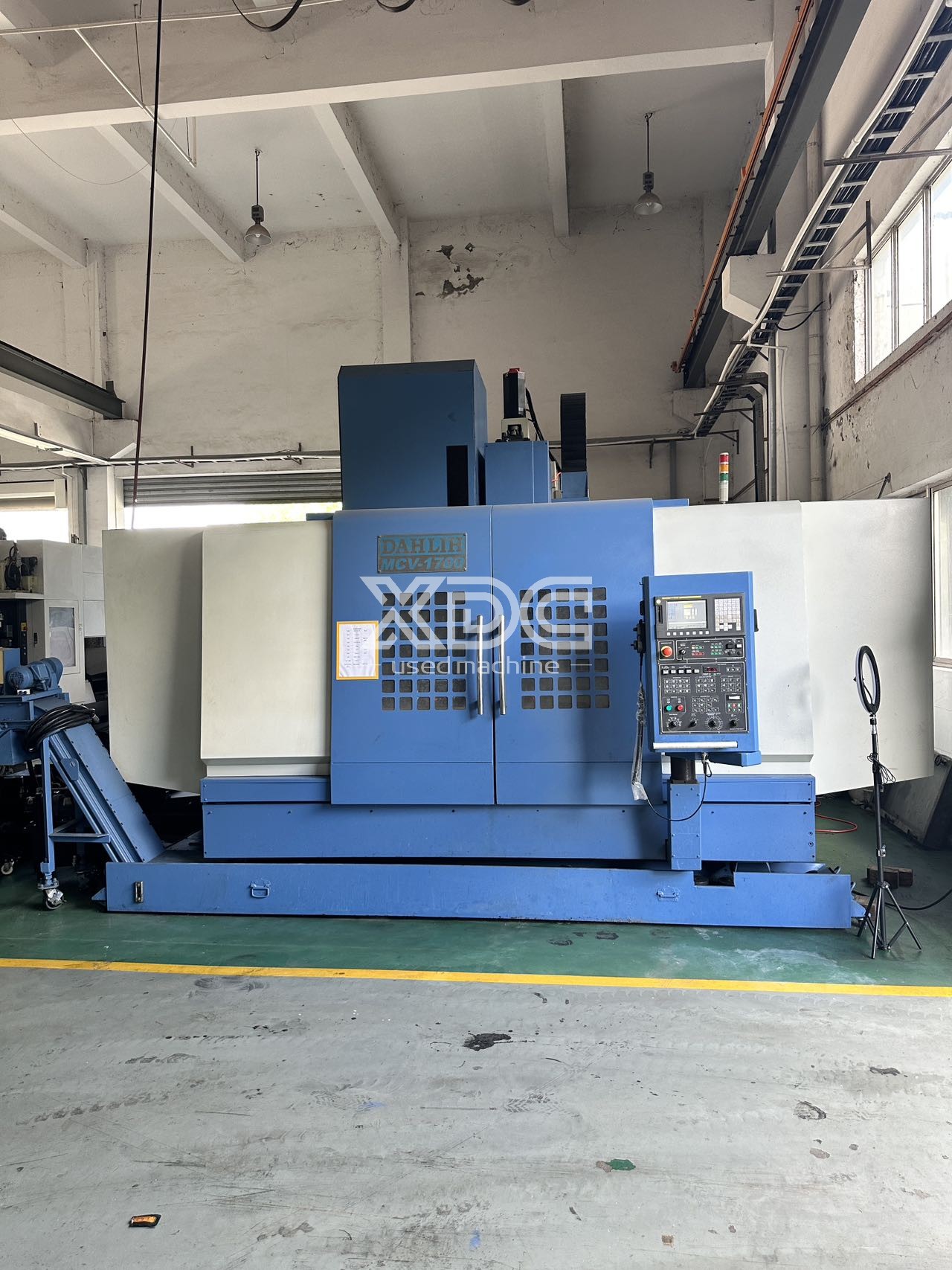

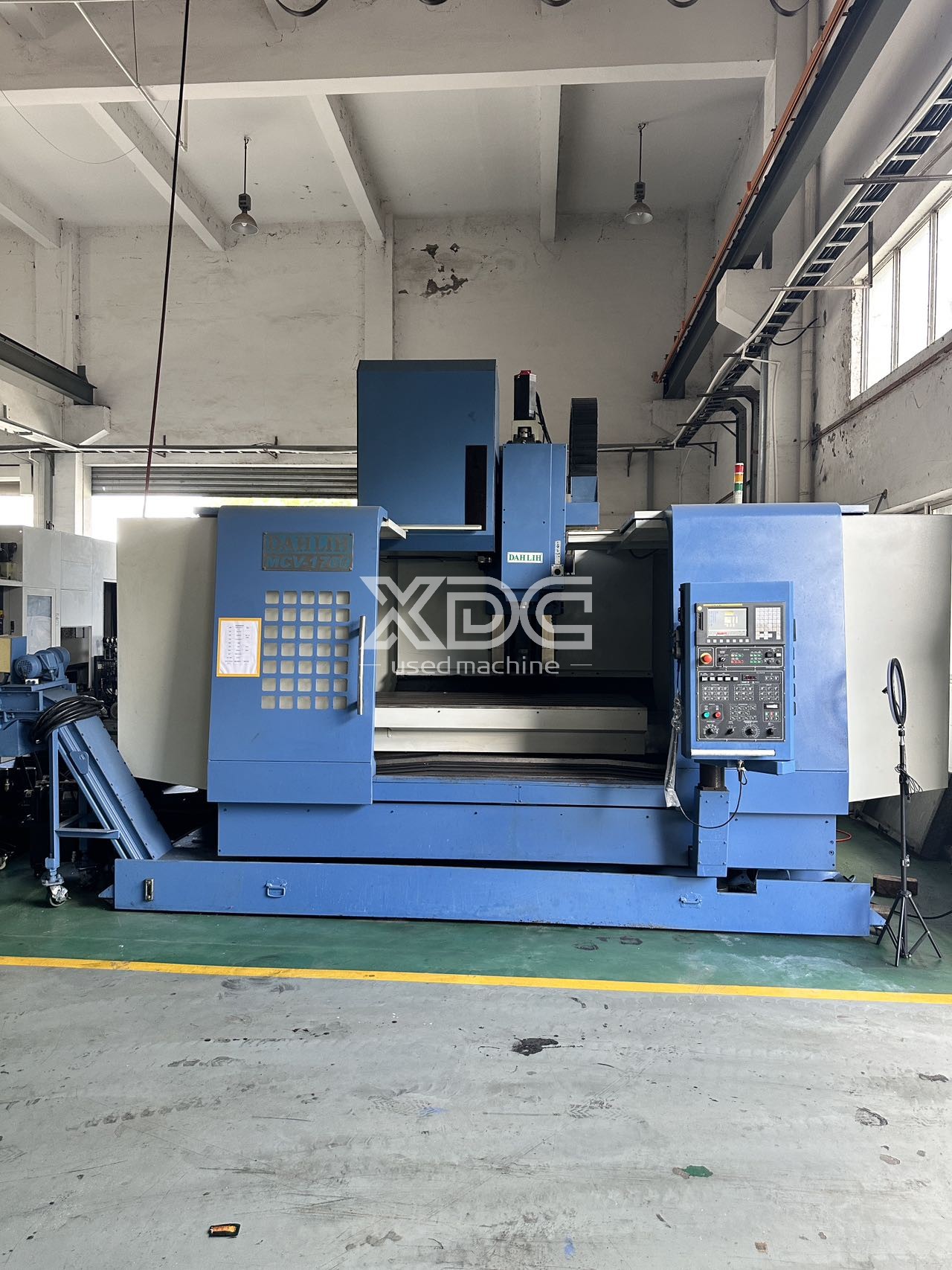

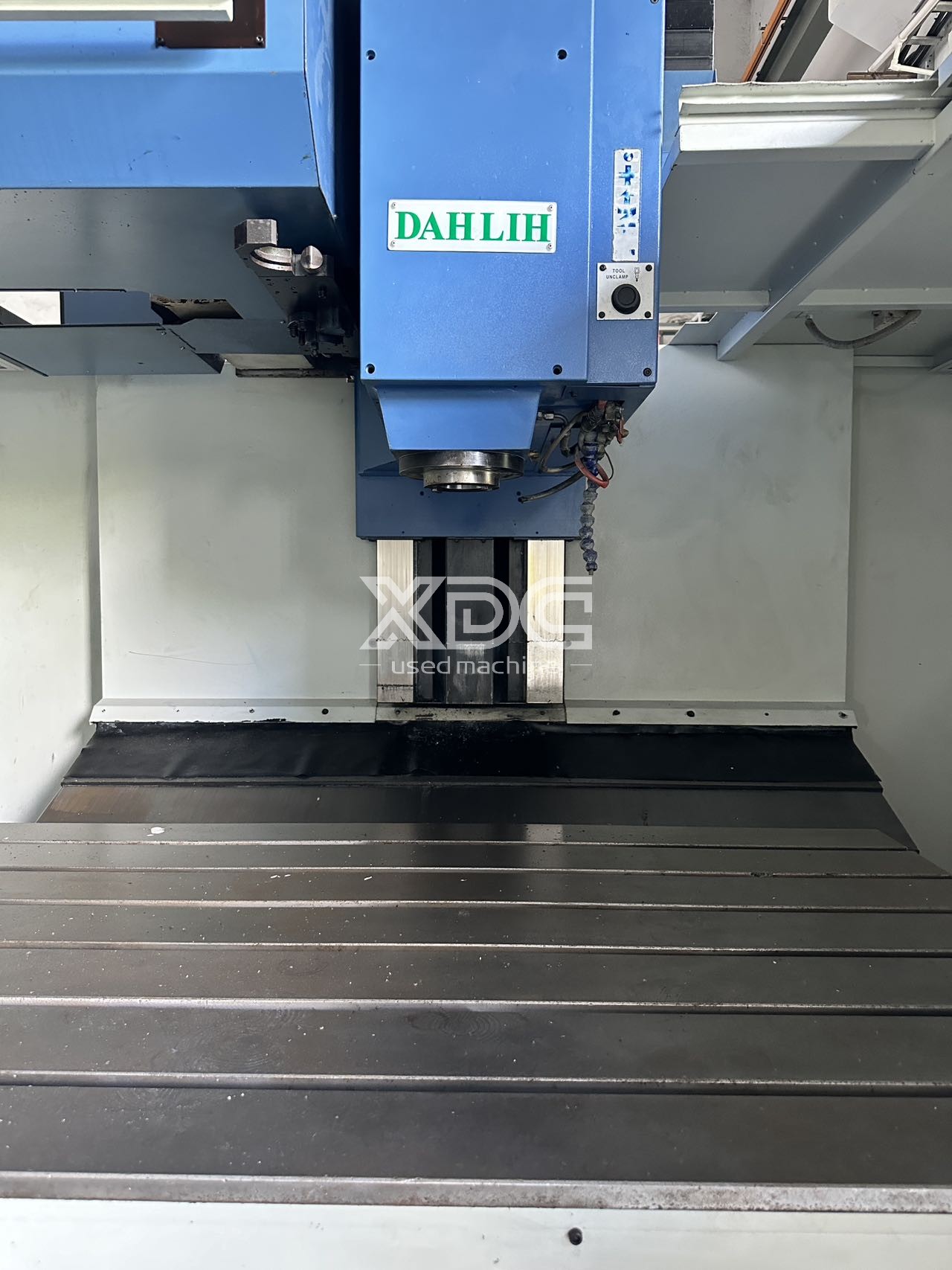

Original Taiwan DAHLIH MCV1700 machining center

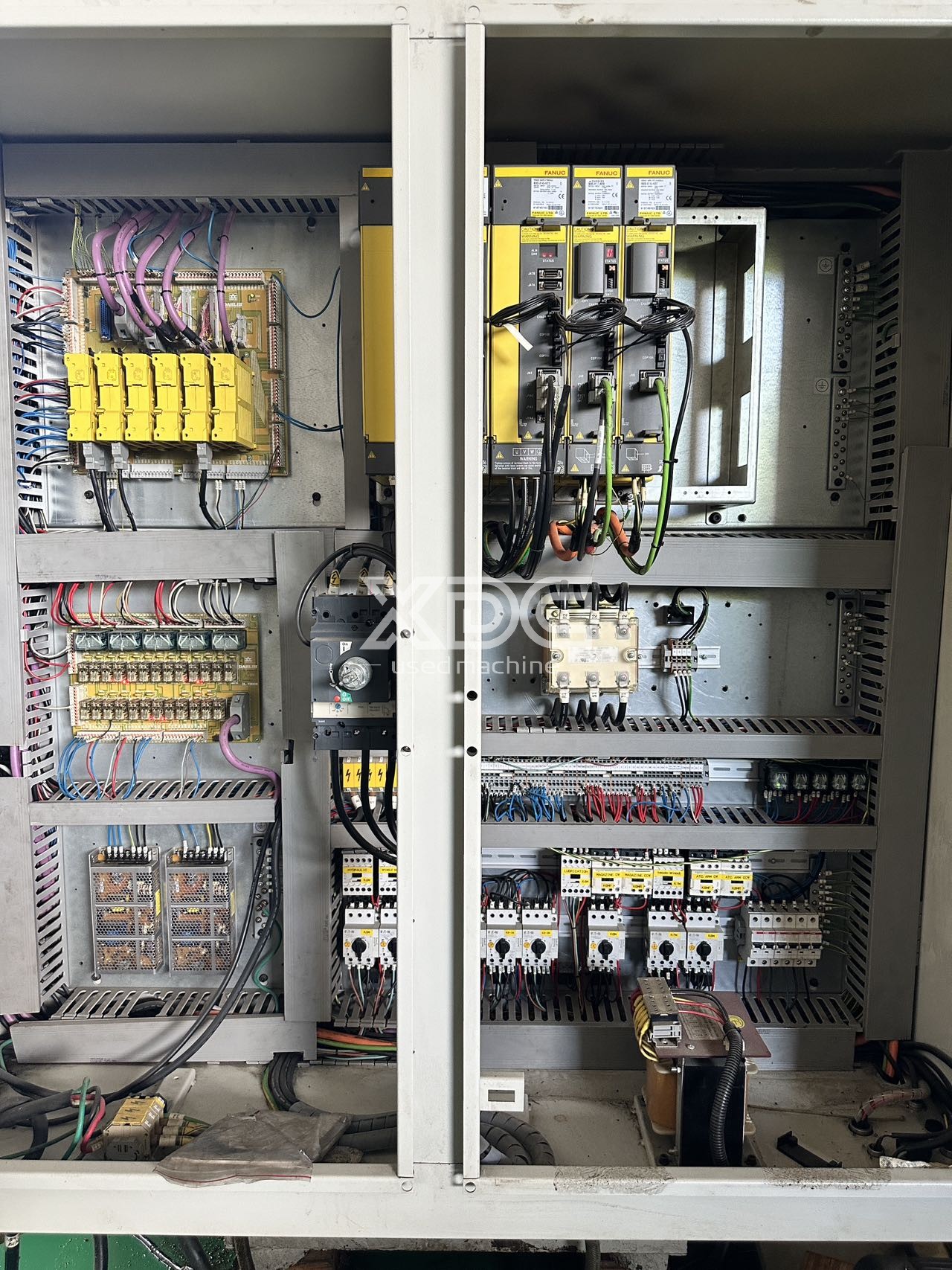

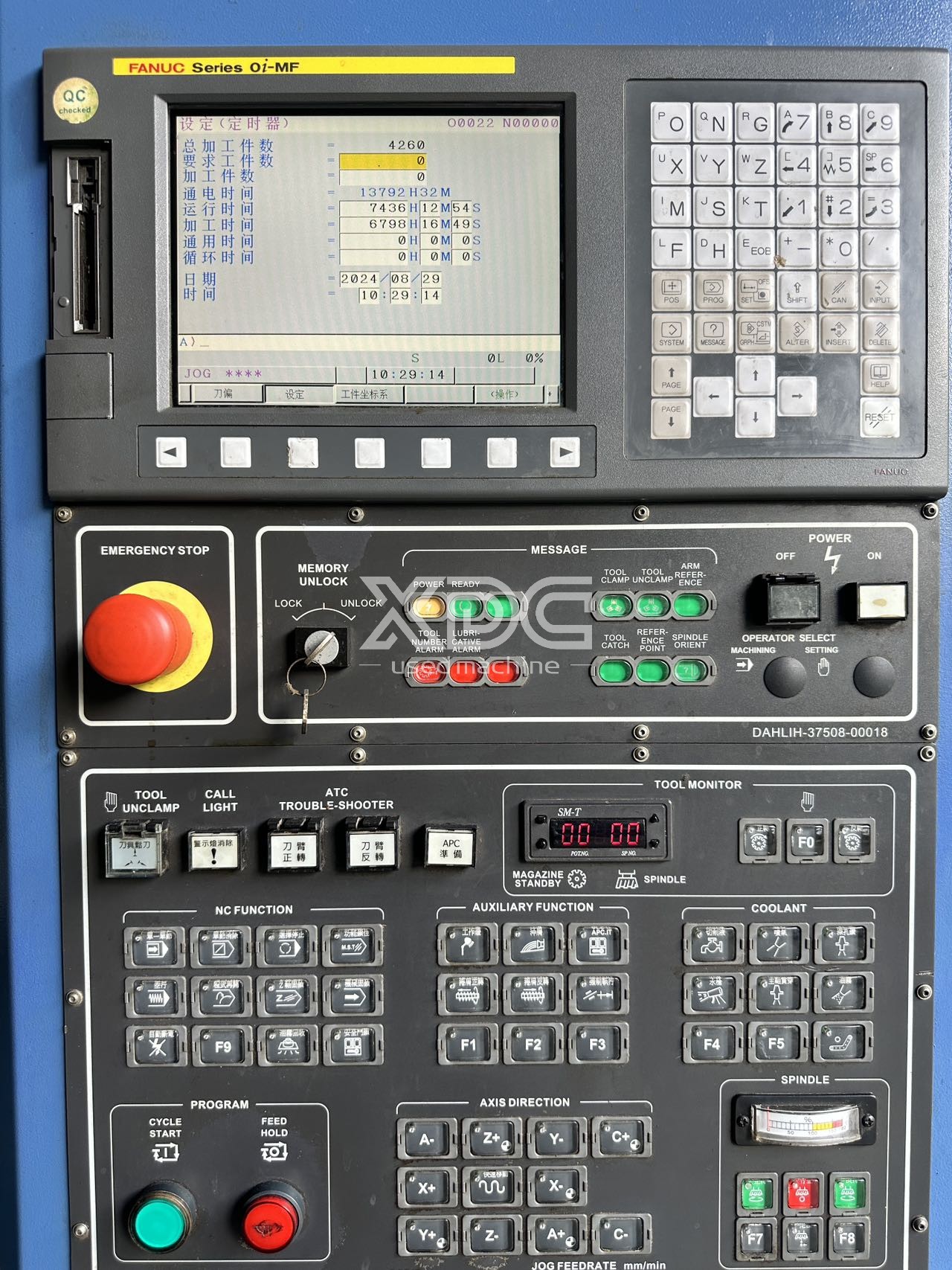

It is equipped with Fanuc MF system and one package of mold functions, with Fanuc drive.
The speed of the BT50 gear spindle is 6000 revolutions per minute.
The spindle power is 18.5 kilowatts, and it is equipped with a Habon oil chiller.

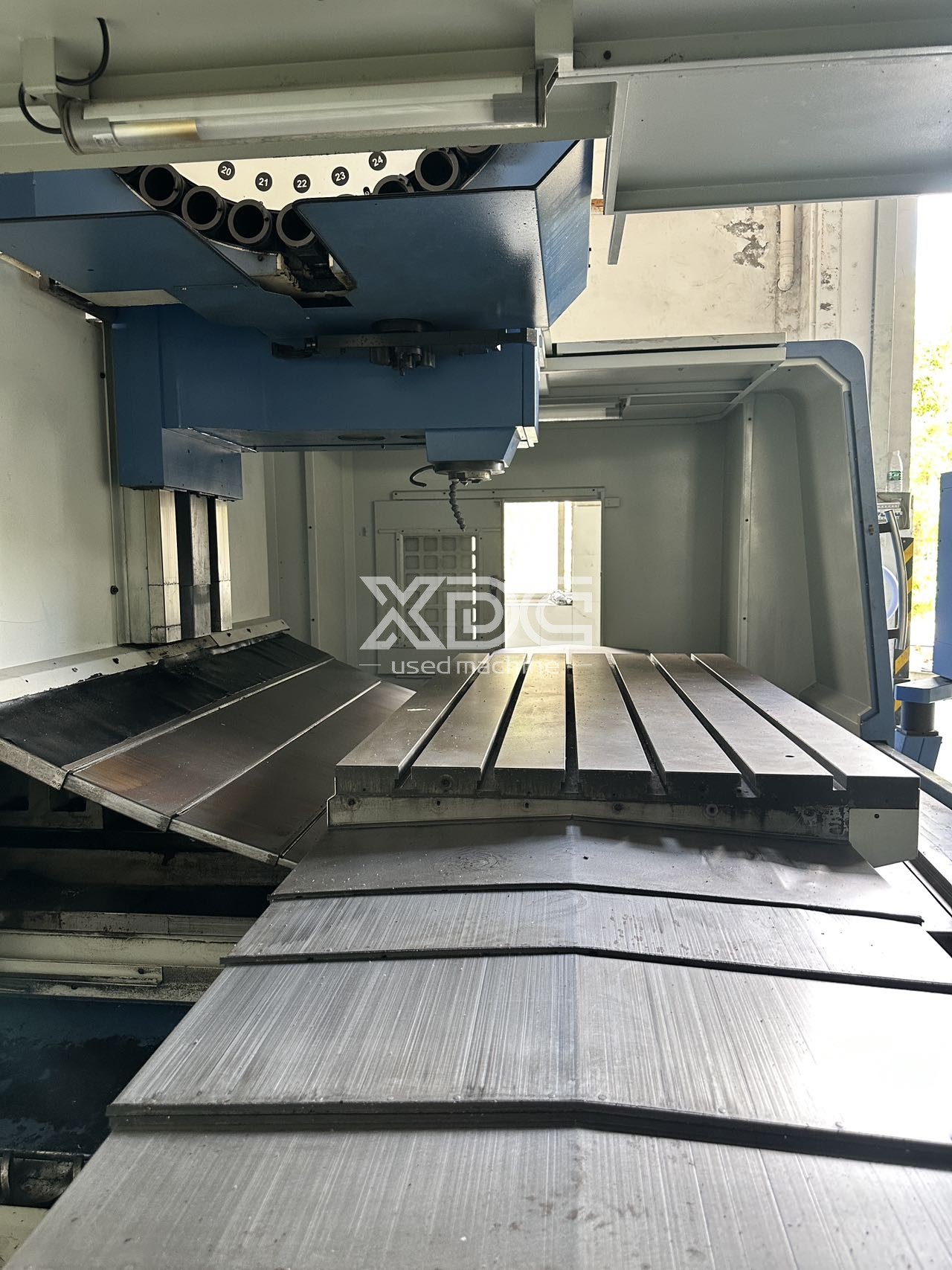

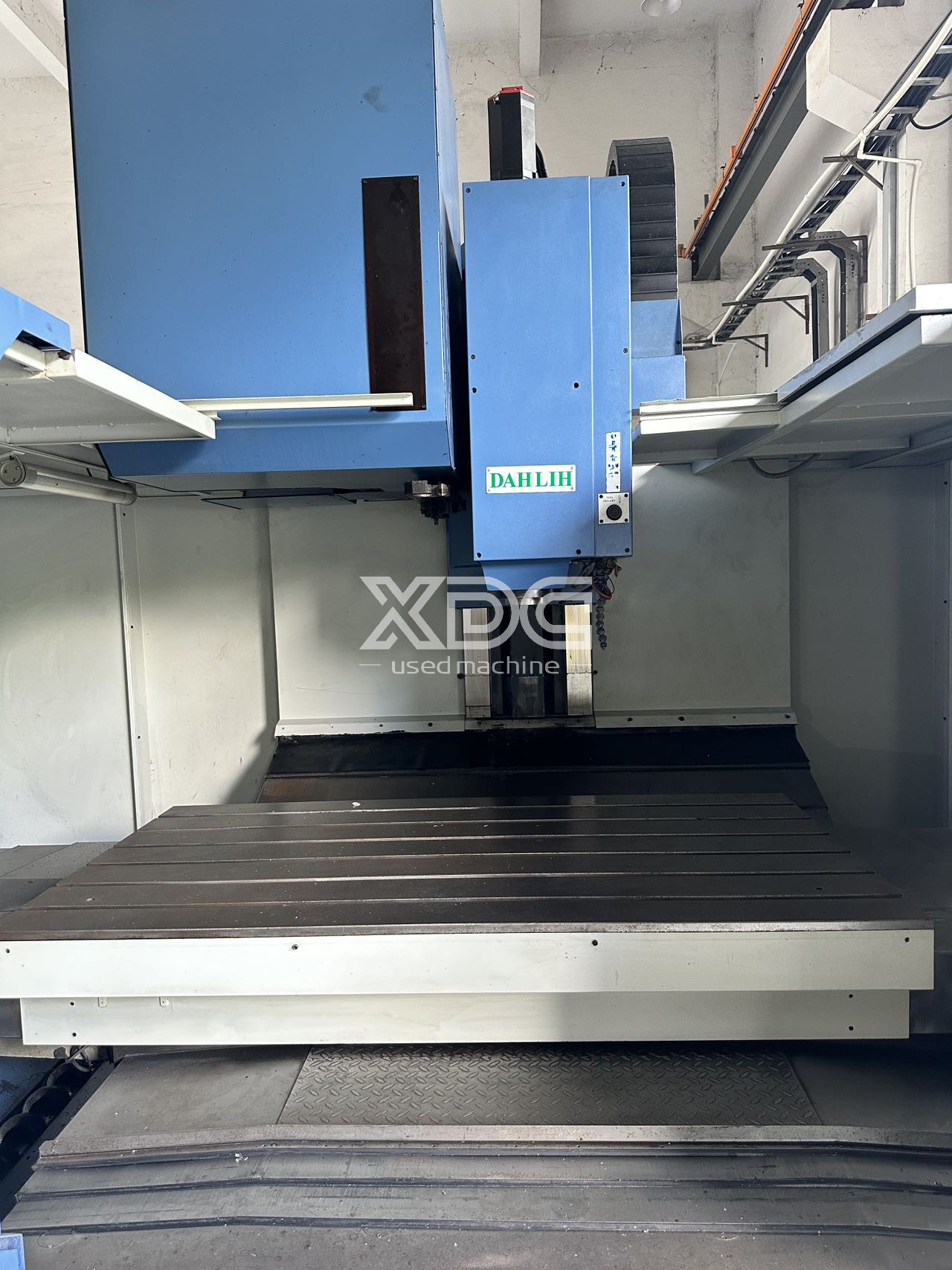

The size of the worktable is 1,900 x 1,010 mm.
The travel of the three-axis hardened rails is x1700 y800 z750mm.

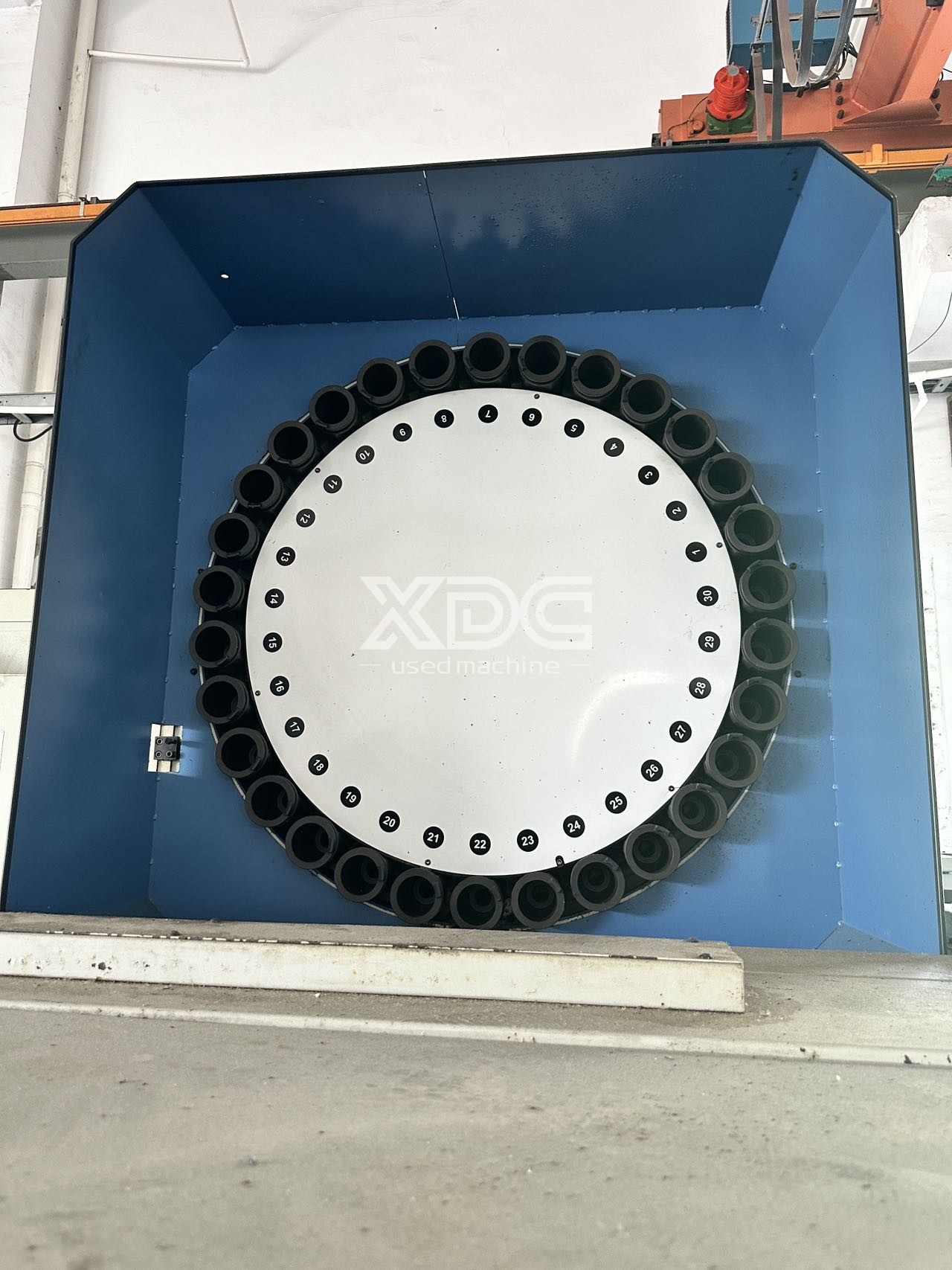

It has an arm-type tool magazine with 30 tools and three-axis mirror surface guide rails.
It is equipped with a chain-type chip conveyor and a nitrogen balancing device.

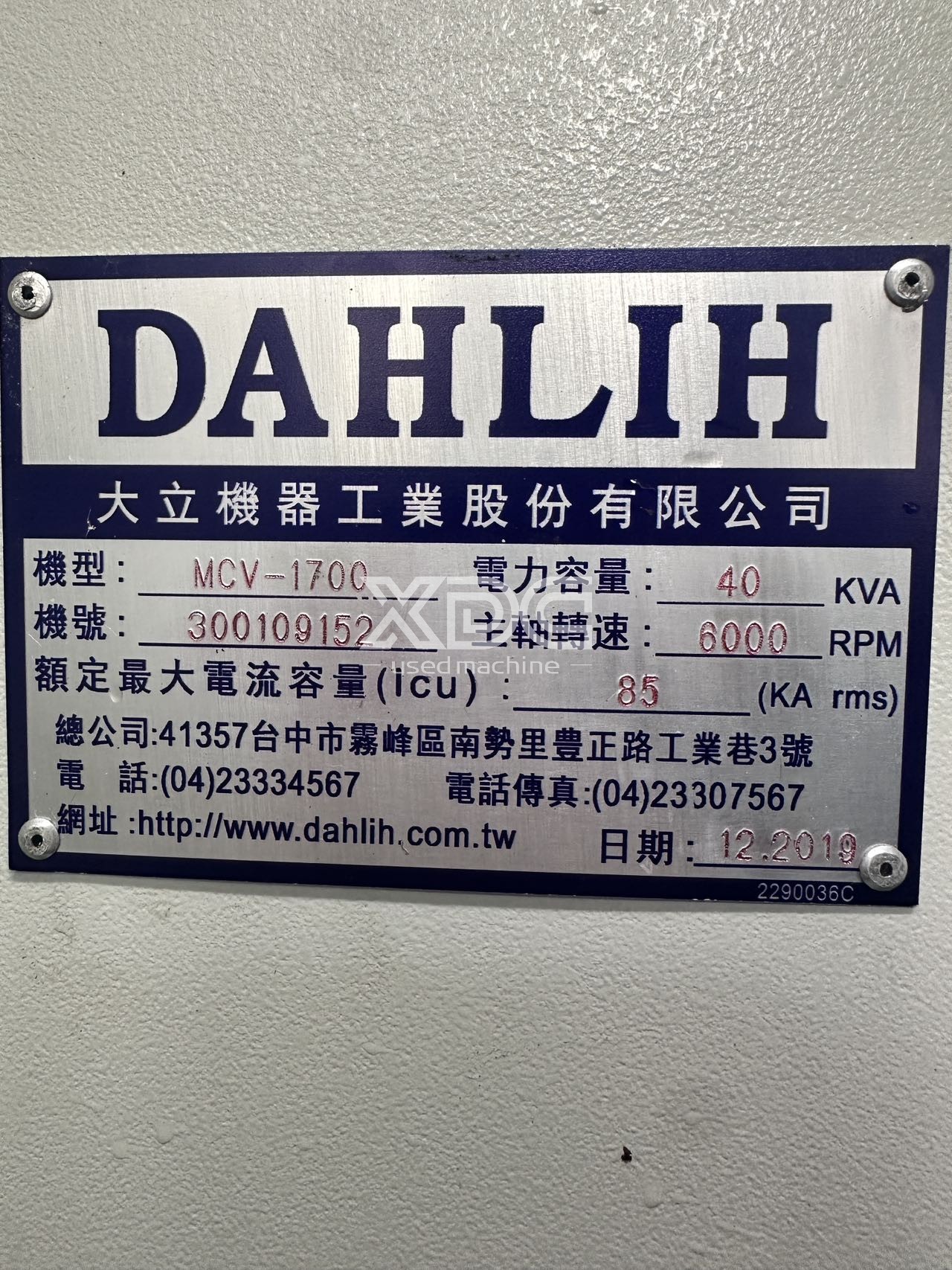

It was manufactured in December 2019.
