Brand: Universal Industrial Machinery
Model: dhd1512-15M

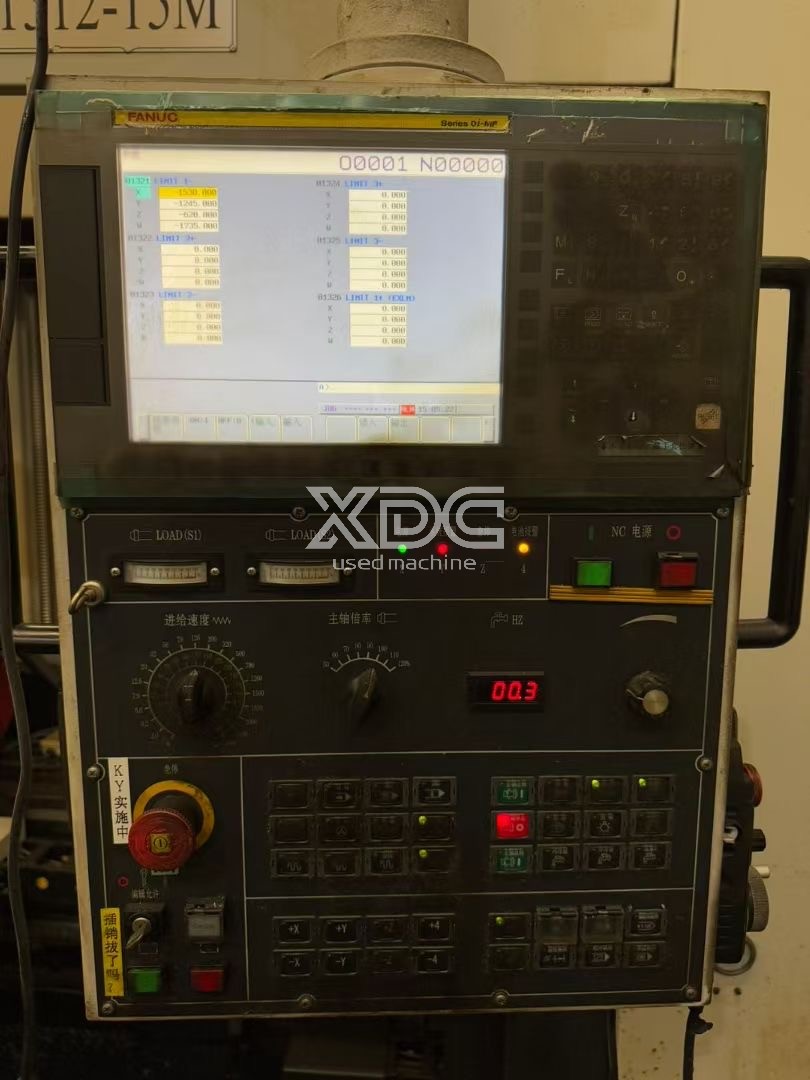

System: FANUC Series 0i-MF

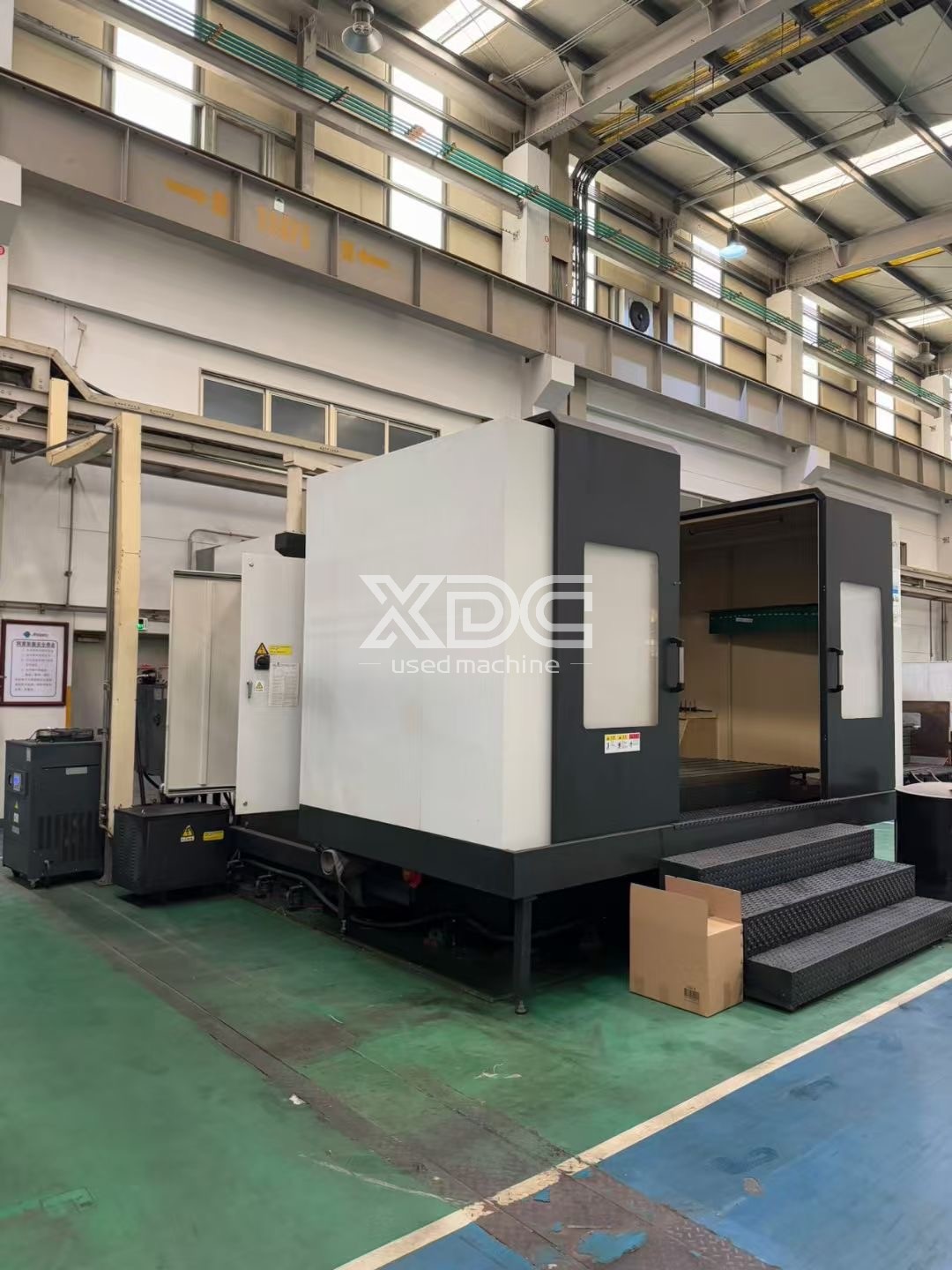

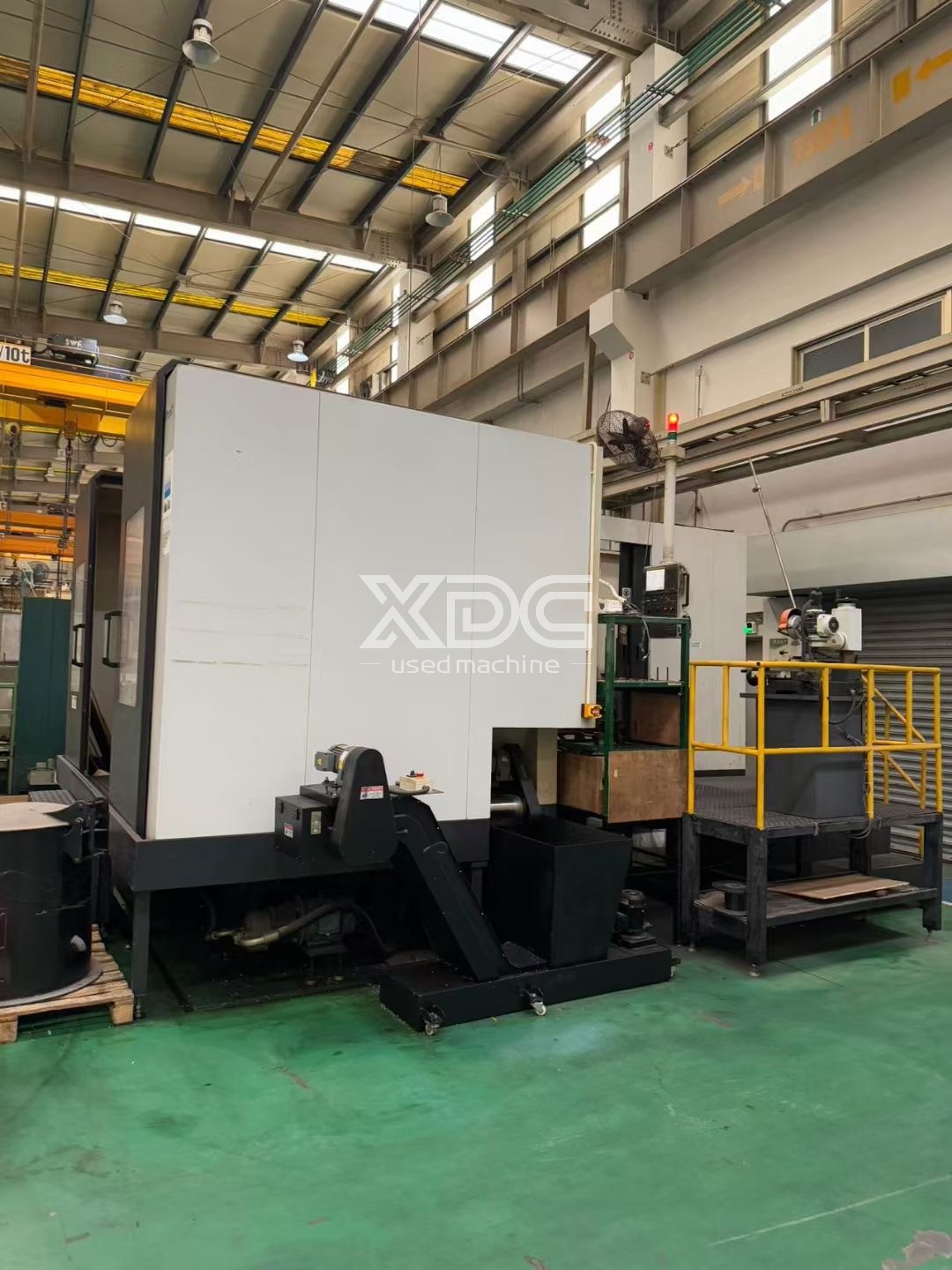

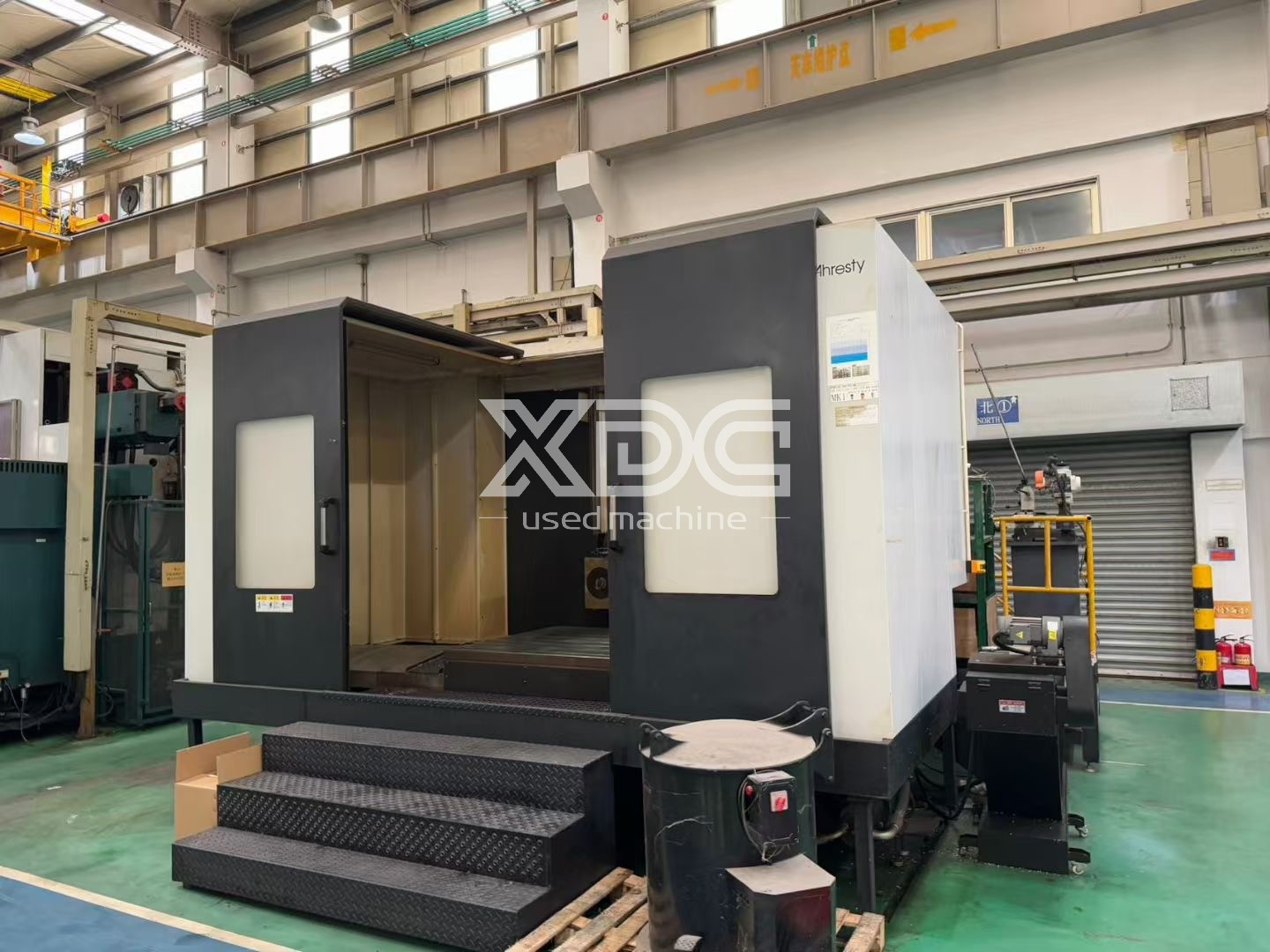

It is a high-efficiency and precision CNC deep hole drilling machine,
with the following main parameters and characteristics:
Structural form: Horizontal horizontal type
Control form: Numerical control
Machining ability:
Machining hole diameter: 3~35 mm
Machining depth: 1500 mm
Machining stroke 3:
Left and right stroke of the worktable (X): 1500 mm
Up and down stroke of the spindle (Y): 1200 mm
Ram stroke: 600 mm
Machining speed 3:
Maximum spindle speed: 6000 rpm
Spindle feed rate: 0~3000 mm/min
Power:
Spindle motor: 7.5 kW3
Worktable feed motor (X): 28.4 N·m
Product Description
