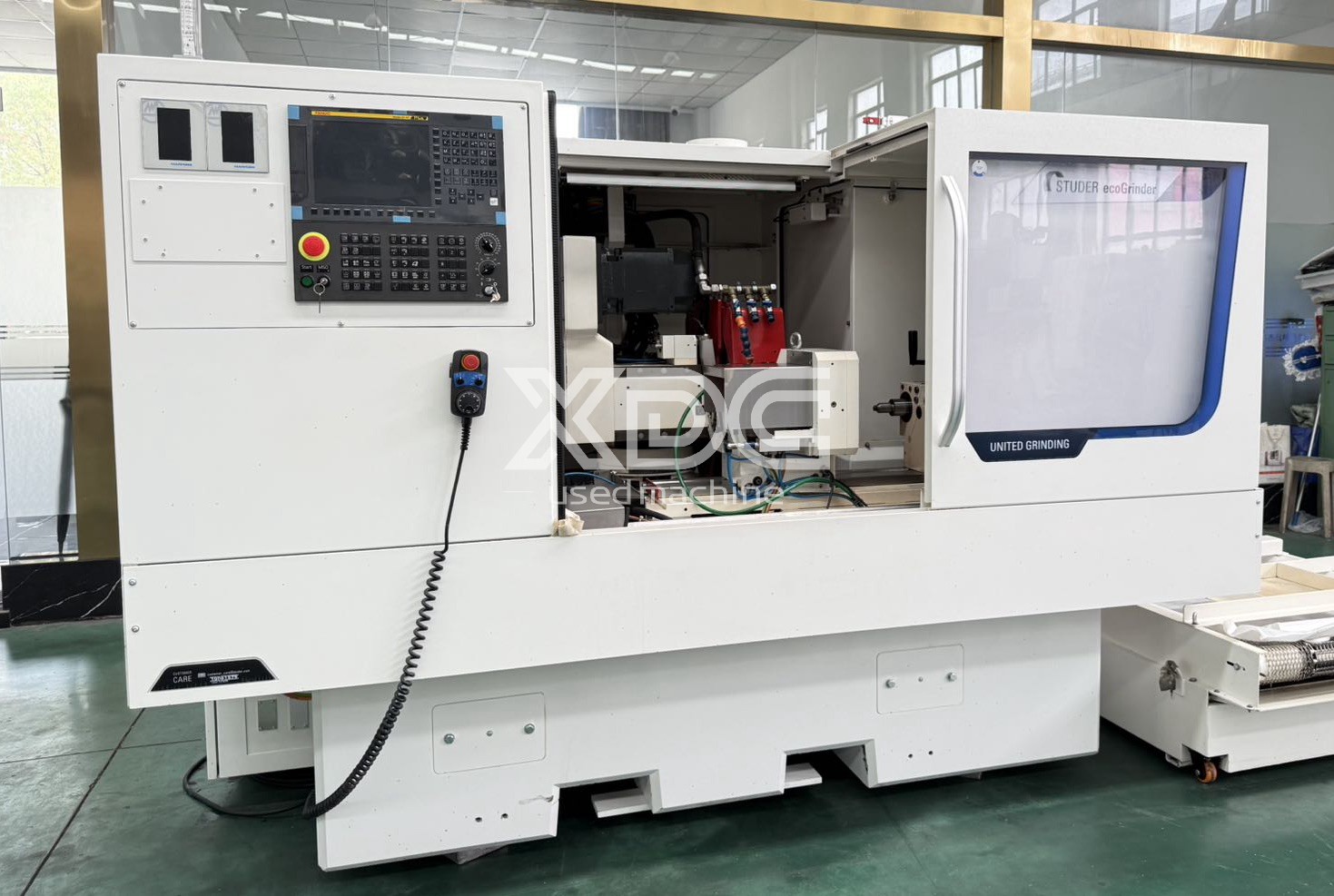

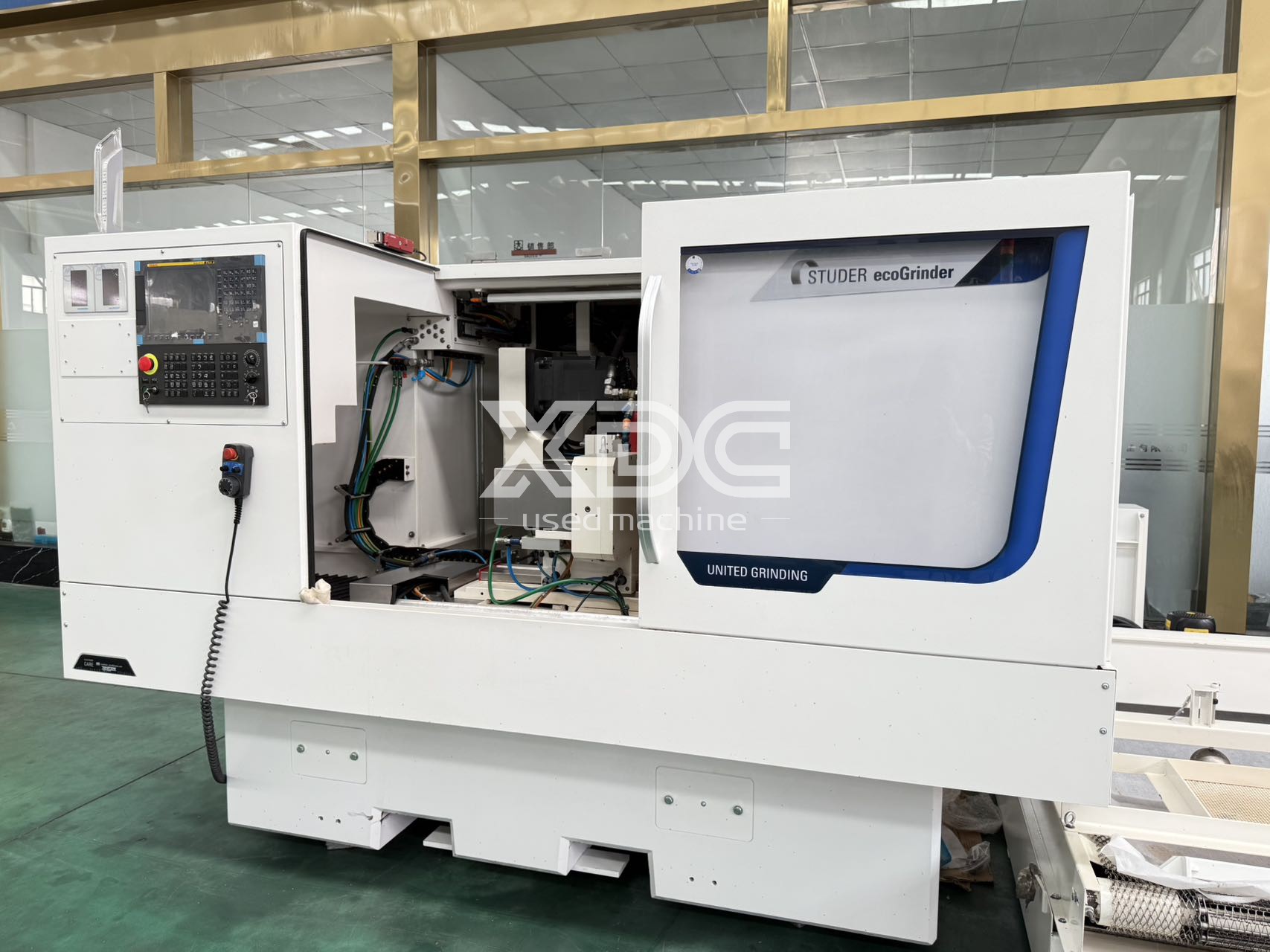

Studer CNC Universal Internal and External Circular Grinding Machine ecoGrinder
Center distance: 650mm, center height: 175mm
Workpiece load-bearing capacity: 80kg

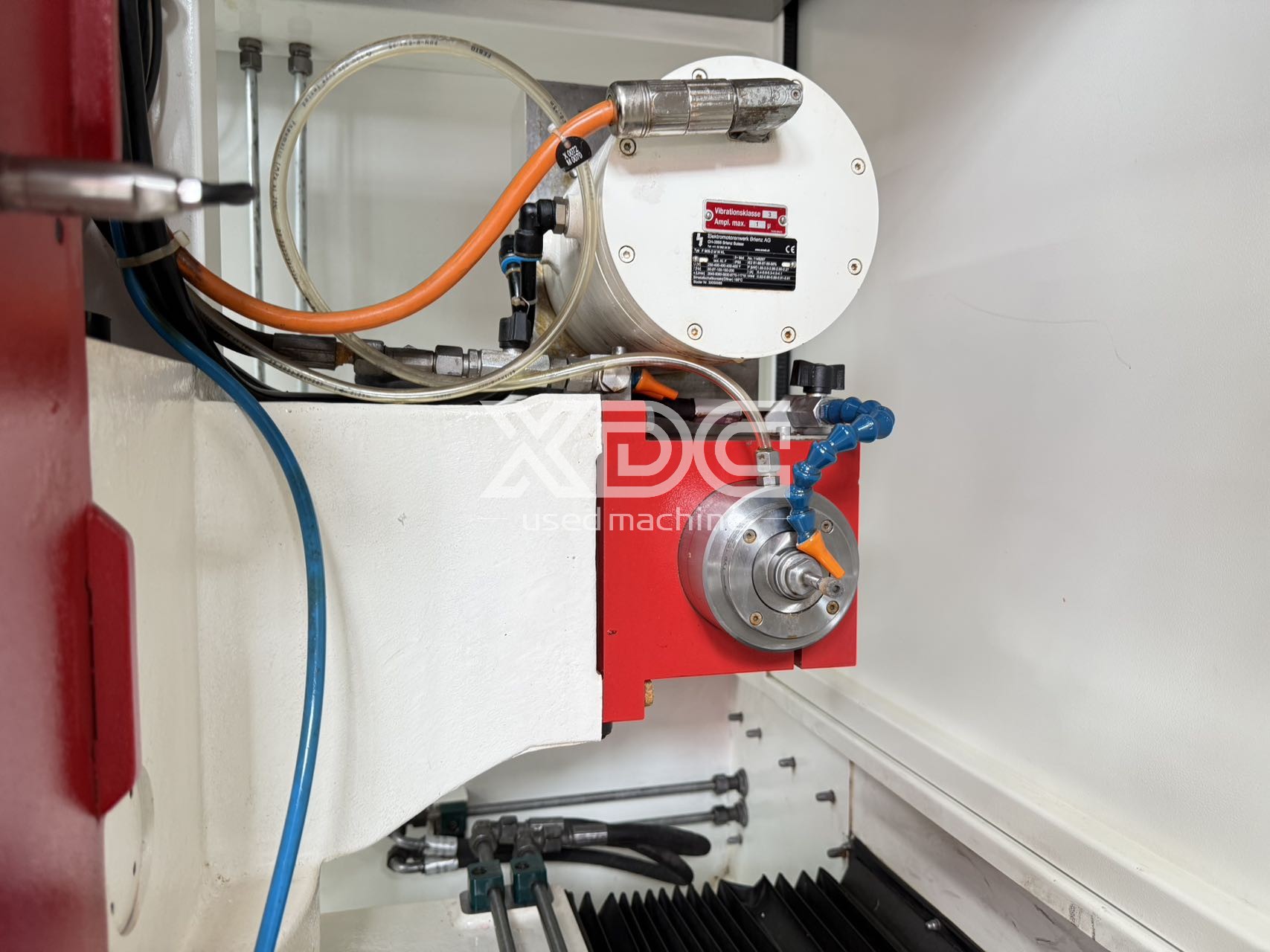

Internal grinding wheel spindle with a speed of 60,000 revolutions per minute (lubricated by oil mist)
B1 rotary axis: -15°～+195°
Workbench rotation: 8.5°

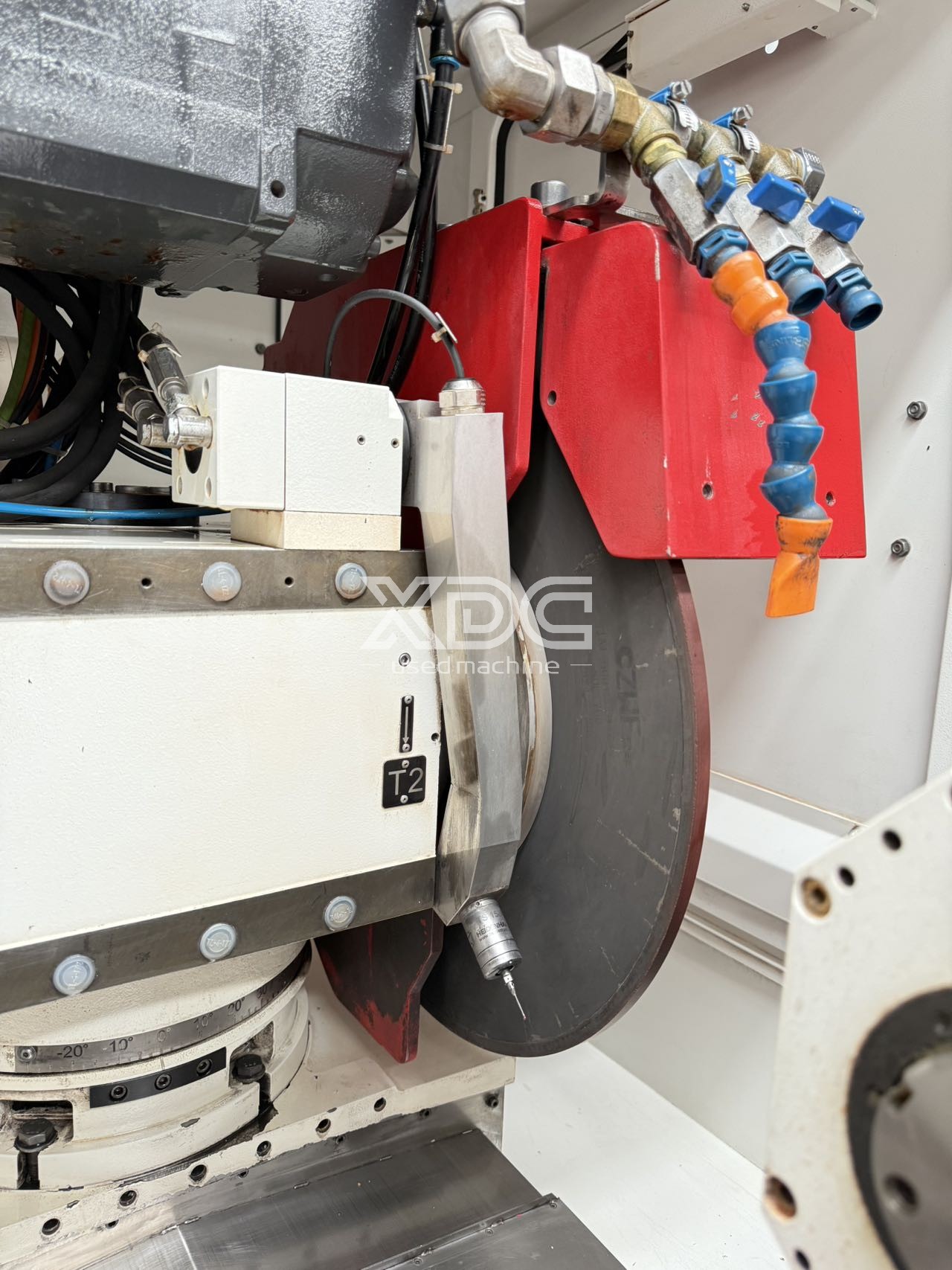

Diameter of the grinding wheel: 500*63*203mm
Roundness of the spindle during grinding: 0.0004, straightness: 0.0025mm

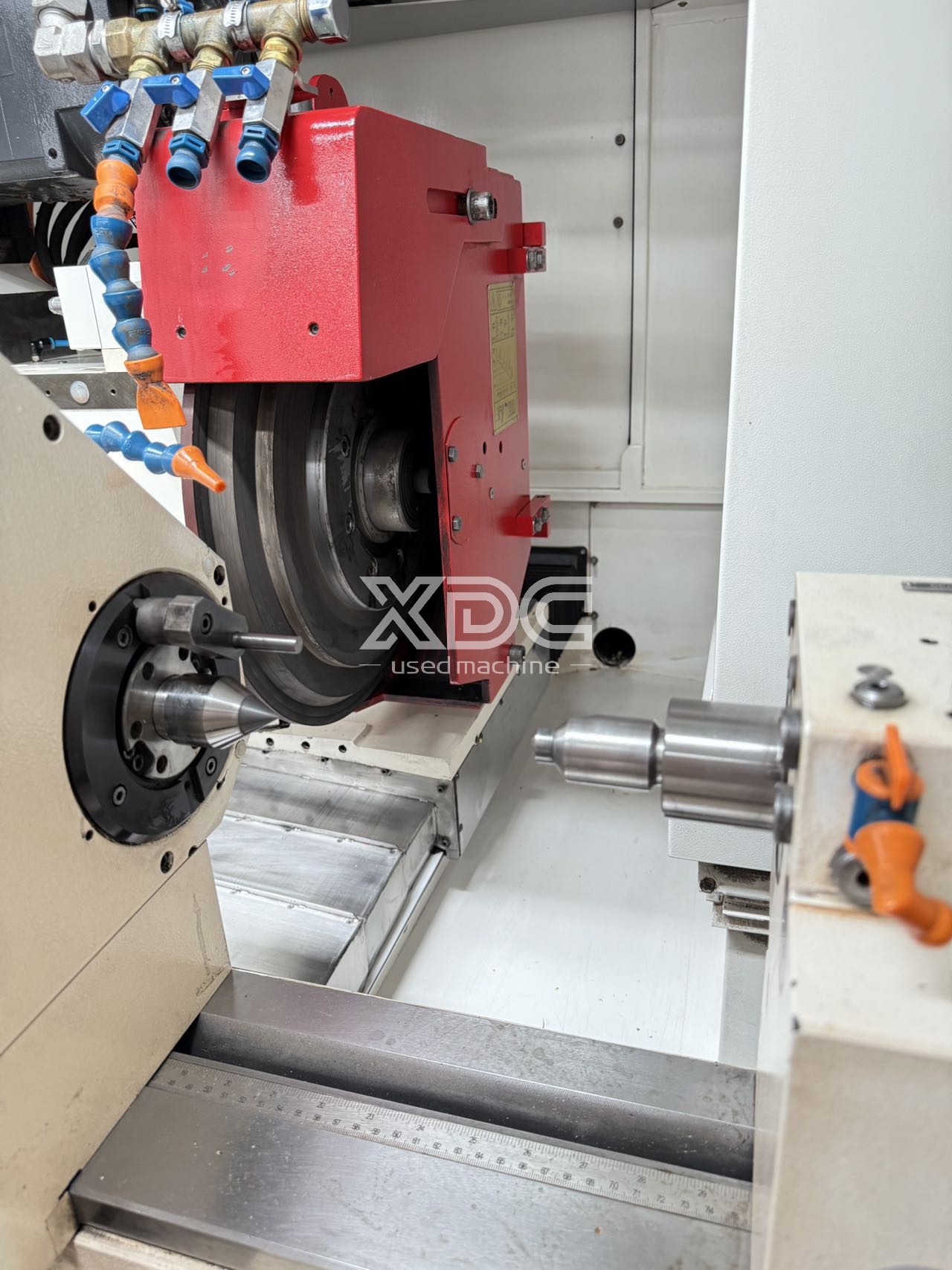

Configuration: Double grinding heads for internal and external circles,
granite bed, taper fine-tuning tailstock MT3, workpiece headstock MT4/70, Fanuc control system,
Studer GRIND programming software, Marposs plunge detection/dynamic balance detection,

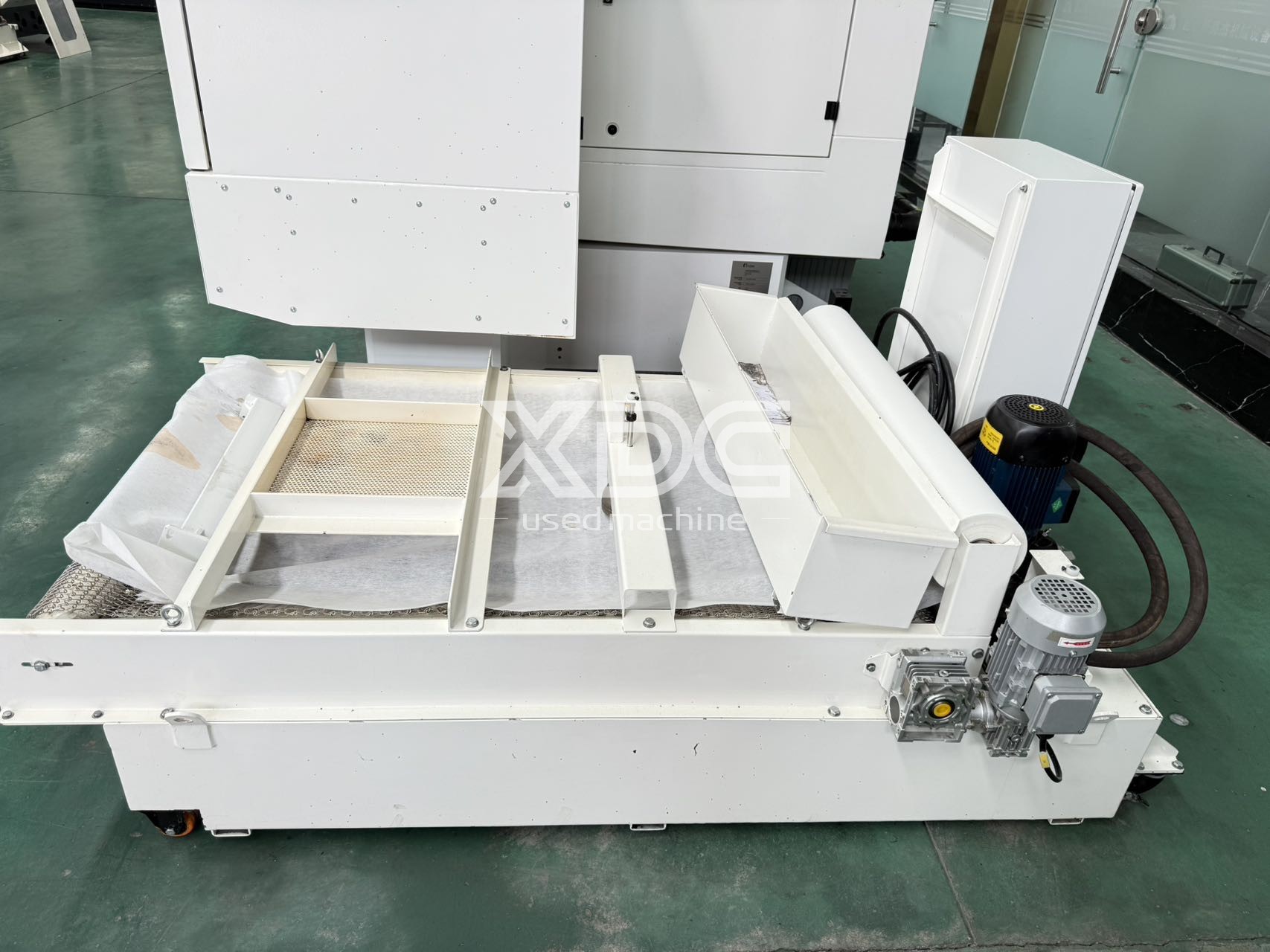

Heidenhain end face detection, and paper tape filtration system.

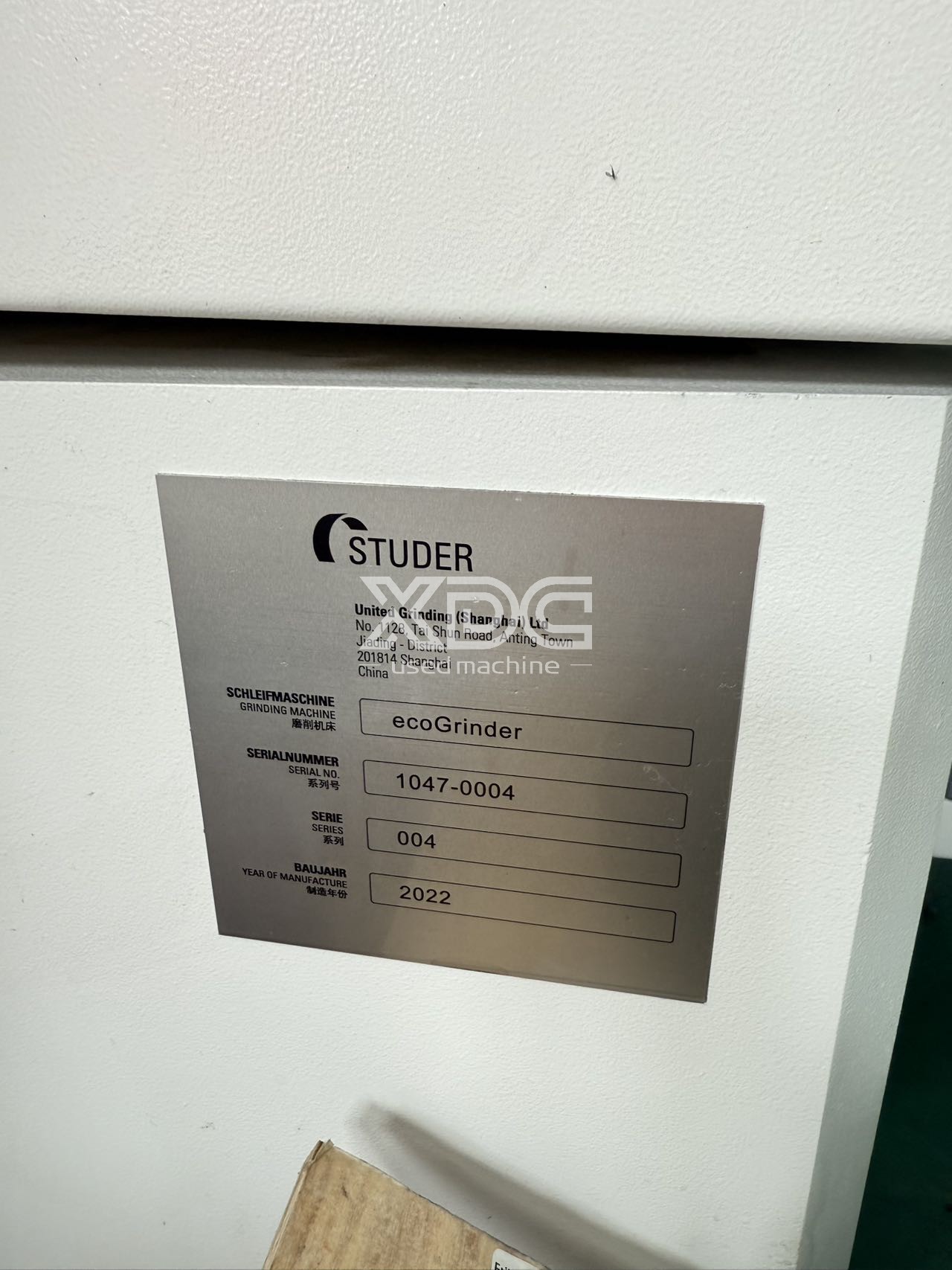

Date of manufacture: 2022, put into use in 2024.
